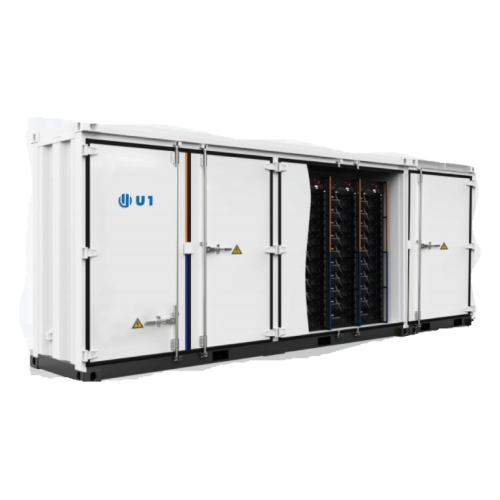

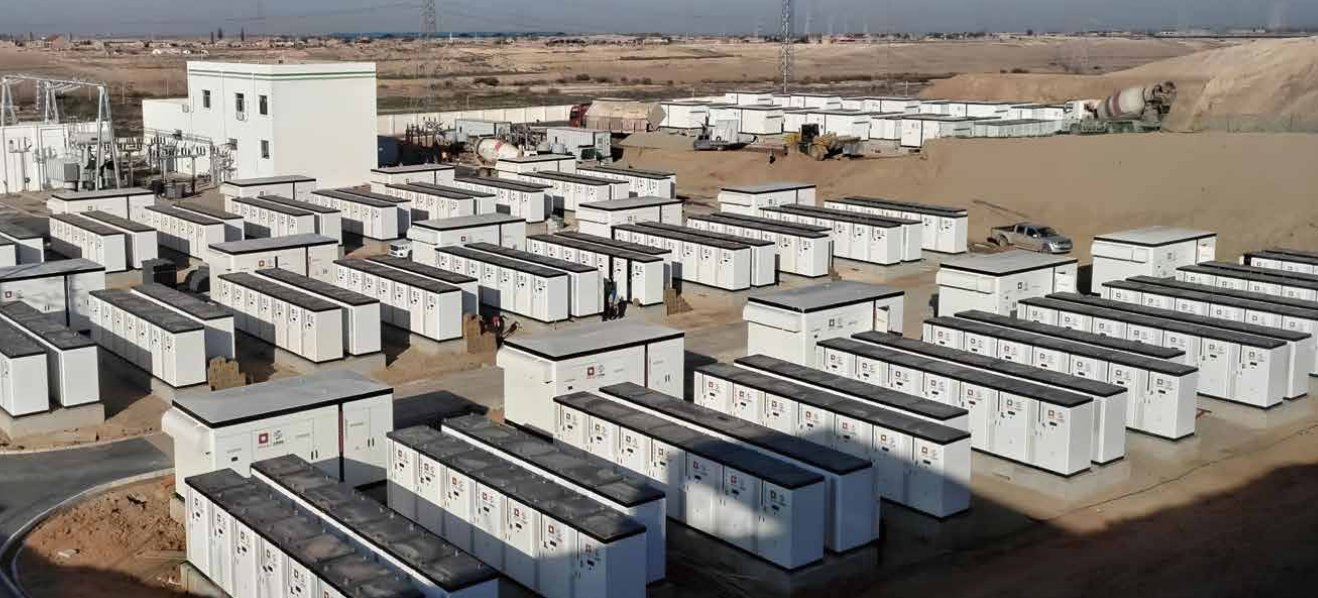

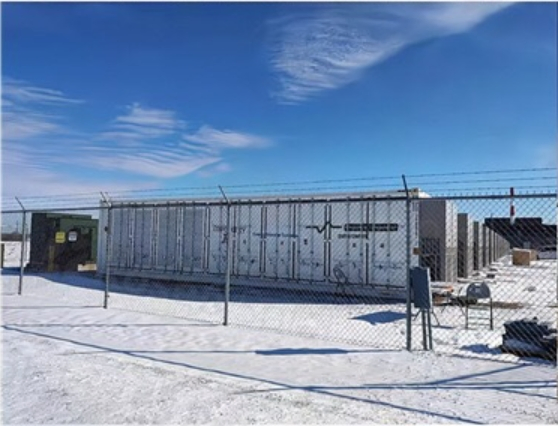

Reliable Industrial Energy Storage Solutions with IP55 Rating

Customization: Available
Container Size: 6250*2896*2438 mm
Weight: 42t

Product Description

Basic Information

Model NO.
U1-SP-5015
Nominal Voltage
1040V-1497.6V
Warranty
3 years
Nominal Capacity
2507.98 Kw
Cycle Life
8000 times
Battery Type
LiFePO4
Certification
ISO9001:2000, GB/T36276
Protection Grade
IP55 (Pack IP67)
Total Capacity
5015 Kwh
Package Weight
≤ 42 T
Size
6250*2896*2438 mm
Application
Power Plants / Industrial

Product Parameters

Industrial Energy Storage Solutions
  • Nominal Capacity: 5015kWh
  • Battery Cell: 314Ah (LiFePO4)
  • Combination: 1P416S*12
  • Rated Voltage: 1040V - 1497.6V
  • Rated Power: 2507.98kW
  • Cycle Life: 8000 times
  • Conversion Rate: ≥90%
  • Operating Temp: Charge 0~50ºC / Discharge -30~50ºC
  • Fire Safety: PACK level + space proactive warning solution
  • Interface: CAN / Ethernet
  • Anti-corrosion: C4-M (C5-H available)

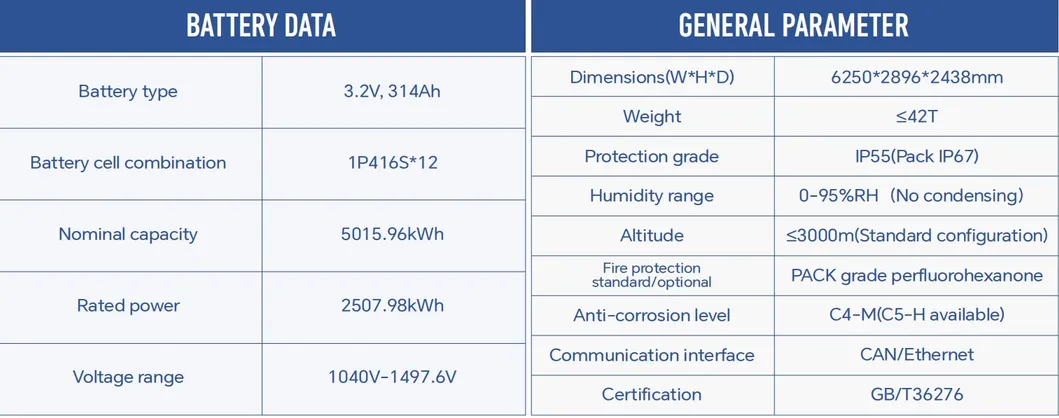

Parameter Chart

Detailed Photos

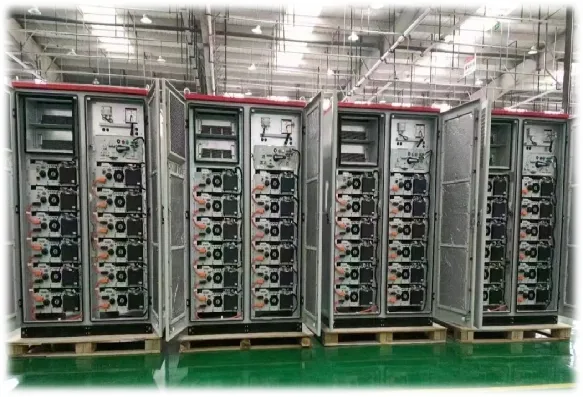

Energy Storage System Detail 1

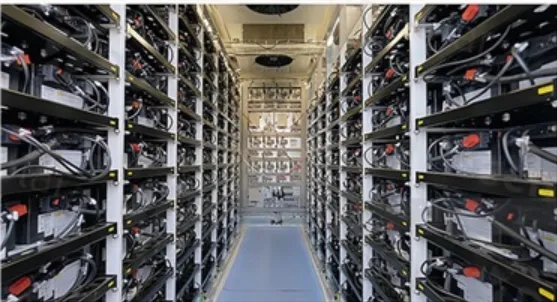

Energy Storage System Detail 2

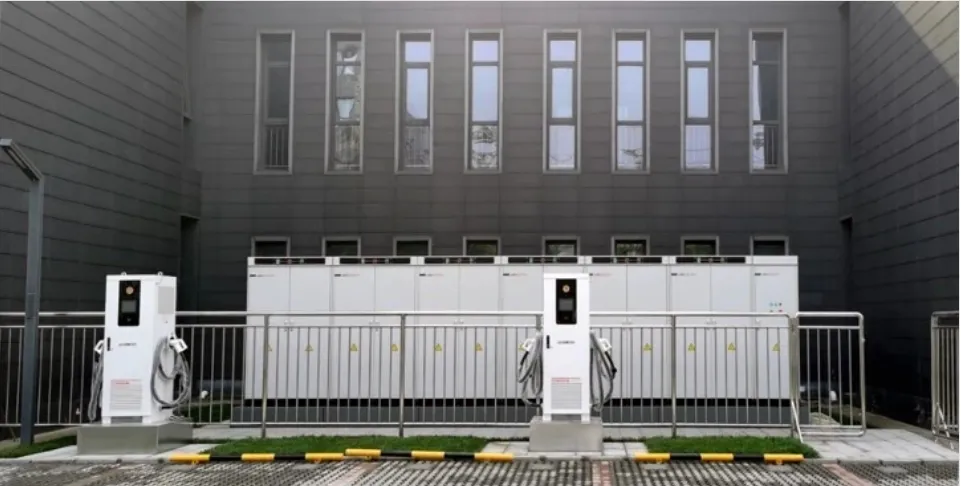

Energy Storage System Detail 3

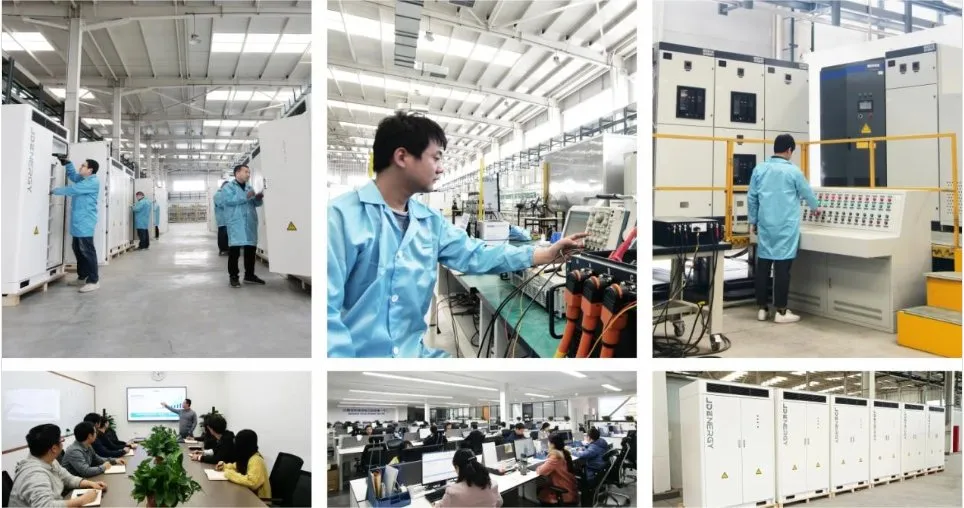

Energy Storage System Detail 4

Certifications

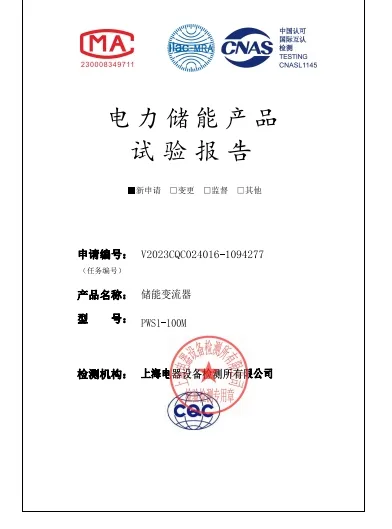

Certification 1

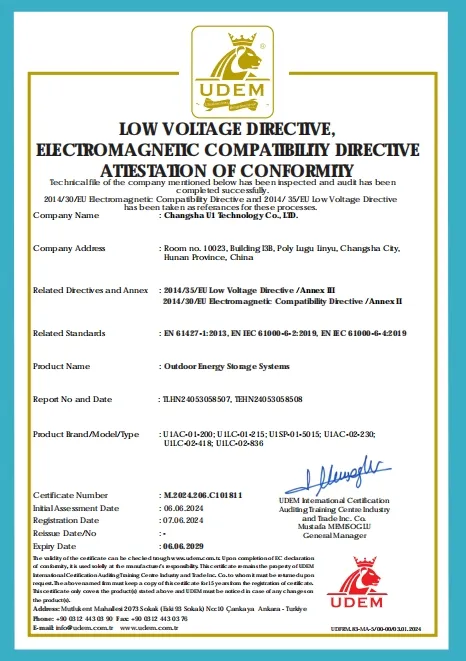

Certification 2

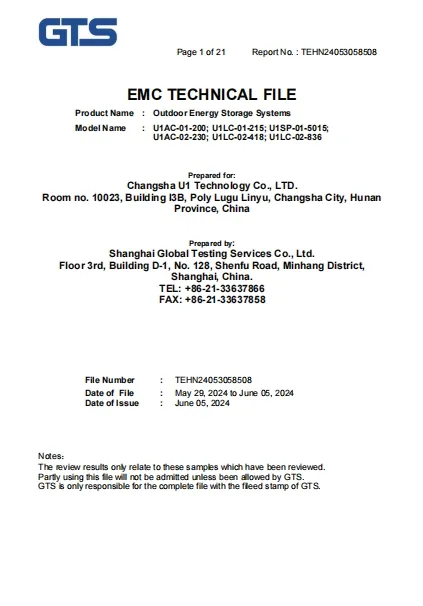

Certification 3

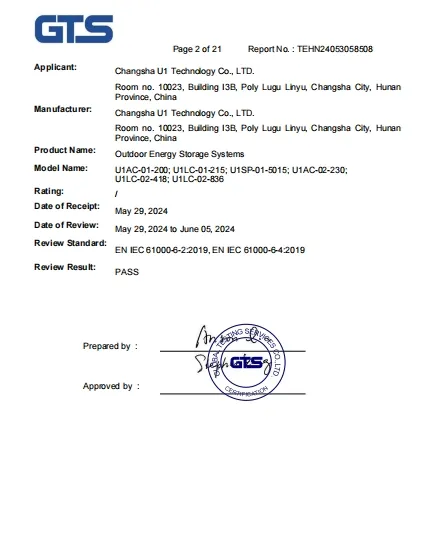

Certification 4

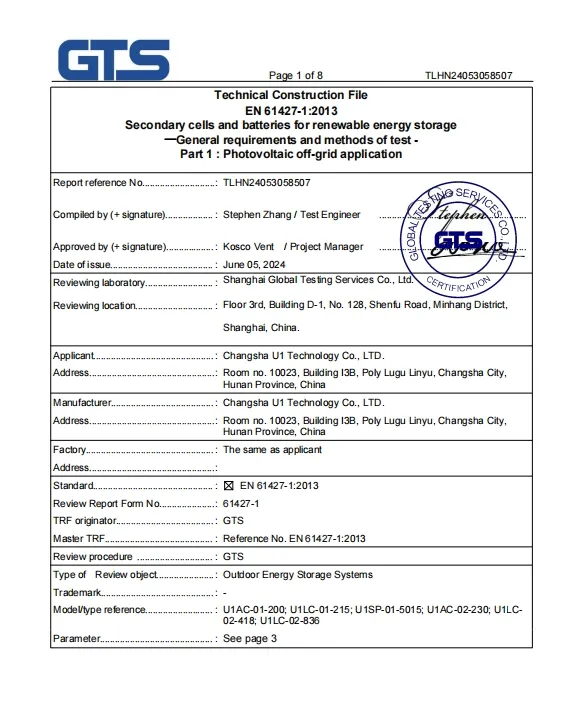

Certification 5

Frequently Asked Questions

What is the cycle life of the U1-SP-5015 energy storage system?
The system offers a long cycle life of 8000 times, ensuring durable and reliable performance for long-term industrial use.
What type of battery cells are used in this system?
It utilizes high-quality 3.2V 314Ah LiFePO4 (Lithium Iron Phosphate) cells, known for their safety and high energy density.
Is the system suitable for outdoor environments?
Yes, the system features an IP55 protection rating for the container and IP67 for the battery packs, making it robust against dust and water ingress.
What safety features are included for fire prevention?
The system includes a proactive warning fire-fighting solution implemented at both the PACK level and the overall space of the energy storage station.
What are the temperature requirements for operation?
The system supports charging between 0~50ºC and discharging between -30~50ºC, allowing for stable operation in various climates.
Does the system hold any official certifications?
Yes, the system is compliant with ISO9001:2000 and the GB/T36276 standard for energy storage in China.
