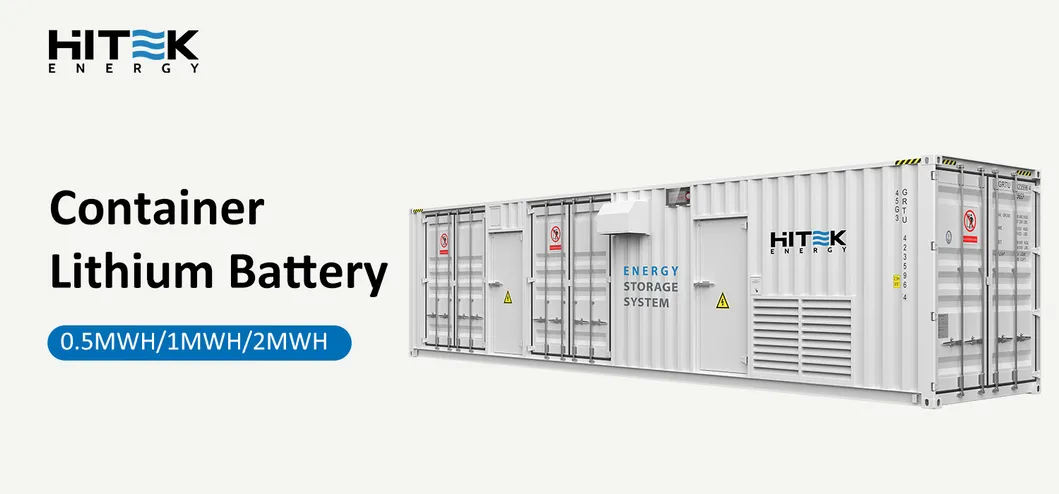

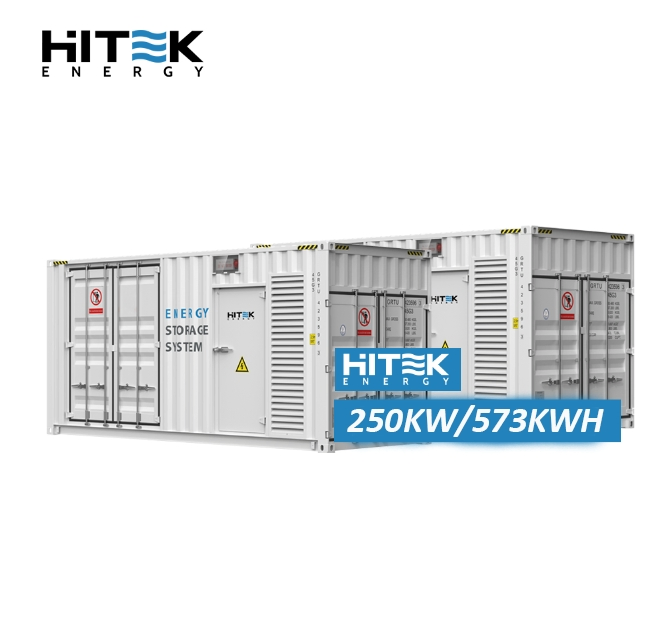

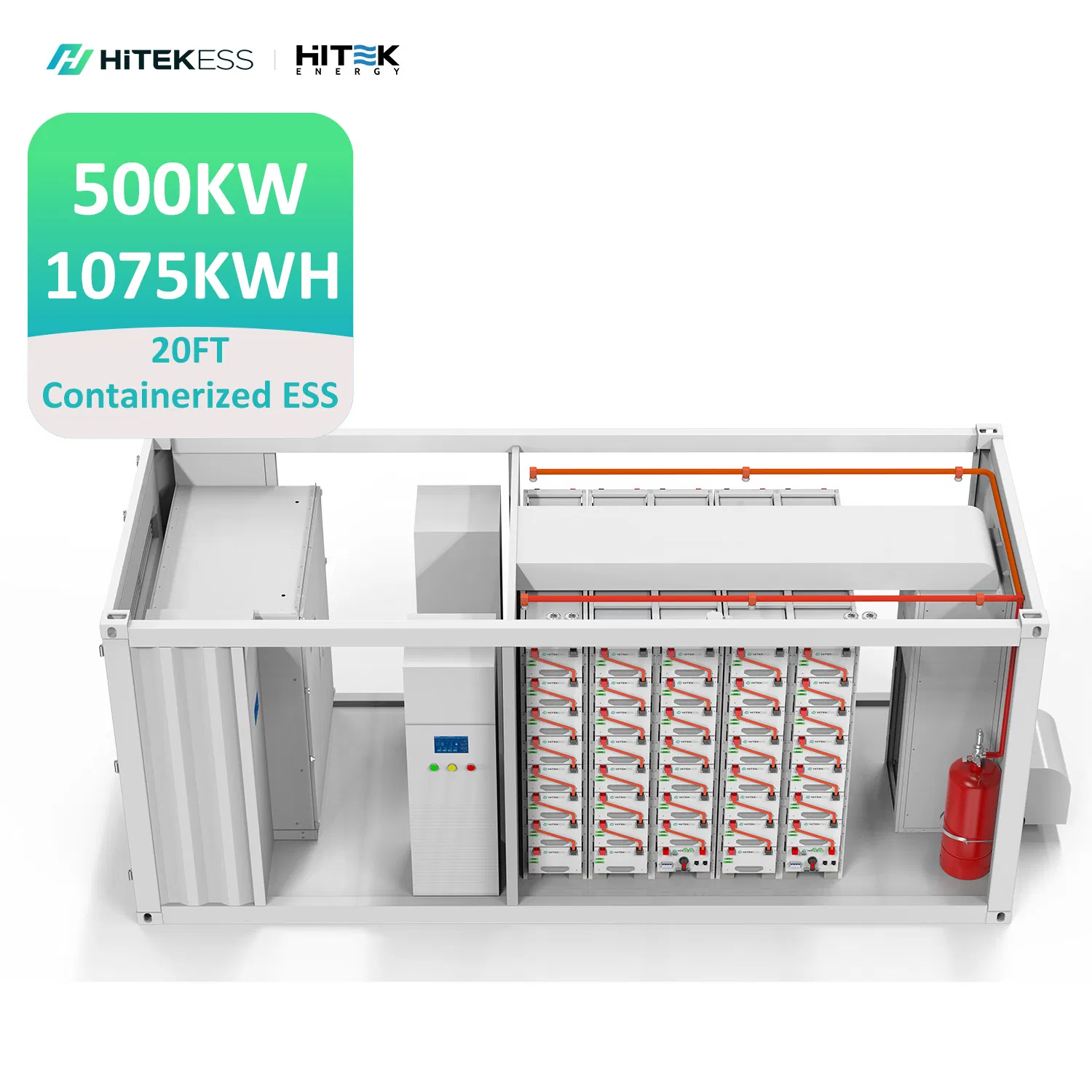

20FT Containerized Solar Solution

Customization:	Available
Container Size:	12192mm(L)2438mm( W)2591mm(H)
Weight:	22 Ton

Send Inquiry

Product Description

Overview & Basic Information

Model NO.

HT-500/1000-EC

Nominal Voltage

380/400/415/480V 3 Phase

Warranty

5 Years

Nominal Capacity

250kwh, 500kwh, 1mwh, 2mwh

Cycle Life

6000+ Cycles

System Application

ESS Solar Storage Container

Battery Type

LiFePO4 / Lithium Battery

BMS

Integrated Management System

Container Type

20FT Outdoor, IP54

Origin

China

Product Description

Working Modes: Ongrid mode (Zero Export, Load First, Battery First, Economy Mode, Peak Shaving); Offgrid Mode; Generator Connection (Optional).

Advanced BMS: Battery status monitoring (Record & Storage, Operation Control, Insulation Detection, Dynamic Balancing, Protection Alarms).

PCS Features: Wide Range of DC Input Voltage, Short Conversion Time from Charge to Discharge.

Integrated Systems: Complete Fire Protection and Air Conditioning systems included.

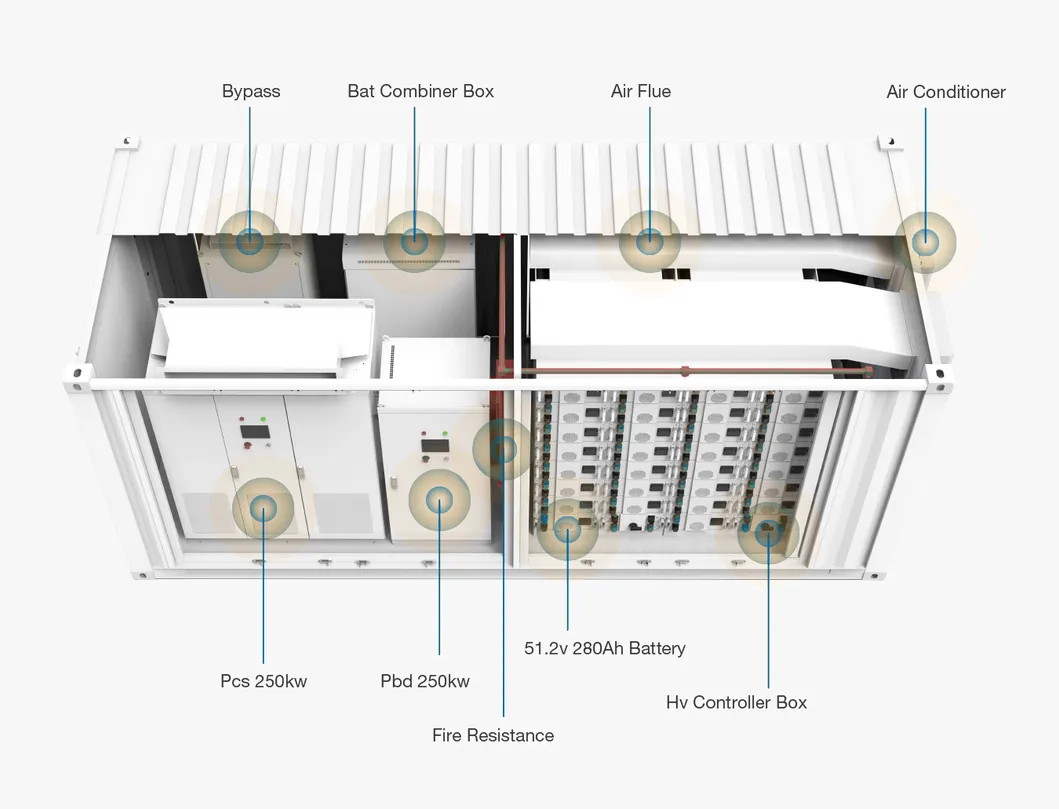

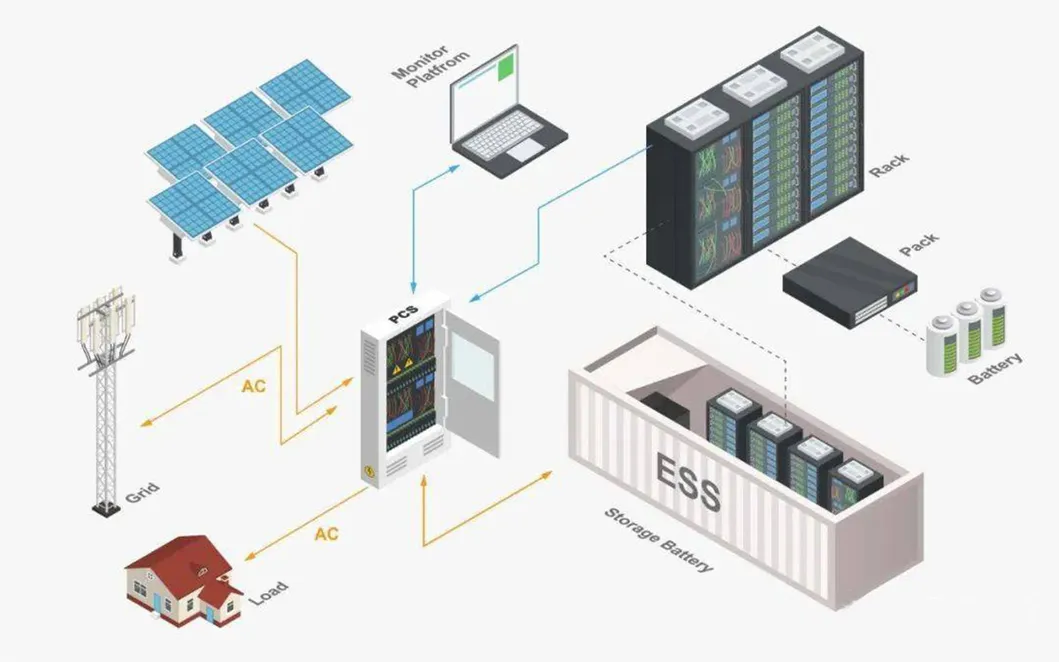

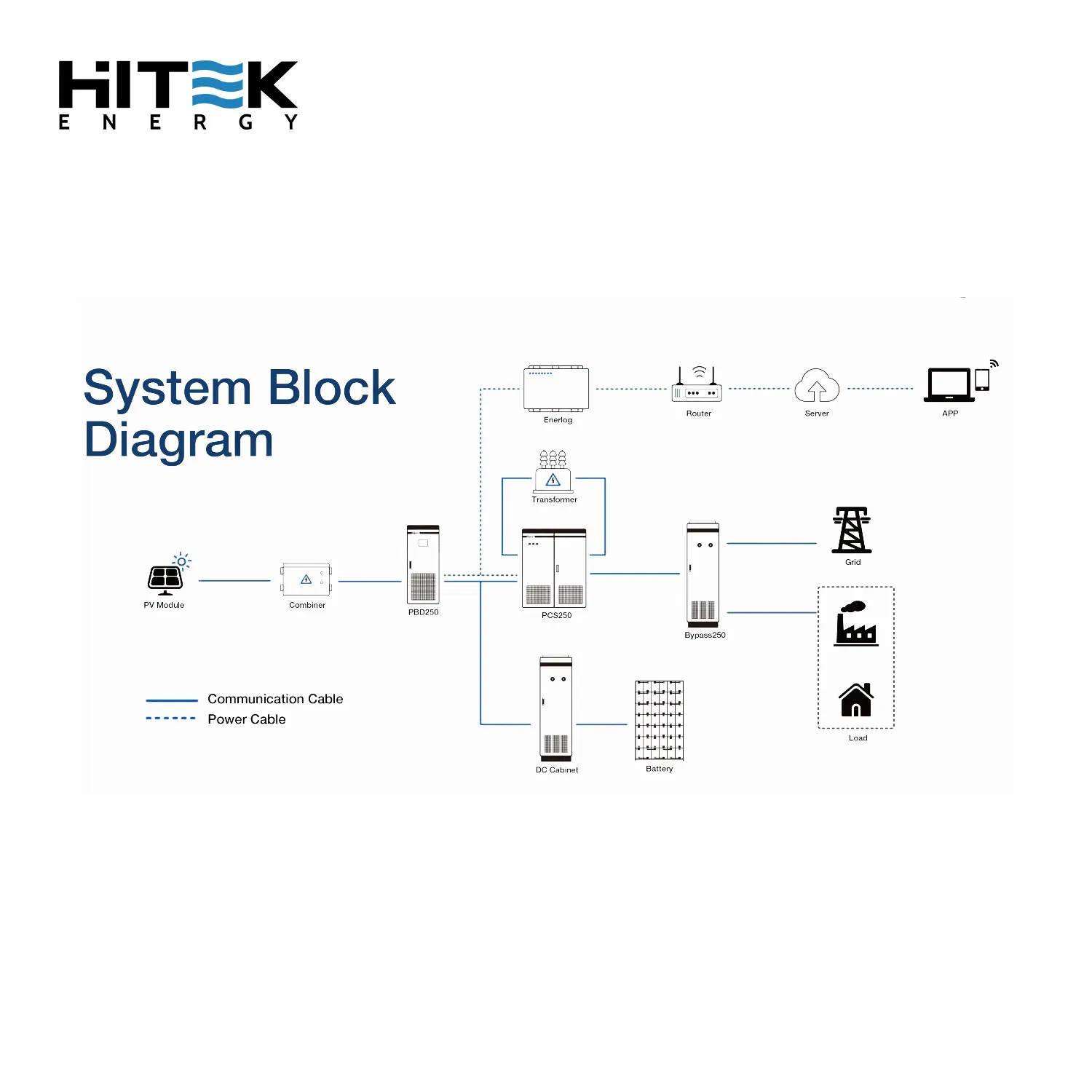

System Configuration

Item	Description	Qty	Remarks
PV Solar Panel	HT560M-72H	960	537.6KW Total
Battery Module	280Ah Lithium	150	51.2V 280AH (14.3kWh per unit)
Controller	1500V 300A	15	High Voltage Controller Box
PBD250	Charge Controller	2	250kW solar charge controller
PCS500	Inverter	1	250kW battery inverter
20FT Container	Enclosure	1	IP54, Lighting, Fire-resistance, HVAC

Product Parameters

PERC Mono Solar Panel

Model: HT560M-72
Peak Power: 560Wp
Vmp: 41.08V | Imp: 13.64A
Dimensions: 2279*1134*35mm

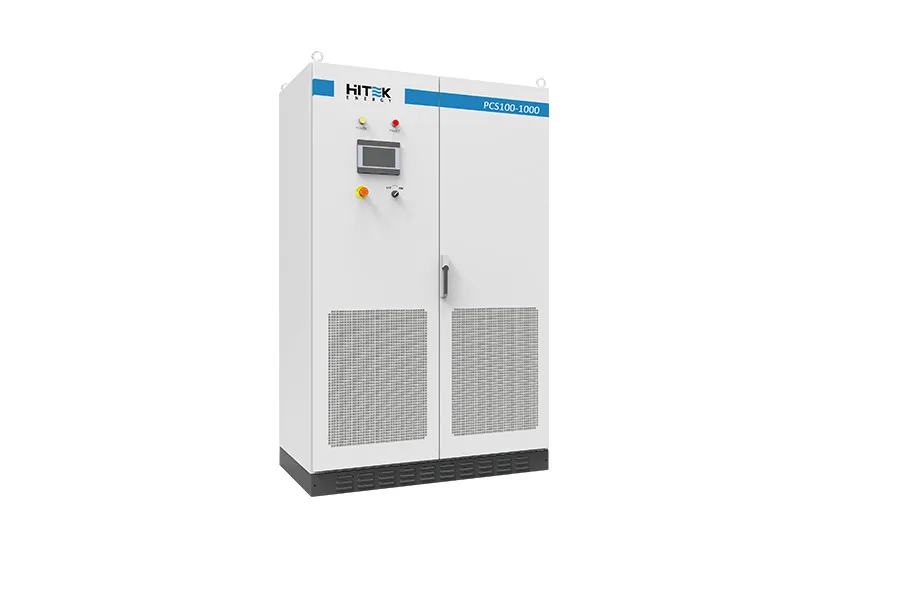

Bidirectional Inverter (PCS)

Range: 100-1000KW. Can be used alone or with solar accessories. Features programmable working modes, remote control support, and touchscreen LCD.

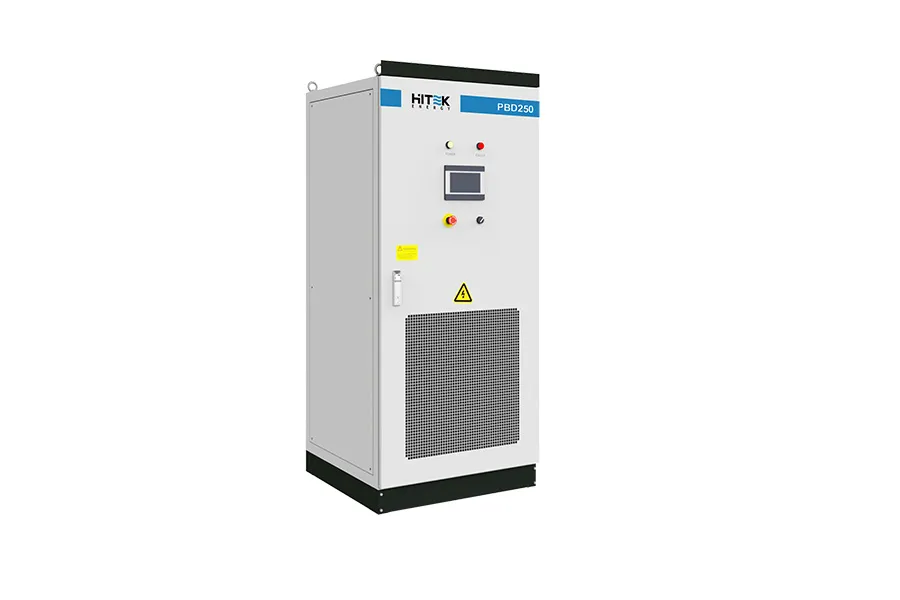

PBD 250KW Solar Controller

1000V DC to DC controller for large scale projects. Modular design, transformerless, up to 5 MPPT.

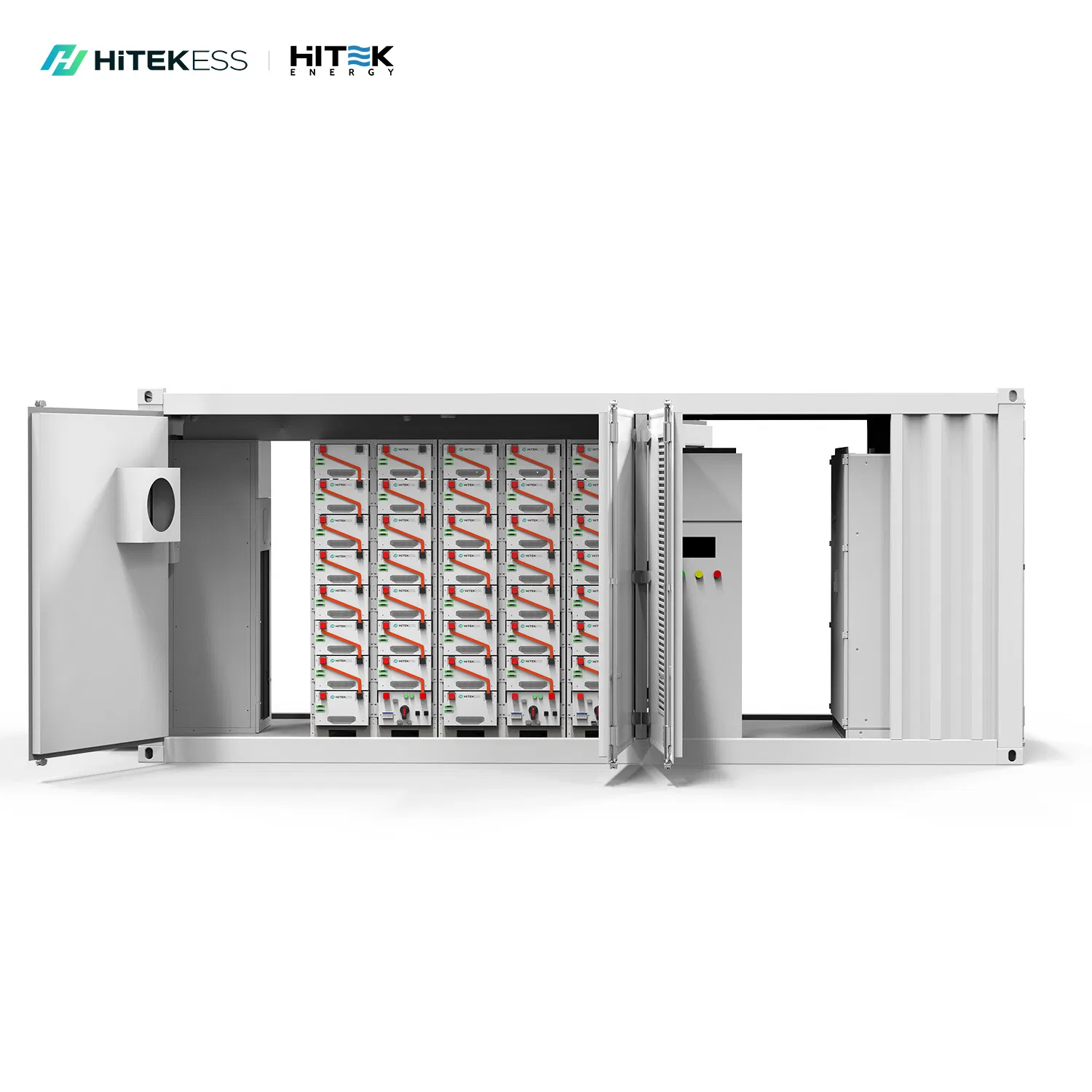

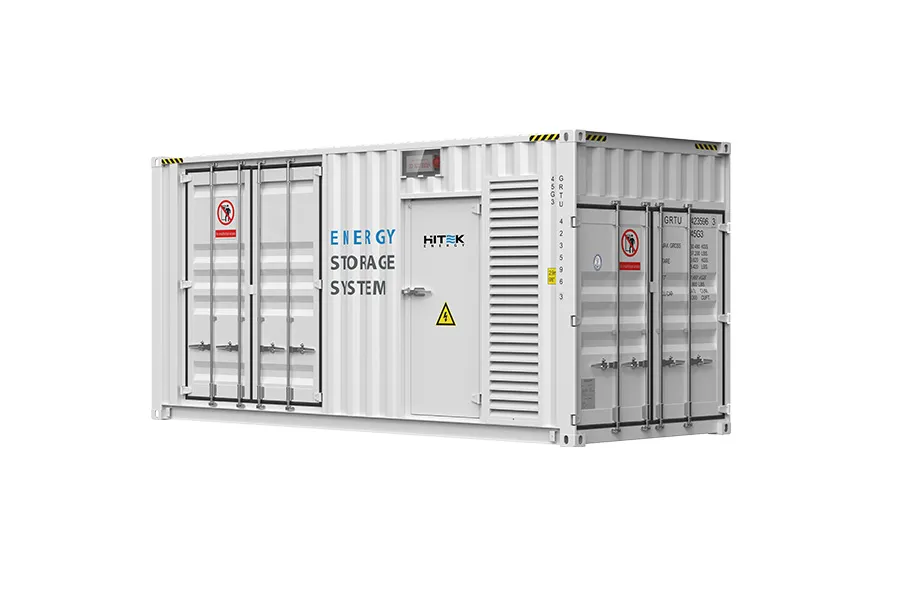

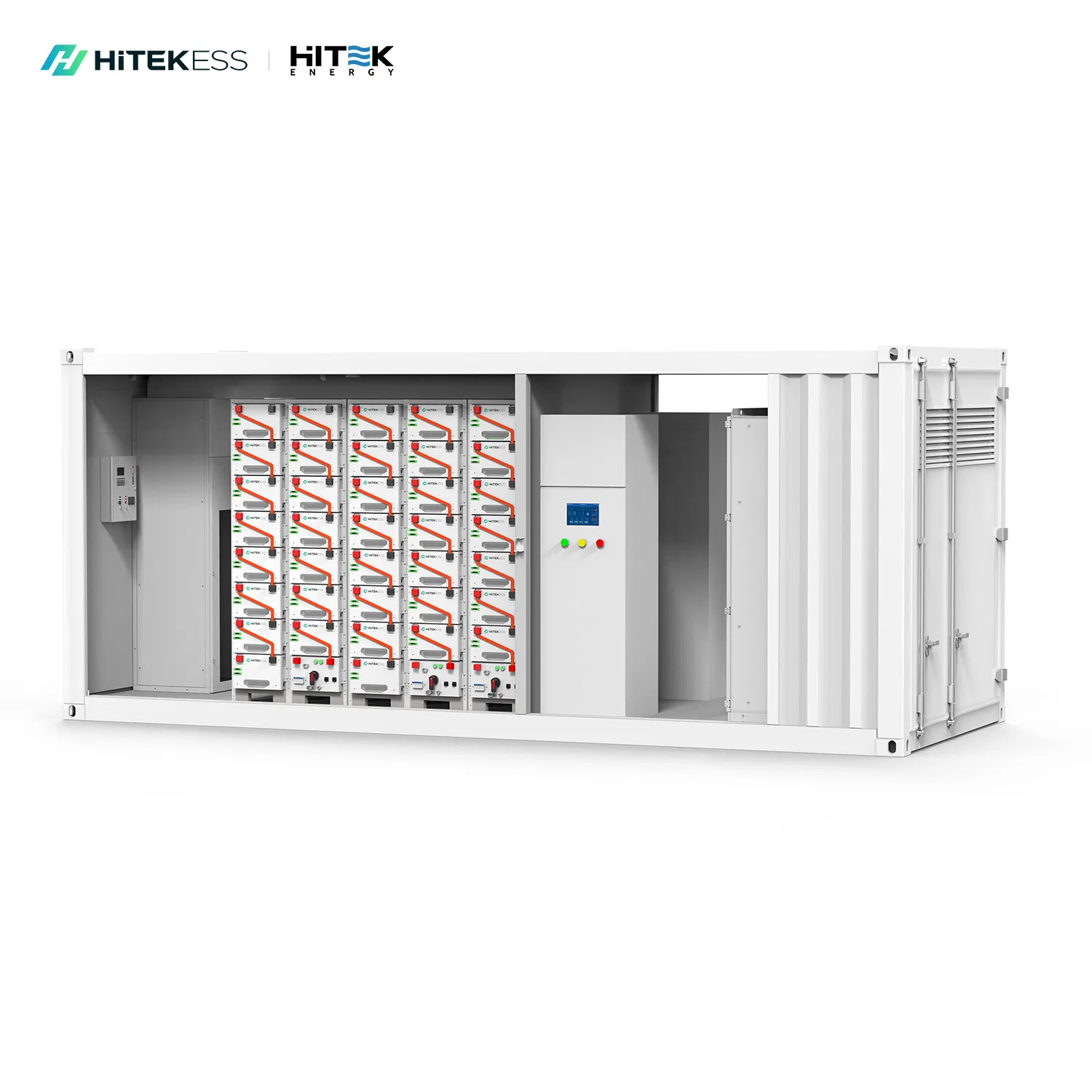

ESS Lithium Battery Container

Consists of 150 single cells (14.3kWh each). Total capacity up to 1720kWh@80% DOD. Perfect for large-scale energy storage integration.

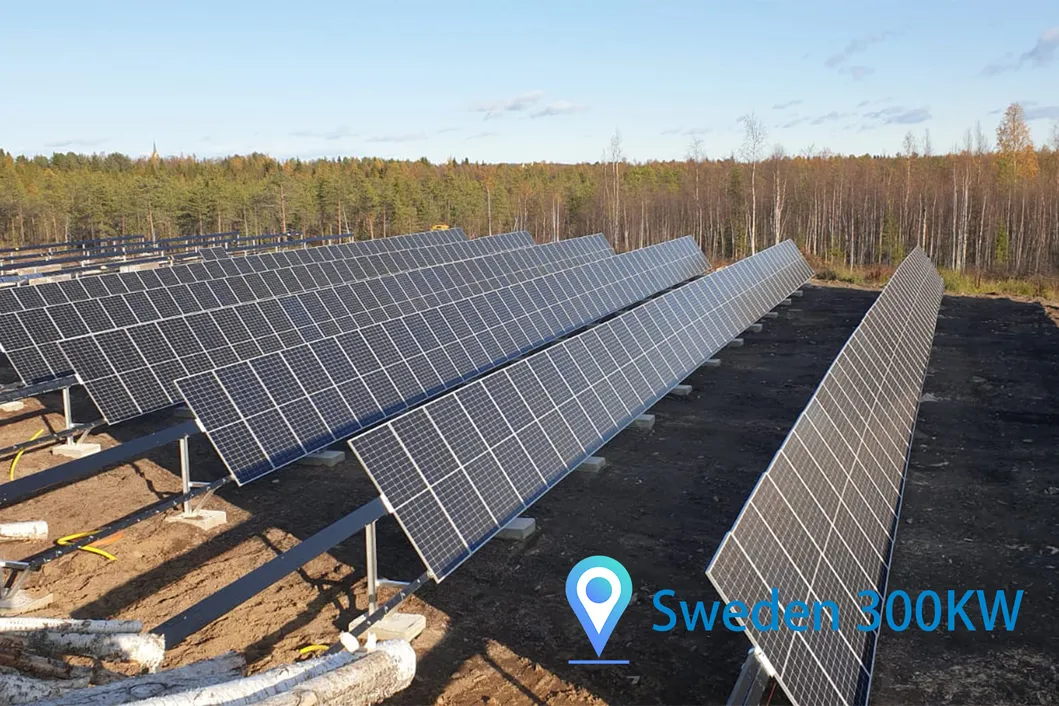

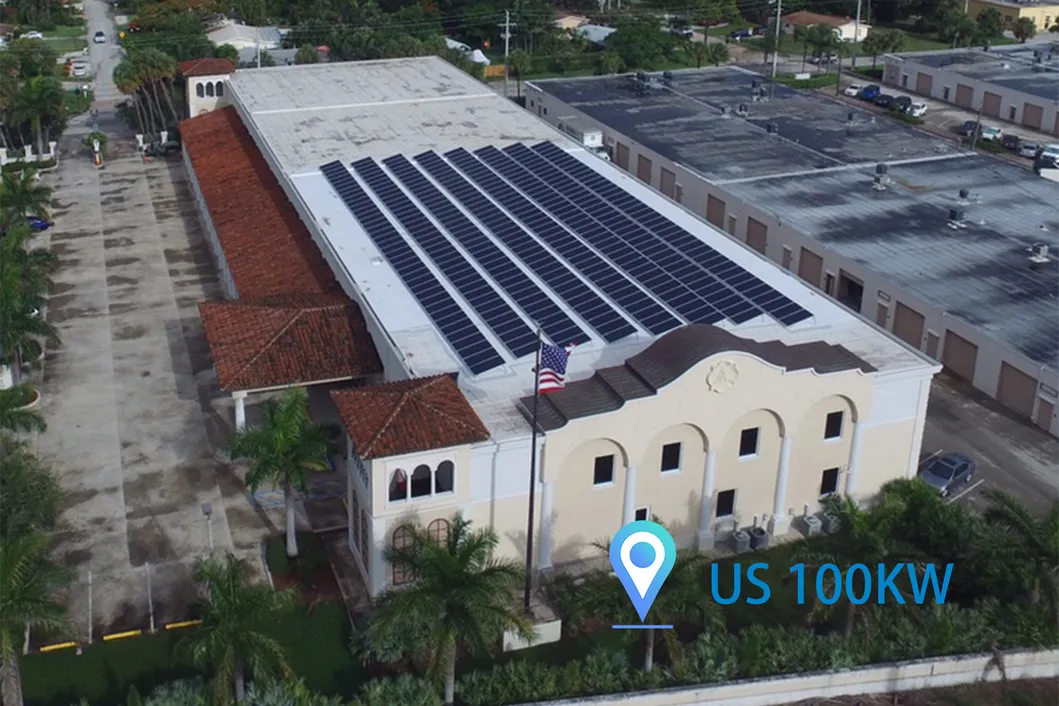

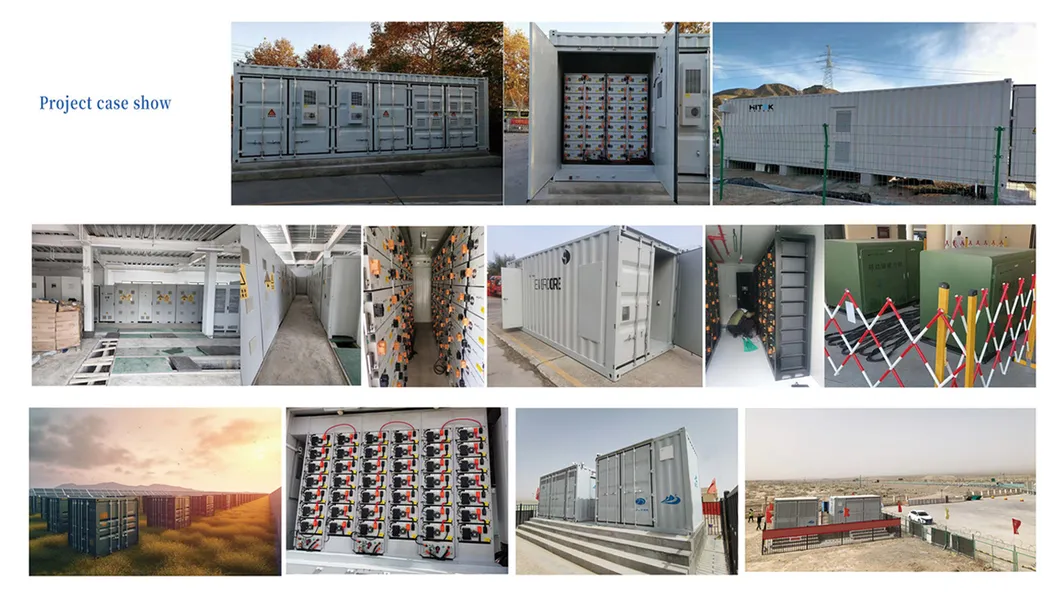

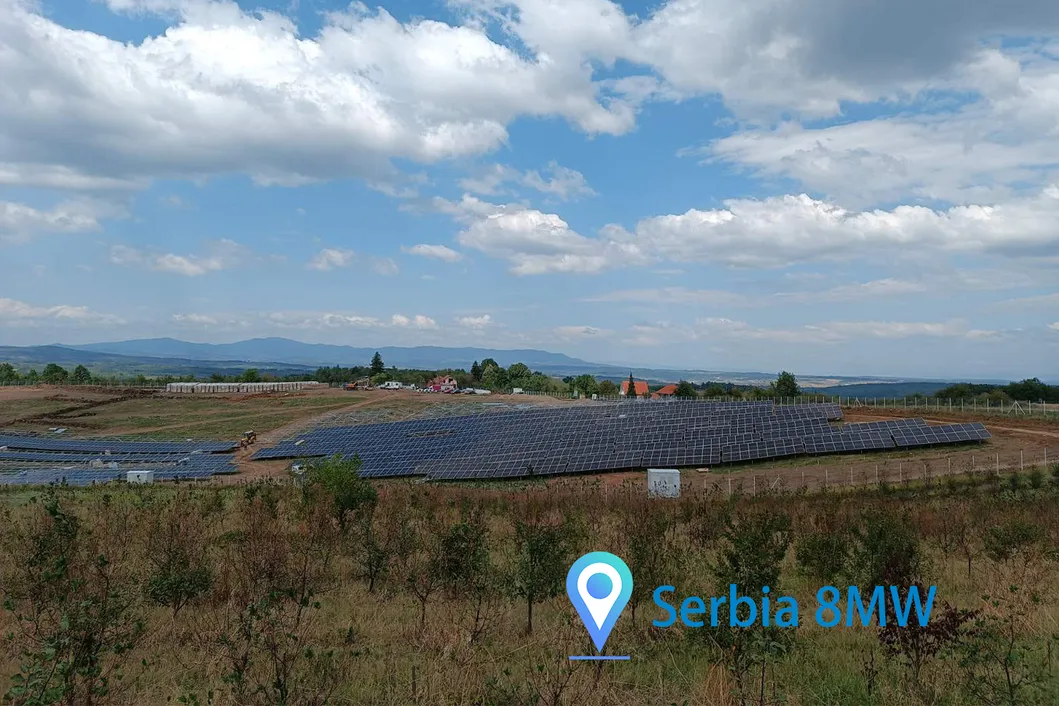

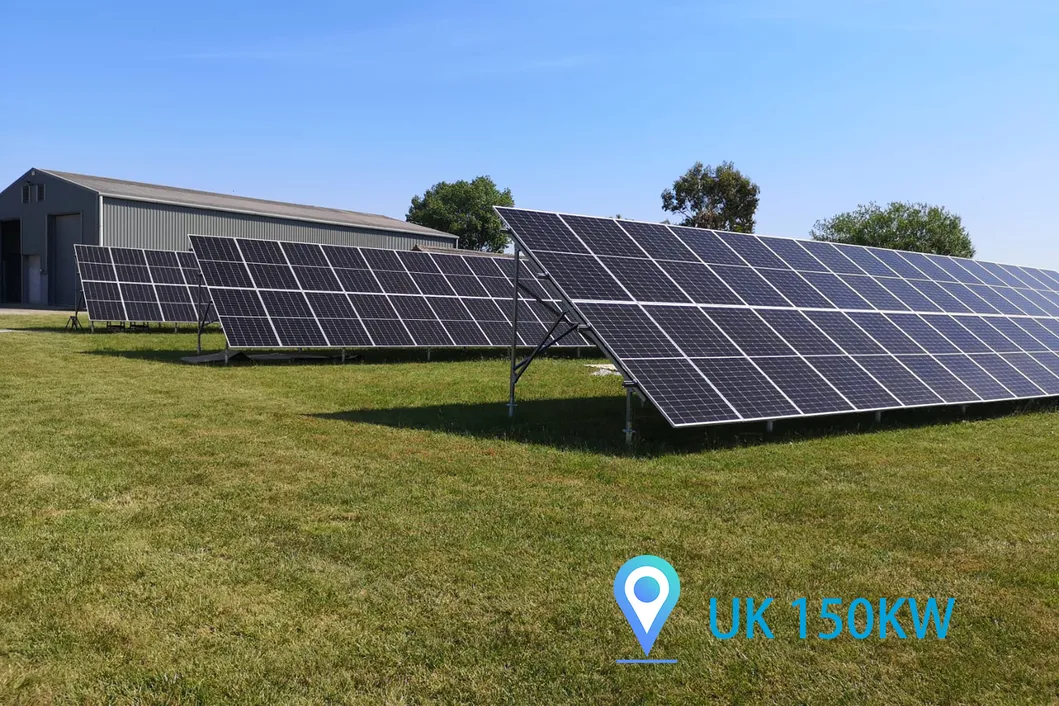

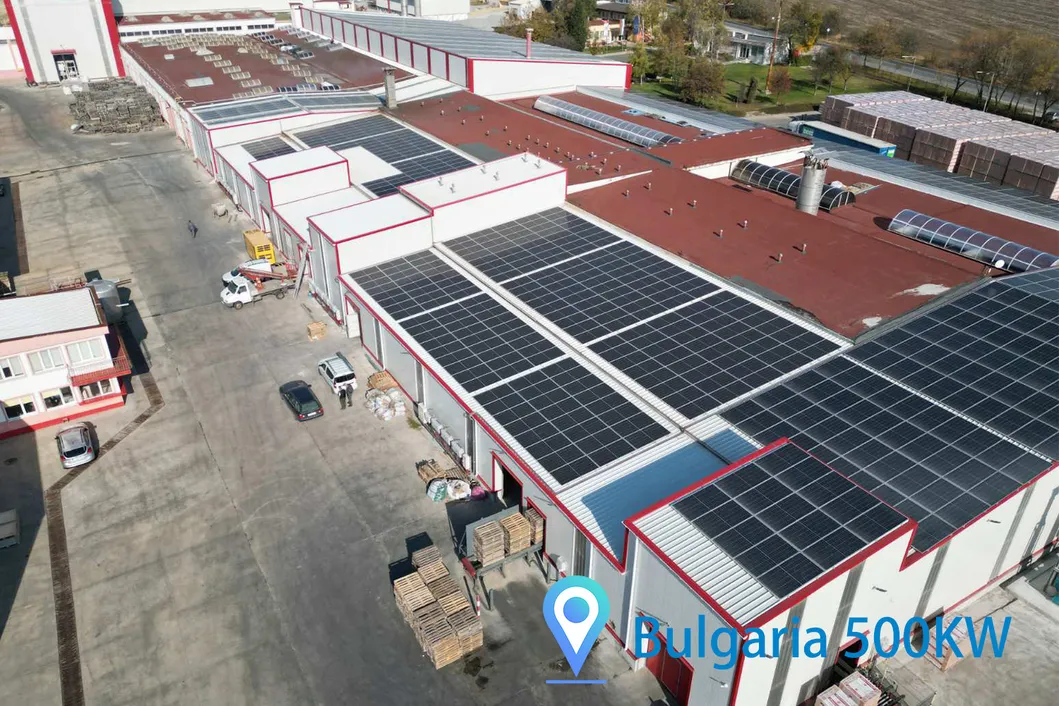

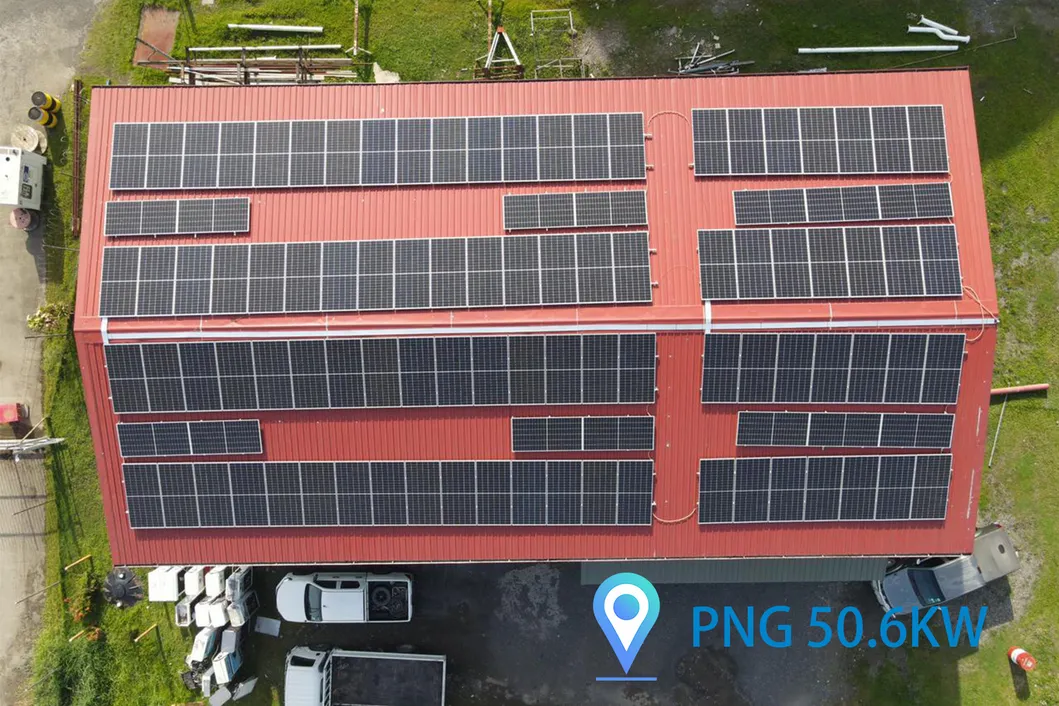

Global Projects

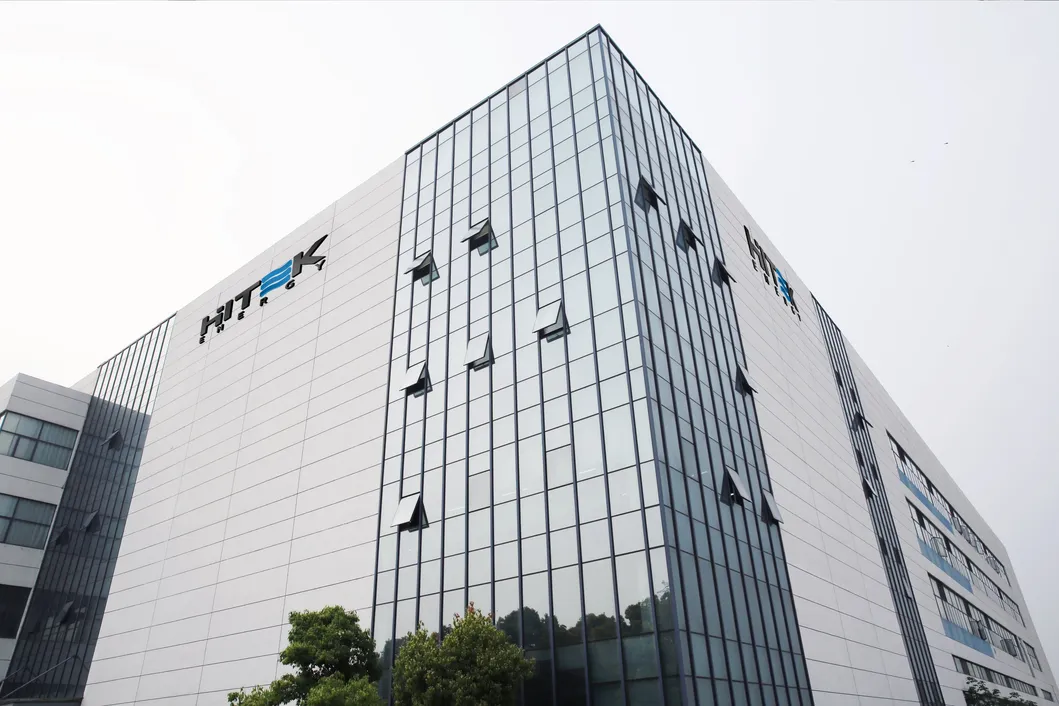

Profile & Advantages

Founded in 2018, we are a superior photovoltaic manufacturer dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories. We provide tailored solar energy solutions for backup, residential, and commercial needs.

Frequently Asked Questions

What is the typical cycle life of the battery system?

The system features high-quality LiFePO4 cells providing over 6000 cycles at 80% Depth of Discharge (DOD).

Can this system be used for off-grid applications?

Yes, the system supports multiple working modes including both On-grid and Off-grid configurations.

What safety features are included in the container?

The 20FT container is IP54 rated and includes an integrated fire protection system and an automated air conditioning system for temperature control.

Is the system scalable for larger power needs?

Absolutely. The PCS and battery modules are designed for parallel configuration, allowing for flexible expansion from 250kWh up to multi-megawatt scales.

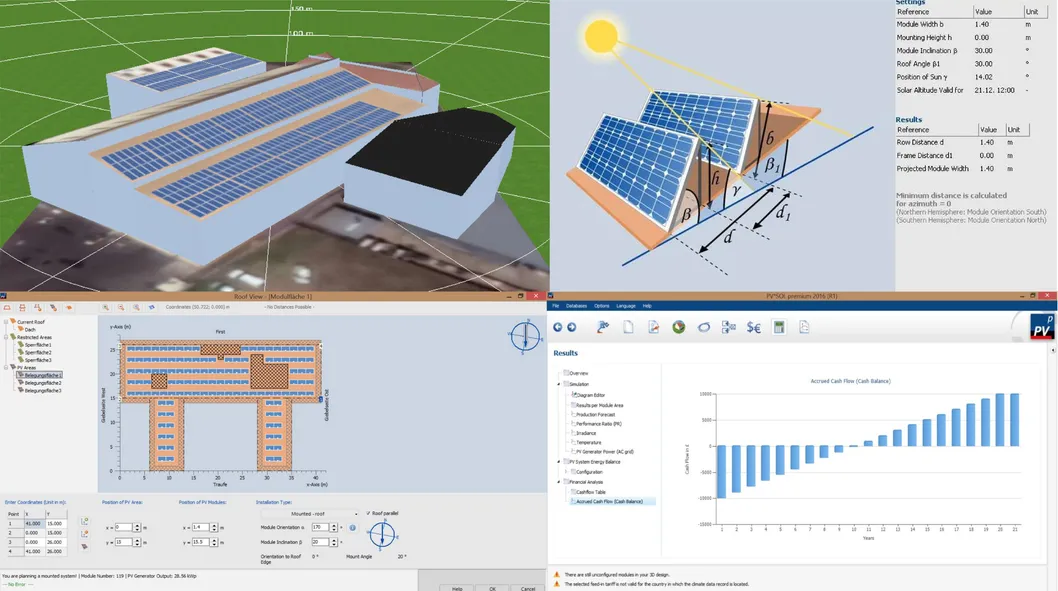

What kind of technical support is available?

We provide complete technical support, including pre-sales project design, installation support, and integrated monitoring through the EnerLog datalogger.

What is the warranty period for the ESS?

The standard warranty for the energy storage system is 5 years, ensuring long-term reliability and performance.
