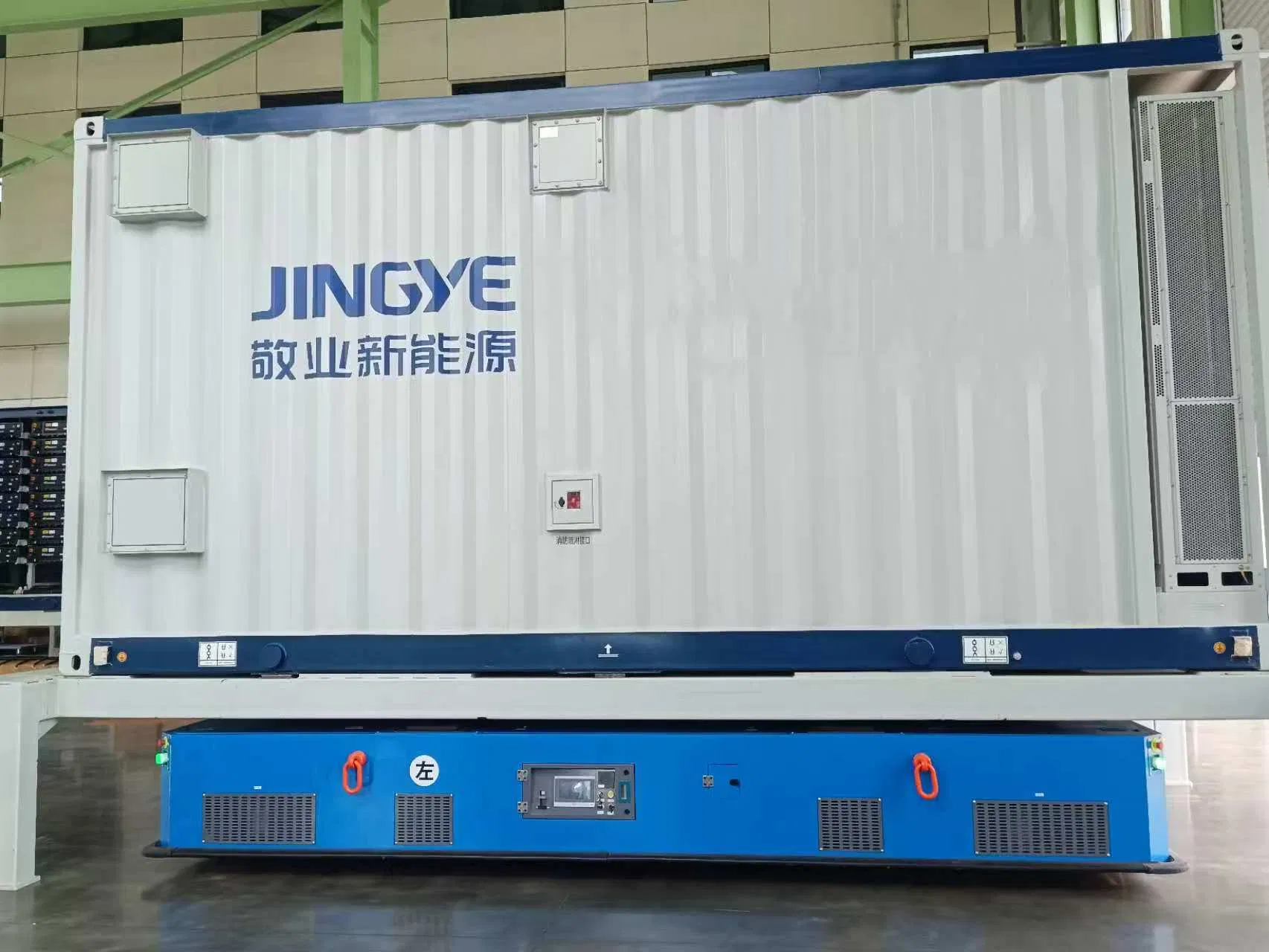

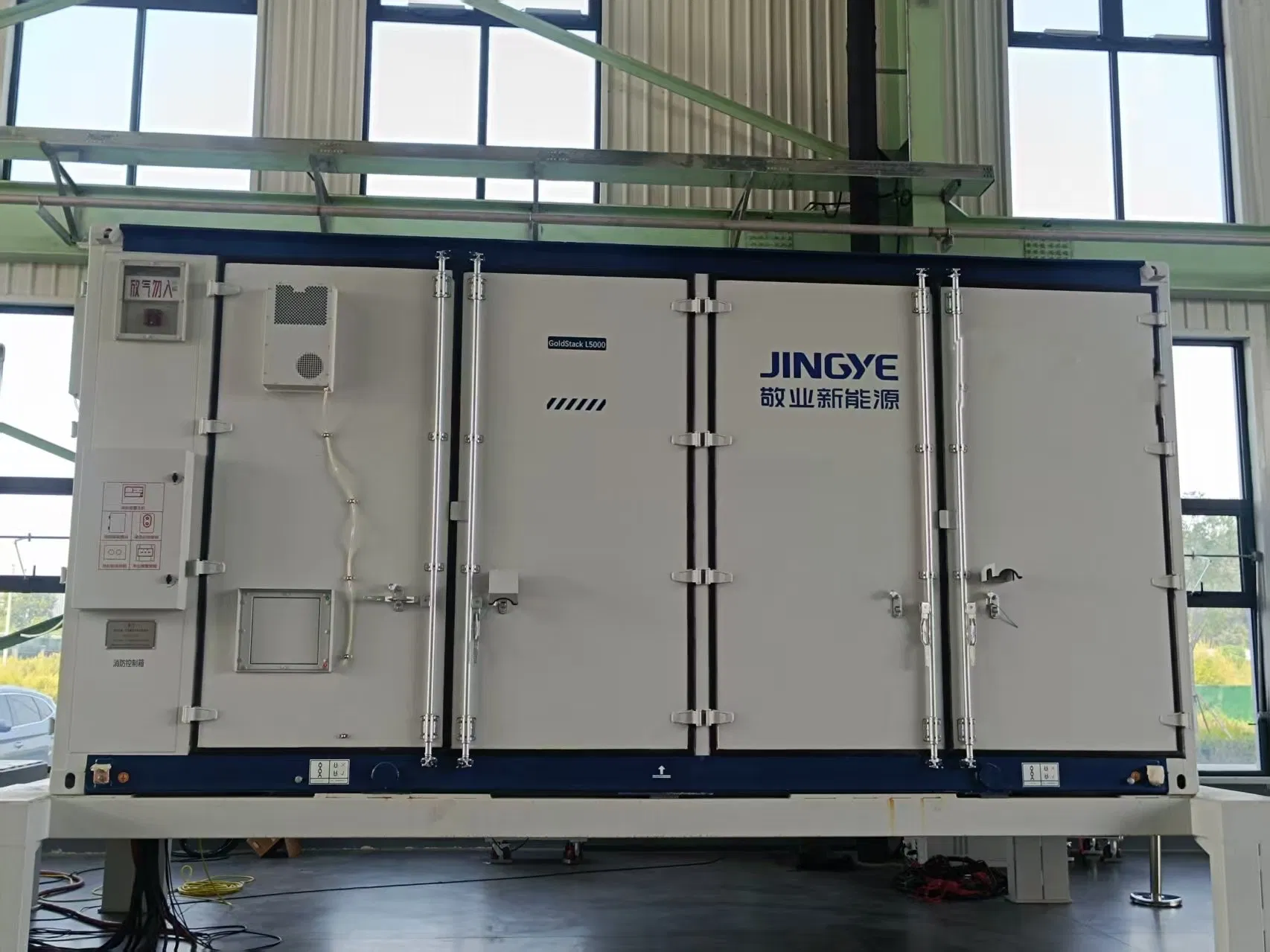

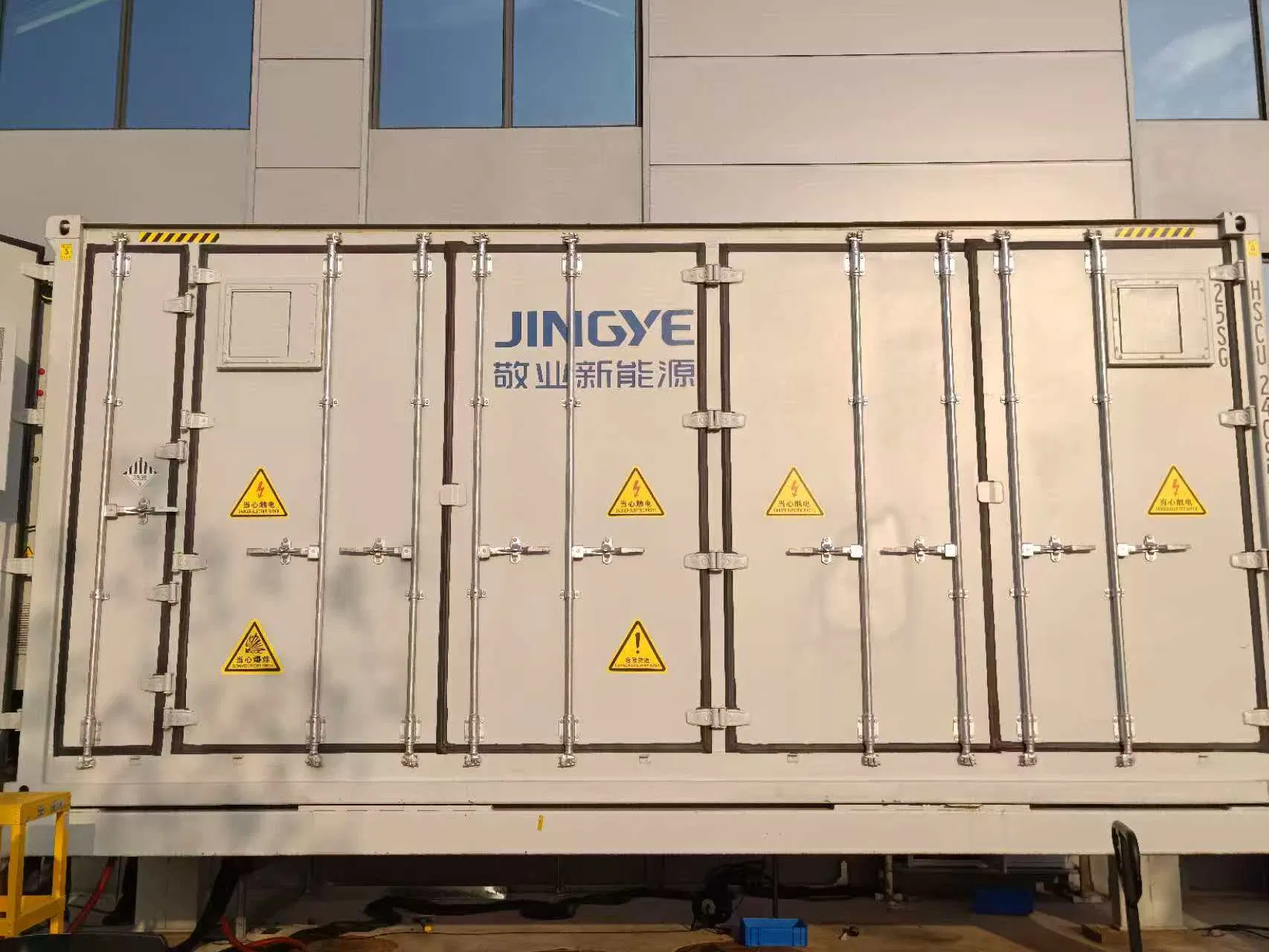

Hot 2025 5mwh Energy Storage Unit

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Send Inquiry

Product Description

Product Overview

Model NO.

5.015MWh

Nominal Voltage

1331.2V

Warranty

3 Years

Nominal Capacity

5015kwh

Cycle Life

10 Years (2 Charges/Discharges Daily)

Configuration

12*(1p104s*4)

Rated Power

5mwh

Voltage Range

1164.8V - 1497.6V DC

IP Rating

IP54

Specification

Liquid Cooling

Origin

China

Product Description

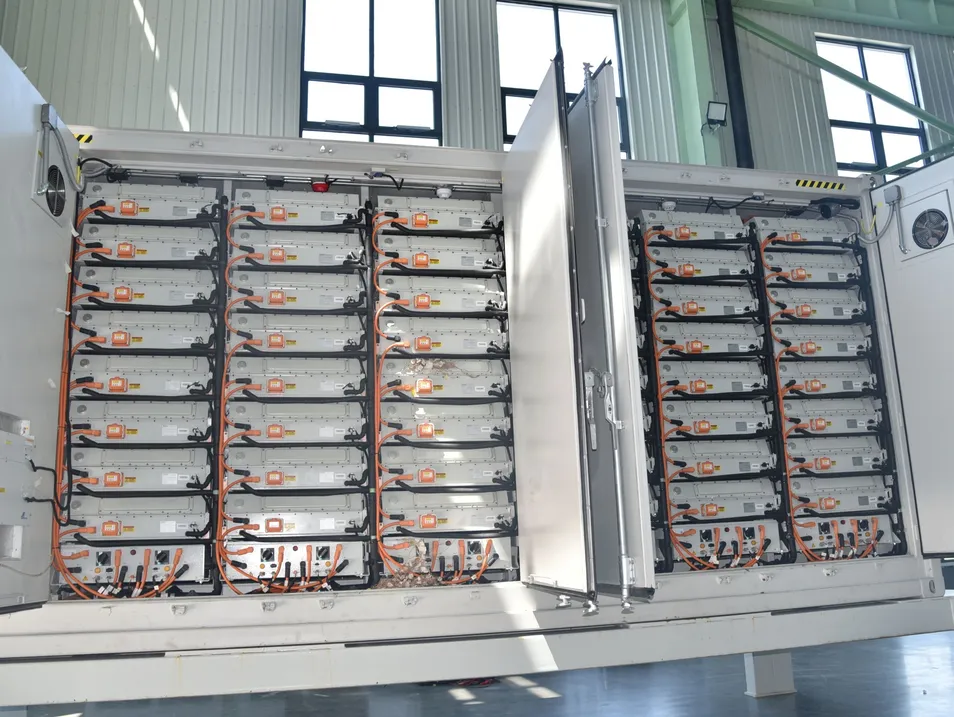

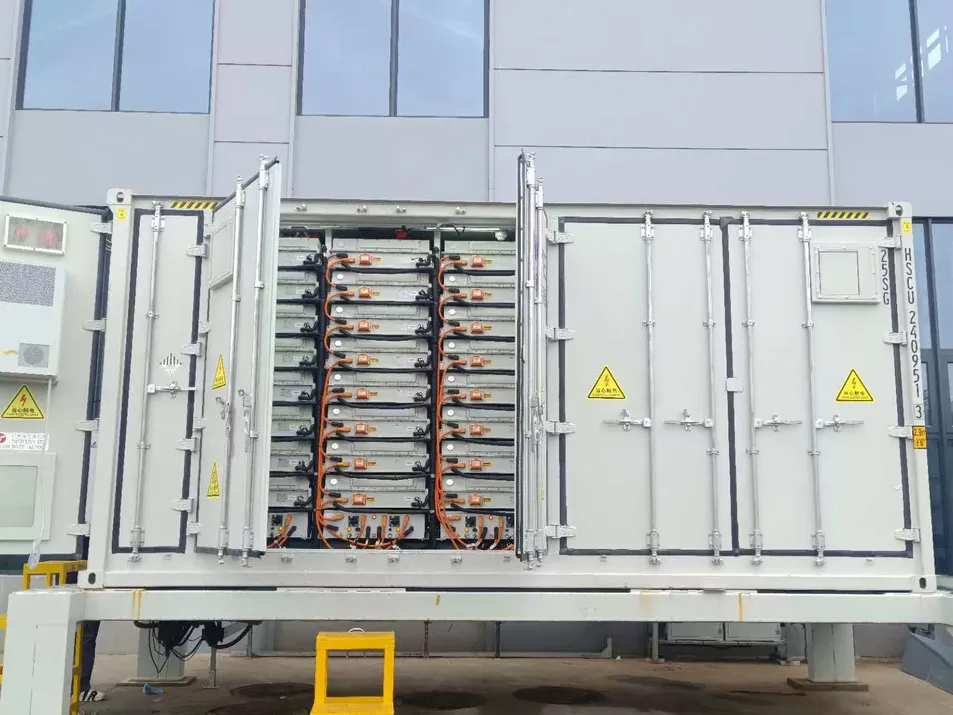

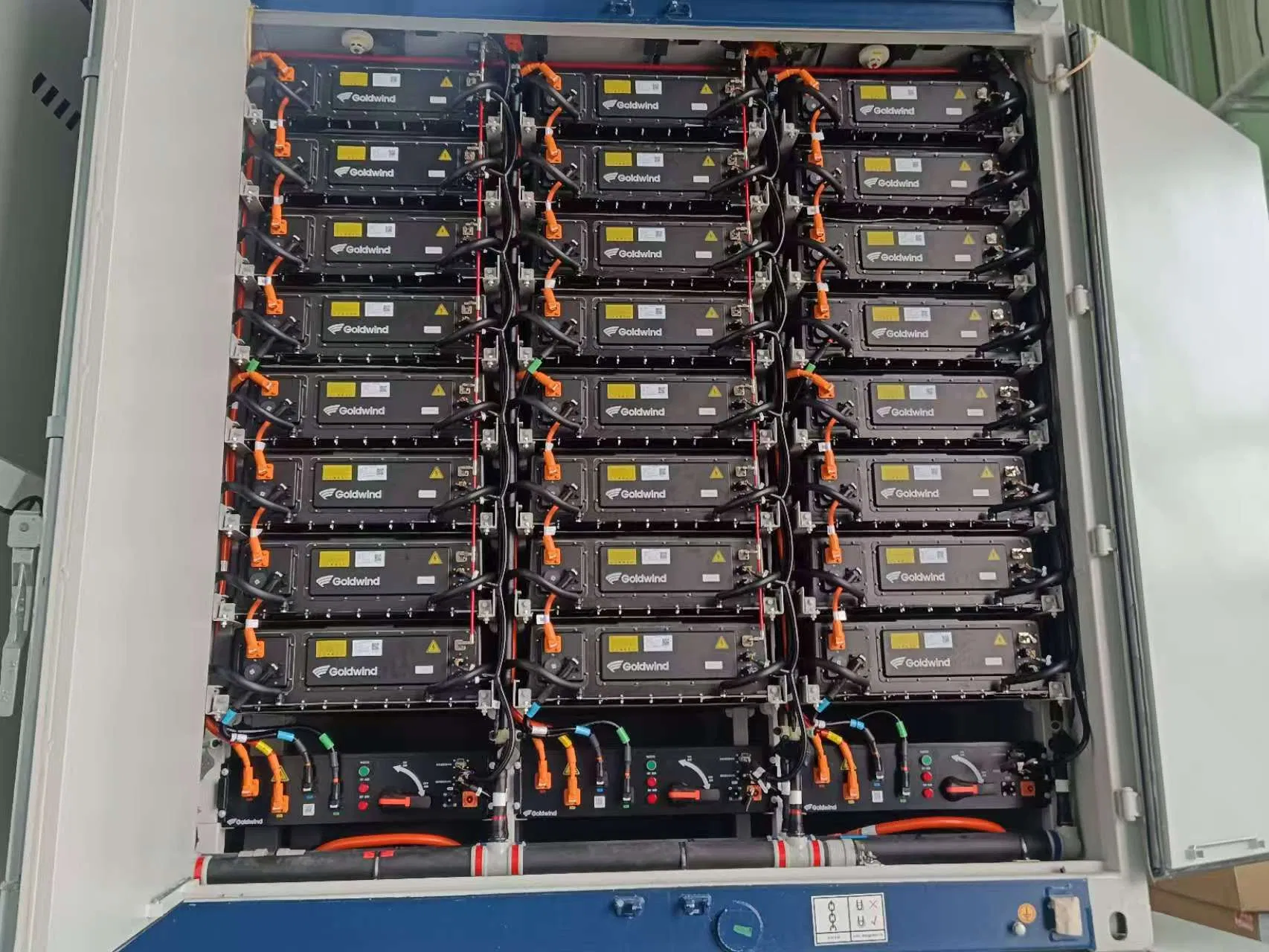

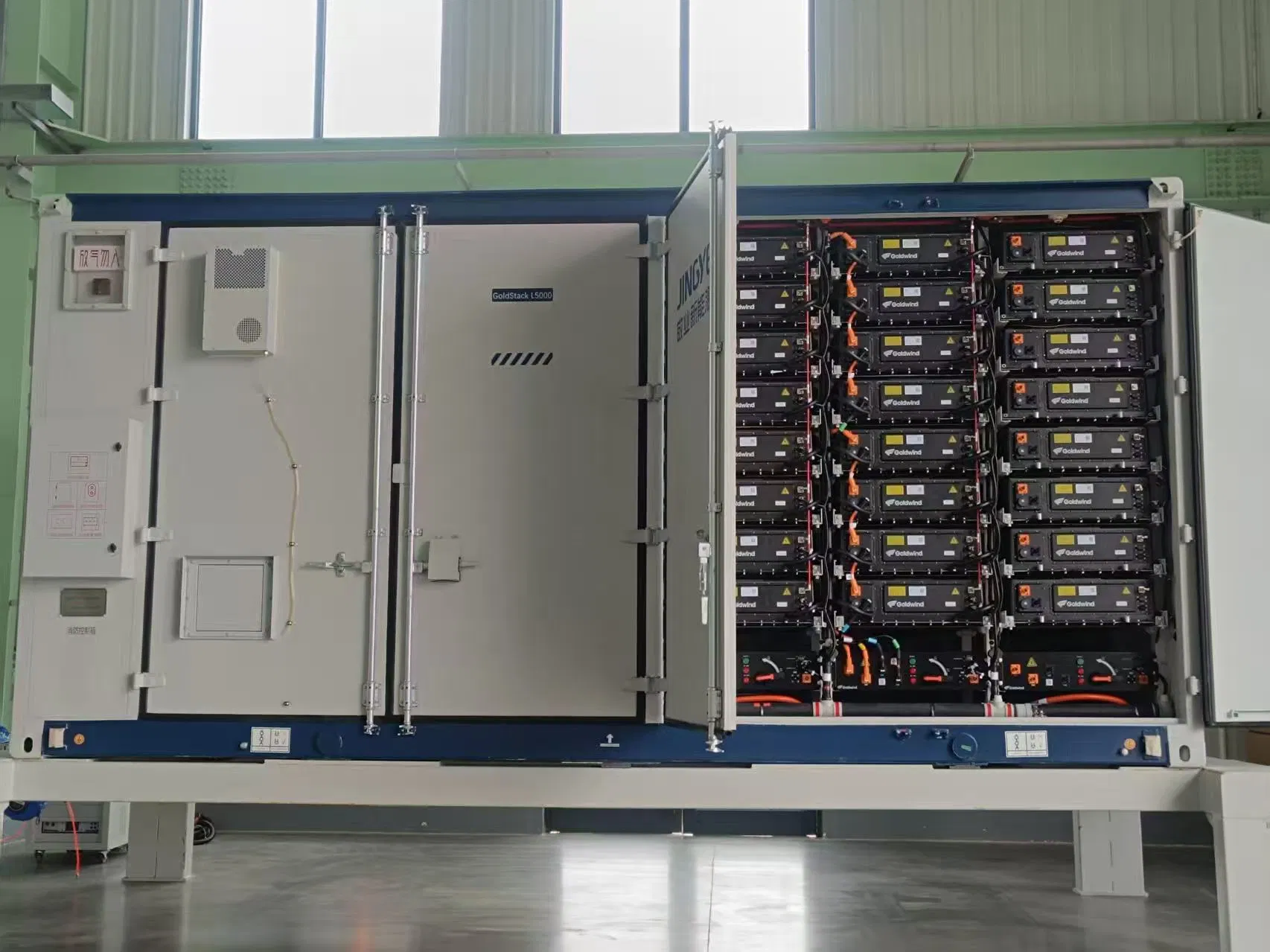

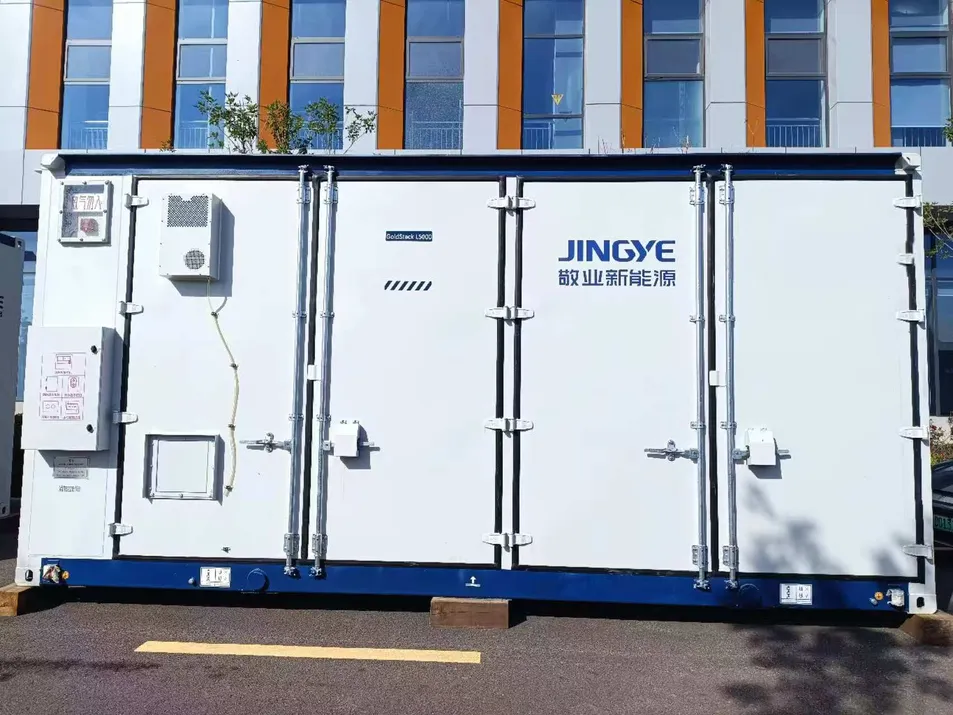

5015KWh Liquid Cooling energy storage system based on high-capacity 314Ah energy storage cells, consisting of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems. The system uses simplified integration technology within a standard 20-foot container (2438mm-2896mm-6058mm), arranged in three compartments for optimal safety and transportation efficiency.

🔋

Battery Technology: Mature, high-efficiency, long-life large-capacity lithium iron phosphate batteries.

🛡️

Battery Management: Advanced intelligent BMS products to ensure maximum safety.

❄️

Thermal Management: Industrial-grade air conditioning systems ensuring a temperature difference of ≤3℃ inside PACK and ≤5℃ in the cabinet.

🔥

Fire Protection: Three-level automatic alarm and fire extinguishing system (PACK, cluster, and compartment).

Technical Specifications

No.	Item	Specification
1	Configuration	12(1P104S4)
2	Rated Power	5MWh
3	Rated Voltage	1331.2VDC
4	Voltage Range	1164.8V - 1497.6VDC
5	Rated Charging/Discharge Power	≤ 2.5MW
6	Work Temperature	Charging: 0℃~60℃ / Discharging: -30℃~60℃
7	Dimensions	L6058 x W2438 x H2896mm
8	Weight	About 43t
9	Cooling Method	Liquid Cooling
10	Communication	Ethernet, CAN, ModbusRTU

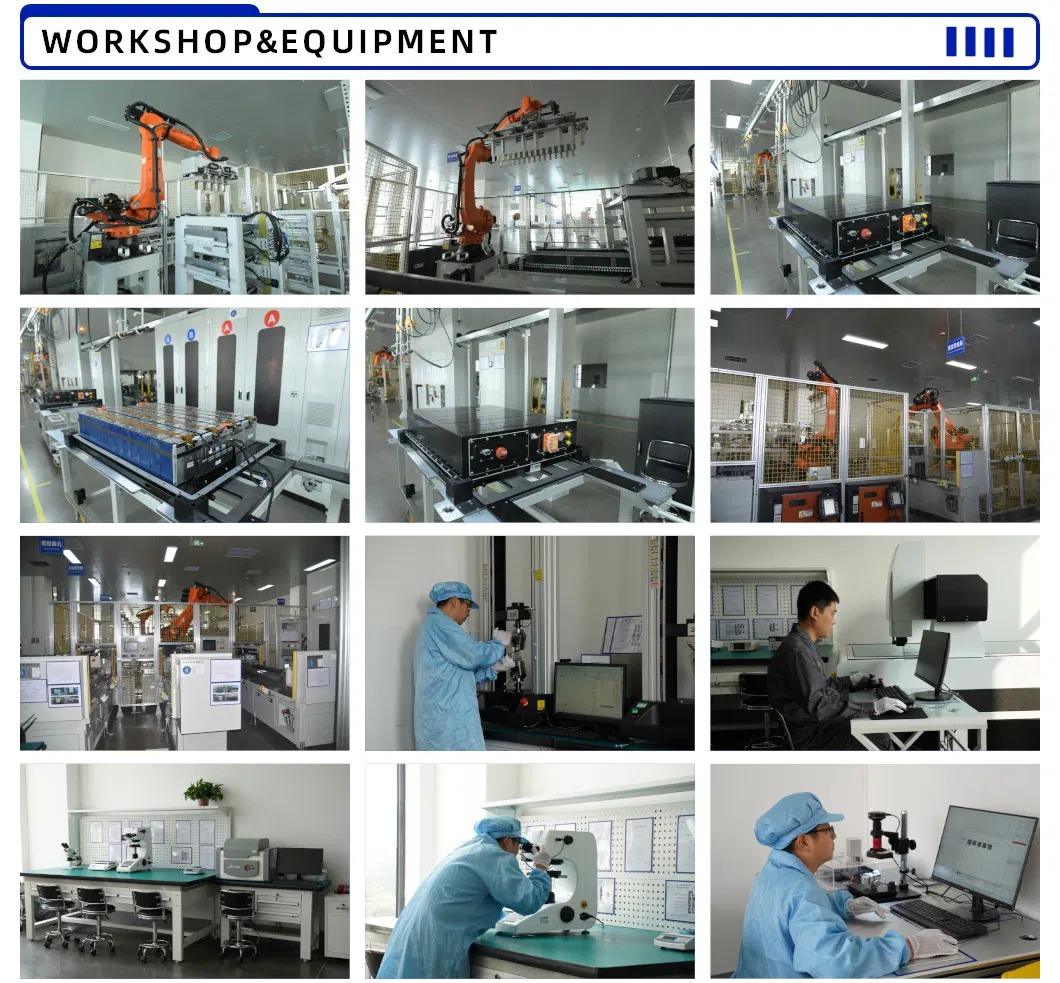

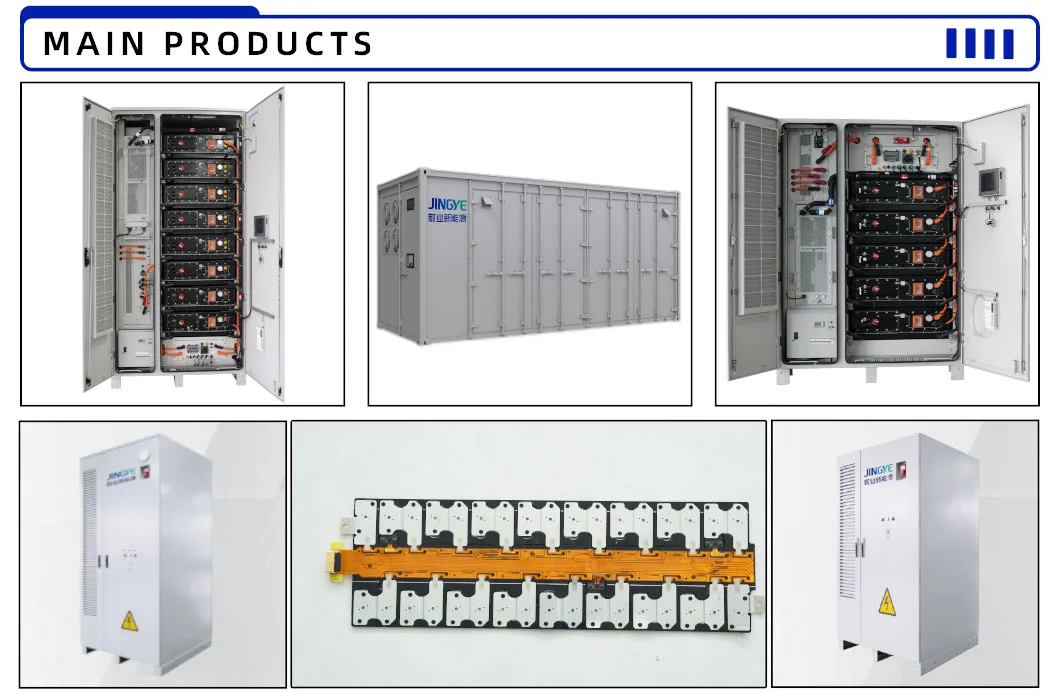

Main Products & Workshop

Equipped with advanced automated production lines, the facility maintains an annual production capacity of 5 GWh for energy storage systems and 2.4 million units of CCS busbars. These products serve smart grids, industrial and commercial storage, and green transportation sectors globally.

Quality Assurance & Exhibitions

Frequently Asked Questions

What are the core products available?

Our core lineup includes 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Is customization supported for specific projects?

Yes, we provide flexible customization services across various process types to meet diverse industrial and commercial requirements.

How is production and delivery timeline guaranteed?

With a fully automated production line and a dedicated technical team, we ensure stable manufacturing cycles and punctual delivery for all global orders.

What is the advantage of your manufacturing process?

As a source factory with standardized production processes, we offer the most competitive pricing combined with top-tier quality control and efficiency.

How can I obtain a detailed technical quotation?

You can reach out directly via the website inquiry system, and our technical staff will provide a comprehensive quotation based on your specifications.

What cooling methods are used in the storage units?

The 5MWh unit utilizes an advanced liquid cooling system using a 50% ethylene glycol aqueous solution to maintain optimal thermal stability.
