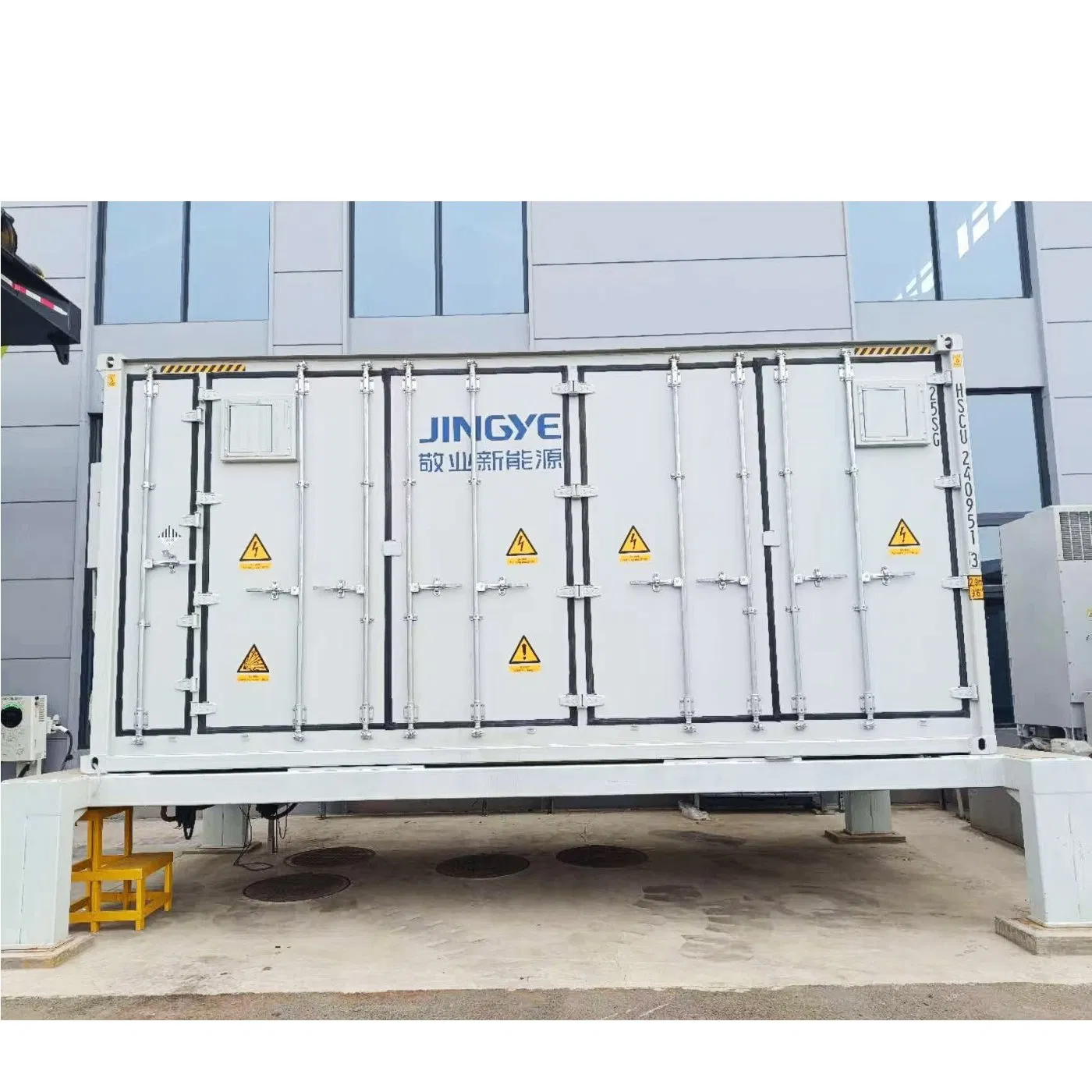

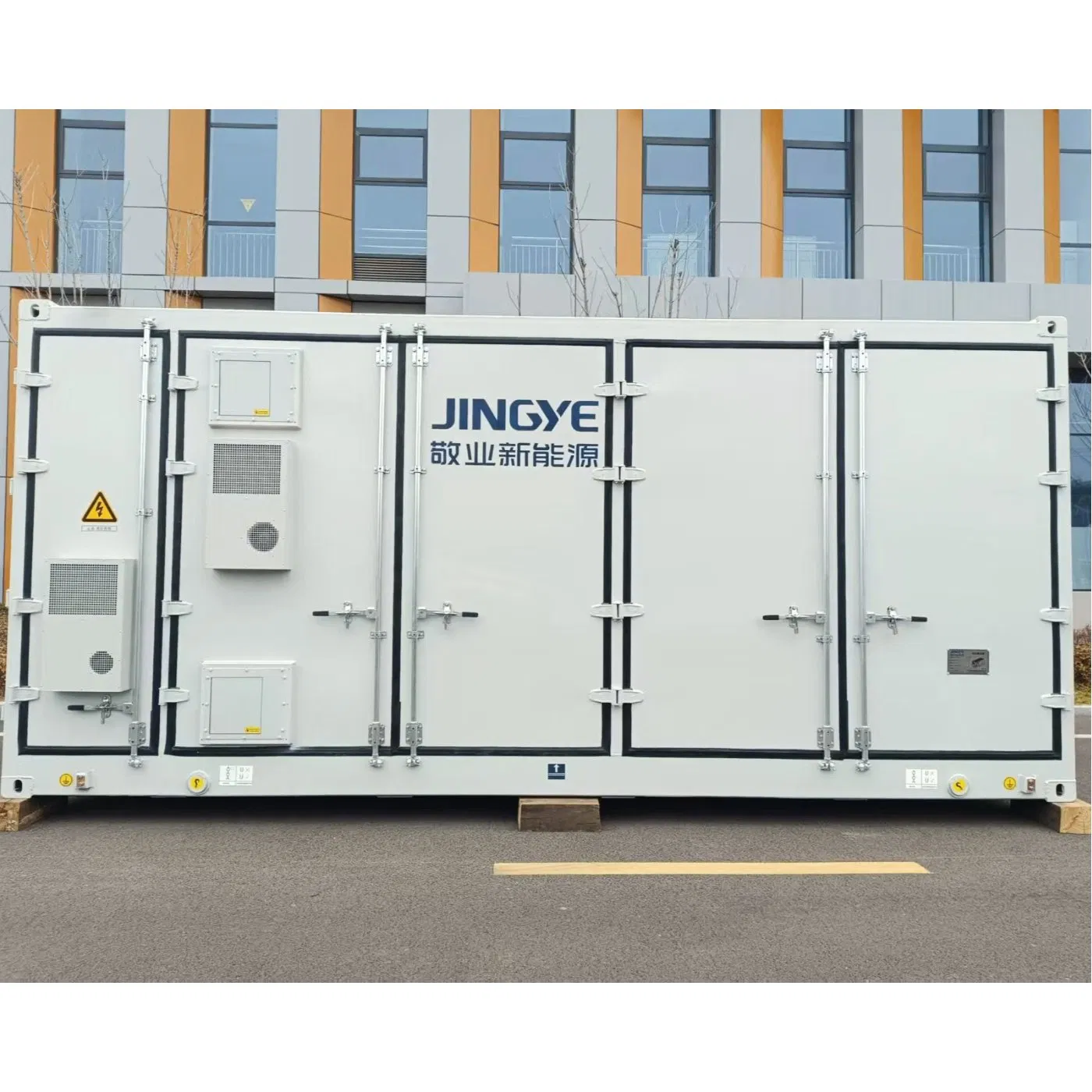

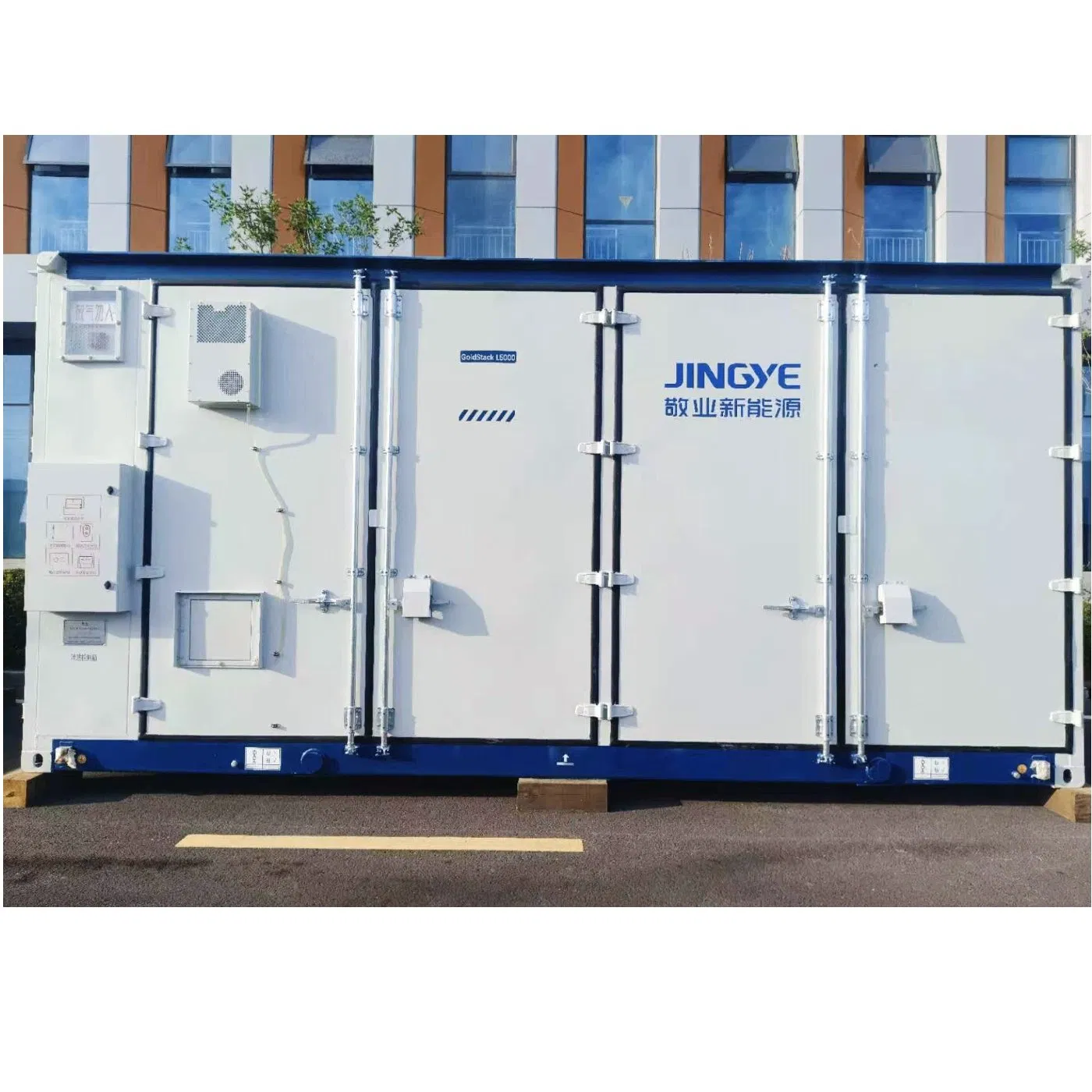

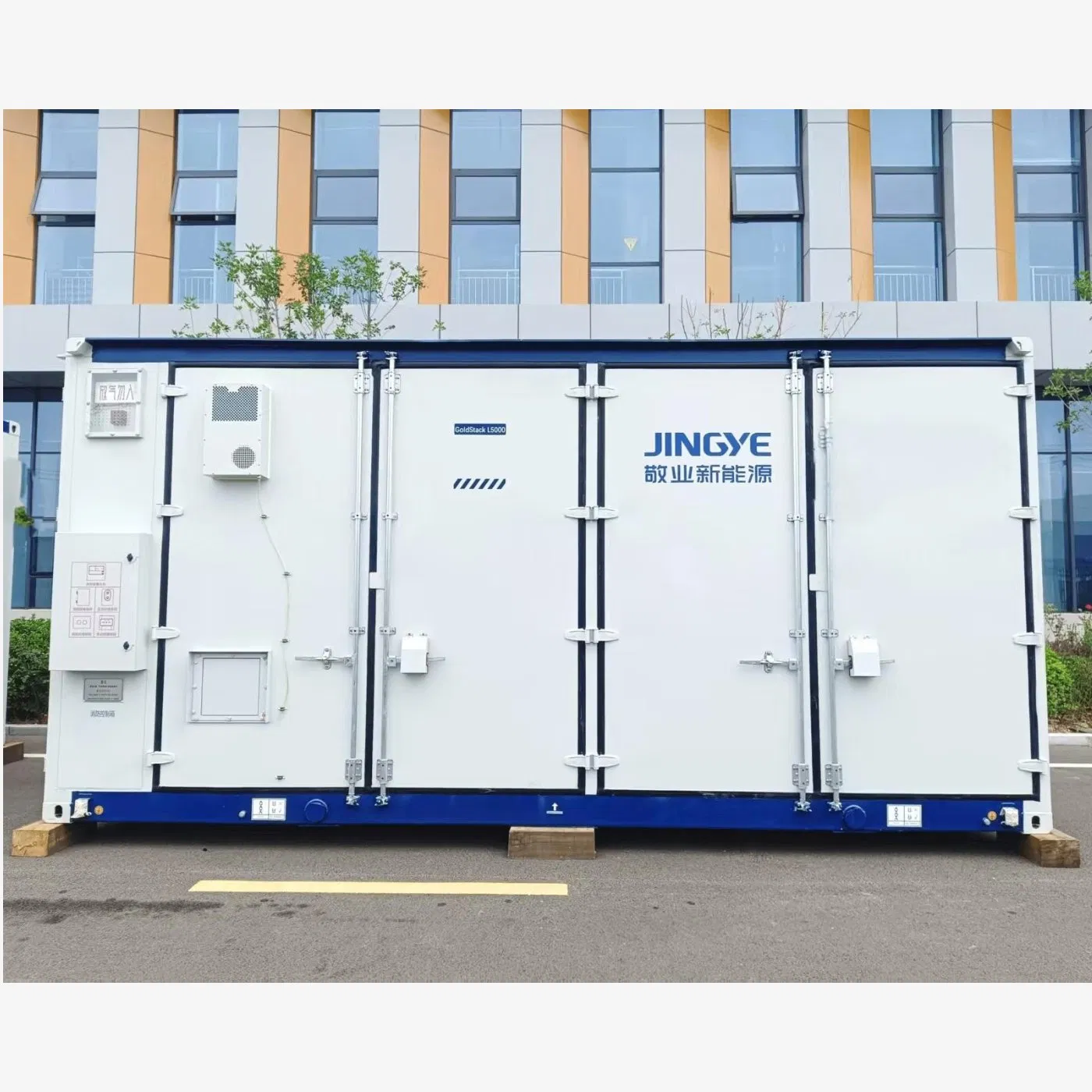

5mwh Grid-Side Liquid-Cooled Containerized Energy Storage Unit

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

📊 Basic Information

Model NO.

5.015MWh

Nominal Voltage

1331.2V

Warranty

3 Years

Nominal Capacity

5015kWh

Cycle Life

9000 Cycles

Configuration

12*(1p104s*4)

Rated Power

5mwh

Voltage Range

1164.8V - 1497.6V DC

IP Rating

IP54

Cooling System

Liquid Cooling

Origin

China

🔋 Product Description

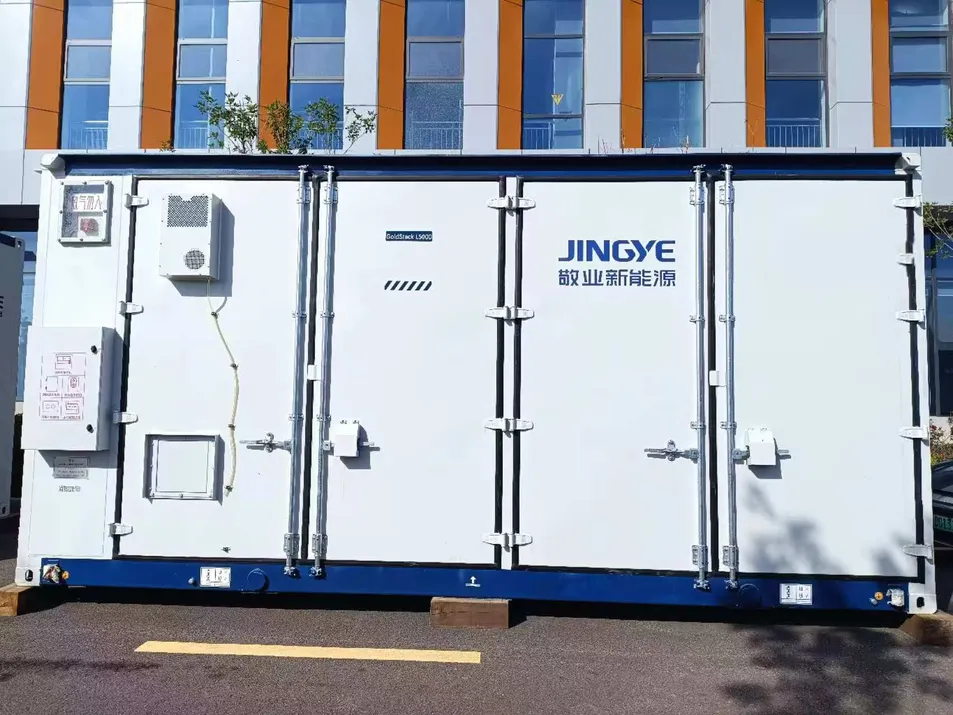

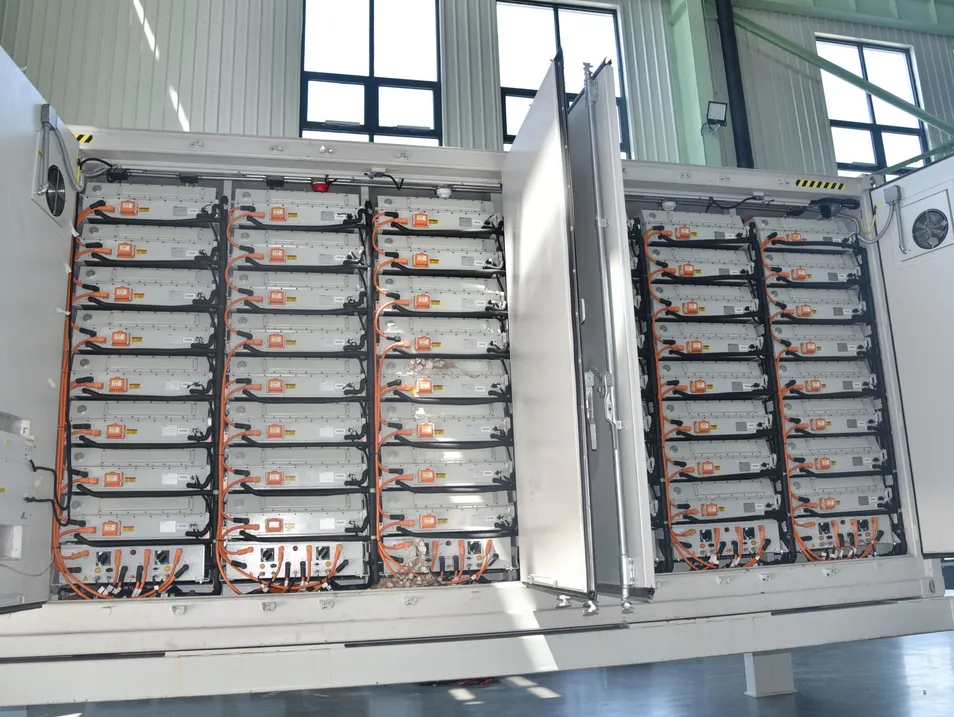

Energy Storage Container

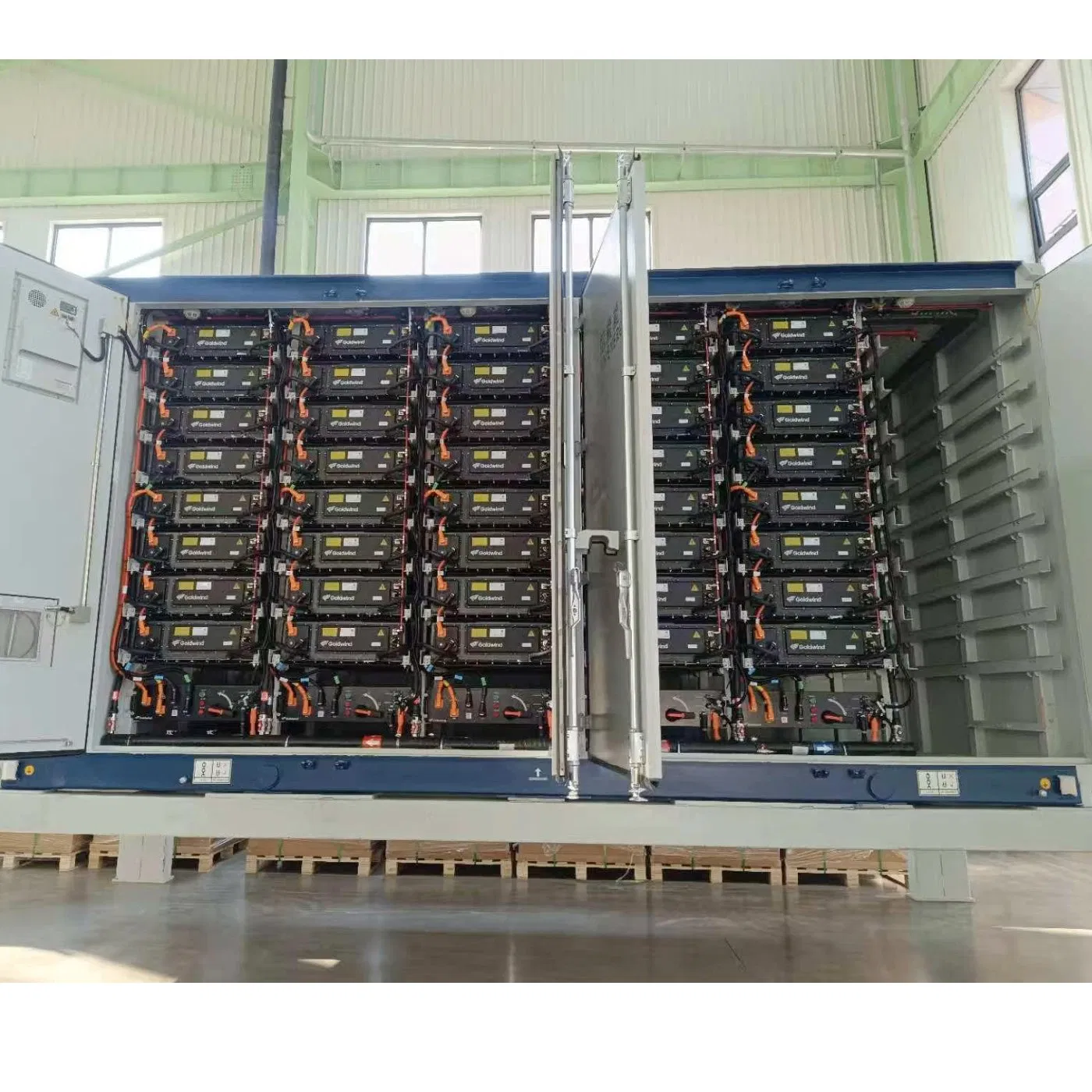

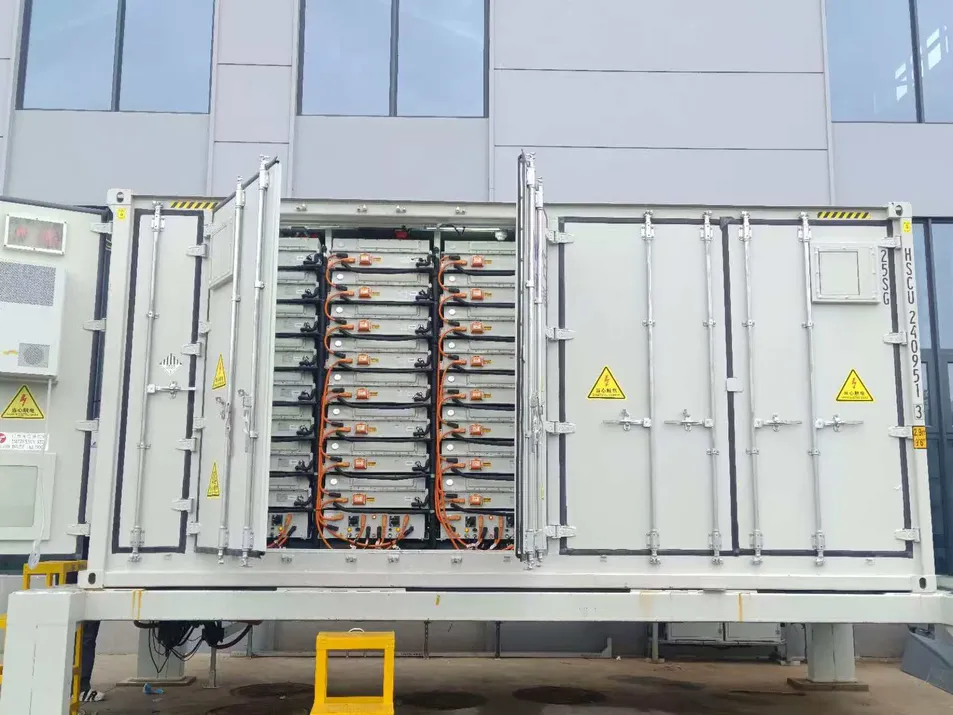

The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems. Integrated within a standard 20-foot container (2438mm-2896mm-6058mm), the system ensures safety and efficiency for various transportation and site conditions.

💡 Key Product Features

🚀

Battery Technology: Mature, high-efficiency, long-life lithium iron phosphate batteries.

🛡️

Battery Management: Advanced intelligent BMS to ensure maximum safety.

❄️

Thermal Management: Industrial-grade liquid cooling achieving precise temperature control (diff ≤ 3℃ inside PACK).

🔥

Safety Protection: Three-level automatic fire extinguishing system (PACK, cluster, compartment).

📱

Monitoring System: Full sensing of humidity, smoke, video, and access state.

🔧

Modular Design: Simple structure for easy transportation, installation, and maintenance.

⚙️ Technical Specifications

Item		Specification
1	Configuration	12(1P104S4)
2	Rated Power	5MWh
3	Rated Voltage	1331.2VDC
4	Voltage Range	1164.8V - 1497.6VDC
5	Rated Charging/Discharge Power	≤ 2.5MW
6	Auxiliary Power Supply	400VAC±5% 50Hz / 220VAC
7	Work Temperature	0℃~60℃ (Charging) / -30℃~60℃ (Discharging)
8	Dimensions	L6058 x W2438 x H2896mm
9	Weight	Approx. 43t
10	IP Rating	IP54
11	Communication	Ethernet, CAN, ModbusRTU

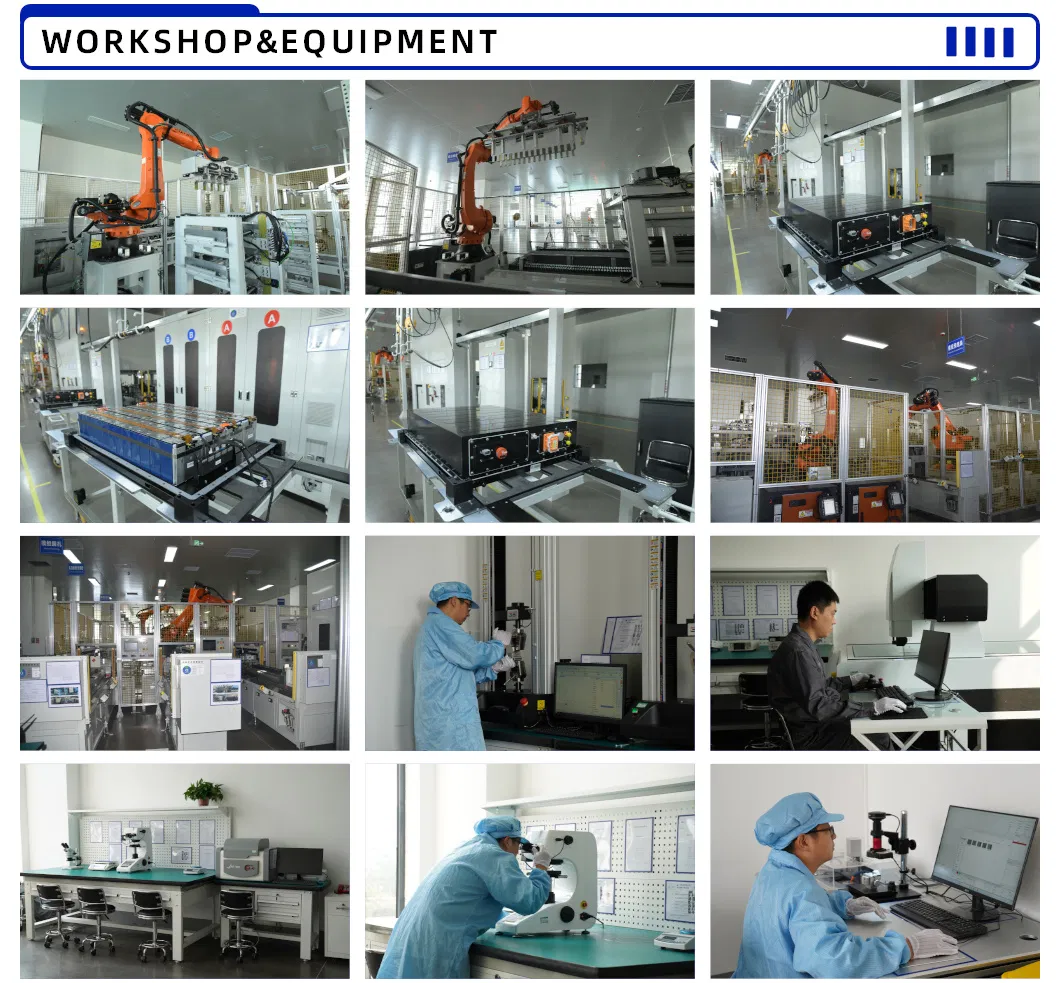

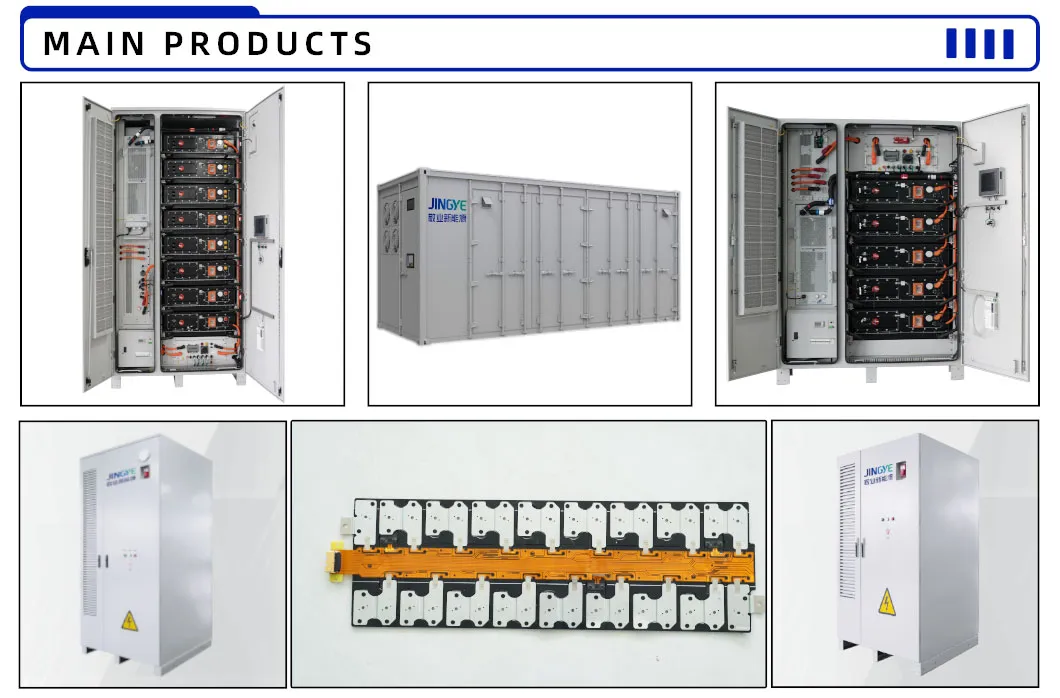

🏗️ Main Products & Workshop

Our facility features advanced automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million CCS busbars. Products are widely utilized in smart grids, renewable energy distribution, industrial/commercial storage, and green transportation globally.

🏆 Certifications & Exhibition

❓ Frequently Asked Questions

What are the primary energy storage solutions offered?

We provide 5MWh Energy Storage Containers, Commercial & Industrial Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Are customization services available for specific projects?

Yes, we offer flexible customization across diverse process types to meet unique technical and site requirements.

How is the quality and delivery timeline guaranteed?

With a fully automated production line and a proficient technical team, we ensure stable production and strict adherence to on-time delivery schedules.

What cooling technology is used in the 5MWh container?

The system utilizes advanced Liquid Cooling technology, maintaining a temperature difference of ≤3℃ to ensure cell longevity and safety.

What safety standards are integrated into the system?

The units are designed with IP54 ratings and include a multi-level fire protection system using perfluorohexane or aerosol suppression.

How can I obtain a detailed technical quotation?

You can contact our support team through the online website inquiry system to receive a comprehensive proposal promptly.
