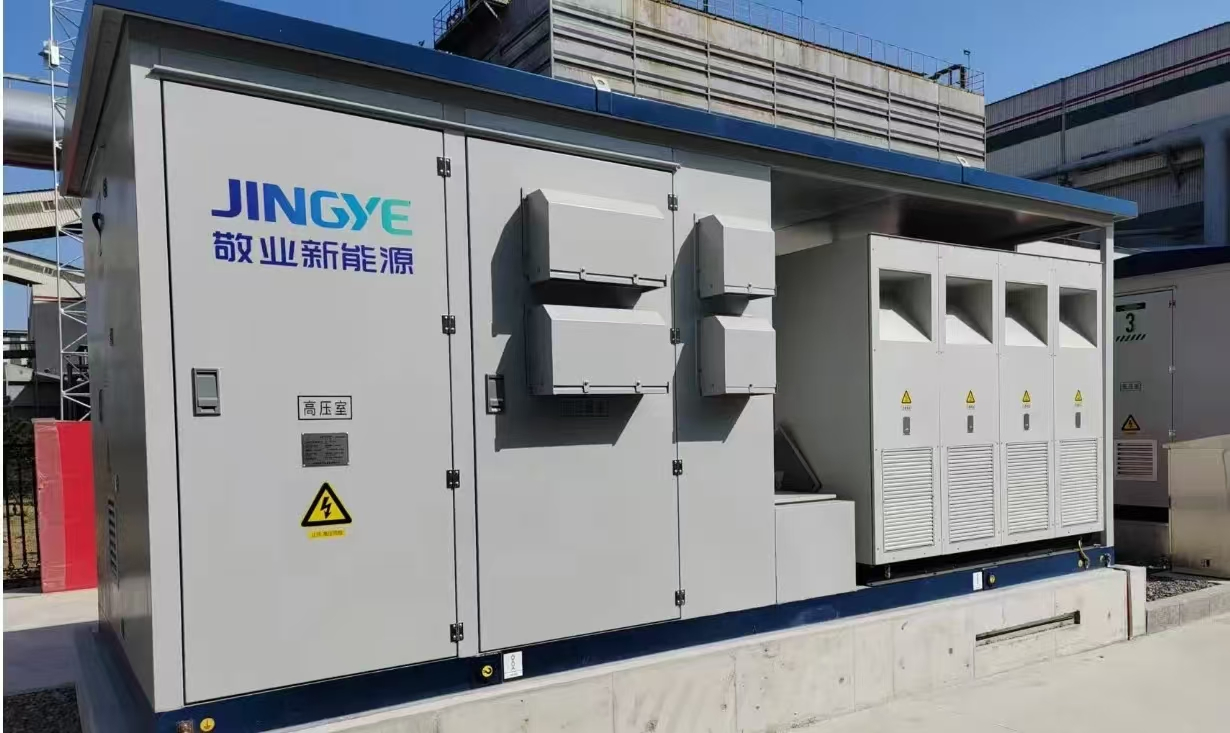

5.015mwh Advanced Liquid Cooling Commercial Storage Unit

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Warranty:	3 Years

📊

Basic Information

Cycle Life: 10 Years (2 Charges and Discharges Daily)

Configuration: 12*(1p104s*4)

Rated Power: 5mwh

Voltage Range: 1164.8V - 1497.6V DC

Rated Charging Power: ≤ 2.5MW

Rated Discharge Power: ≤ 2.5MW

Auxiliary Power Supply: 400V AC±5% 50Hz / 220VAC

Origin: China

📦

Product Description

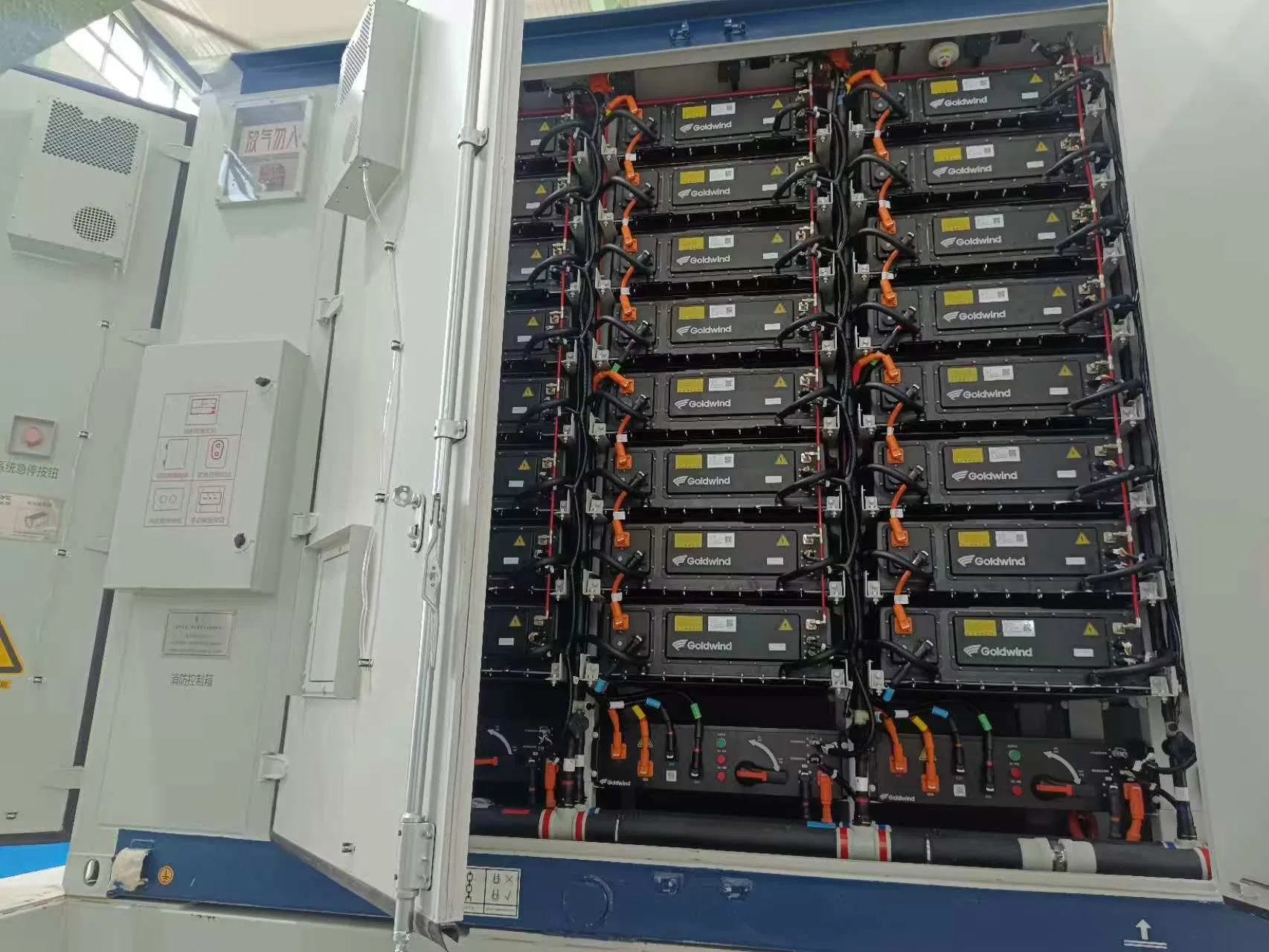

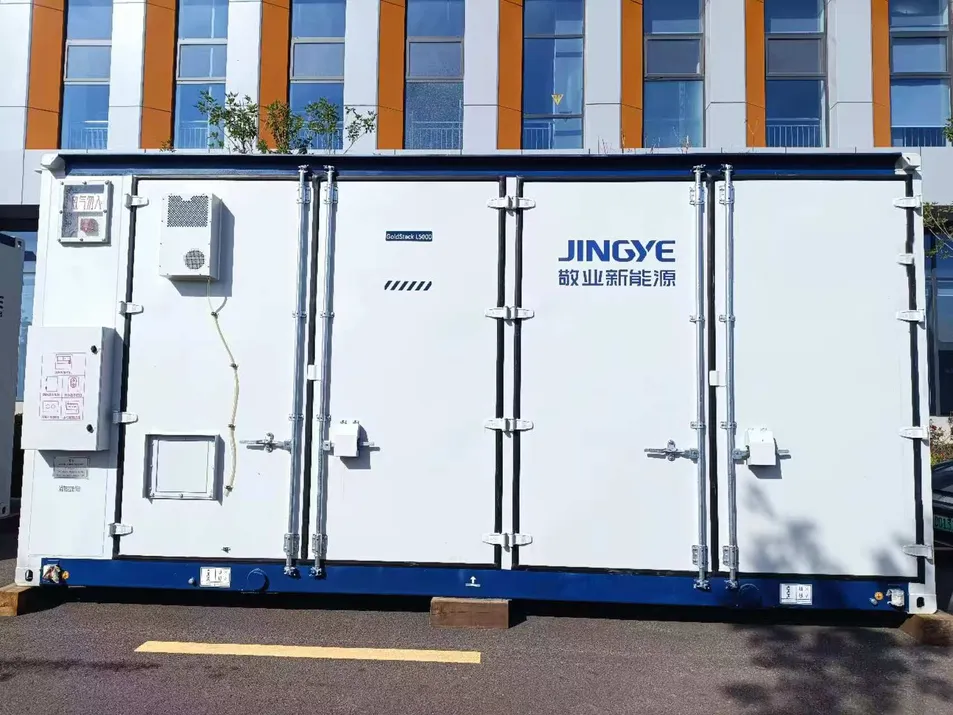

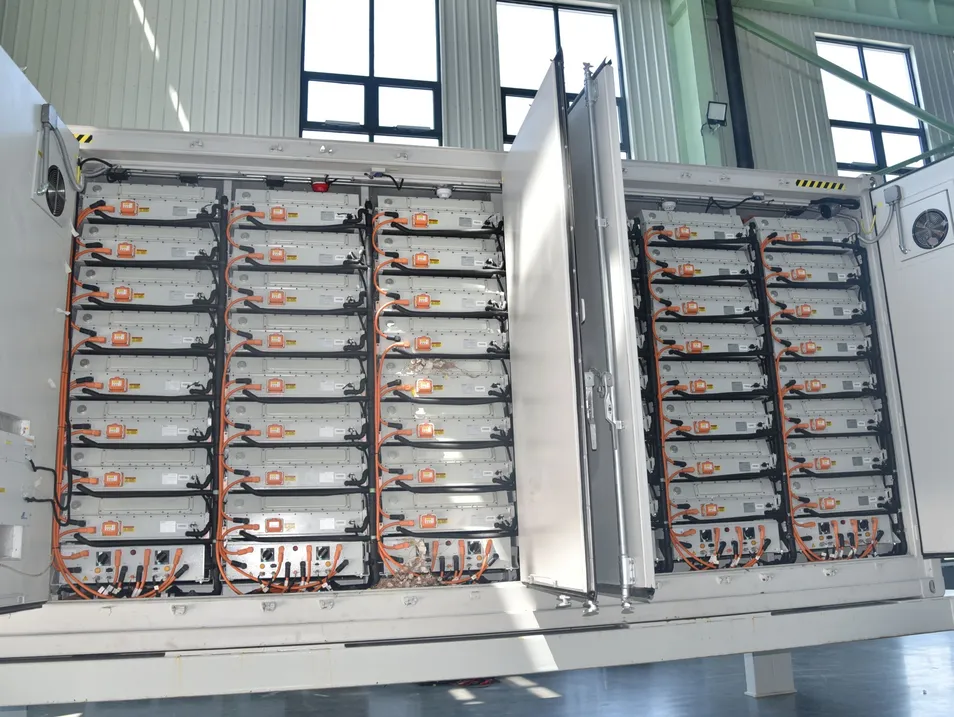

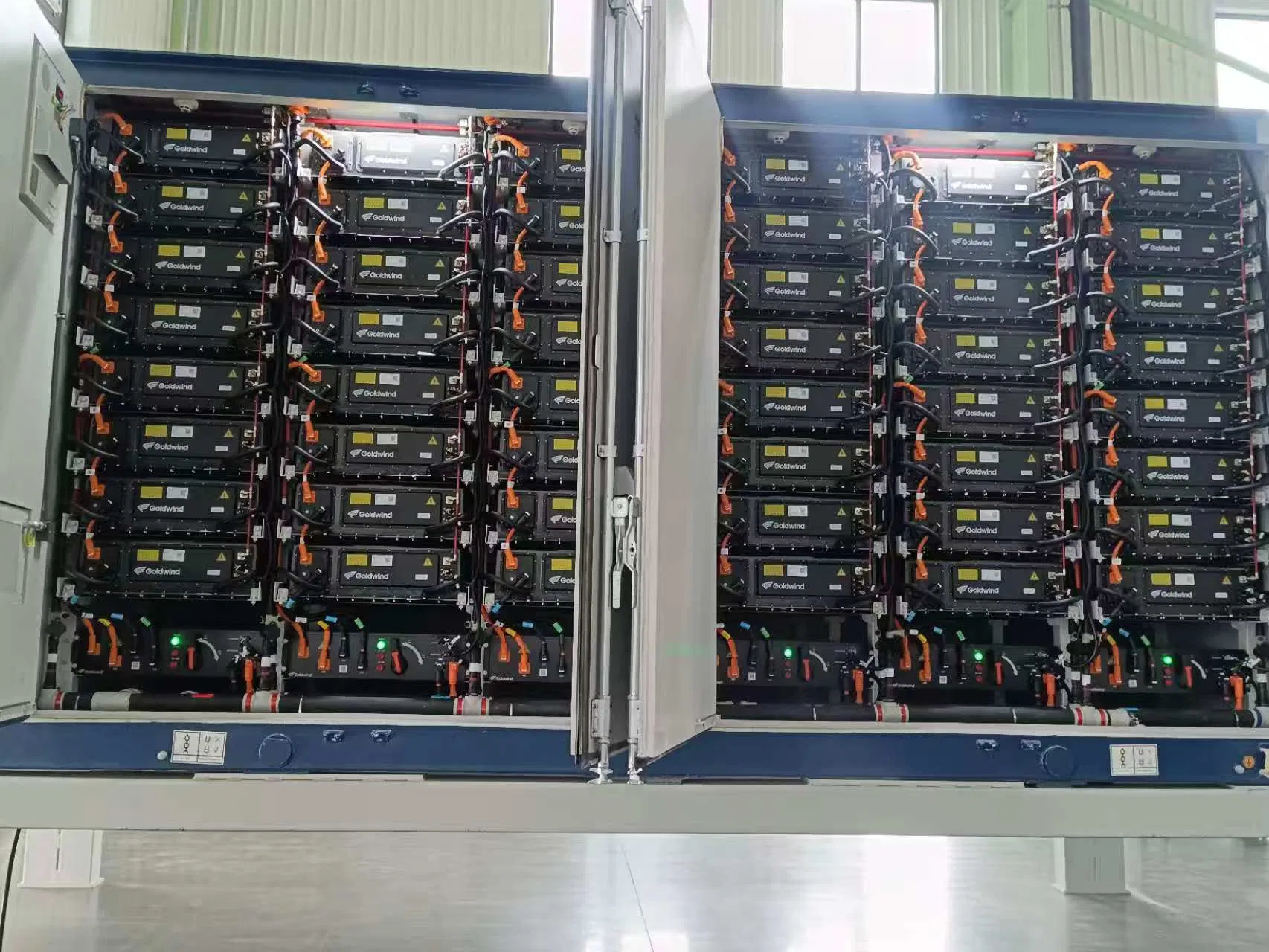

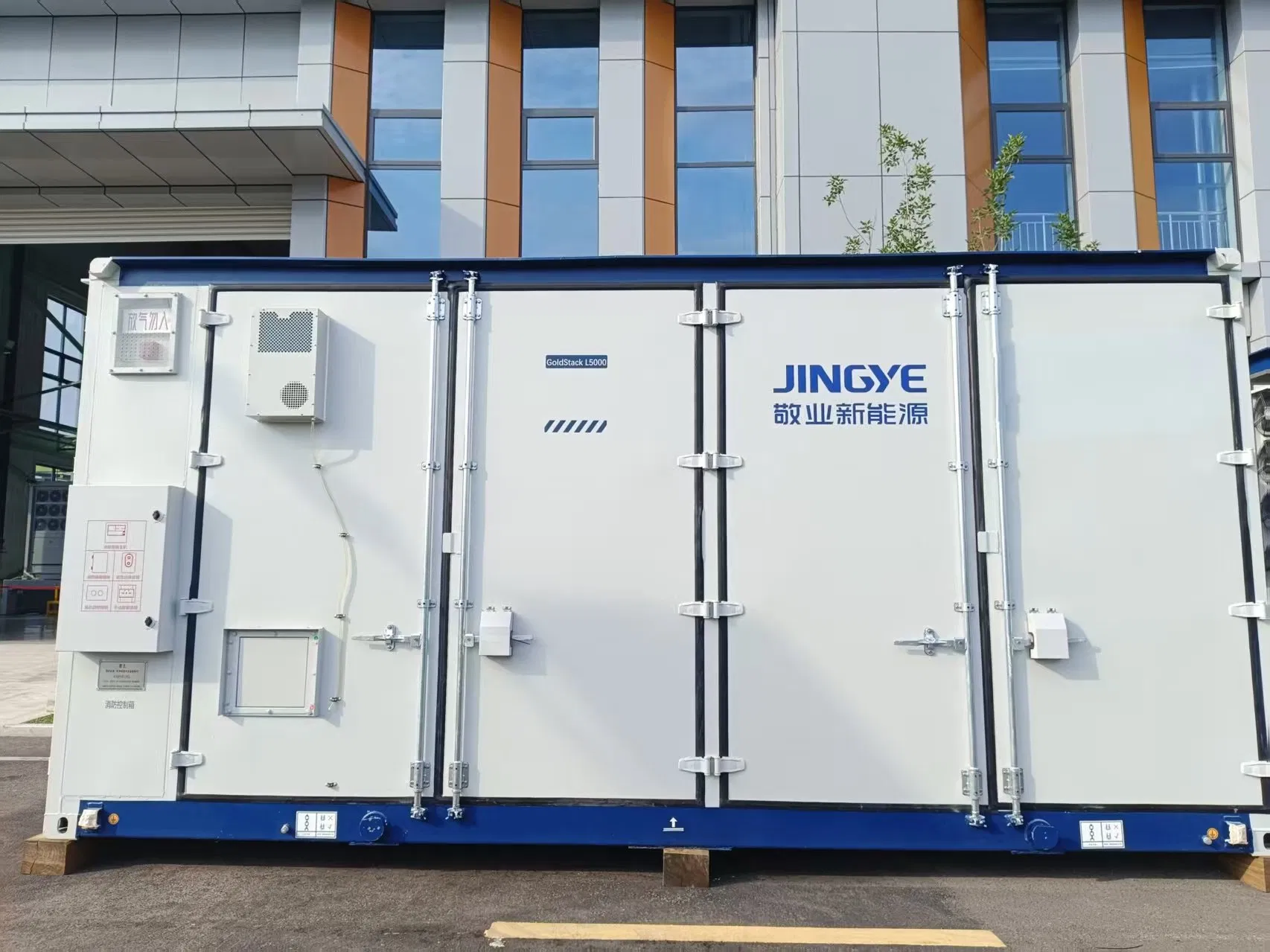

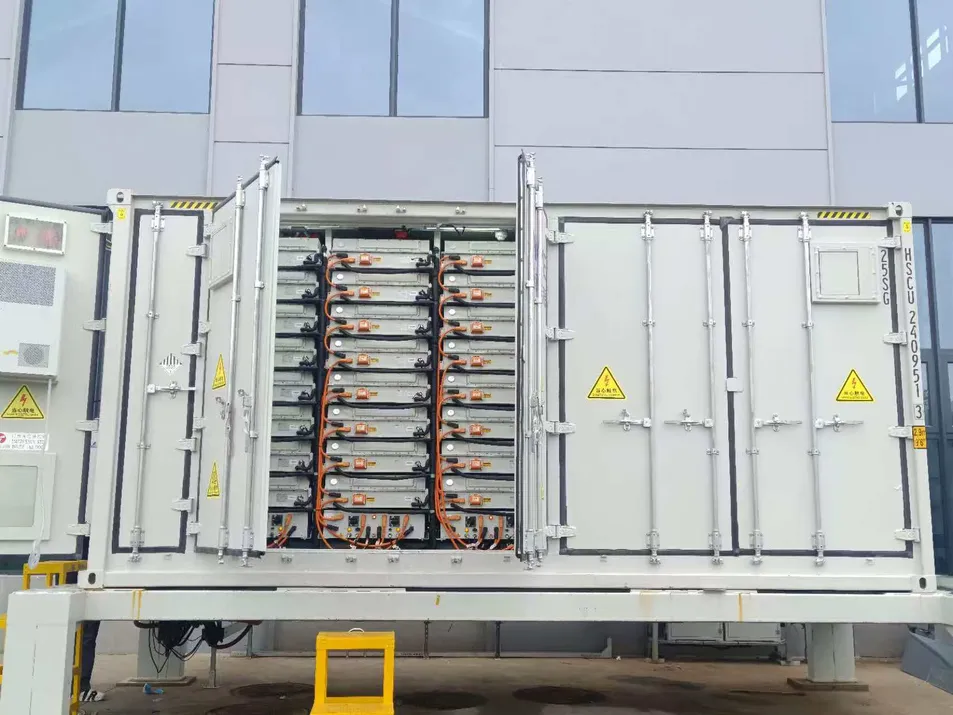

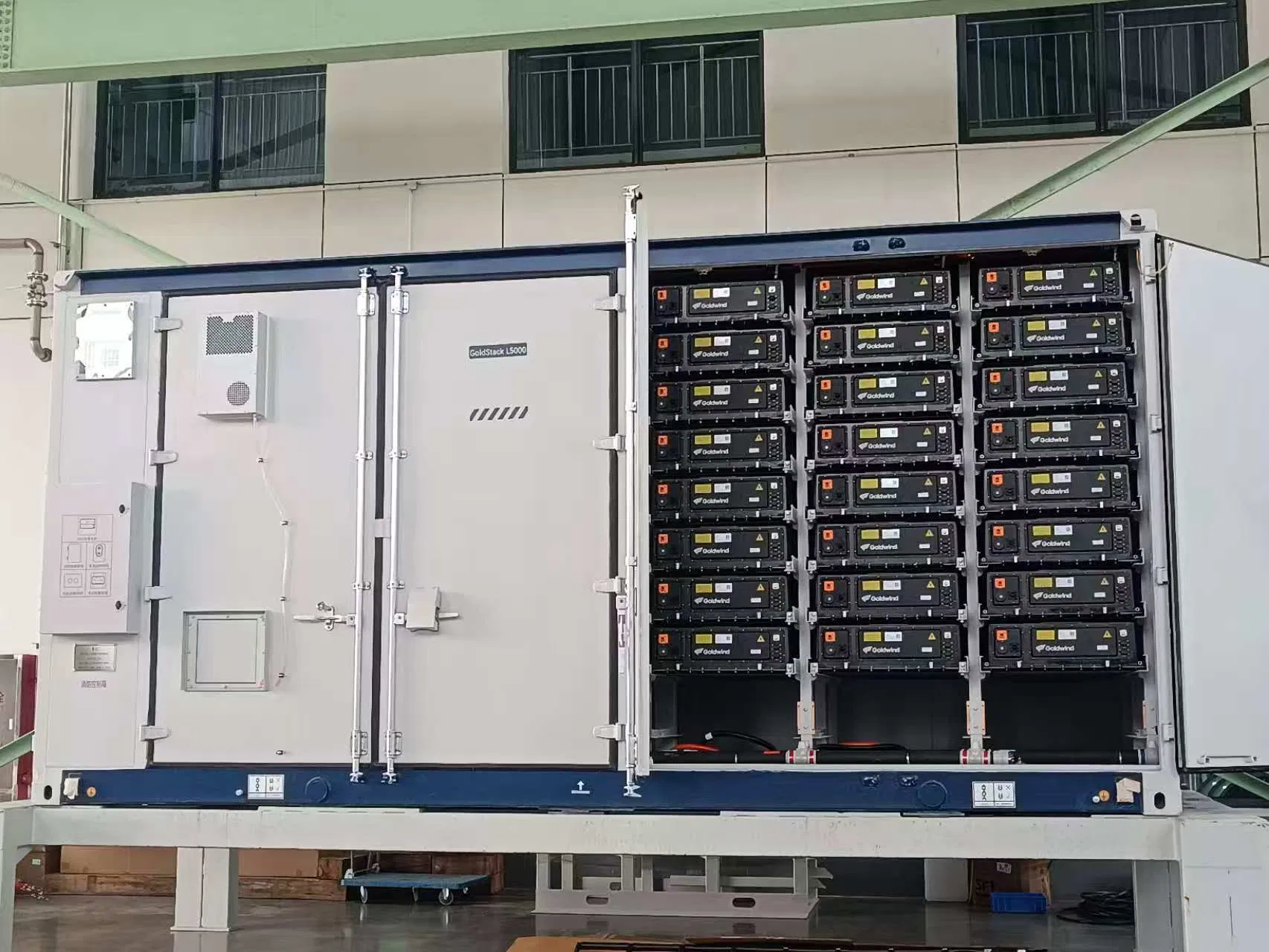

5015KWh Liquid Cooling Energy Storage Container

Based on domestic high-capacity 314Ah energy storage cells, this system consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems. The energy storage system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, and safety systems within a standard 20-foot container.

Core Features

🔋

Battery Technology: Mature, high-efficiency lithium iron phosphate batteries.

🛡️

Battery Management: Advanced intelligent BMS to ensure product safety.

❄️

Thermal Management: High-precision industrial-grade cooling, maintaining temperature differences within 3-5℃.

🔥

Fire Protection: Three-level automatic alarm and fire extinguishing system (perfluorohexane or aerosol).

🖥️

Monitoring System: Integrated temperature, humidity, smoke, video, and access monitoring.

⚙️

Modular Design: Simple structure, easy for transportation, installation, and maintenance.

📋

Technical Specifications

Item	Specification
Configuration	12(1P104S4)
Rated Power	5MWh
Rated Voltage	1331.2VDC
Voltage Range	1164.8V - 1497.6VDC
Rated Charging Power	≤ 2.5MW
Rated Discharge Power	≤ 2.5MW
Auxiliary Power Supply	400VAC±5% 50Hz/ 220VAC
Operating Temp (Charge)	0℃ < T ≤ 60℃
Operating Temp (Discharge)	-30℃ < T ≤ 60℃
Altitude	≤ 4000m
Dimensions	L6058 x W2438 x H2896mm
Weight	Approx. 43t
IP Rating	IP54
Refrigeration	Liquid Cooling
Communication	Ethernet, CAN, ModbusRTU

⚡

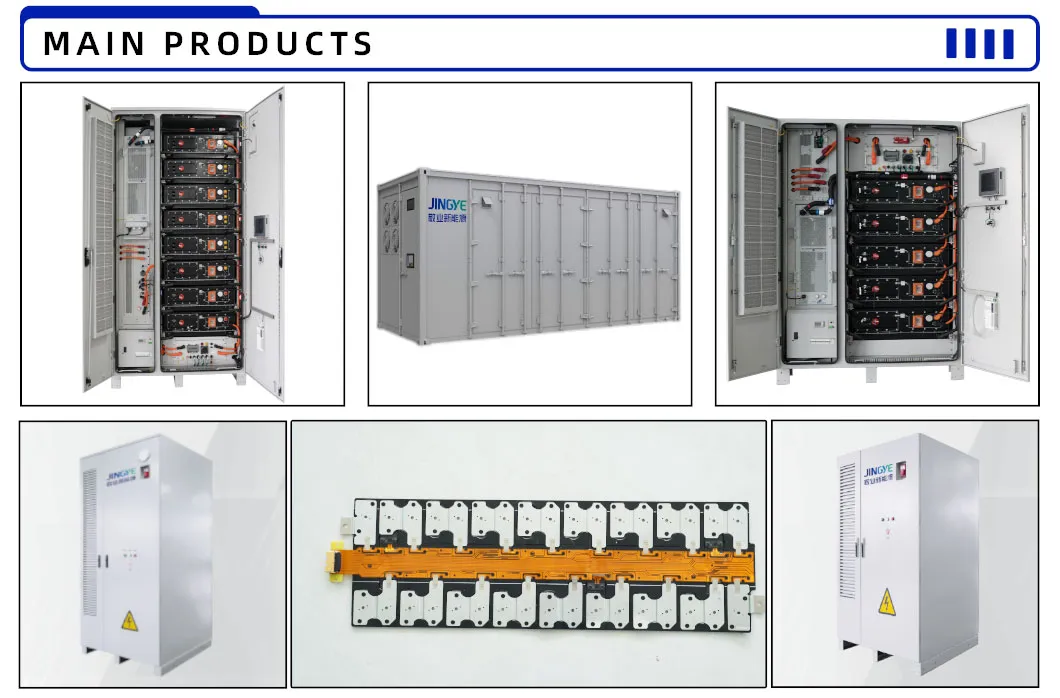

Main Product Ranges

🏭

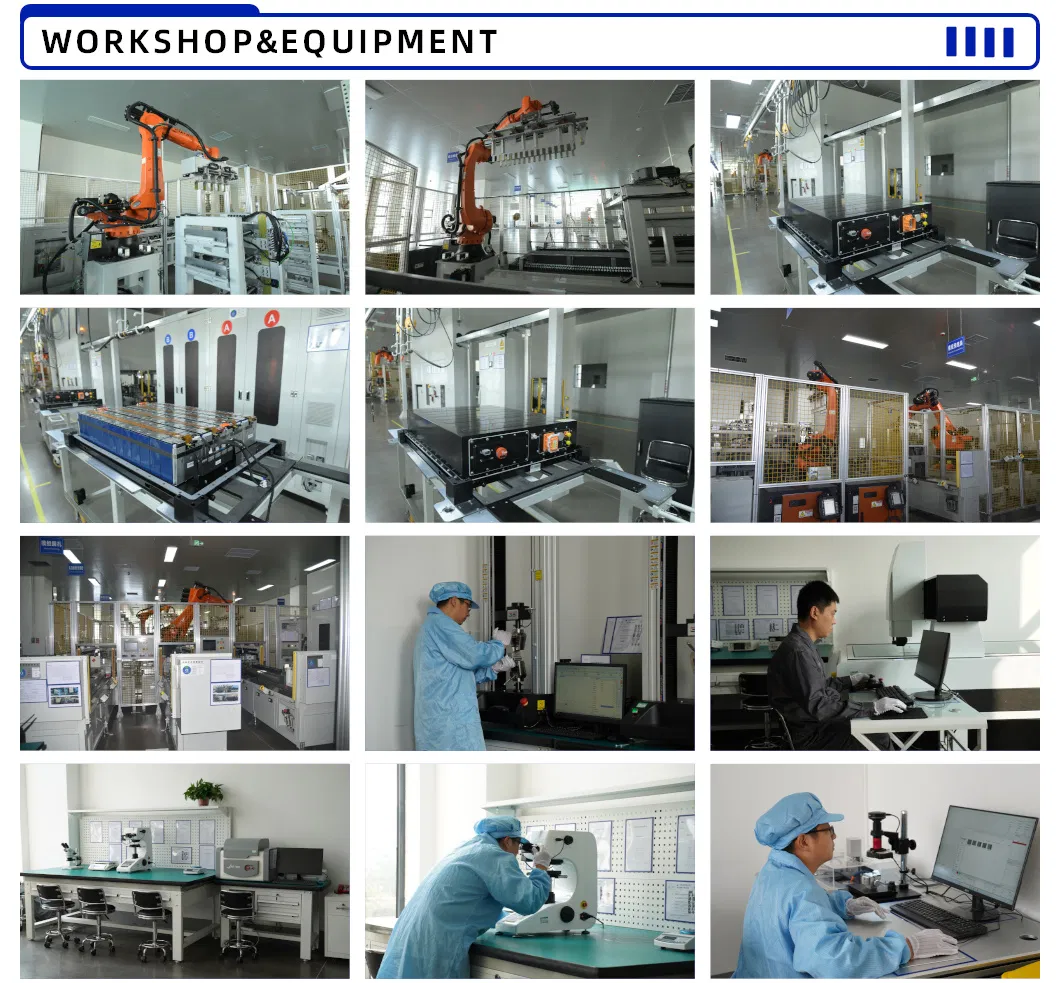

Workshop & Equipment

Equipped with the most advanced automated production lines, the facility boasts an annual production capacity of 5 GWh for energy storage systems and 2.4 million units of CCS busbars. These products are widely utilized in smart grids, renewable energy distribution, and industrial storage.

📜

Certifications & Global Presence

❓

Frequently Asked Questions

Q1: What are the primary products available?

A: Our core offerings include 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Q2: Do you support customization services?

A: Yes, we provide flexible customization options for products across various process types to meet specific project requirements.

Q3: How are production and delivery timelines managed?

A: With comprehensive production lines and a proficient technical team, we guarantee stable production cycles and on-time delivery.

Q4: Are you a manufacturer or a trading company?

A: We are a formal source factory with standardized production processes, allowing us to offer competitive pricing and high-quality products directly.

Q5: How can I obtain a detailed quotation?

A: You can contact our staff directly through the website interface, and we will provide a comprehensive quotation promptly.

Q6: What cooling method is used in the 5MWh container?

A: The system utilizes advanced liquid cooling technology with a 50% ethylene glycol aqueous solution to ensure optimal thermal performance.
