Advanced Eco-Friendly Energy Storage Solutions for Outdoor Use
❮
❯
1
/
5
Advanced Eco-Friendly Energy Storage Solutions for Outdoor Use
Customization:
Available
Weight:
2.6t
Warranty:
3 Years
Send Inquiry
Product Description
Overview & Basic Info
Model NO.
U1-01-233 / U1-02-230
Cycle Life
8000 times
Nominal Capacity
215/233 Kwh
Battery Type
LiFePO4 (Power)
Certification
ISO9001:2000
Protection Grade
IP55
Structure
All in One / All-Packaged
Rated Voltage
380 V / 768V
Application
Power Plants
Package Weight
2.6t
Specification
1000*1400*2170 mm
Origin
China

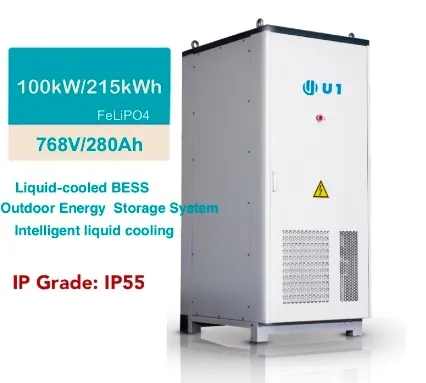

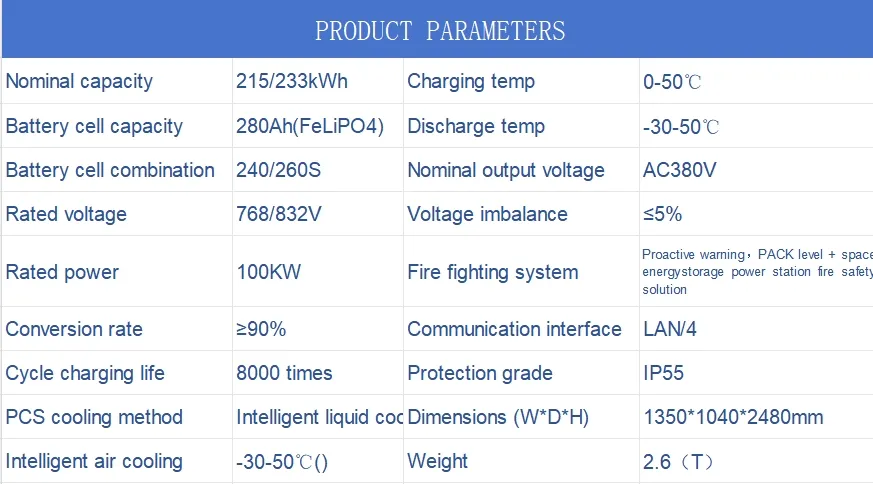

Technical Parameters
✓
Norminal capacity: 215kWh
✓
Battery cell capacity: 280Ah (LiFePO4)
✓
Rated voltage: 768V / AC380V Output
✓
Rated power: 100kW
✓
Conversion rate: ≥90%
✓
Cycle charging life: 8000 times
✓
Cooling method: Liquid Cooling
✓
Fire fighting: PACK level + Space solution
✓
Temp. Range: Charge 0~50ºC / Discharge -30~50ºC
✓
Communication: LAN/4

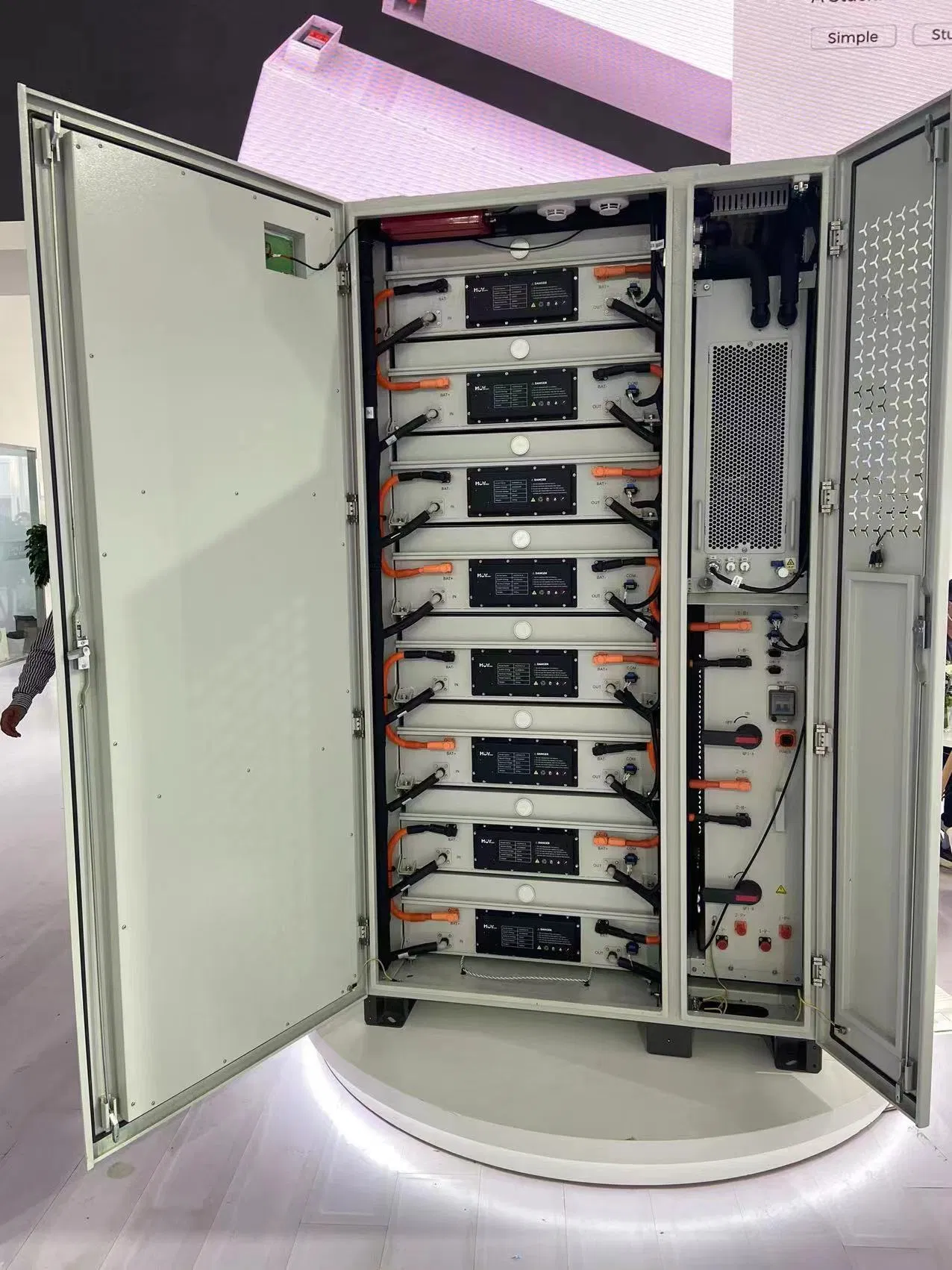

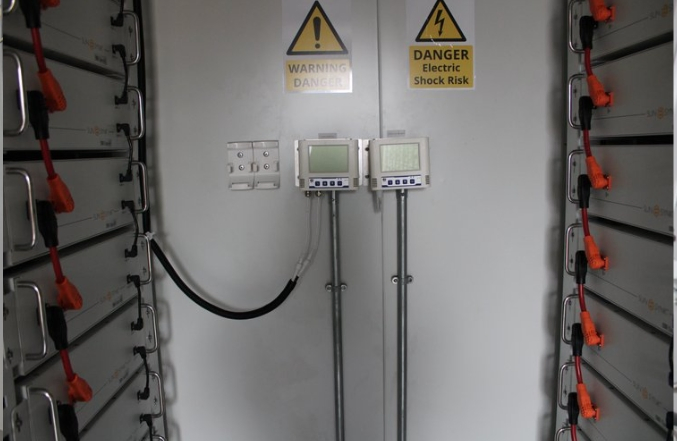

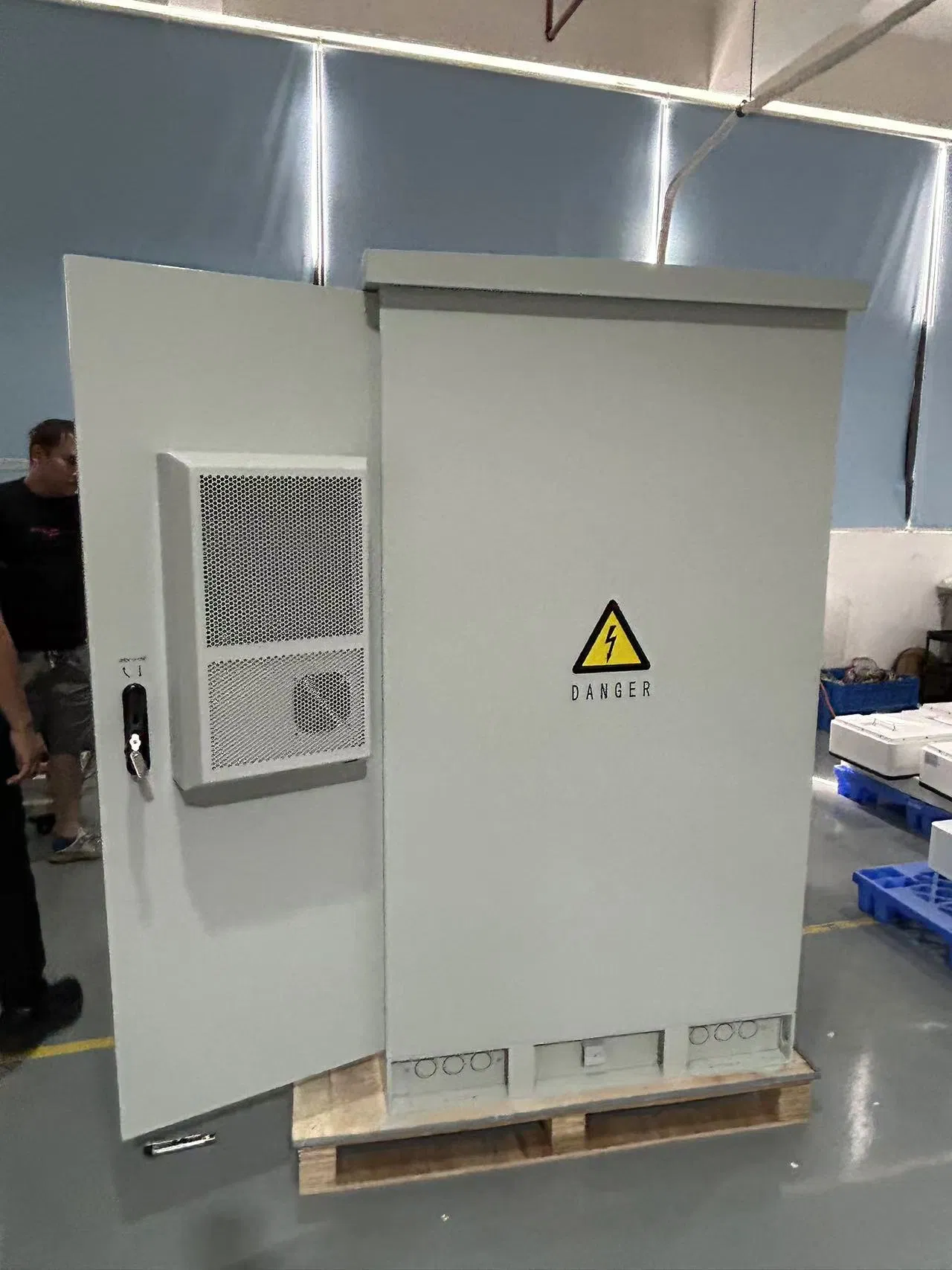

Detailed Product Photos

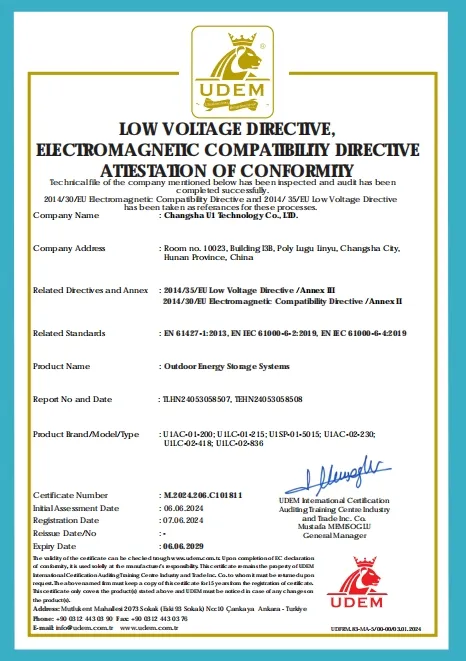

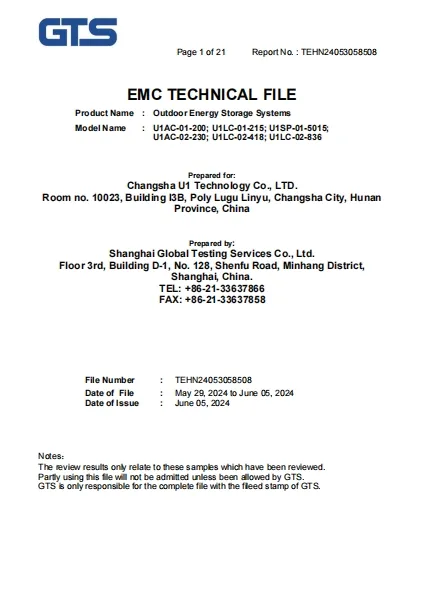

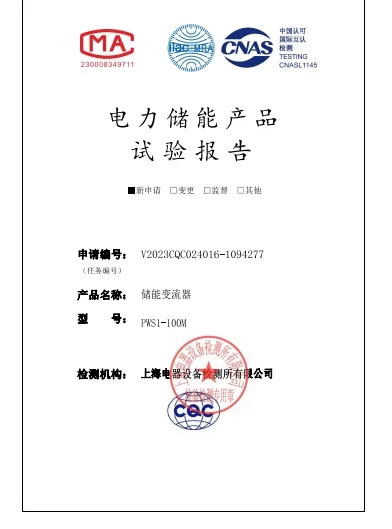

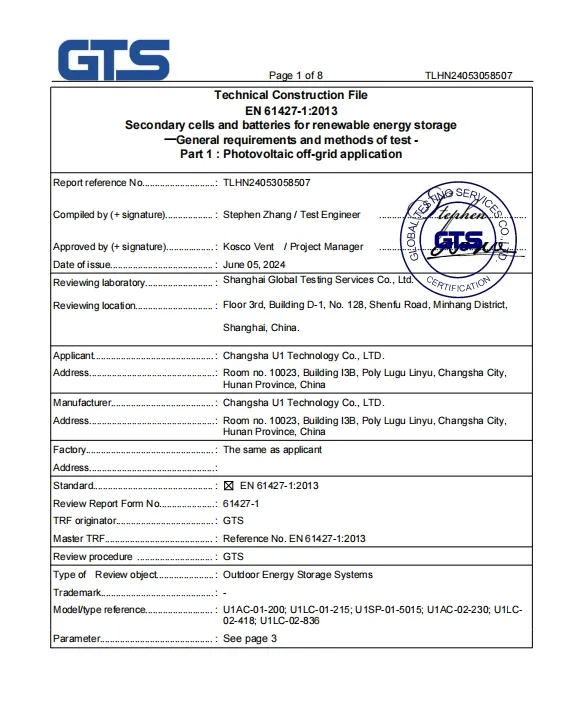

Certifications
Frequently Asked Questions
What is the estimated cycle life of this energy storage system?
The system features high-quality LiFePO4 battery cells with a cycle charging life of up to 8000 times.
Is this unit suitable for outdoor installation?
Yes, it has an IP55 protection grade shell and is designed as an all-in-one packaged type suitable for various environments.
What cooling method does the PCS use?
The system utilizes advanced Liquid Cooling technology to maintain optimal operating temperatures and ensure stability.
What kind of fire safety features are included?
Safety is prioritized with a proactive warning system and a PACK-level plus space energy storage power station fire safety solution.
What is the nominal output voltage and conversion rate?
The system provides a nominal output voltage of AC380V with a conversion efficiency rate of ≥90%.
Can the system operate in extreme temperatures?
Yes, the discharge temperature range is -30ºC to 50ºC, allowing for reliable operation in diverse climatic conditions.
