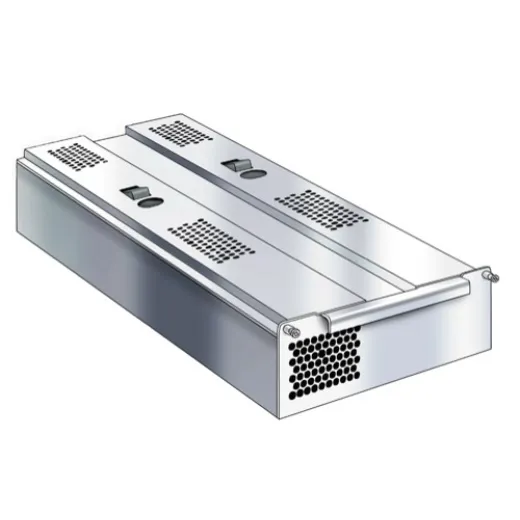

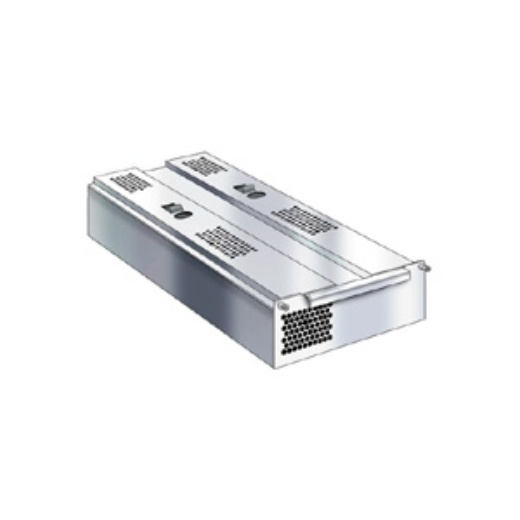

APC Sybtu1-Plp Symmetra Px Battery Unit for Symmetra UPS

1 / 5

APC Sybtu1-Plp Symmetra Px Battery Unit for Symmetra UPS

Customization:	Available
Phase:	Single Phase
Type:	On-line

Send Inquiry

Product Description

Basic Information

Model NO.

SYBTU1-PLP

Protection

Short Circuit

Application

Communication

Classification

Lighting/Power

Standby Time

Standard Machine

Standby UPS

Sine Wave Output UPS

Output Capacity

Medium Type

Equipment Mode

Decentralized

Brand

APC

Model Name

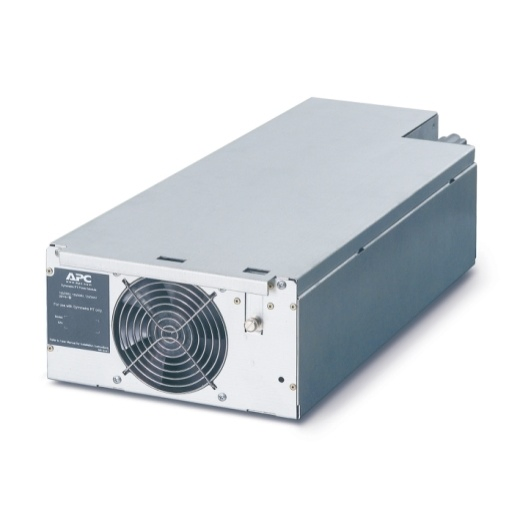

Symmetra Lx Intelligence Power Module

Transport Package

Carton

Specification

SYMIM5

Trademark

APC

Origin

China

HS Code

8504402000

★

Product Description

Symmetra is a single unit composed of modular components. This modular architecture provides the foundation of building and scaling near-continuous availability power systems with a flexible range of power capacity. The Symmetra Power Array combines with the complete line of datacenter protection software and accessories to provide the four most critical elements of total datacenter protection: redundancy, scalability, manageability and serviceability.

APC SYBTU1-PLP UPS Battery Unit / SYBTU1-PLP

Technical Specifications

Output

Battery Output Voltage: 120 V

Input

Number of Power Cords: 1

Batteries & Runtime

Battery type: Lead-acid battery
Battery mounting: Enclosed battery cartridge
Battery Placement: Internal battery
Expected Battery Life (years): 3 - 5
RBC Quantity: 1
Battery blocks per string: 10
Battery Volt-Amp-Hour Capacity: 1080

Physical

Maximum Height: 5.5inches (140MM, 14.0CM)
Maximum Width: 8.3inches (210MM, 21.0CM)
Maximum Depth: 21.5inches (546MM, 54.6CM)
Net Weight: 64.15lbs. (29.1KG)
Shipping weight: 71.17lbs. (32.28KG)
Shipping Height: 15.2inches (385MM, 38.5CM)
Shipping Width: 11.3inches (286MM, 28.6CM)
Shipping Depth: 29.5inches (750MM, 75.0CM)
Units per Pallet: 12.0

Environmental

Operating Temperature: 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0 - 10000ft (0 - 3048meters)
Storage Temperature: -15 - 45 °C
Storage Elevation: 0 - 15000ft (0 - 4572meters)

Conformance

Approvals: CSA, UL 1778

Frequently Asked Questions

What is the battery type used in the SYBTU1-PLP?

The SYBTU1-PLP utilizes a high-quality maintenance-free Lead-acid battery with suspended electrolyte, designed for leakproof performance.

What is the expected lifespan of this battery unit?

Under normal operating conditions, the expected battery life ranges from 3 to 5 years.

Which UPS systems are compatible with the SYBTU1-PLP module?

This unit is specifically designed for the APC Symmetra LX and Symmetra PX modular UPS architectures, supporting both power scaling and redundancy.

Can the battery be replaced while the UPS is running?

Yes, the modular design of the Symmetra series allows for hot-swappable battery replacement, ensuring near-continuous availability for your critical systems.

What are the environmental storage requirements?

The unit should be stored in a temperature-controlled environment between -15°C and 45°C, and at elevations up to 15,000 feet.

Does this unit meet international safety standards?

Yes, the SYBTU1-PLP carries Conformance approvals from CSA and complies with UL 1778 standards for power equipment safety.
