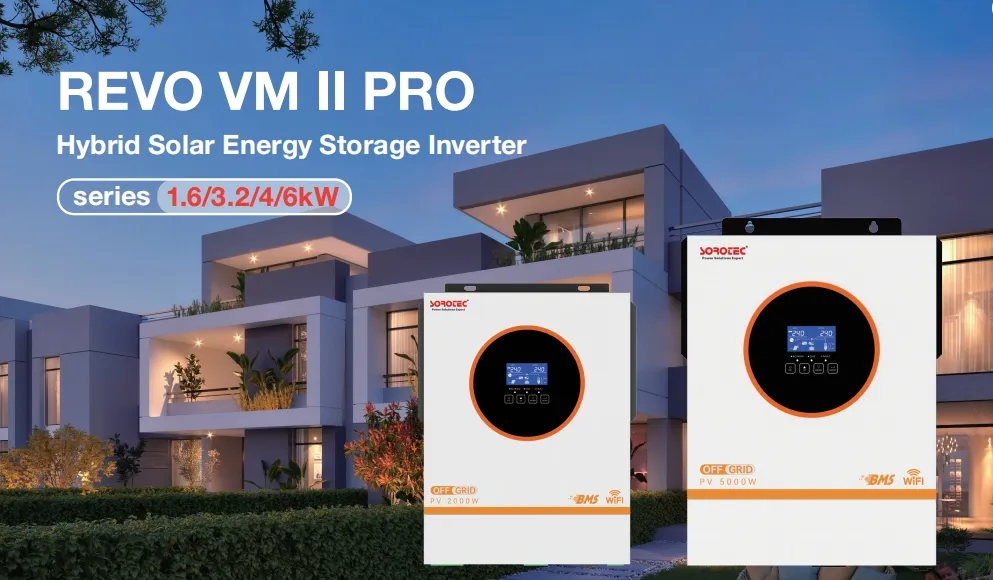

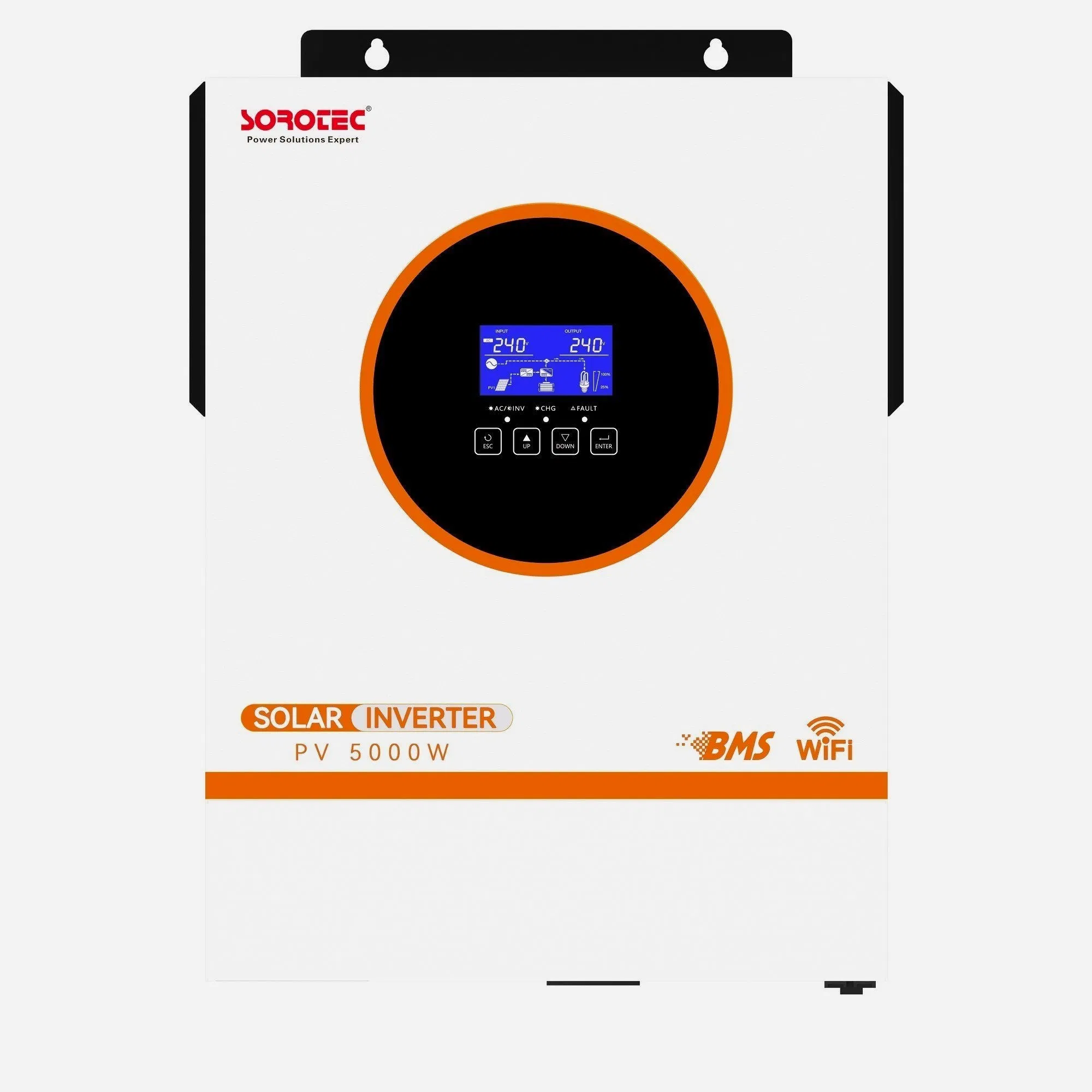

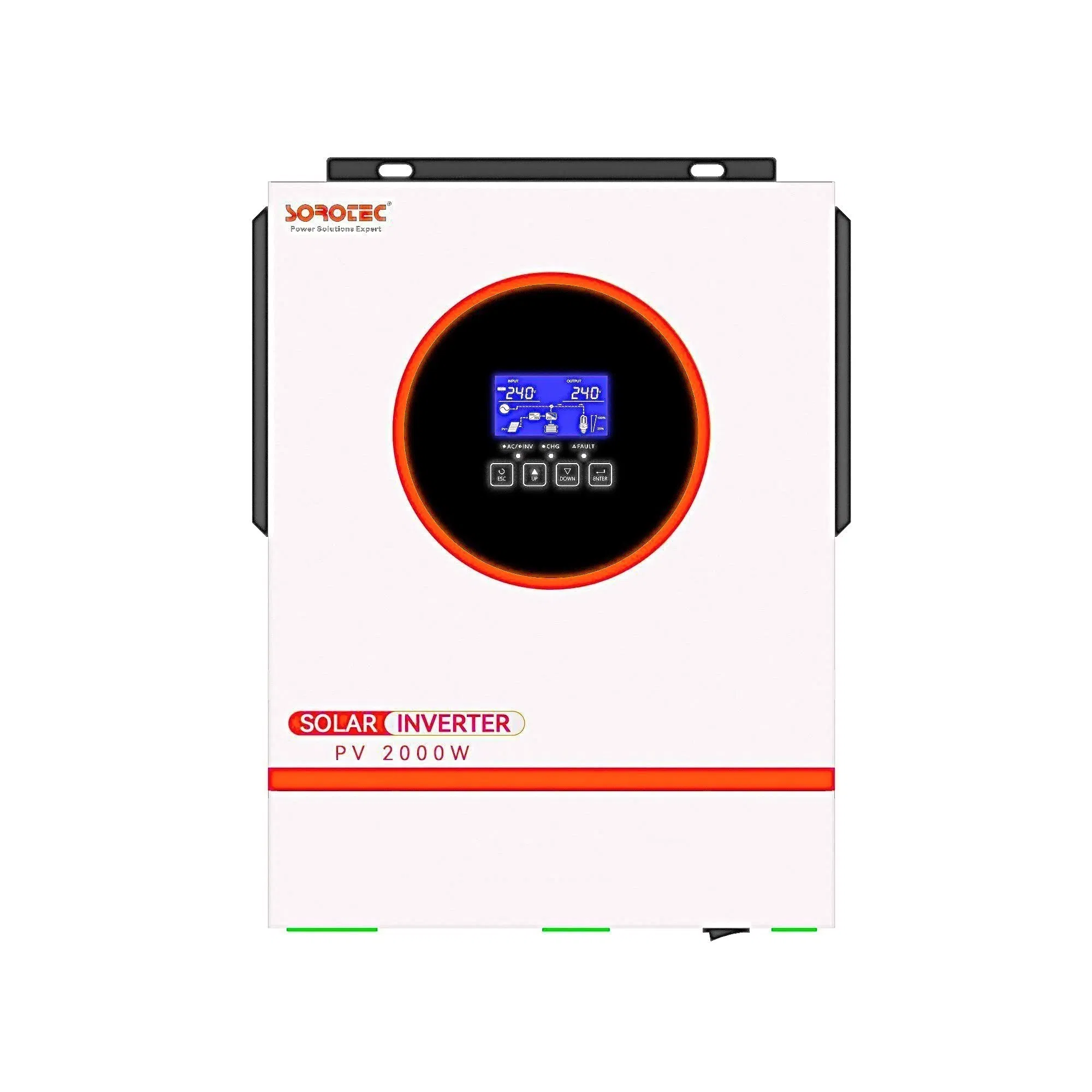

Sorotec 3kw 3.2kw 5.5kw on/off Grid Pure Sine Wave Solar Power Inverters with Energy Storage System

Customization: Available
After-sales Service: Technical Support,Video Tutorial,Replace Parts
Warranty: 2 Years

Product Description

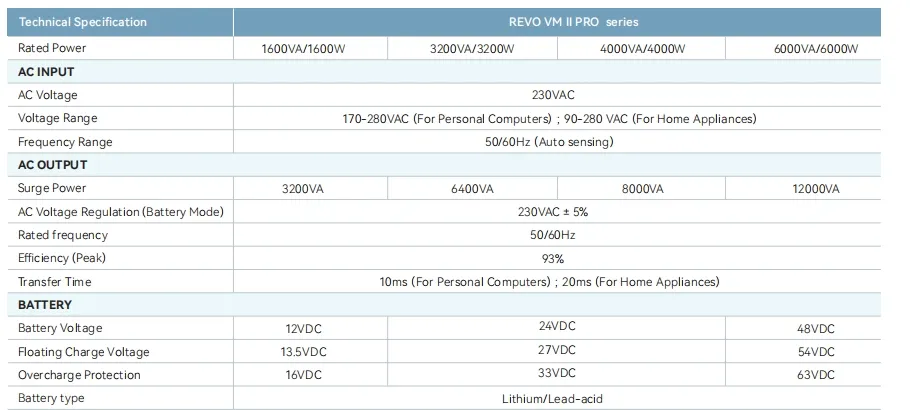

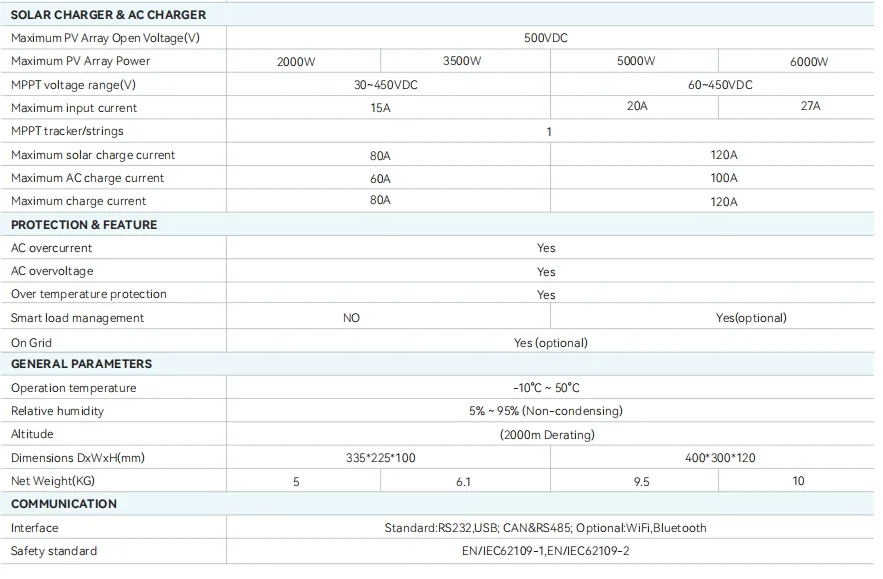

Technical Overview

Model NO.REVO VM II PRO
Nature of Source FlowPassive inverter
PhaseSingle Phase
Output Power>1000W
CertificationCE, ISO9001
TypeDC/AC Inverters
Power SourceSolar Power
Nominal Output Voltage220/230/240VAC
Power Factor1.0
EfficiencyUp to 93.5%
Solar Charge Current90A
Operating Temp0 to 50 °C

Product Description

The REVO-II Series is a touch-display On/Off Grid Hybrid Energy Storage Solar Inverter designed for high-performance energy management. It integrates pure sine wave output with a versatile energy storage system, providing reliability for both domestic and commercial applications.

Key Features

  • Touch screen display for easy operation

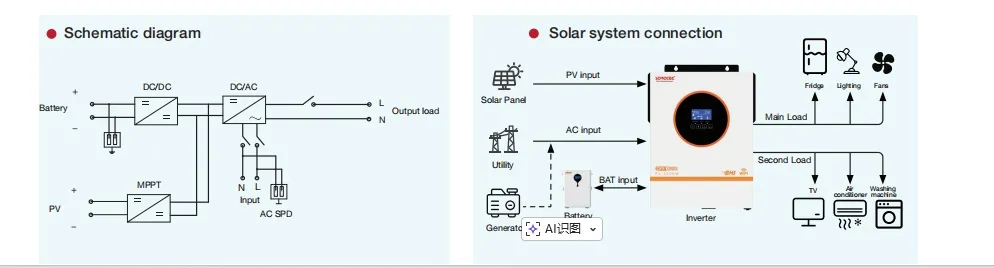

  • Dual PV and utility power input
  • Pure sine wave output (PF=1.0)
  • On & Off Grid with energy storage capability
  • Comprehensive data logging (Energy, load, faults)
  • Dust filter structure for harsh environments
  • Parallel operation up to 9 units
  • Wide PV input range (120-450VDC)
  • MAX PV Array power up to 5000W
  • Independent CPU for high-speed processing

The REVO VM II PRO is engineered as an affordable yet highly reliable hybrid solar inverter. Designed to handle power stability challenges, it supports a wide range of installations from 1.6kW to 10kW. It is compatible with both Lithium and Lead-acid batteries, ensuring flexible energy storage solutions for emerging markets.

Product Name Hybrid Solar Inverter
Output Power 3KW-5.5KW
Control Interface Touch screen display
Frequency Range 50 Hz/60 Hz (Auto Sensing)

Manufacturing & Capabilities

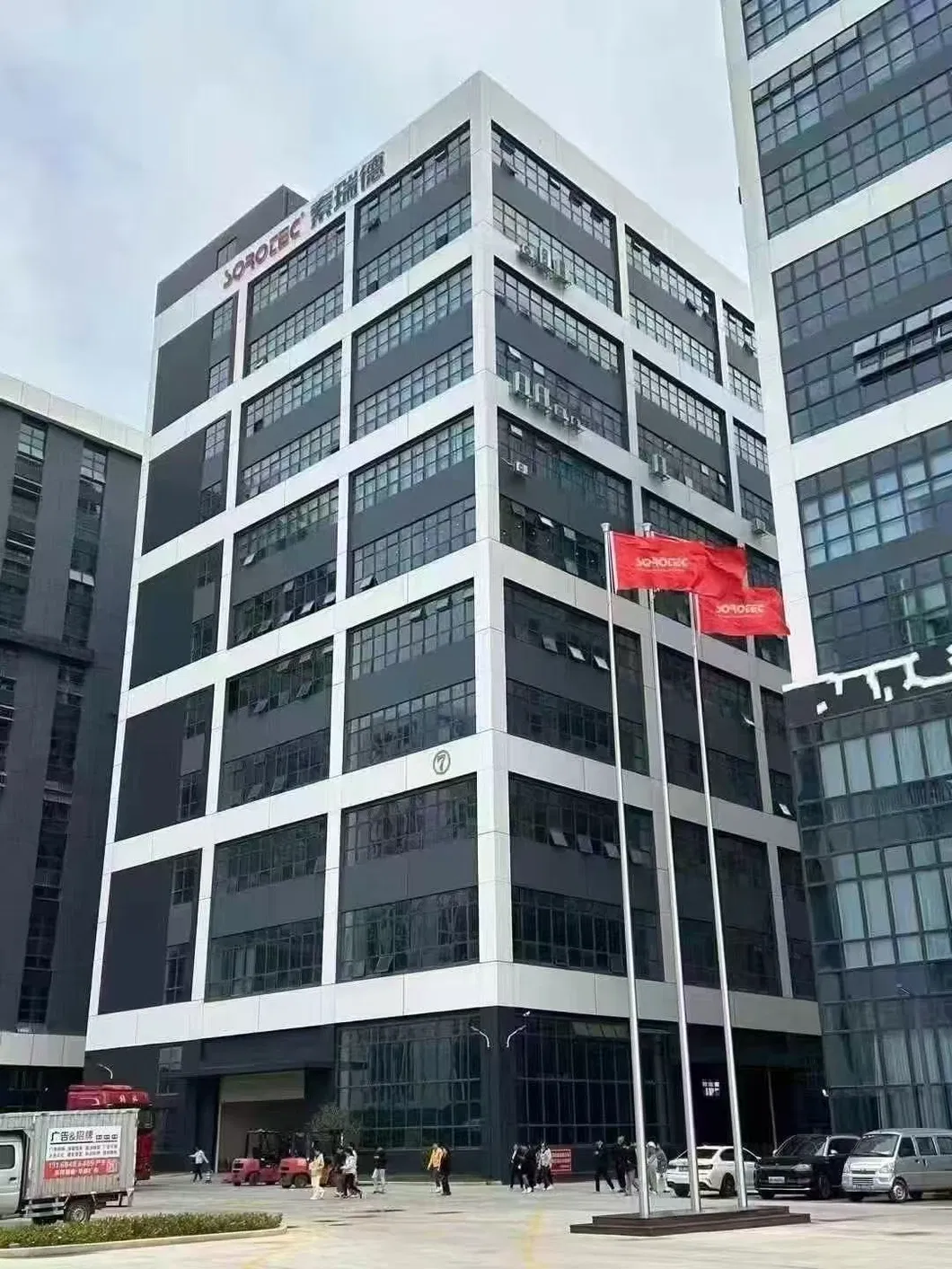

Our production facility spans 15,000 square meters, specializing in electronic power and new energy products. With ISO9001, ISO14001, and CE certifications, we ensure every unit meets international quality standards through rigorous testing and aging processes.

Why Choose Our Solutions

⭐ Source Factory Strength

As a direct manufacturer, we offer more controllable delivery times and competitive pricing, ensuring a stable long-term supply chain rather than one-time transactions.

⭐ Product Reliability

Components are selected for long-term operation under high-load and complex environmental conditions (heat, humidity, voltage fluctuations).

⭐ Mature Export Experience

With deep understanding of power grids in the US, Europe, Africa, and Middle East, our configurations are optimized for local market needs.

⭐ Strict Quality Control

From raw materials to finished goods, multiple functional and performance aging tests are conducted to reduce after-sales risks.

Frequently Asked Questions

1. How do I choose the right type of inverter?
For inductive loads like refrigerators, air conditioners, and coffee machines, we recommend a Pure Sine Wave inverter. Modified wave inverters are suitable for simple resistive loads like light bulbs.
2. How do I determine the correct inverter size?
Resistive loads can match the inverter power 1:1. For capacitive loads, choose 2-5 times the power. For inductive loads (motors/compressors), choose 4-7 times the rated power.
3. What is the recommended battery cable length?
Ideally, cables should be shorter than 0.5M to minimize voltage drop. Longer distances require thicker cables to avoid under-voltage alarms.
4. How do I calculate the working hours for my battery?
Use the formula: Working Hours = (Battery Capacity AH * Voltage V * 0.8) / Load Power W. Note that battery age and condition may affect this reference value.

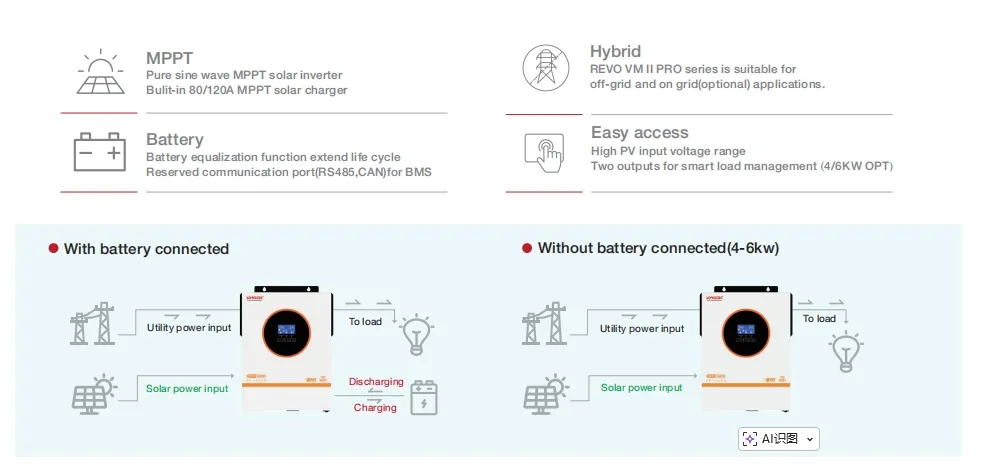

5. Can this hybrid inverter work without a battery?
Yes, the REVO VM II PRO can support "Battery-less" operation in certain modes, allowing solar energy to power the load directly when sunlight is sufficient.
6. Is parallel operation supported?
Yes, models ranging from 4kW to 10kW support parallel operation for up to 6 to 9 units, allowing you to scale your power system as your energy needs grow.
