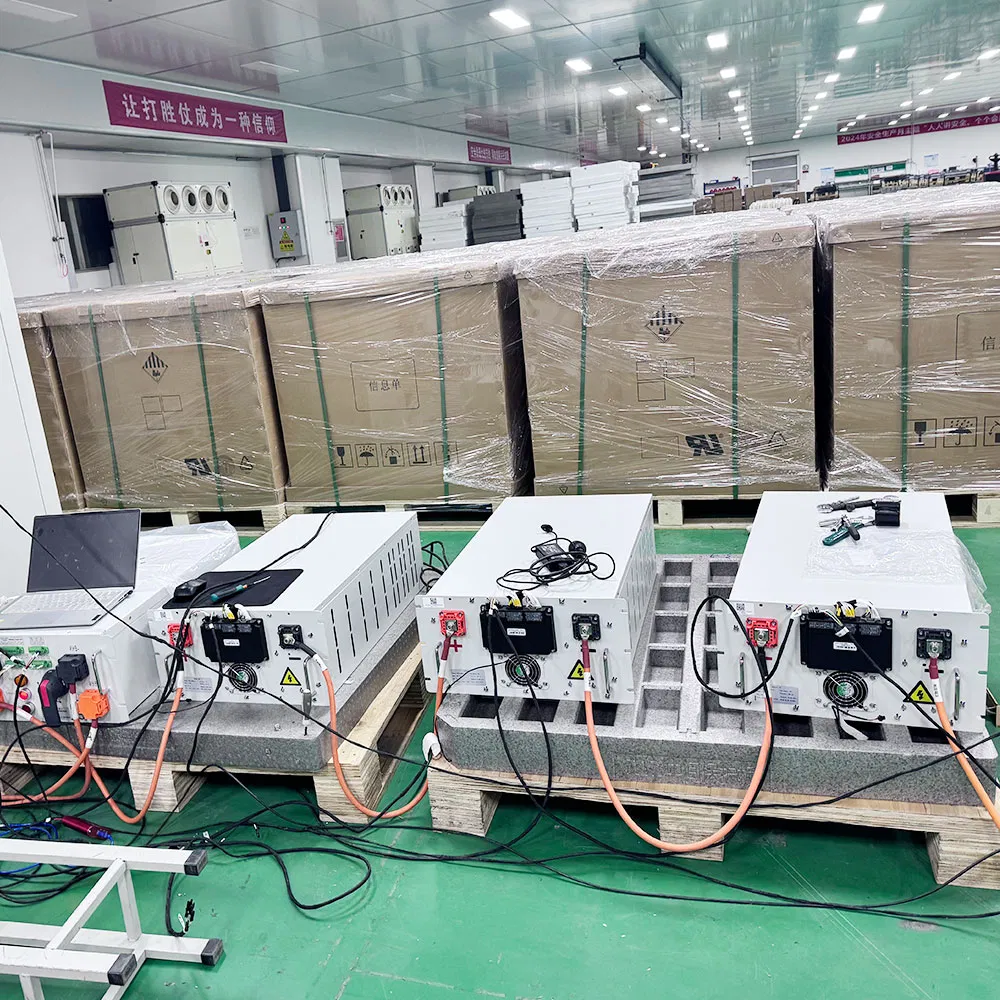

OEM Lithium-Ion Battery High-Voltage Air-Cooled Power Station 215kwh for Industrial and Commercial Energy Storage LiFePO4 for off Grid Solar Systems

Customization: Available
Container Size: 2500*2900*1500mm
Weight: 2.65t

Product Description

📋 Basic Information
Model NO.
PLPF0280C0-0768R0A
Nominal Voltage
768V
Warranty
2 years
Nominal Capacity
215
Cycle Life
>=6000 @100%Dod, 80%Eol
Battery Type
302V/280ah
Rated Power
110kVA
Grid Frequency
50Hz/60Hz
📸 Product Overview

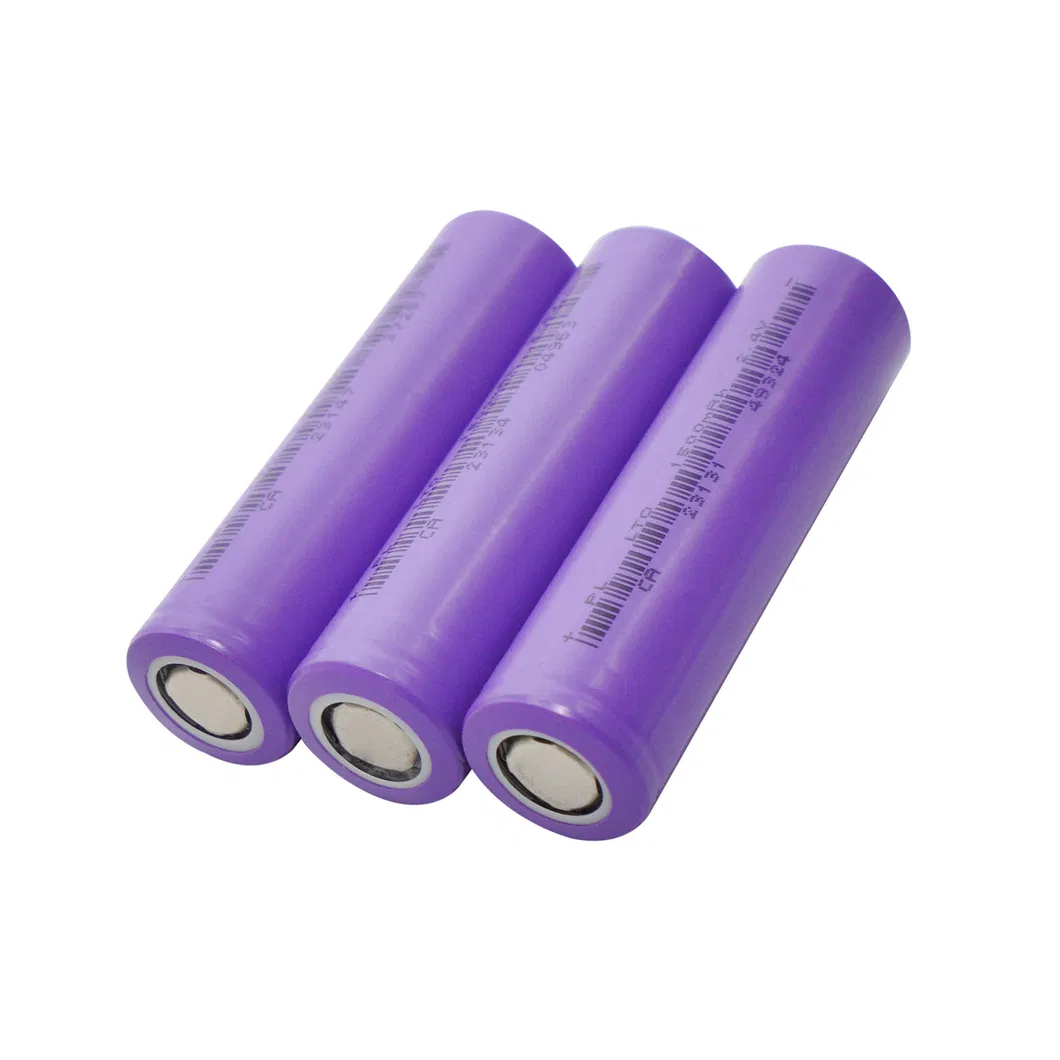

Power Station View 1 Power Station View 2 Power Station View 3

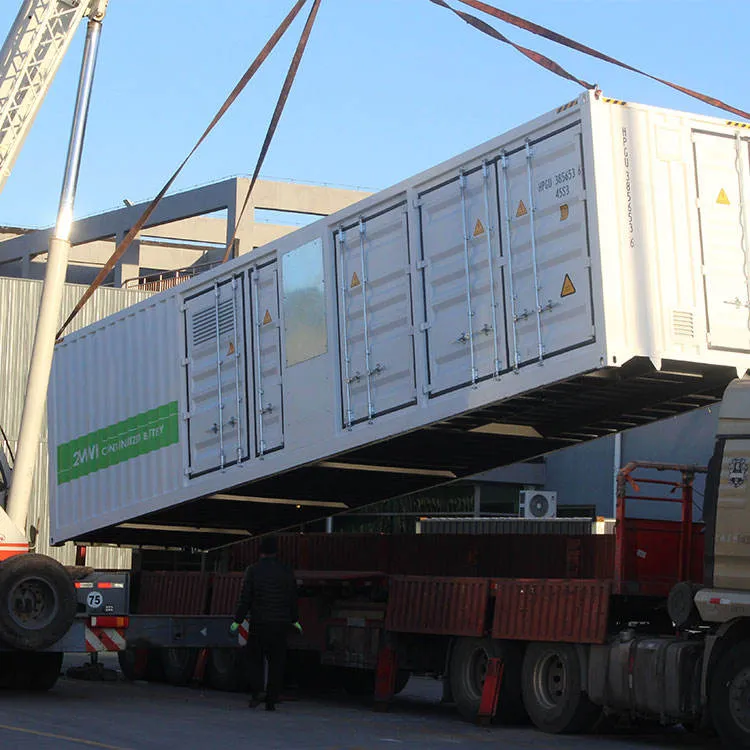

Storage System 1 Storage System 2 Storage System 3
⚙ Technical Parameters
Battery Specifications
Product ModelPLPF0280C0-0768R0A
Battery Parameter1p240s
Cell Type3.2V/280Ah
Cell Life≥6000 @100%DOD, 80%EOL
Rated Battery Capacity215kWh
Battery Voltage Range600~876V
AC Parameters
Rated Output Power110kW
Rated Grid Voltage400V
Grid Frequency Range±2.5Hz
Power Factor-1(leading)~1(lagging)
AC Off Grid Voltage400V
System Parameters
Product Size (Air Cooled)2100 X 2500X 1100mm
Operating Temperature-30~ 60ºC
Cooling MethodAir/Liquid Cooled
Fire Extinguishing SystemAerosol/Heptafluoropropylene
Communication ProtocolModBus-TCP/RTU, IEC104
🔭 System Details

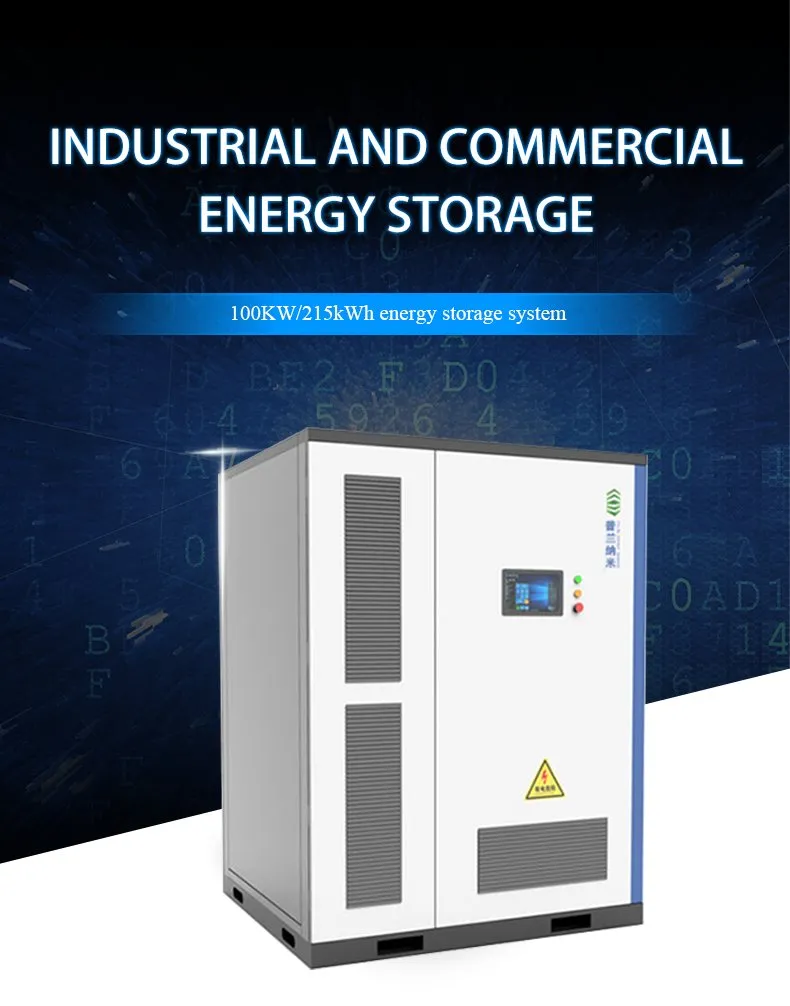

Detail 1
Detail 2

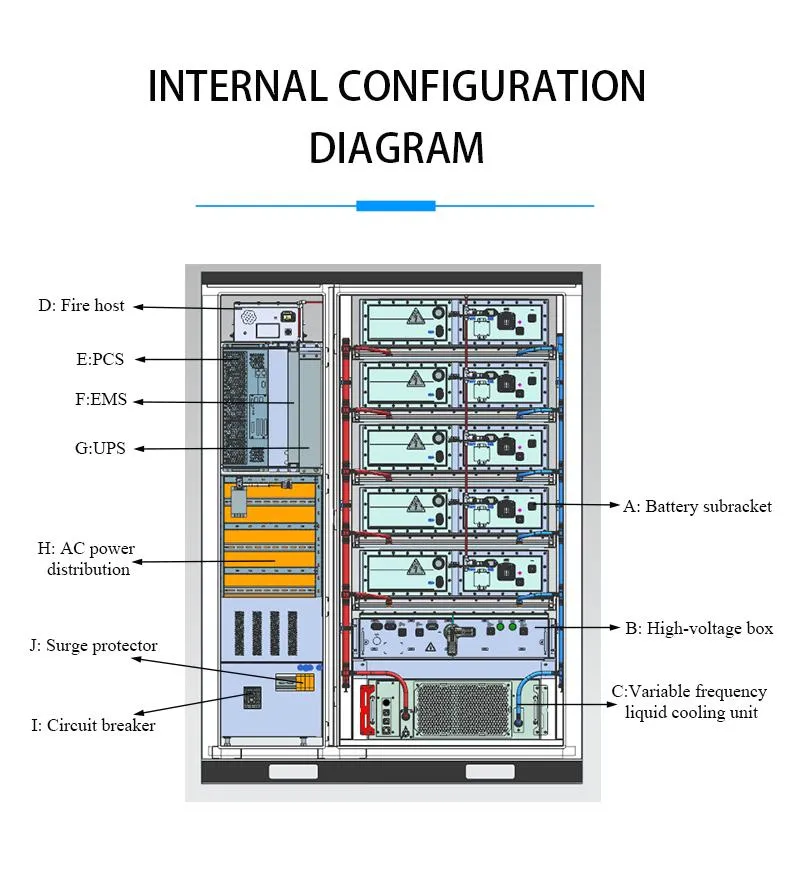

Detail 3
Detail 4
Detail 5

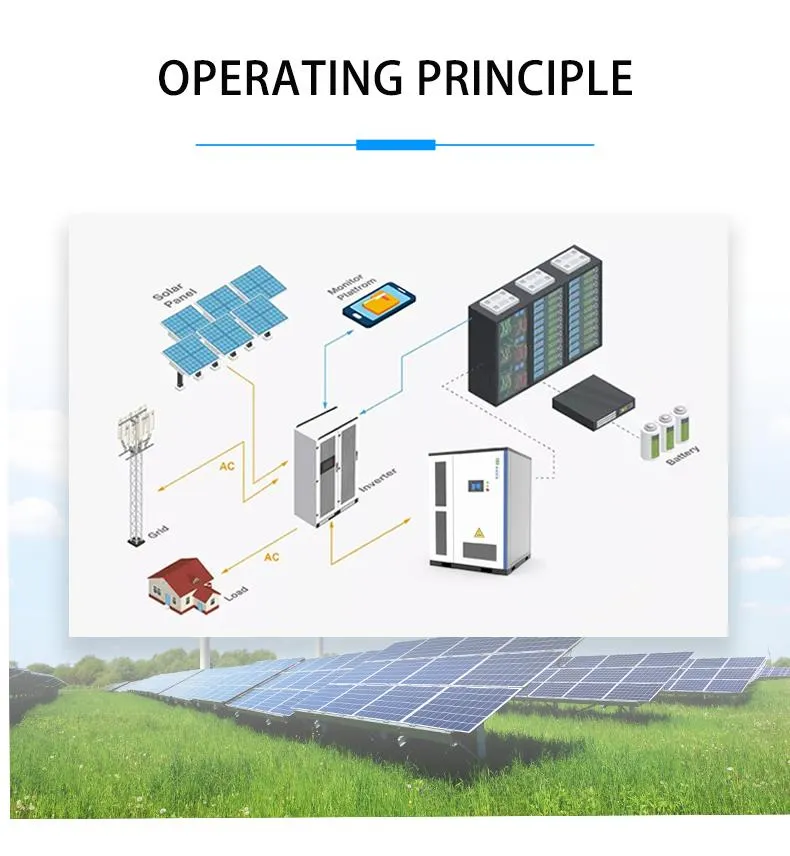

Detail 6
Detail 7

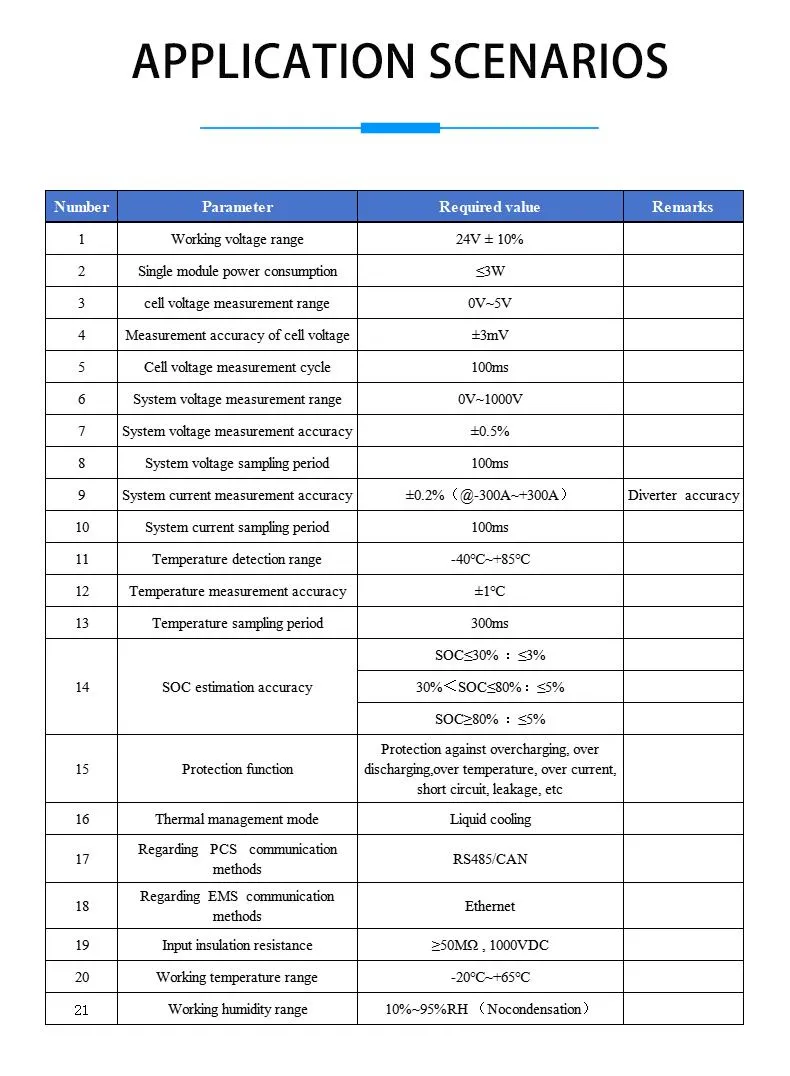

Detail 8
Detail 9

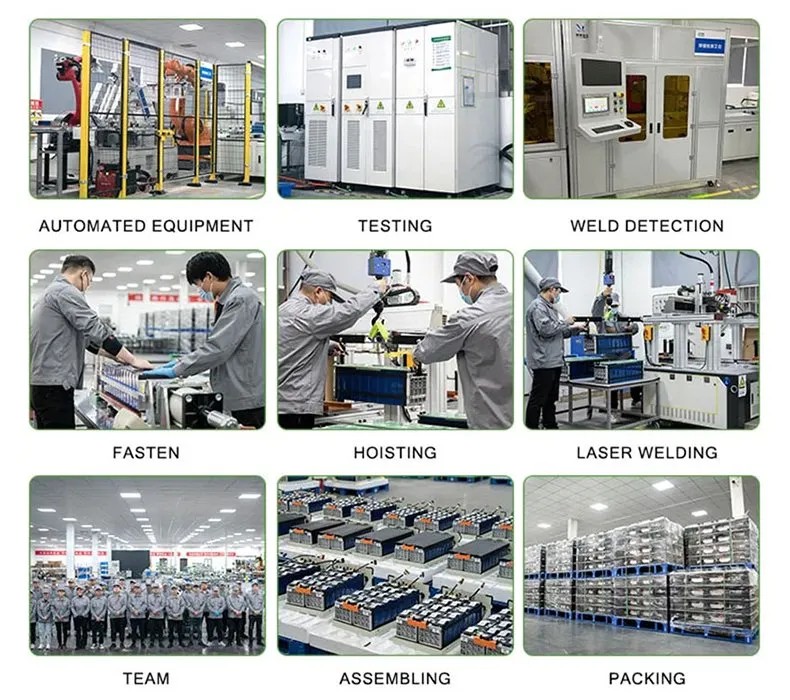

Detail 10
Detail 11

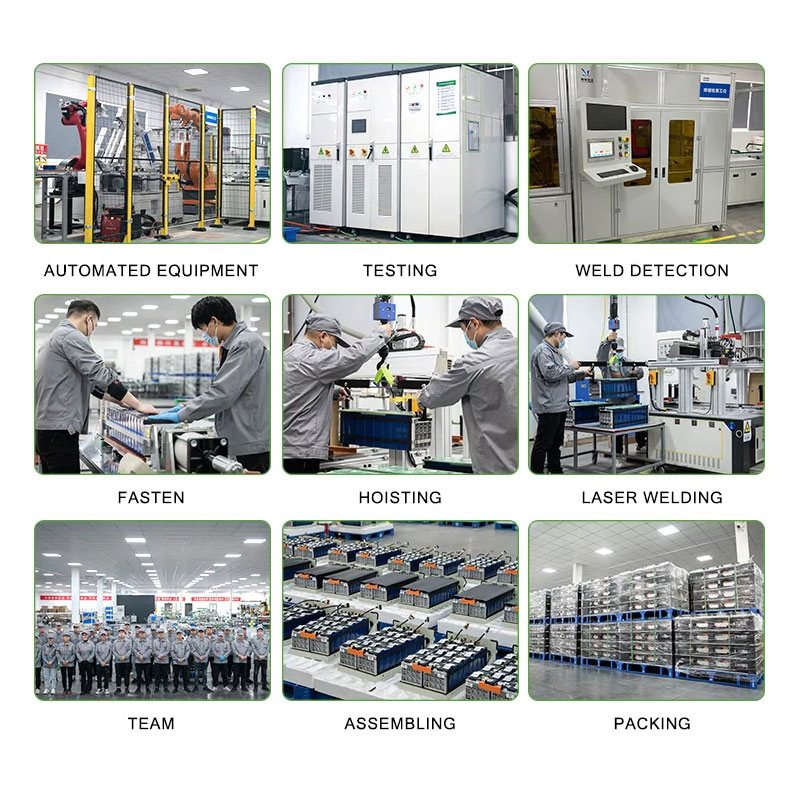

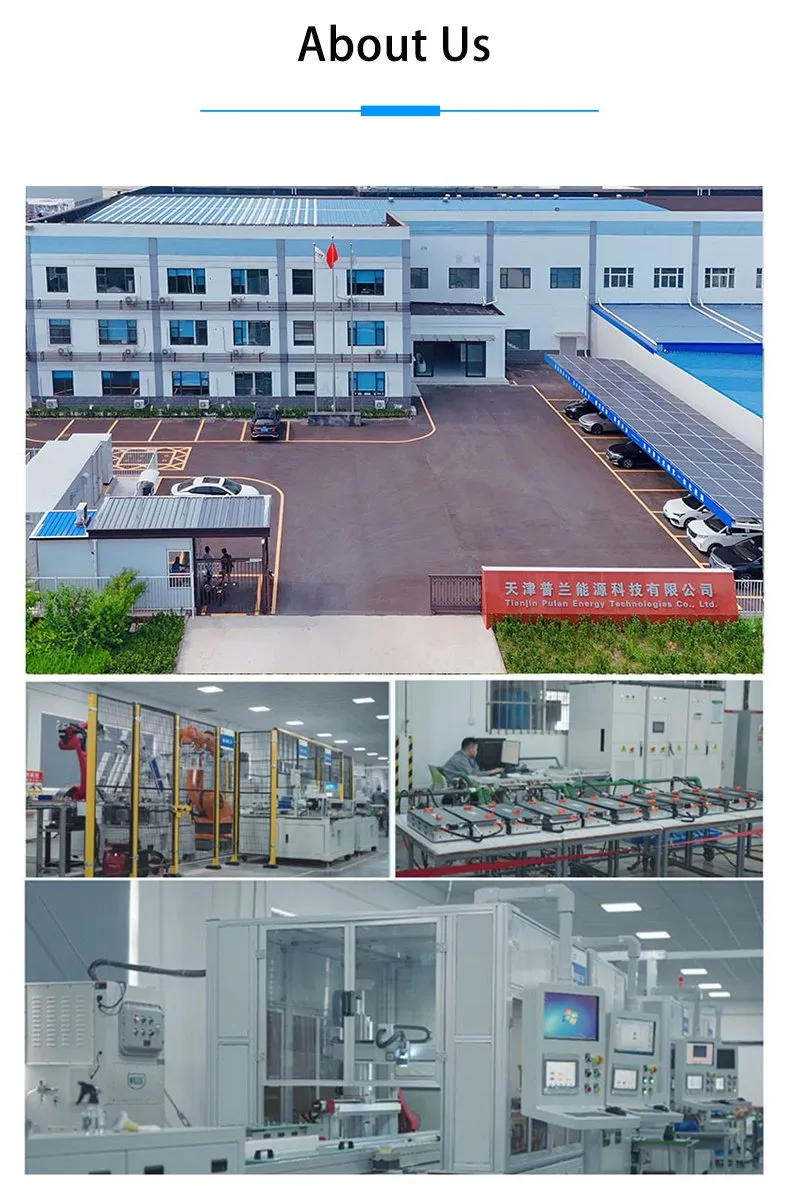

🏭 Profile
As a high-tech company, we focus on the research and development, manufacturing, marketing and technical service of graphene-based materials and their applications in clean energy. Based on excellent technical service and support, our goal is to supply a complete solution to green-energy storage and products in power system for the clients.

We own high-standard test instruments and a top-class technical and management team. With more than 50 patents in graphene-based material, we have completed the building of production lines and mass-produced such products as graphene, LTO, Si/C material, and super capacitor cells ranging from 0.1F to 3000F.

Our main products can be widely applied to new-energy vehicles, rail transportation, smart grid, micro grid, engineering machinery, and industrial energy-saving fields. We aim to manufacture the most advanced clean-energy products with high quality and supply the most reliable solutions to energy-related systems.
❓ Frequently Asked Questions
1. What is the expected cycle life of the battery system?
The system offers a cycle life of ≥6000 cycles at 100% Depth of Discharge (DOD) until it reaches 80% End of Life (EOL).
2. What cooling options are available for this power station?
The system supports both Air Cooled and Liquid Cooled converter cooling methods to suit different environmental needs.
3. What safety features are included for fire protection?
The system is equipped with an integrated fire extinguishing system using either Aerosol or heptafluoropropylene technology.
4. Can this system operate in extreme temperatures?
Yes, the operating temperature range is from -30ºC to 60ºC, with derating occurring above 40ºC.
5. What communication protocols are supported for monitoring?
The system supports industry-standard protocols including ModBus-TCP, ModBus-RTU, and IEC104.
6. Is the system suitable for high-altitude installations?
Yes, the system is designed to operate at a maximum altitude of up to 4000 meters.
