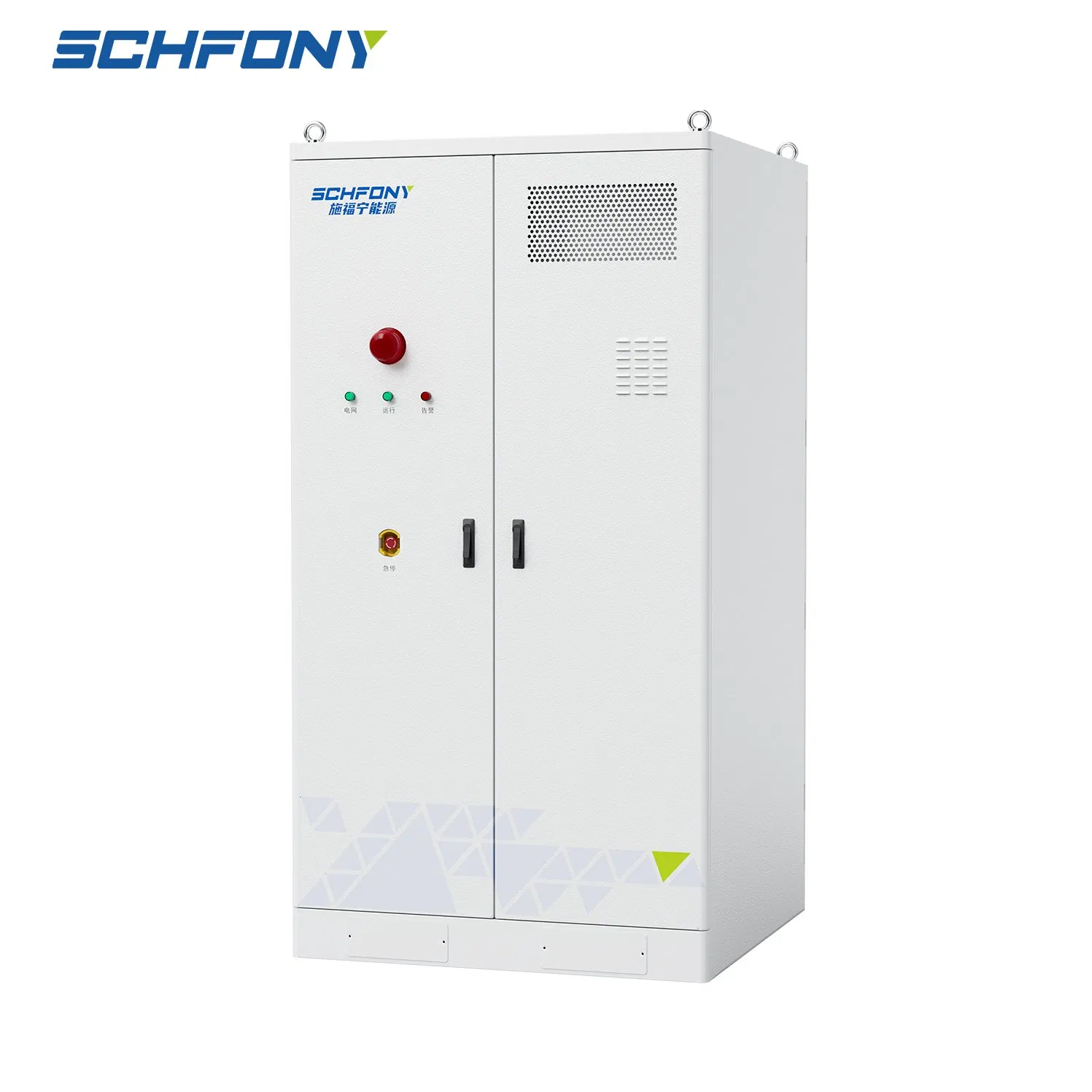

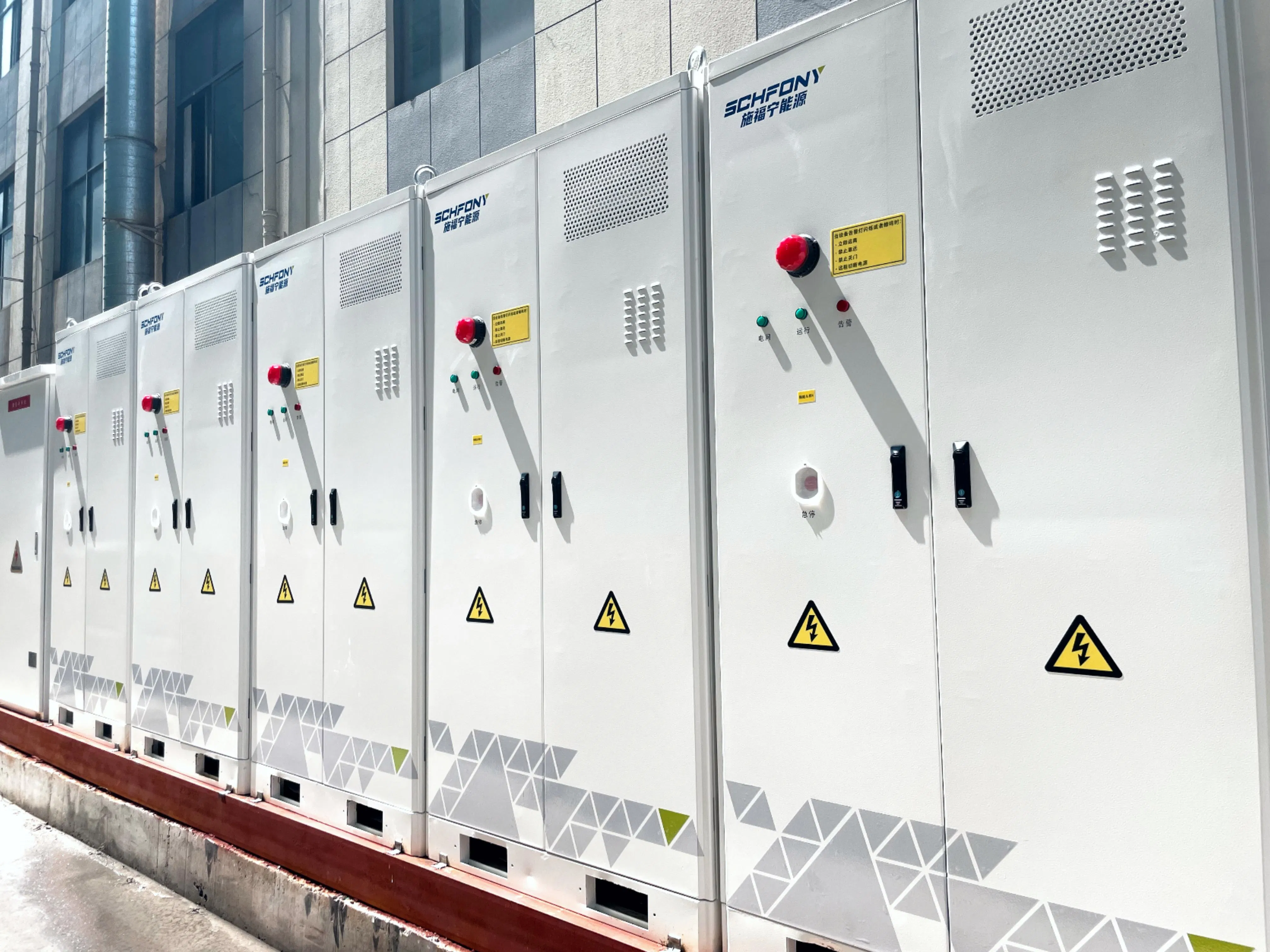

OEM High Pressure Wind Cooled Energy Storage Cabinet 215kWh ESS Energy Storage System
Fire Extinguishing: 12kg perfluorohexanone fire extinguishing agent with precise concentration release.
Rapid Response: 30 seconds to achieve full coverage fire extinguishing.
Durability: Pressure-resistant fire channel (1.8MPa) and 1000+ hours salt spray test passed.
Architecture: Three independent fire protection partitions (single cell/module/whole package).
Insulation: 0.5mm high-temperature-resistant layer (1200°C limit, >18kV performance).
Temp Control: Mature equalization technology, system level temperature difference ≤3°C.
| Model | SET-ESS-MAT100/215F | ||
|---|---|---|---|
| DC Side Parameters | |||
| Battery type | lithium iron carbonate | ||
| Core parameters | LFP-3.2V/280Ah | ||
| Rated capacity | 215 KWH | ||
| Rated voltage | 768Vdc | ||
| Charge/discharge ratio | 0.5C | ||
| Cooling method | wind cooling | ||
| Fire protection design | Perfluorohexanone + water Fully immersed | ||
| AC Side Parameters | |||
| Rating power | 100kw | ||
| Rated Voltage | 230/400, 3P+N+PE | ||
| Wiring Method | 3 phase 4 wire | ||
| Other Parameters | |||
| Protection level | IP54 | ||
| Communication | CAN/RS485/Ethernet/4G | ||
| Overall dimensions | 1000(W)*1325(D)*2600(H) mm | ||
| Weight | 3000kg | ||
