| Parameter Name | Technical Specifications |
| Product Model | PLPF0314C0-1331R2A |

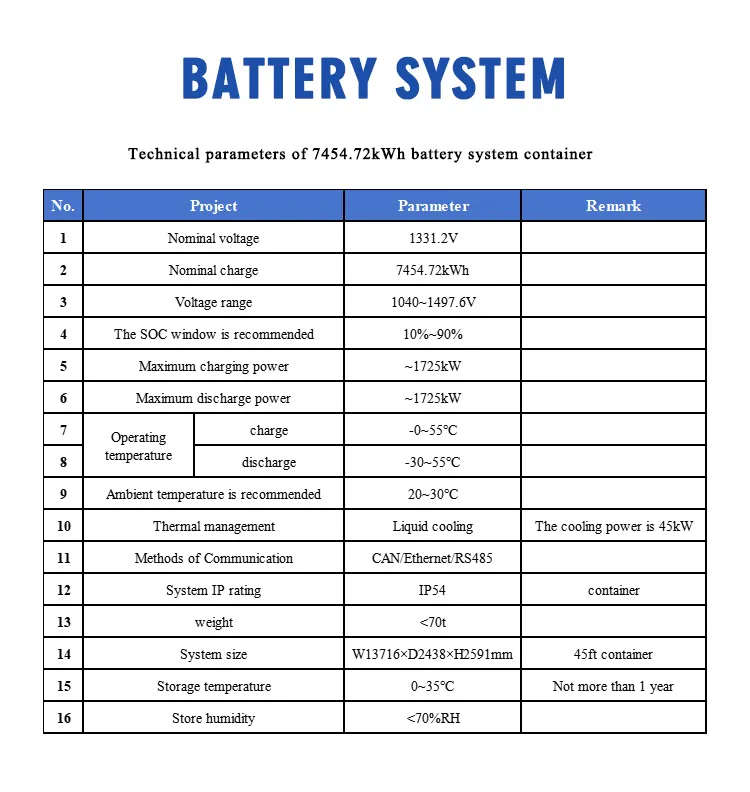

| Rated Battery Capacity | 37.2MWh |
| Battery Voltage Range | 1331.2V |
| System Parameters | |

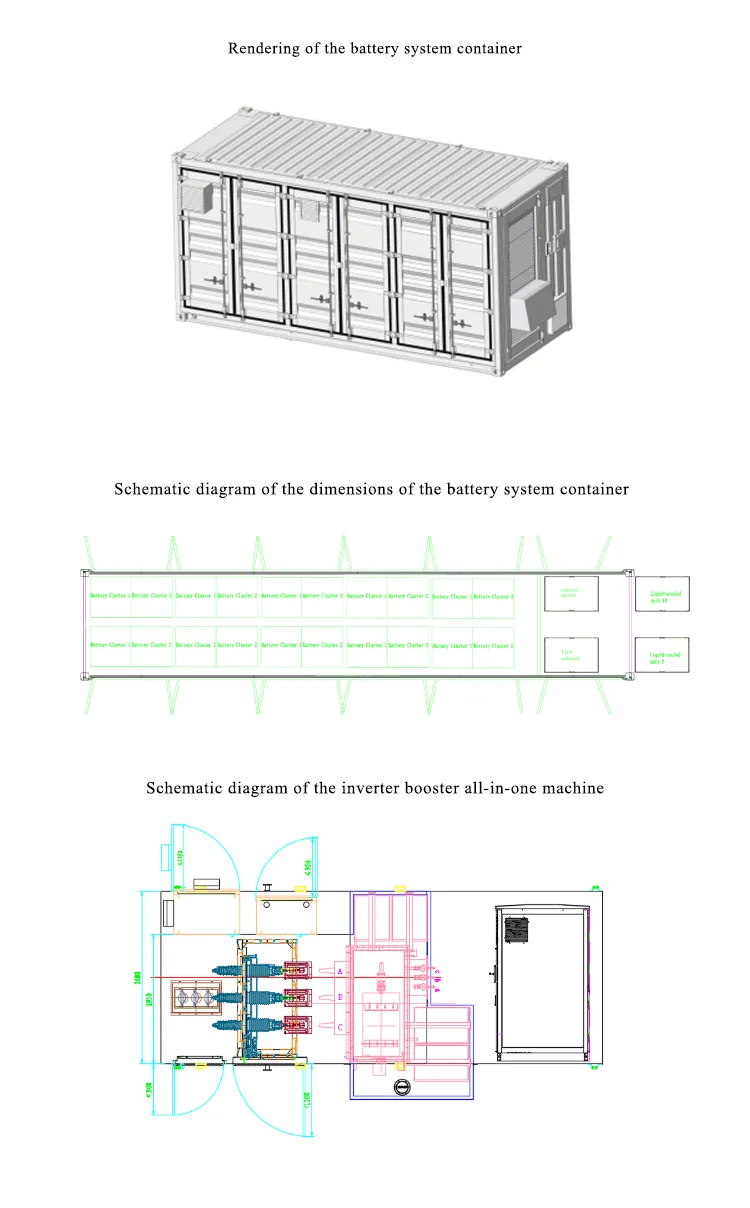

| Size (W x D x H) | W13716 × D2438 × H2591 mm |
| Operating Temp Range | -30℃ ~ 60℃ (>40℃ derating) |

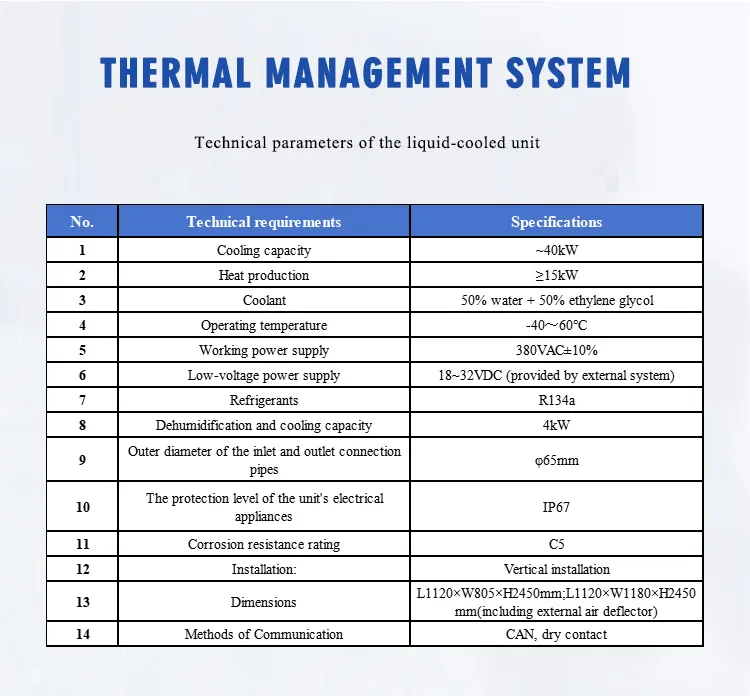

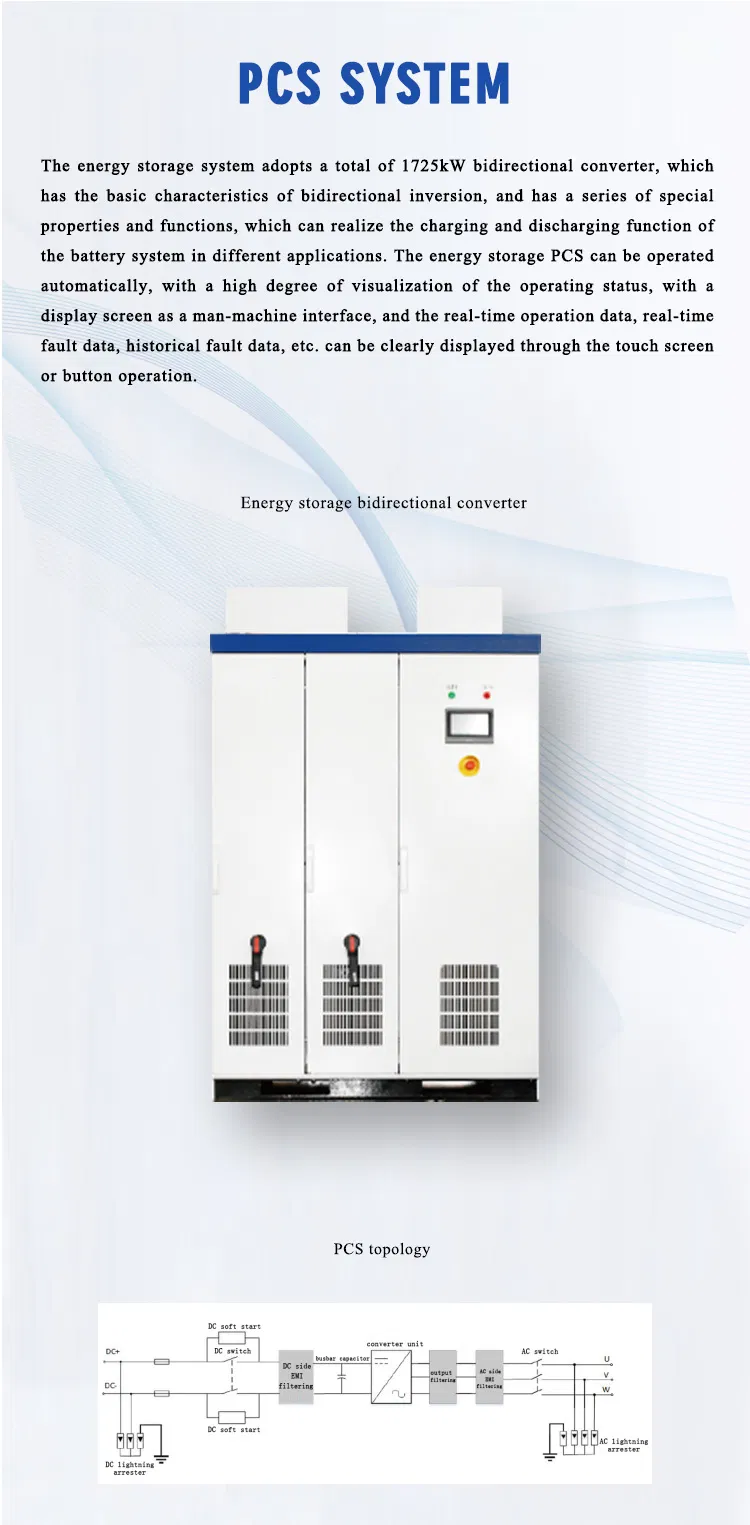

| Converter Cooling | Temperature controlled forced air cooling |
| Temp Control System | Industrial grade temperature controlled air conditioning |

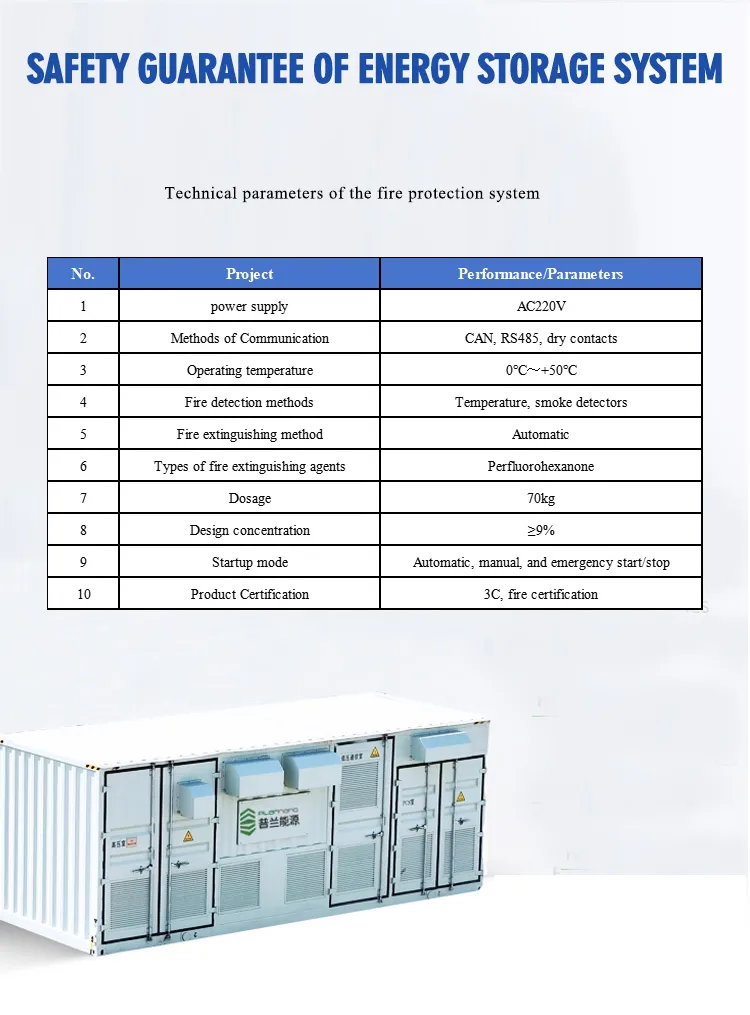

| Fire Extinguishing System | Fire protection system + water fire protection (optional) |
| Maximum Altitude | 5000m ( >3000m derating ) |
| Display | Touch Screen |
| Communication Interface | RS485 / CAN / Ethernet |

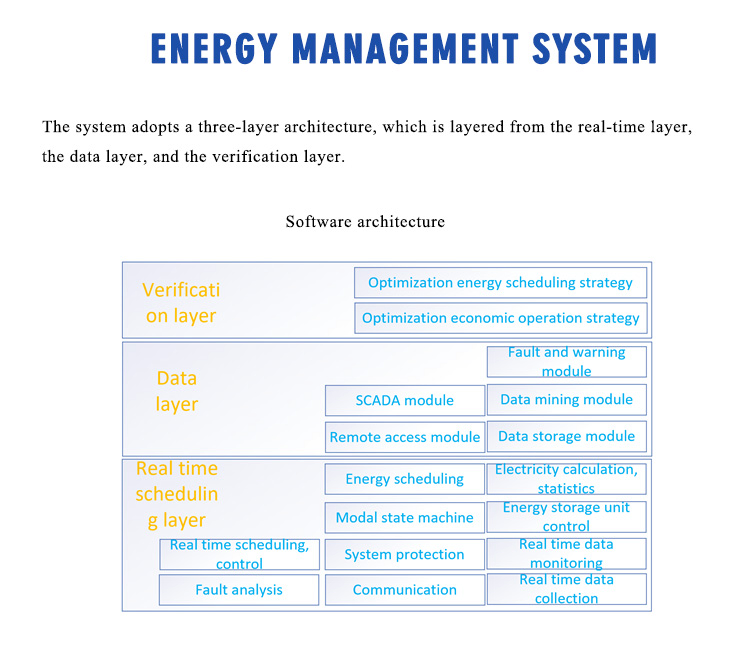

| Monitoring System | Included |
| Access Control System | Optional |
