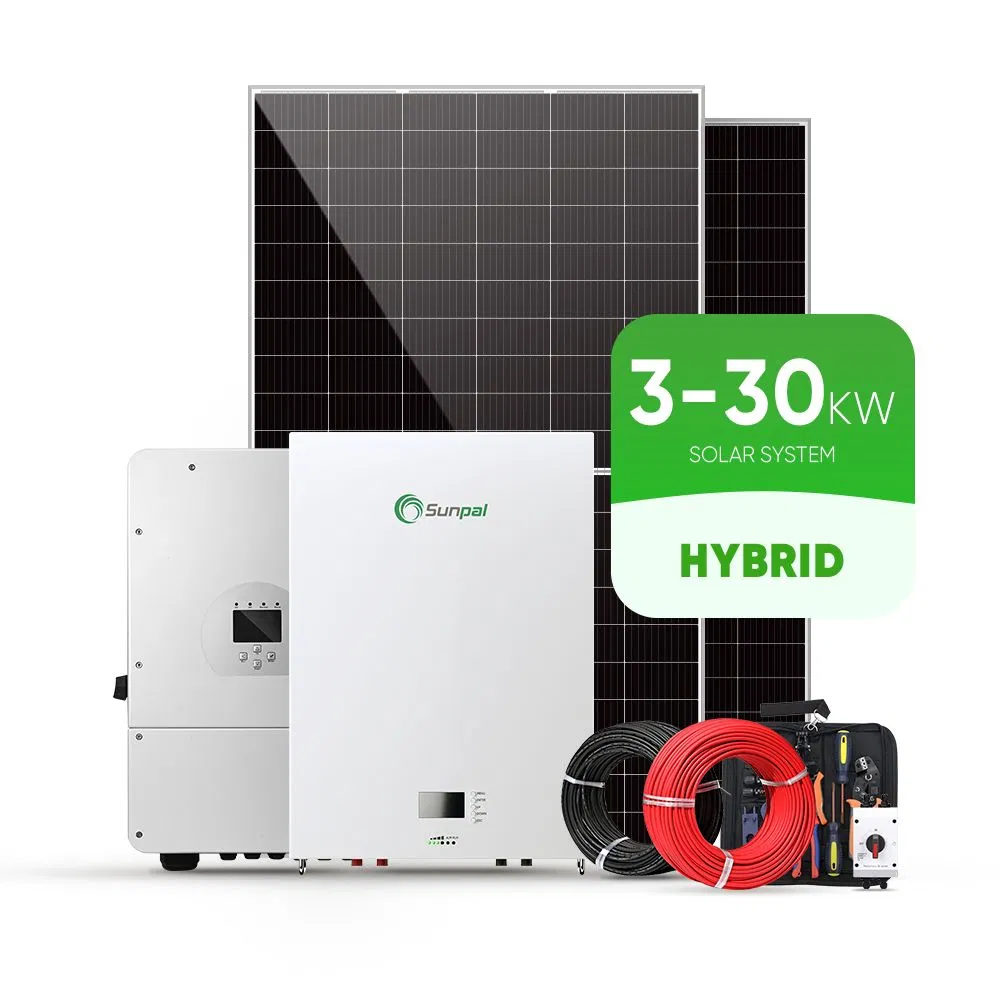

Home Energy Storage Systems 5Kw 10Kw 12Kw 20Kw All In One Inverter Hybrid Off Grid Solar Energy System Complete Kit

Customization: Available
After-sales Service: Free Warranty
Warranty: 10 Years

Product Description

📋

Basic Information

Condition
New
Certification
ISO, CE
Application
Home
Specification
Normal, 3KW-30KW
Product Name
Household Hybrid Solar Power System
Controller Type
MPPT
System Type
off-Grid Solar Photovoltaic System
Solar Panel
Mono Crystalline Perc Solar Panel
Inverter
Single Phase/Split Phase/3phase
Battery
Lead Acid/LiFePO4 Lithium Battery
Mounting
Customized Structure
Production
50000 kits/Year
💡

Product Overview

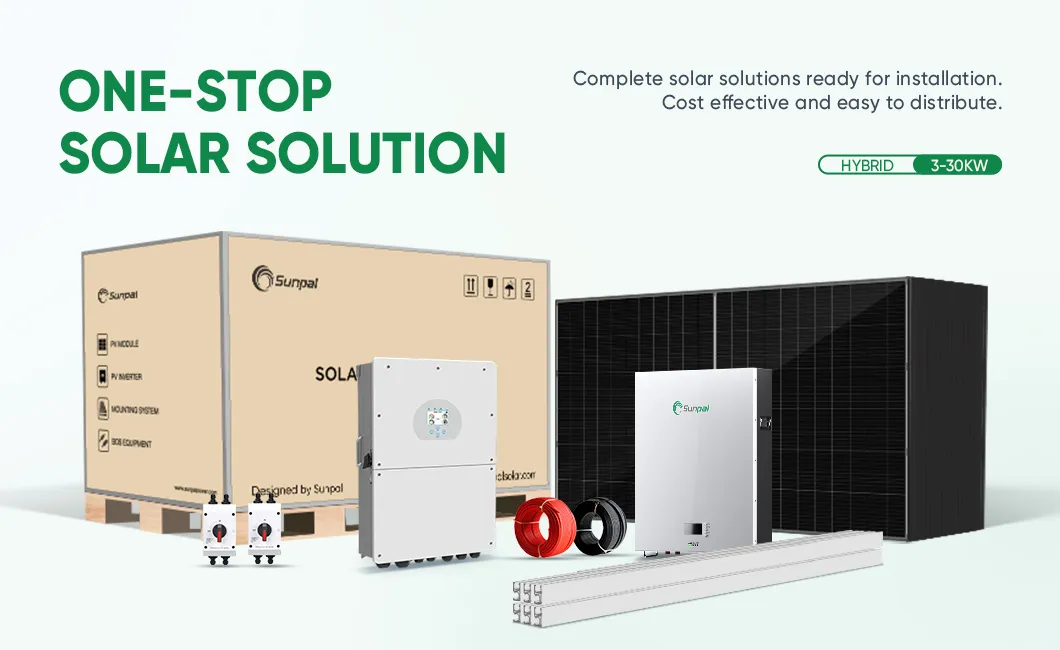

Hybrid Solar System

System Warranty

Warranty Details

Workflow Diagram

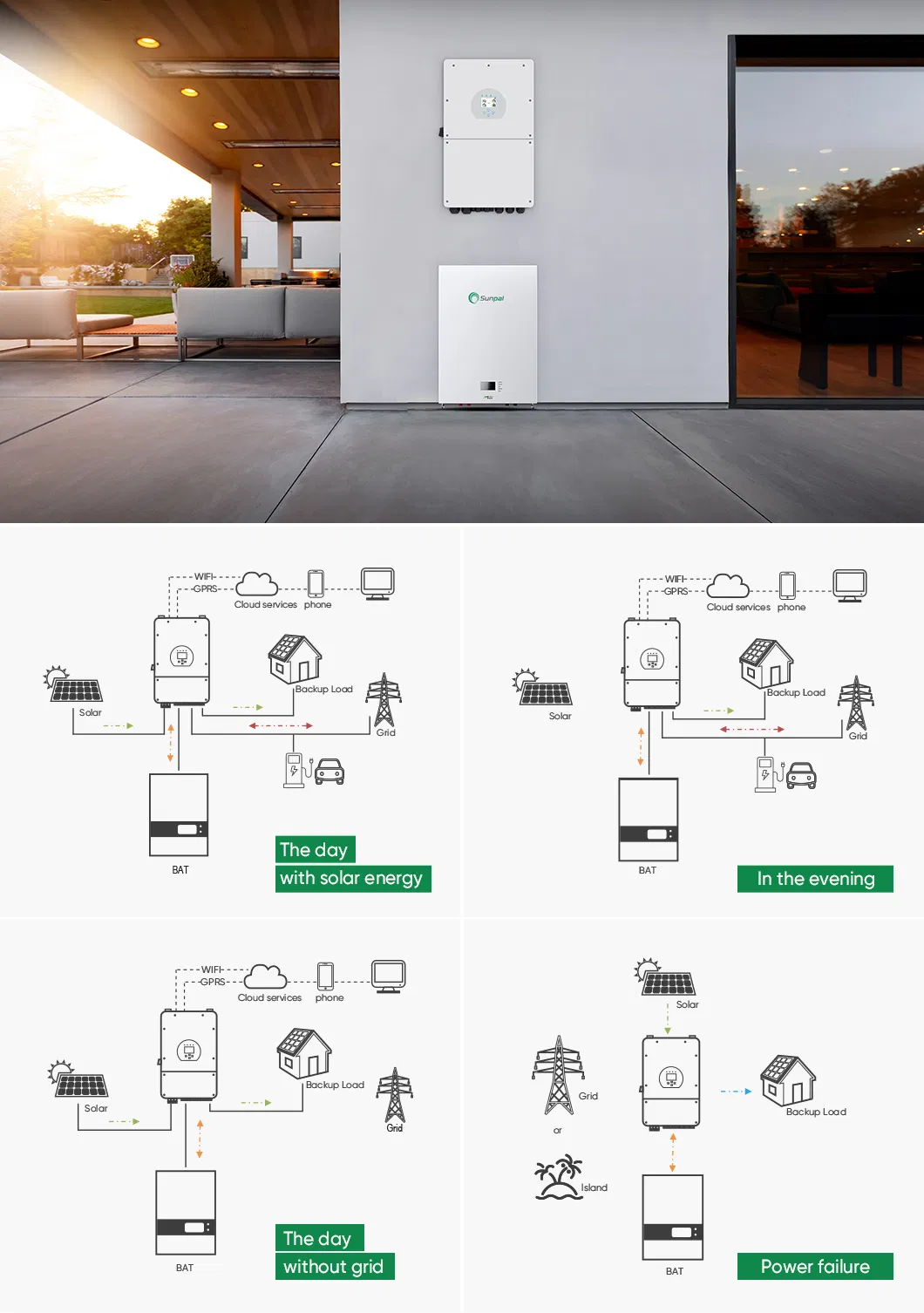

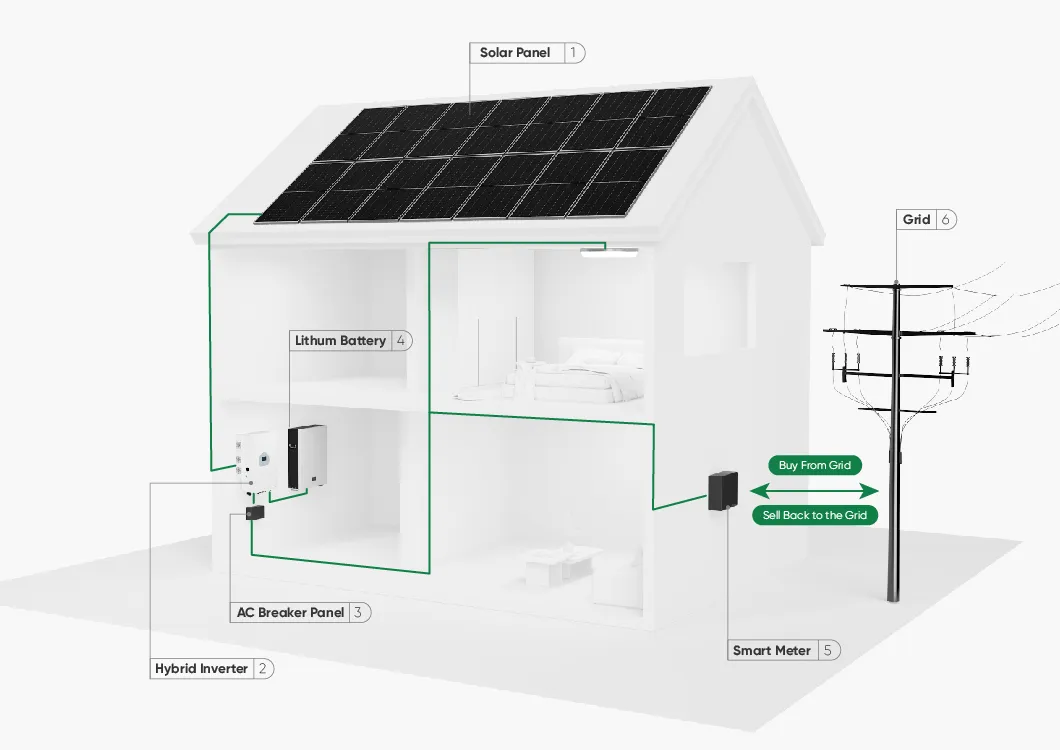

How it works 1 How it works 2
📊

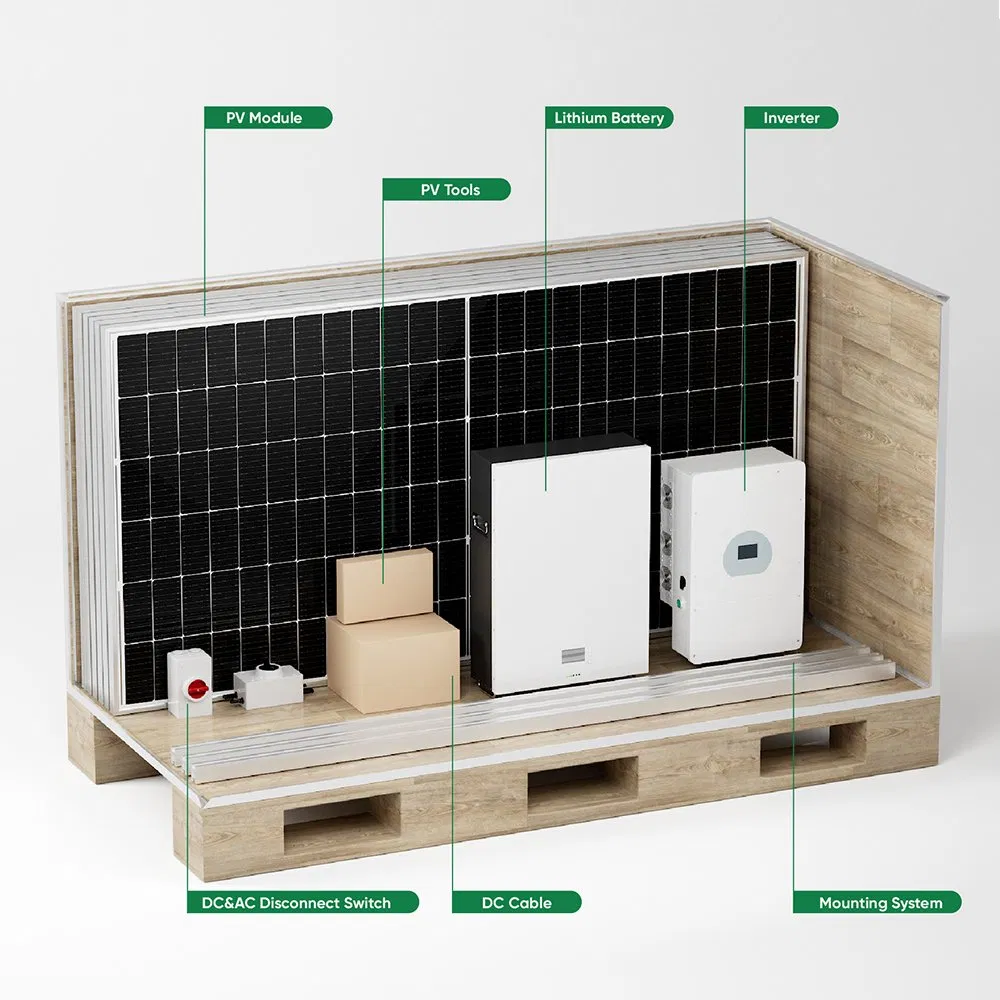

What's Included (Configuration Kits)

Model SP-3KW-HY SP-5KW-HY SP-10KW-HY
Mono 550W Panel6 Pieces10 Pieces20 Pieces
DC Disconnect1 Piece2 Piece3 Pieces
Hybrid Inverter3K-SG04LP15K-SG03LP110K-SG04LP3
LiFePo4 Battery5Kwh5Kwh10Kwh
DC Cable 4mm2100m200m400m
MC4 Connector10 Pairs10 Pairs10 Pairs
Model SP-15KW-HY SP-20KW-HY SP-30KW-HY
Mono 550W Panel30 Pieces40 Pieces60 Pieces
DC Disconnect4 Piece6 Piece9 Pieces
Hybrid Inverter5K (3 Pcs)10K (2 Pcs)10K (3 Pcs)
LiFePo4 Battery15Kwh20Kwh30Kwh
DC Cable 4mm2600m800m1000m
Mounting SystemCustomized Roof/Ground Structure
🛠️

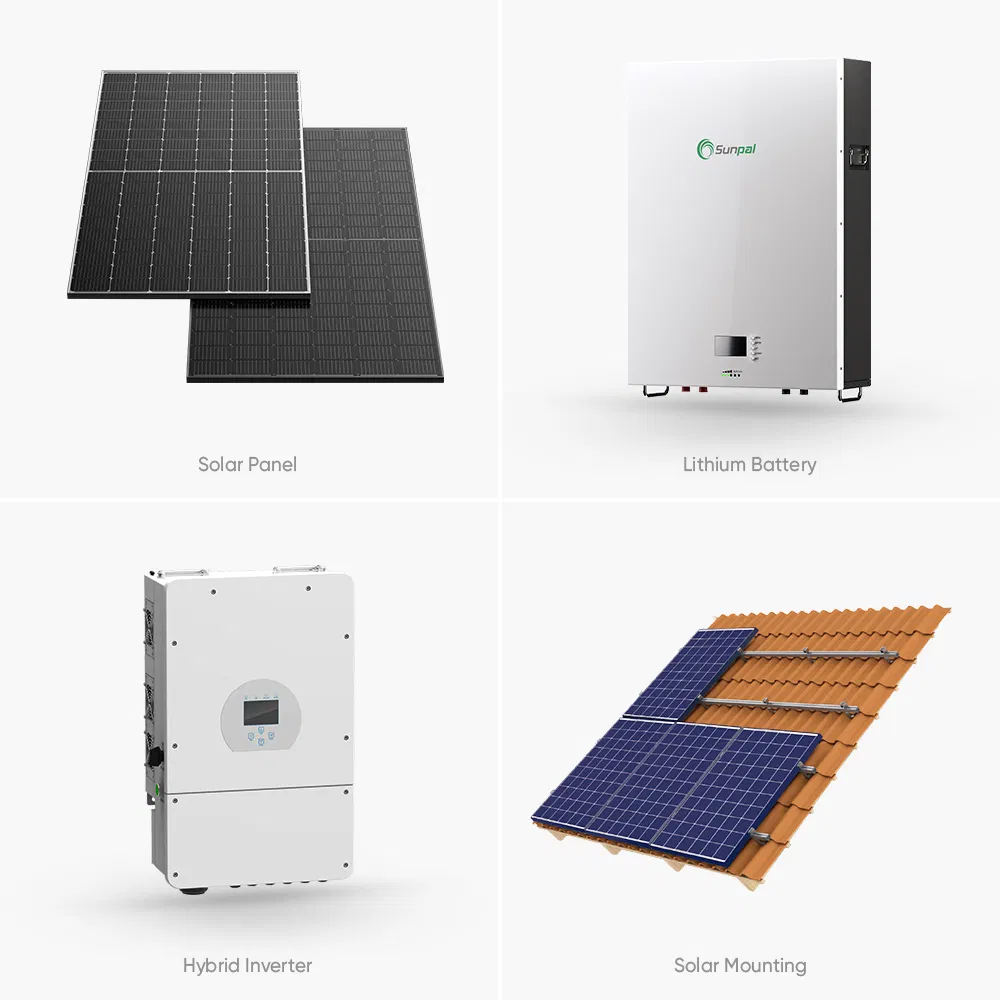

Key System Components

Solar Panel

Half Cut Mono 550W Solar Panel

  • Peak Power: 550W
  • Max Power Voltage: 42.06V
  • Dimensions: 2279x1134x35mm
  • High efficiency PERC technology

Hybrid Solar Inverter

  • 48V low voltage battery support
  • 6 time periods for programmable charging
  • Max charging/discharging current 240A
  • Supports up to 10pcs in parallel
Inverter
Battery

LiFePo4 Lithium Battery

  • 15-20 years design life
  • Up to 6000+ deep cycles
  • Scalable modular design
  • Built-in intelligent BMS protection

Monitoring & Tools

  • One-
