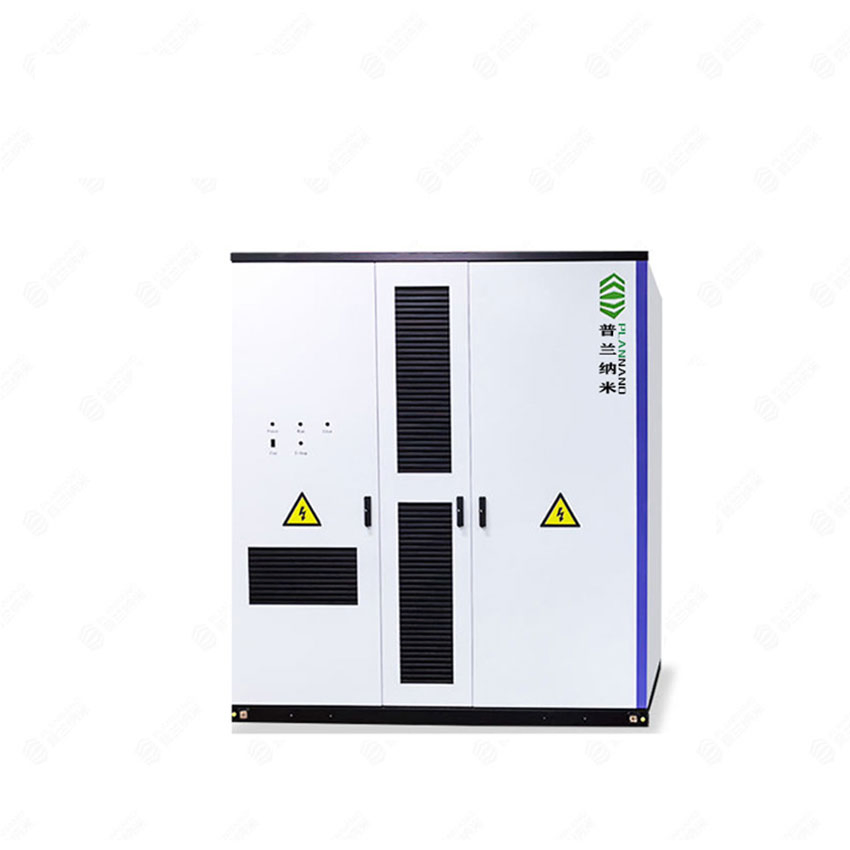

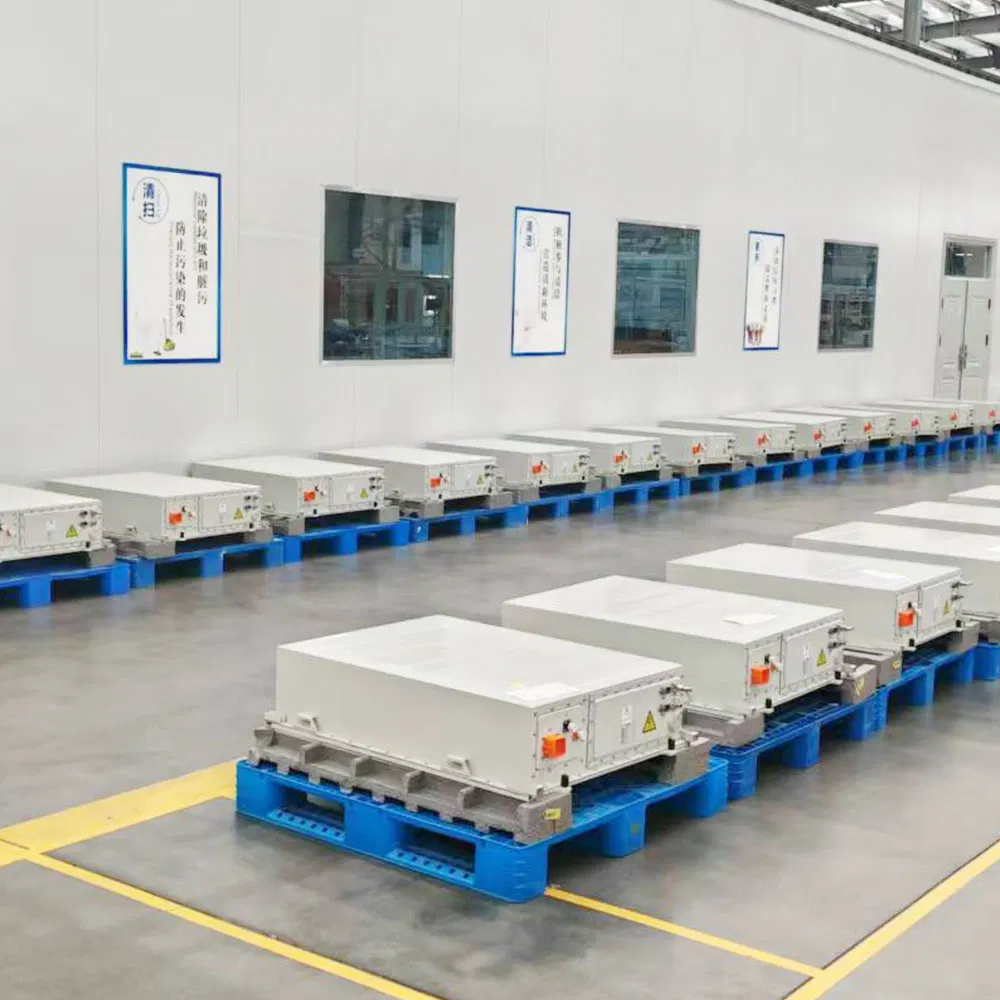

215kwh Energy Storage System Supports off Grid/Grid Connected Energy Storage System, Supports Customized 200-500kwh Energy Storage System

1 / 5

215kwh Energy Storage System Supports off Grid/Grid Connected Energy Storage System, Supports Customized 200-500kwh Energy Storage System

Customization:	Available
Nominal Voltage:	768
Warranty:	Yes

Send Inquiry

Product Description

Overview

Basic Information

Model NO.

100K/215A-L

Nominal Capacity

215

Cycle Life

20000

Battery Type

302V/280ah

Rated Output Power

110kVA

Rated Grid Voltage

768V

Rated Grid Frequency

50Hz/60Hz

Origin

China

Specification

1500*2050*1455mm

Packaging & Delivery

Package Size

150.00cm * 205.00cm * 145.50cm

Package Gross Weight

3000.000kg

Transport Package

Container

Product Description

Technical Parameters

Model	100K/215A-L	100K/215A-H	100K/215L-L	125K/261L-H

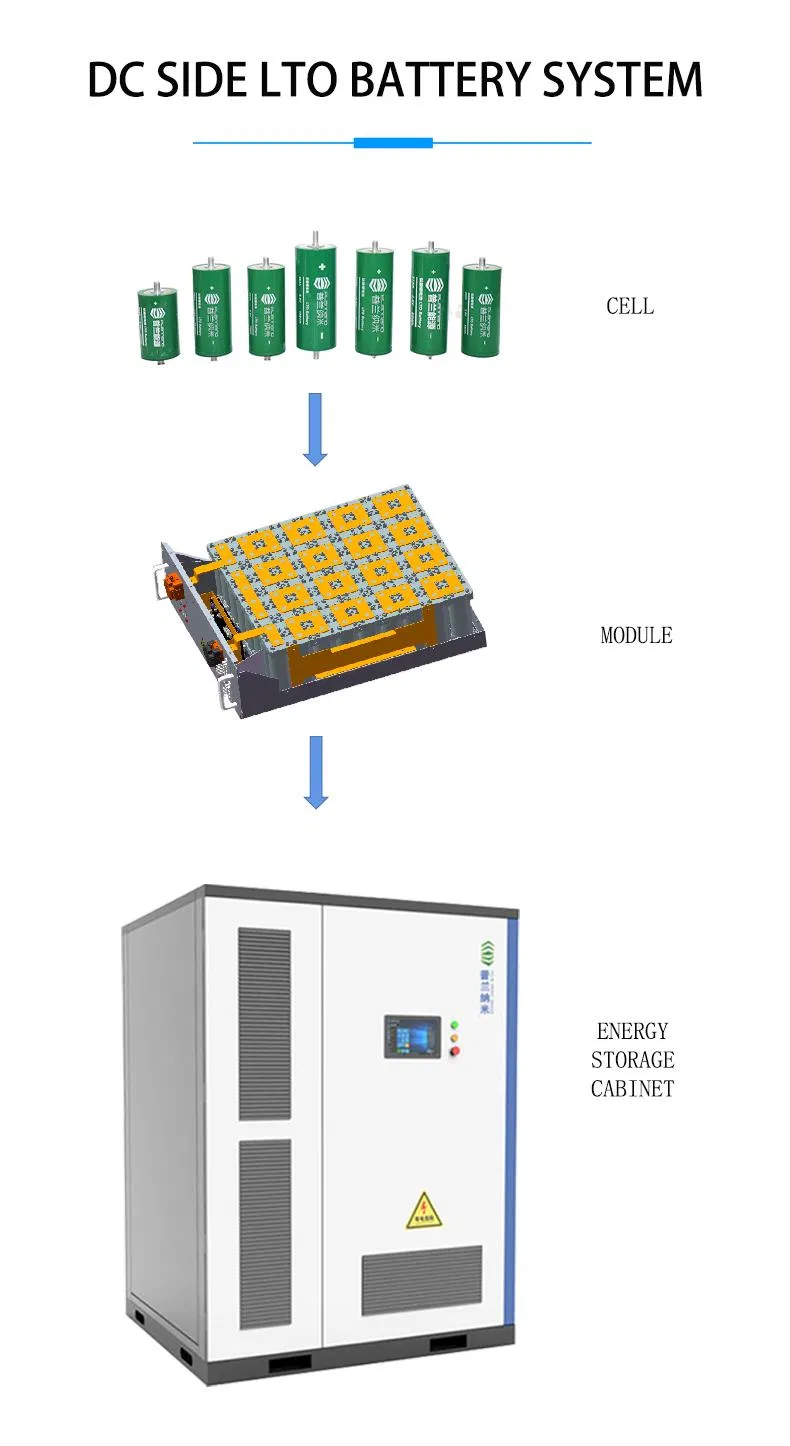

Battery Parameters
Nominal Capacity(Ah)	280	280	280	314
Combination Mode	1P24S	1P16S	1P48S	1P52S
Rated Capacity(KWh)	215.04	215.04	215.04	261.248
Rated Voltage(V)	768	768	768	832
Voltage Range(V)	648~864	648~864	648~864	702~936
Grid-connected / Off-line Parameters

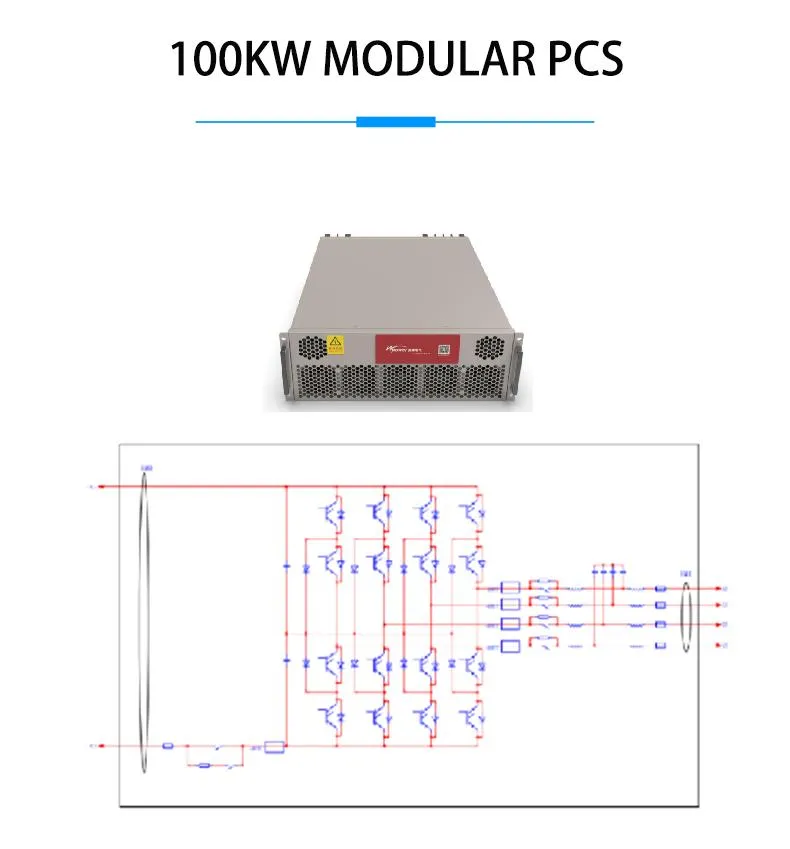

Rated Power(KW)	100	100	100	125
Max. Power(KVA)	110	110	110	137.5
Rated Voltage(V)	400	400	400	400
Rated Frequency(Hz)	50	50	50	50
System Parameters
Fire Fighting Methods	Aerosol/Perfluorohexanone		Perfluorohexanone
Cooling Method	Air-cooled		Liquid-cooled
Temperature Range(ºC)	-20~50	-20~50	-20~50	-20~50
Communication Method	CAN/485/LAN
Protection Rating	IP54
Overall Weight (Kg)	<3000

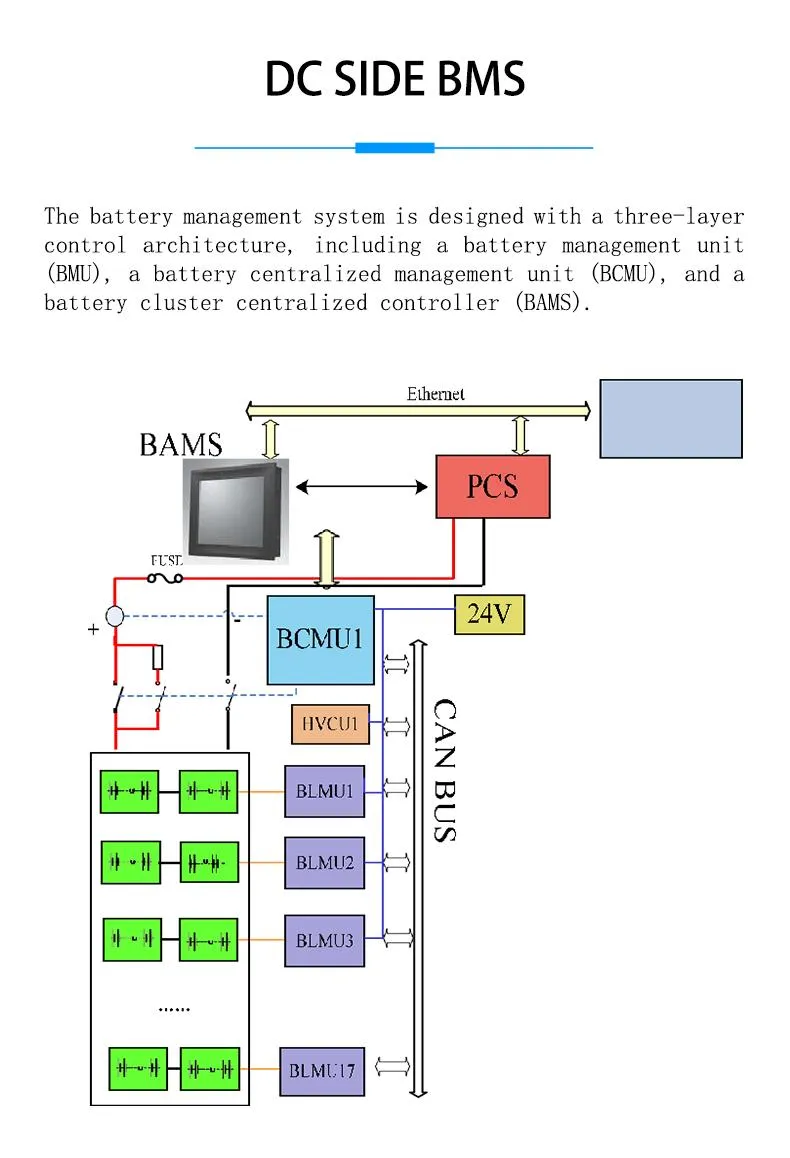

Product Gallery & Details

Frequently Asked Questions

What is the cycle life of this energy storage system?

The system is designed for high longevity with a cycle life of up to 20,000 cycles, ensuring long-term reliability for industrial and commercial applications.

What fire safety measures are integrated into the system?

Safety is a priority; the system utilizes advanced fire suppression methods including Aerosol and Perfluorohexanone, depending on the specific model selected.

Does the system support off-grid operation?

Yes, our 215kwh energy storage system supports both off-grid and grid-connected modes to provide flexible energy management solutions.

What cooling options are available for the battery modules?

We offer both air-cooled and liquid-cooled configurations to optimize temperature management based on your environmental conditions and power requirements.

What is the protection rating for outdoor installation?

The system features an IP54 fire and environmental rating, making it suitable for various outdoor installations with an operating temperature range of -20°C to 50°C.

What communication protocols are compatible with this ESS?

The system supports standard industrial communication methods including CAN, RS485, and LAN for easy monitoring and integration into existing grids.
