Smart Home 11/22kw Home EV Electric Car Charging Stations IEC62196 for Byd

Customization: Available
Connector Type: Type1, Type2, GB/T
Start Mode: APP Control, Book Charging, Remote Control, RFID Card

Product Description

Basic Specifications

Model
FH-EA-7kW, 11kW, 22kW
Interfaces
One Pile with One Charge
Installation

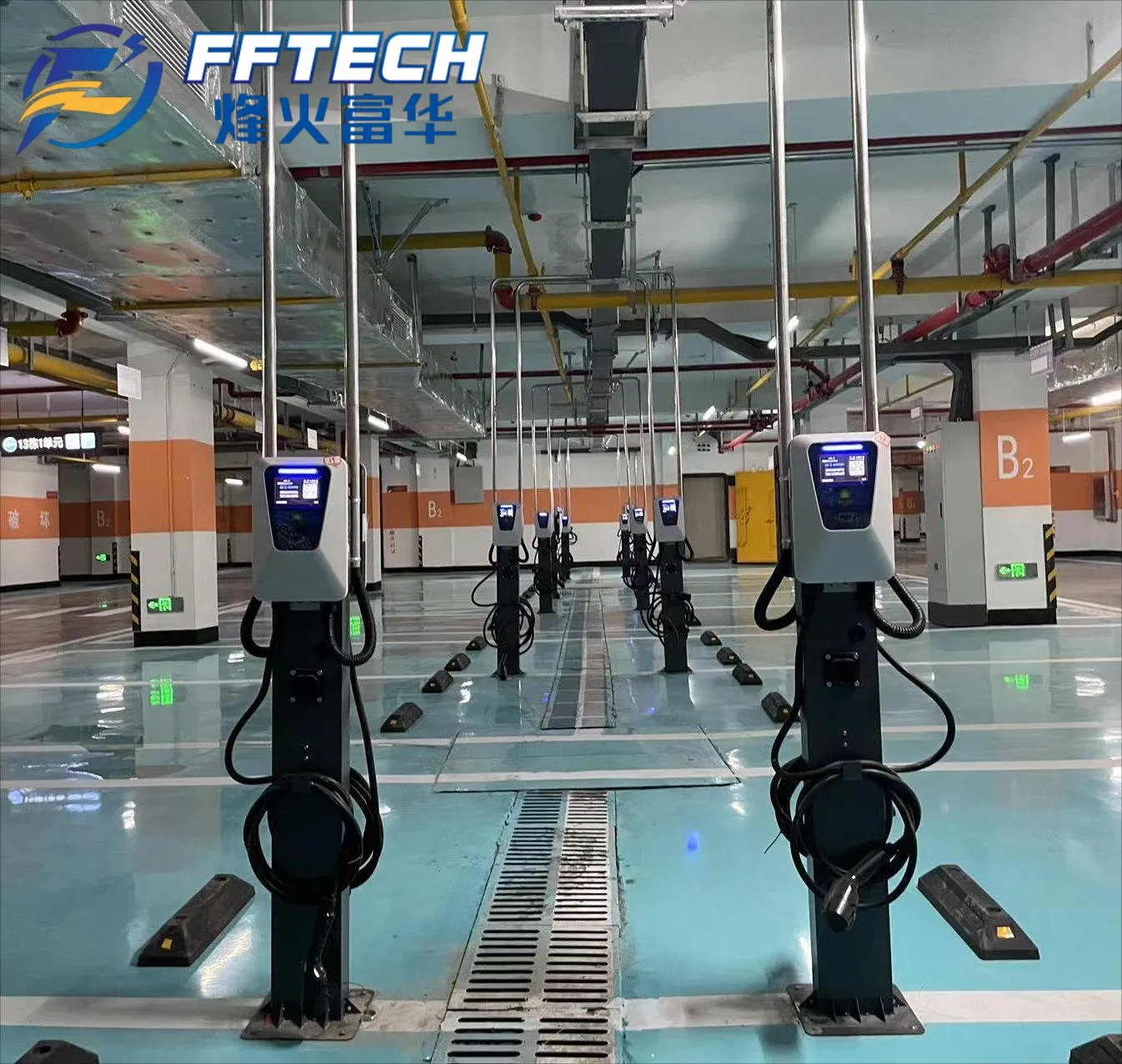

Wall Mounted / Stand Column
Input Voltage
230VAC (Single) / 400VAC (Three)
Output Power
7kw / 11kw / 22kw
Cable Length
Rated 5m (Customizable)
Connectivity
4G, Ethernet, WiFi, Bluetooth
Protection
IP54 Standard
Certification
TUV CE, EMC Class B, ISO, UL
Warranty
12 Months

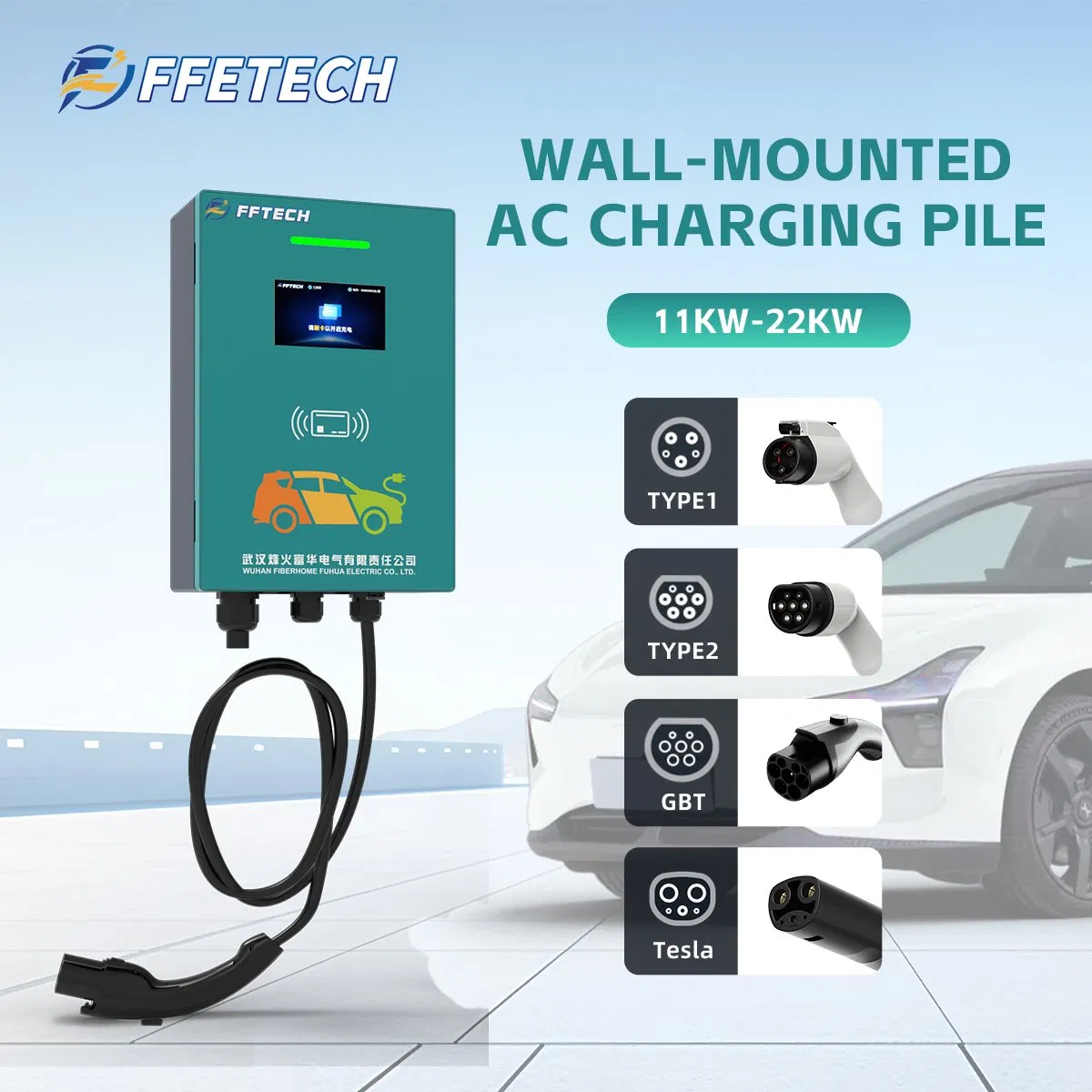

Smart Home AC EV Charging Stations IEC62196 Wallbox TYPE2

This bestselling electric vehicle charger series features a perfect combination of classic design and modern technology. With IP54 protection, a tempered glass front, and a 7" LCD touch screen, it supports multiple charging modes and advanced wireless communication (LAN, 4G, and LTE).

Key Features

  • Wide Support: TYPE1, TYPE2, or GBT connector compatibility.
  • Rugged Design: IP54 rating for high reliability in harsh environments.

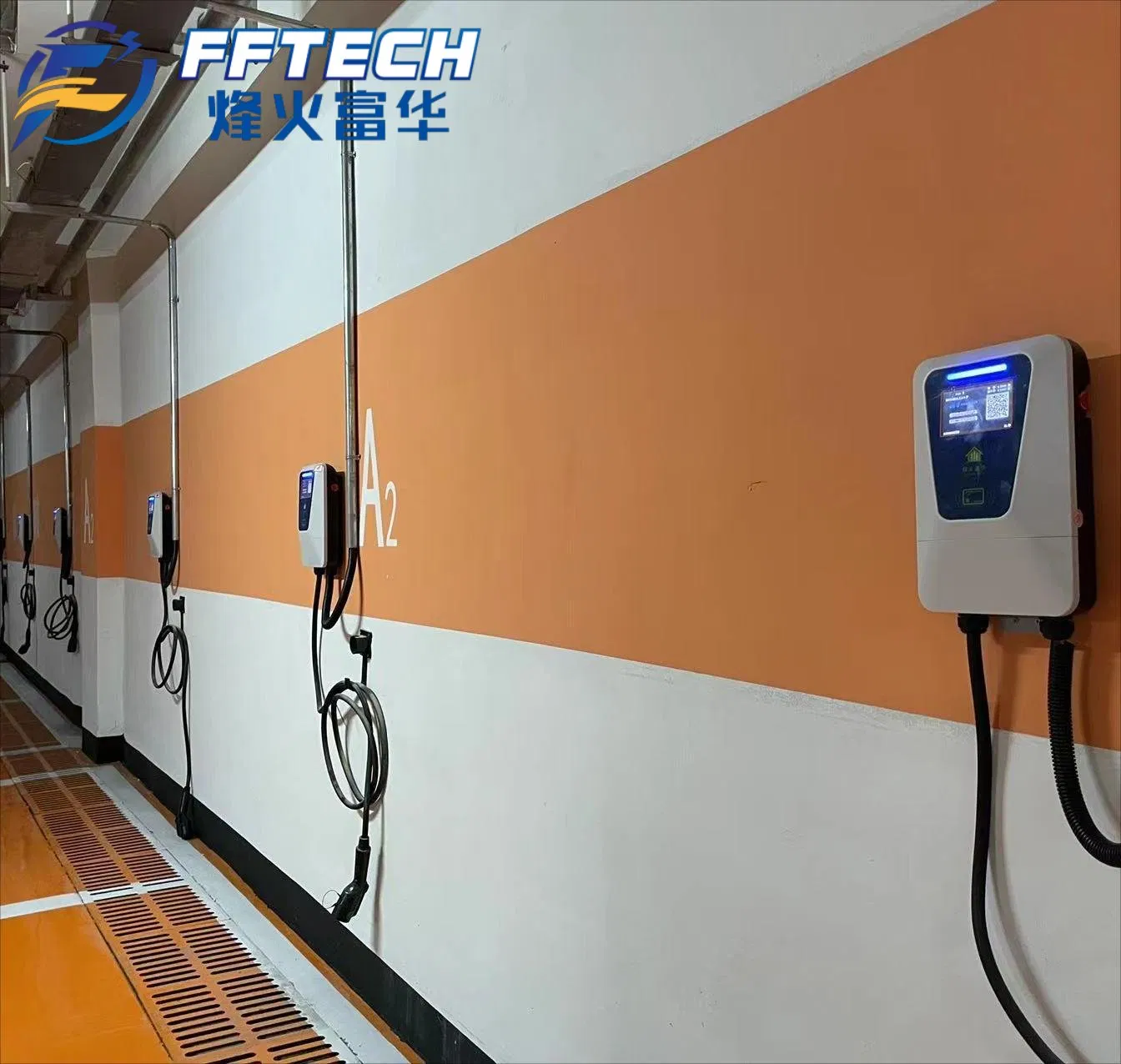

  • Flexible Installation: Wall-mounted or optional pile-type installation.
  • Smart Interface: 7'' TFT capacitive touch screen with tempered glass.
  • Multiple Modes: Basis on Auto, Amount, Energy, or SOC.
  • High Precision: Internal AC/DC energy meters (VDE/PTB optional).
  • Smart Connectivity: Supports OTA, RFID, and Mobile App payments.
  • Safety Standards: Compliant with IEC 62196 and IEC 61851.
📋

Technical Parameters

Category 7kW AC 11kW AC 22kW AC
Model No. FH-EA-7kW FH-EA-11kW FH-EA-22kW
Input Voltage 220VAC±15% 380VAC±15% 380VAC±15%
Output Power 7kW 11kW 22kW
Input Current 32A 16A 32A
Connection L+N+PE 3P+N+PE 3P+N+PE
Protection Rating IP54
Dimensions 234*312*90mm 300*315*120mm 300*315*120mm
🖼

Product Display

🏭

About the Manufacturer

Established in 2008, the manufacturing facility is a leading provider in Smart Energy solutions. With a decade-long dedication to innovation, the facility focuses on R&D investment and product design for power-related systems including EV charging stations, ESS (energy storage systems), and lithium batteries.

The team comprises experts in Electricity, AI, Cloud-computing, and Big-data, striving to offer cutting-edge products that contribute to a sustainable future. Strategic alliances with multiple academic institutions ensure the products remain at the forefront of technology.

Frequently Asked Questions

What are the available power options for this home EV charger?
We offer three main power capacities: 7kW (Single Phase), 11kW (Three Phase), and 22kW (Three Phase) to suit various household electrical setups and vehicle needs.
Is the charging station suitable for outdoor installation?
Yes, the device is designed with an IP54 protection rating, making it highly resistant to dust and water splashes, suitable for both indoor and outdoor environments.
Which electric vehicle types are compatible with your stations?
Our stations support various international standards including TYPE1, TYPE2 (IEC 62196), and GBT connectors, ensuring compatibility with most modern electric vehicles.
How can I start and manage the charging process?
The station supports multiple startup methods including RFID card authorization, plug-and-charge, and mobile App control via WiFi or Bluetooth.
What safety certifications does the product hold?
The charging stations have undergone rigorous testing and hold TUV CE, EMC Class B, ISO, and UL certifications, meeting global safety and performance standards.
Can the cable length be customized?
While our standard cable length is 5 meters, we can provide customized lengths up to a maximum of 10 meters based on your specific requirements.
