Photovoltaic Complete off Grid 15kw 30kw 50kw 80kw 100kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Industry Home

Customization:	Available
Weight:	1300 Kg
Warranty:	10 Years

Send Inquiry

Product Description

Basic Information

Model NO.

CSAS solar system

Cycle Life

1000 Cycles

Nominal Capacity

5kw 3kw 1000W 10kw 10 Kw 6kw 15kw

Certification

ISO, CE

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

off Grid Inverter

Solar Panel

Monocrystalline Solar Panel

Transport Package

Carton/Wooden Box

HS Code

8501802000

Production Capacity

4500 Sets/Month

Product Description

Technical Parameters

Parts	Specification	SP5KW	SP6KW	SP8KW	SP10KW	SP12KW
Solar Panel	590W Mono Panel	6 Pieces	10 Pieces	12 Pieces	16 Pieces	20 Pieces
Hybrid Inverter	Single/Three Phase	1 pcs 5KW	1 pcs 6KW	1 pcs 8KW	1 pcs 10KW	1 pcs 12KW
LiFePO4 Battery	48V 5/10KWH	1 Pieces	2 Pieces	2 Pieces	2 Pieces	2 Pieces
Bracket	Ground or Roof	1 set	1 set	1 set	1 set	1 set
PV Cables	4mm²	100 meters	200 meters	200 meters	200 meters	200 meters
MC4 Connector	Male + Female	5 pairs	10 pairs	10 pairs	15 pairs	15 pairs

Note: Product dimensions and physical appearance are nominal. The manufacturer reserves the right to make changes from time to time without prior notification.

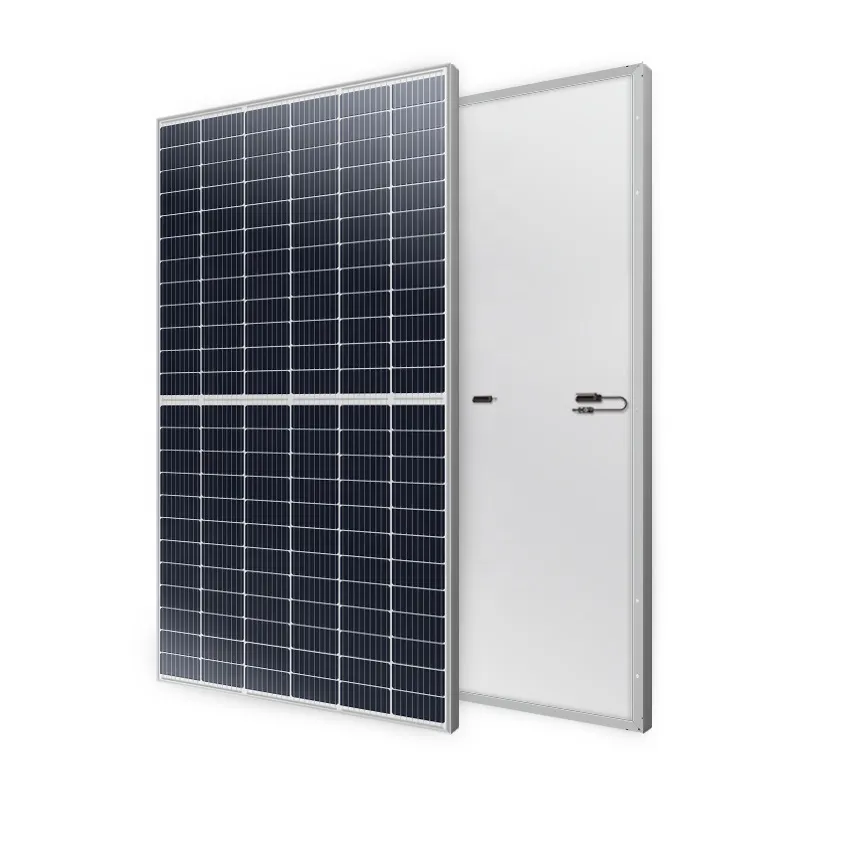

Mono Solar Panels

Peak Power: 590W
Max Power Voltage: 41.5V
Max Power Current: 11.3A
Open Circuit Voltage: 48.5V
Dimensions: 2094*1038*35 mm
Weight: 25 kg

Inverter with MPPT Controller

AC Output: 220V/230V/50HZ
Capacity: 5.5KW
MPPT Voltage Range: 70-450Vdc
Max PV Input: 5.5kwp
Packaging Size: 600*180*420 mm
Gross Weight: 15 KG

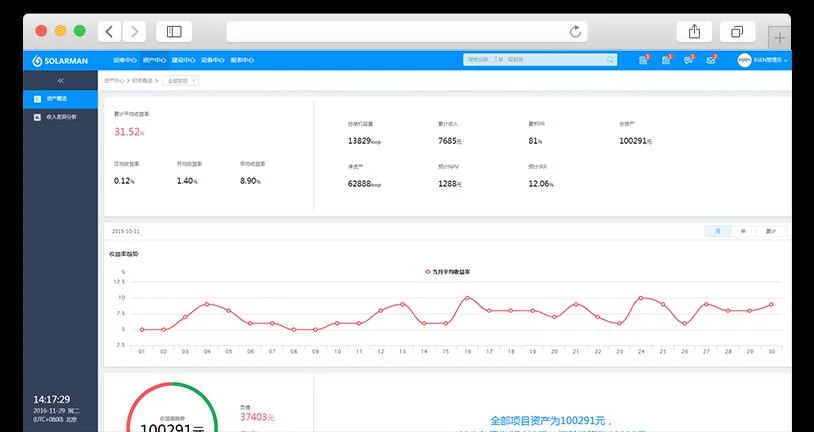

Remote Monitoring System

Data Logging Stick allows real-time information tracking of your PV system and atmospheric conditions. Accessible via Wi-Fi, Lan, or GPRS. Apps available for PC, iOS, and Android platforms.

PV Mounting System

Material: AI6005 & SUS304 Bolt
Clamps: Mid & End Clamps (35-50mm)
Options: Asphalt Shingle Mount, Hanger Bolts, Cable Clips, and Grounding Lugs available.

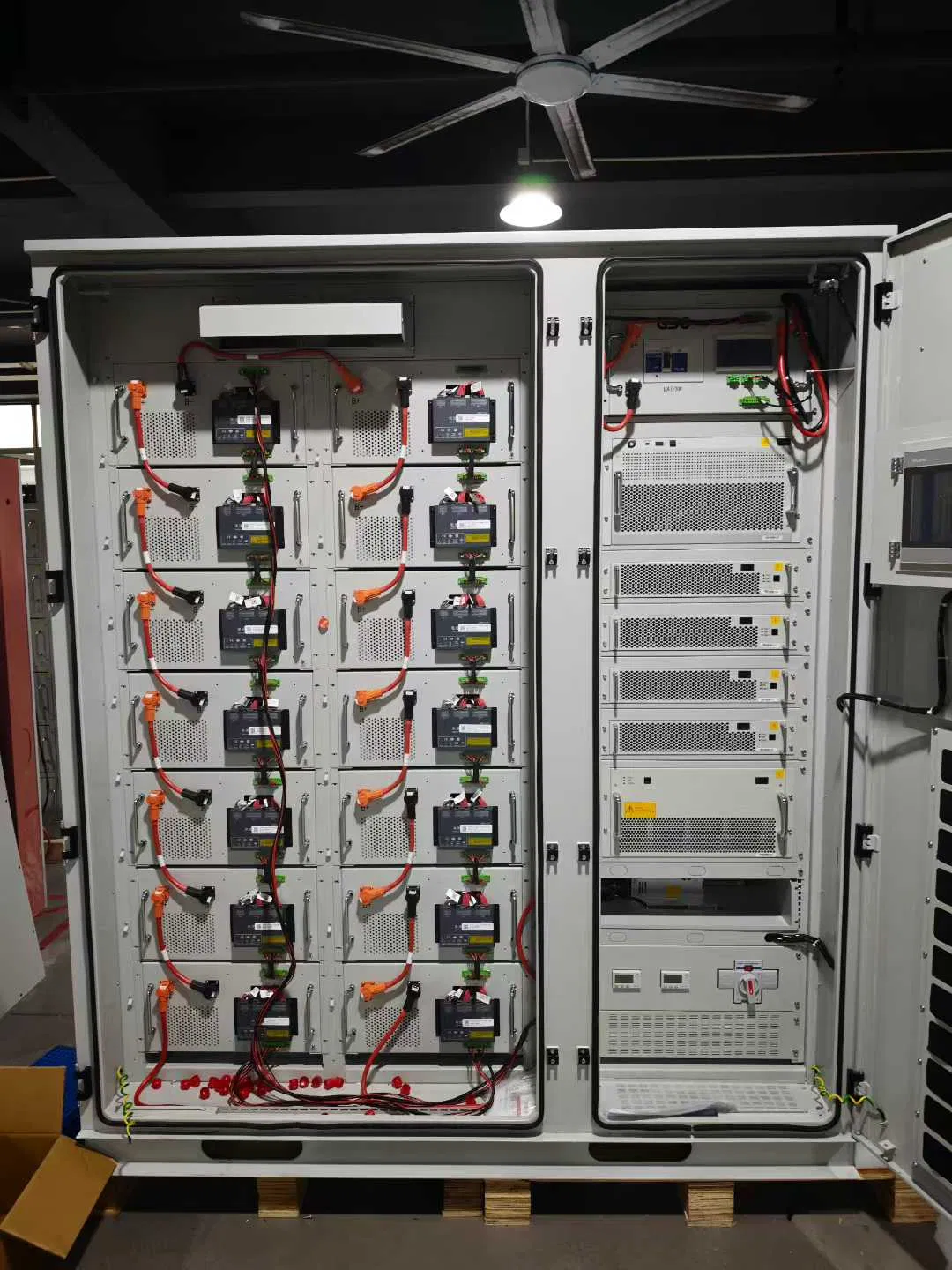

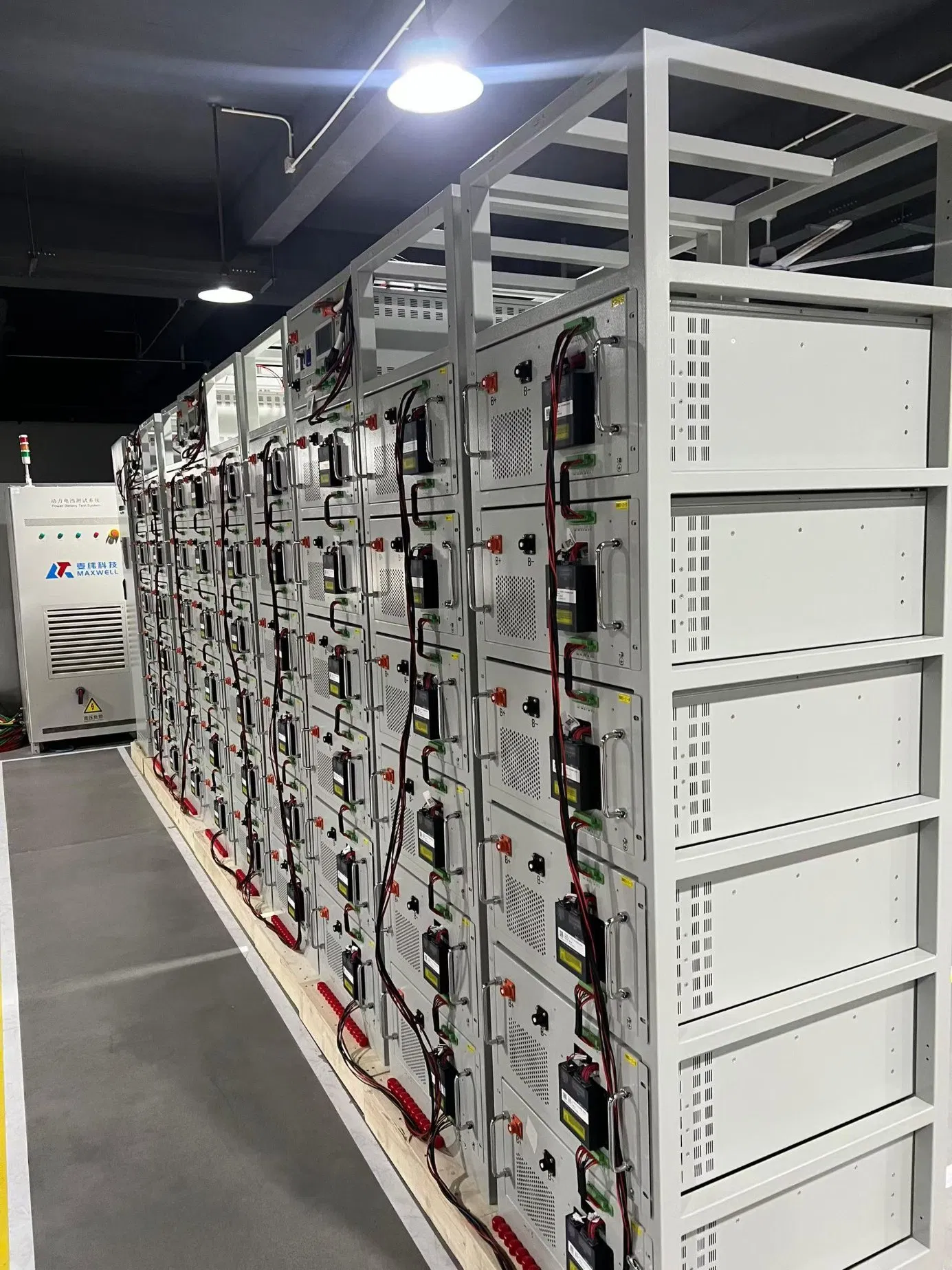

Lithium Battery Storage

Capacity: 4.8KWH per unit
Includes: Connection and communication cables
Package Size: 710*500*310 mm
Gross Weight: 103 KG

Frequently Asked Questions

What is the expected lifespan of the battery system?

The system utilizes LiFePO4 technology designed for approximately 1000 cycles, providing long-term reliable energy storage.

Can the solar system be installed on different roof types?

Yes, the PV mounting system is versatile and can be customized for either ground installation or various roof types, including asphalt shingles.

How can I monitor my solar power production?

The system includes a remote monitoring data logging stick that connects via Wi-Fi, LAN, or GPRS, allowing you to track performance on PC, iOS, or Android devices.

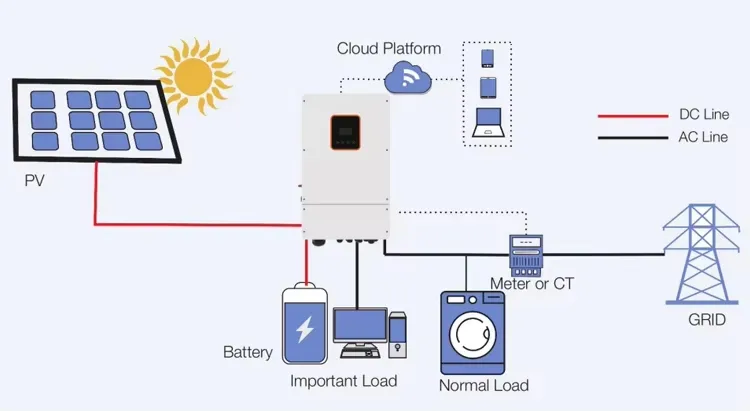

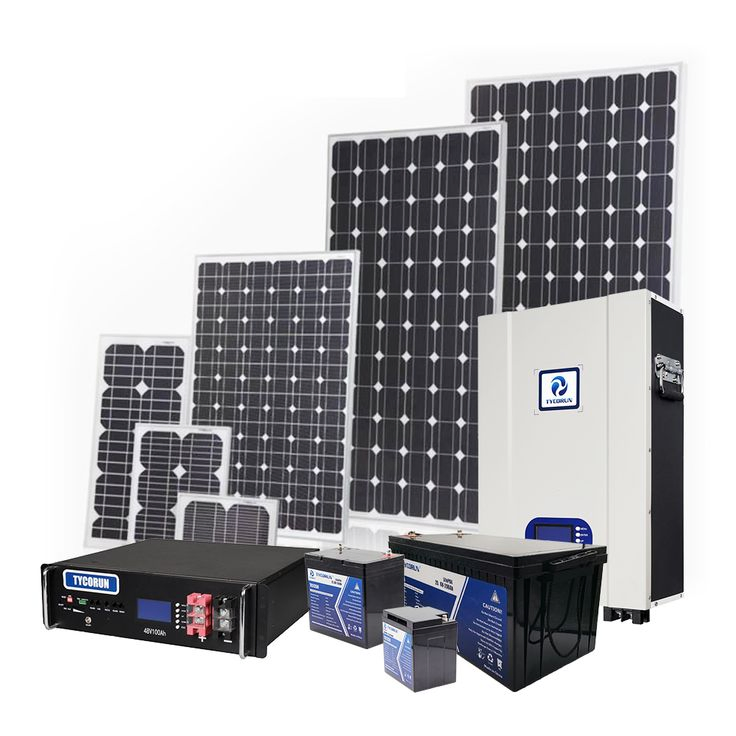

What are the main components included in the package?

A complete set typically includes Monocrystalline solar panels, a hybrid inverter with MPPT, Lithium battery storage, mounting brackets, PV cables, and MC4 connectors.

Are the solar panels high efficiency?

Yes, we use 590W Monocrystalline solar panels which offer high conversion efficiency and peak power performance.

Is the system certified for international use?

The solar system components hold ISO and CE certifications, ensuring they meet international quality and safety standards.
