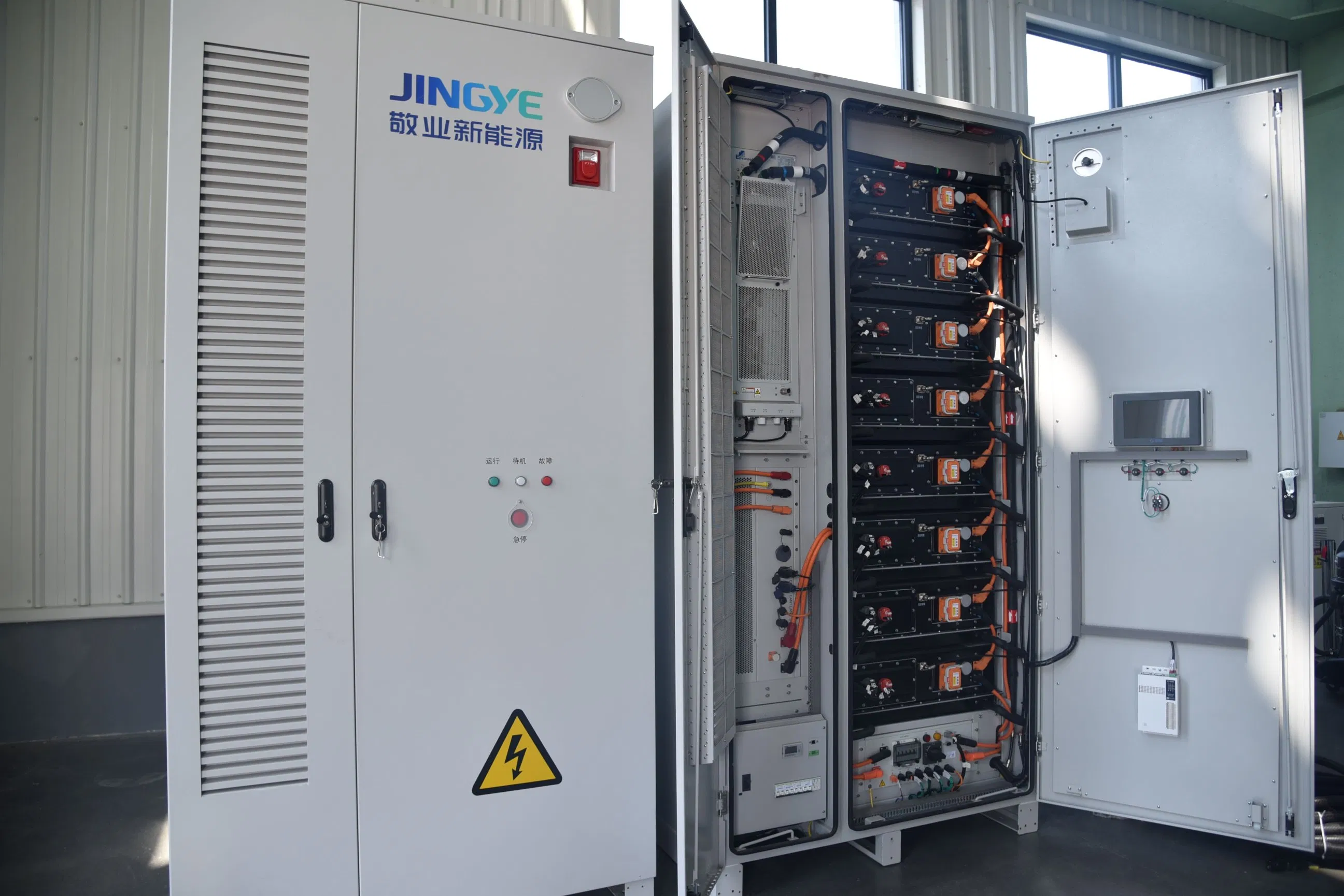

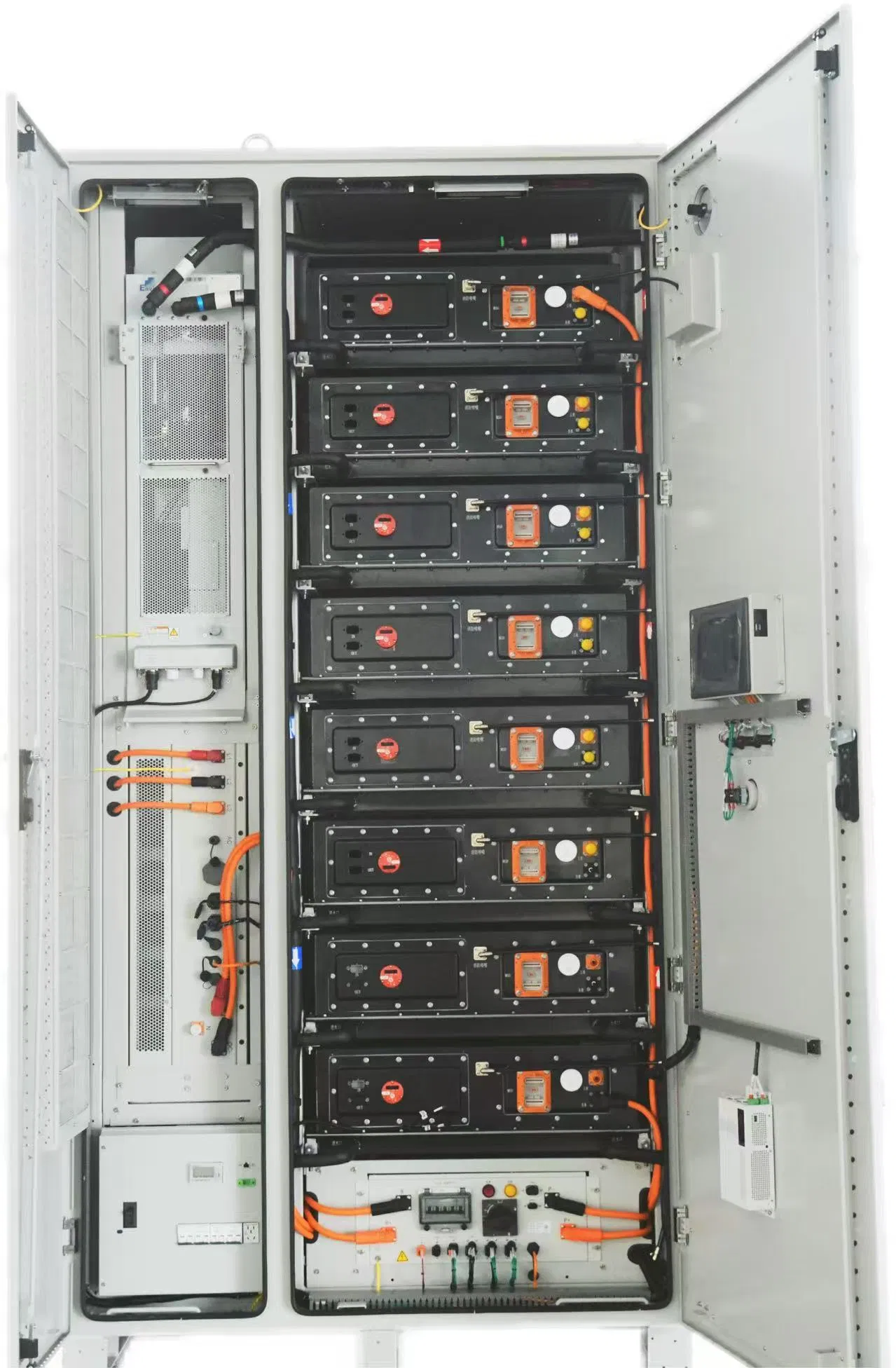

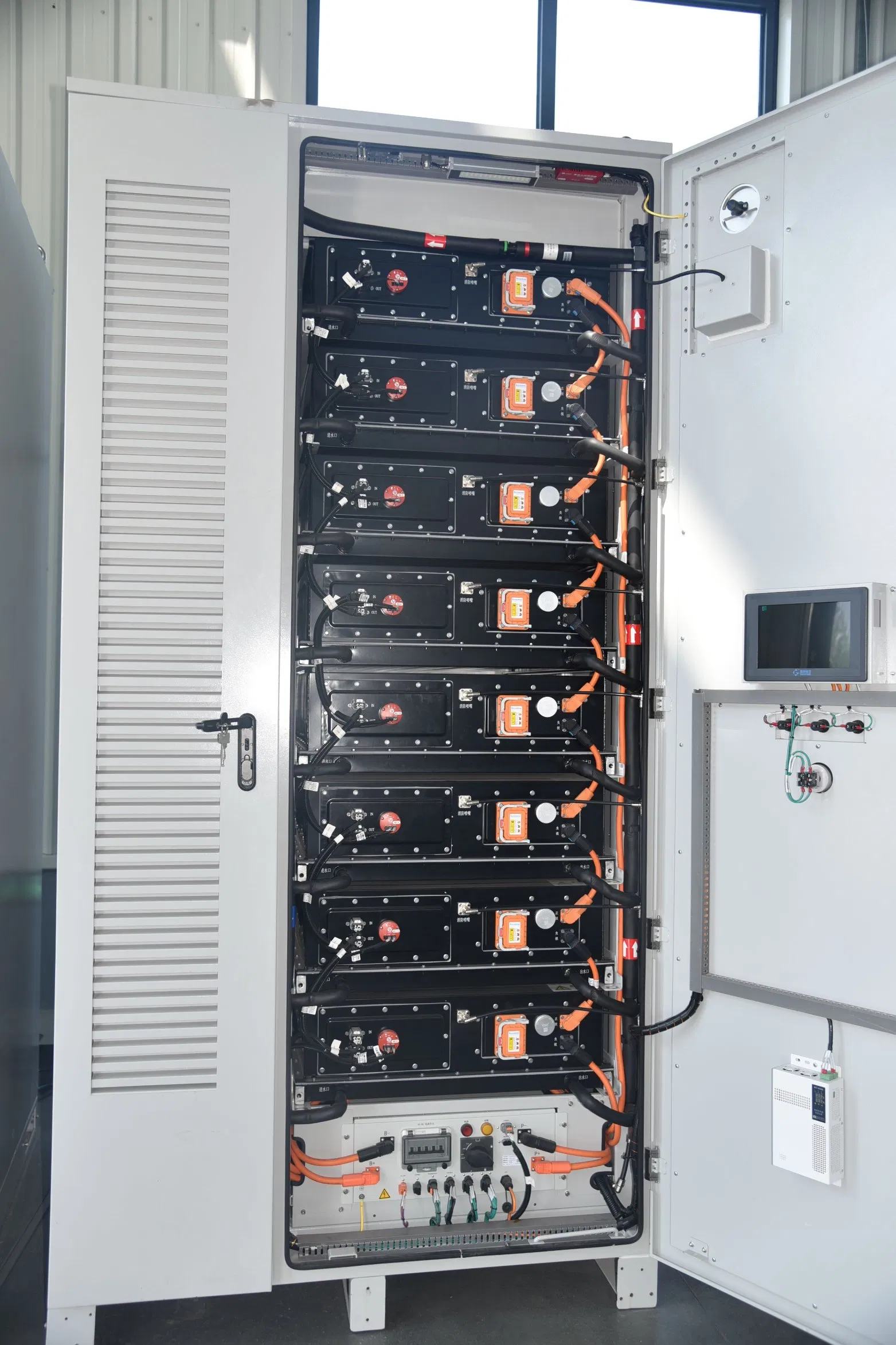

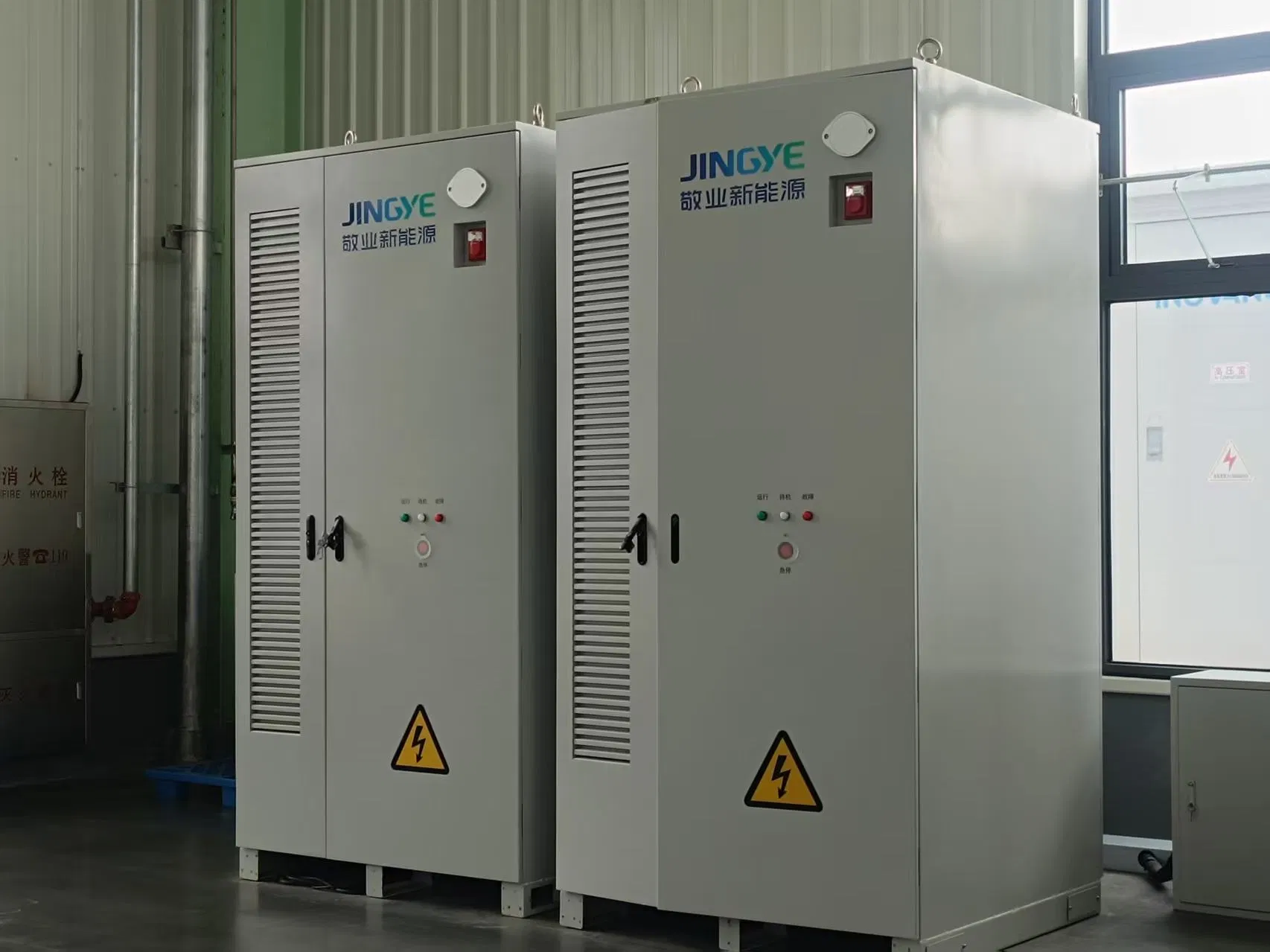

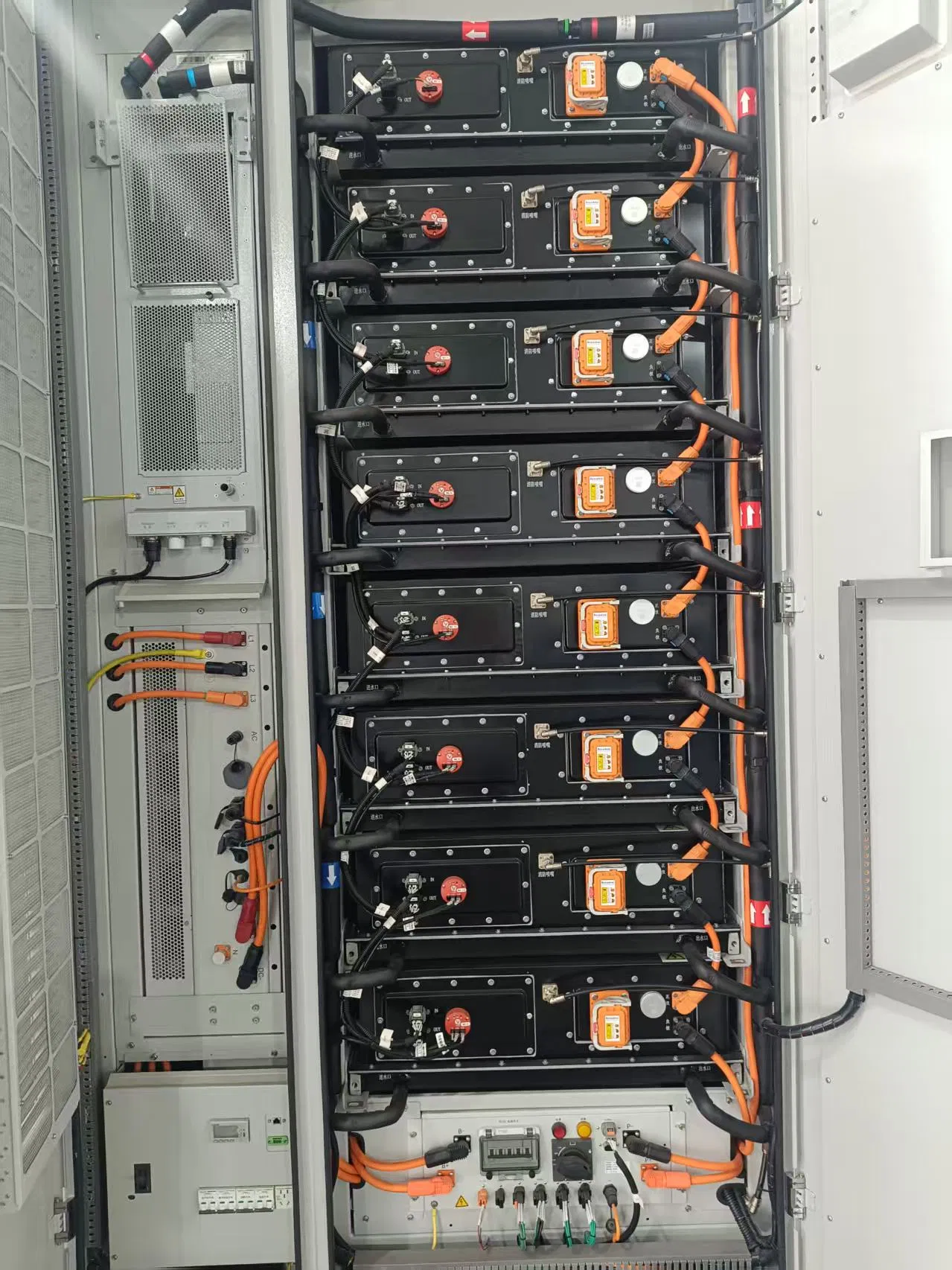

Industrial LFP-417kwh Liquid-Cooled Energy Storage Cabinet

Customization:	Available
Nominal Voltage:	690
Warranty:	3 Years

📊

Basic Info.

Cycle Life

10 Years (2 Charges/Discharges Daily)

Customize

Available

Battery System

Lithium Iron Phosphate (LFP)

Cycle Times

>8000 Times (90%DOD, 25ºC)

Charging Temp

0ºC~55ºC

Discharging Temp

-20ºC~55ºC

Storage Temp

-20ºC~60ºC

Origin

China

🔋

Product Description

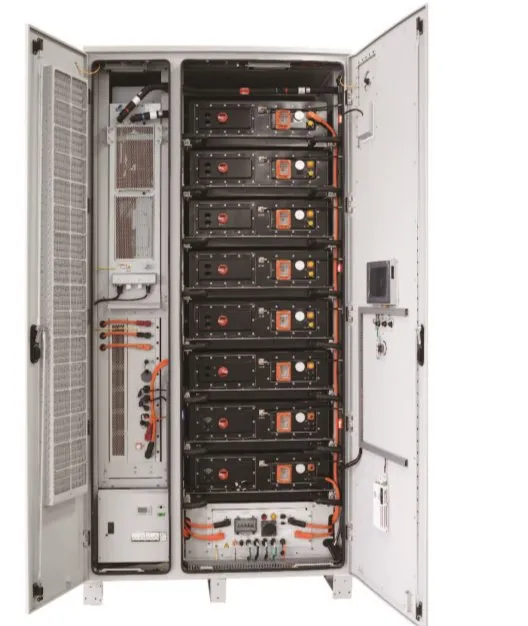

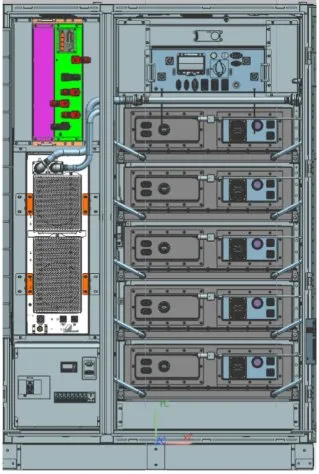

Commercial and Industrial Energy Storage Cabinets Solutions available in LFP-261KWh and LFP-417KWh configurations for user-side energy management.

Key Features

High Density: Uses 314Ah high-energy density cells.
High Safety: Full temperature/voltage monitoring with chemical & water fire protection.
High Efficiency: Over 90% charge-discharge efficiency.
Expandability: Modular design for scalable power requirements.
Intelligent: Real-time monitoring by BMS.
Large Modules: 1P104S dual-mode design for higher energy.

Commercial and Industrial Energy Storage Cabinet Parameters

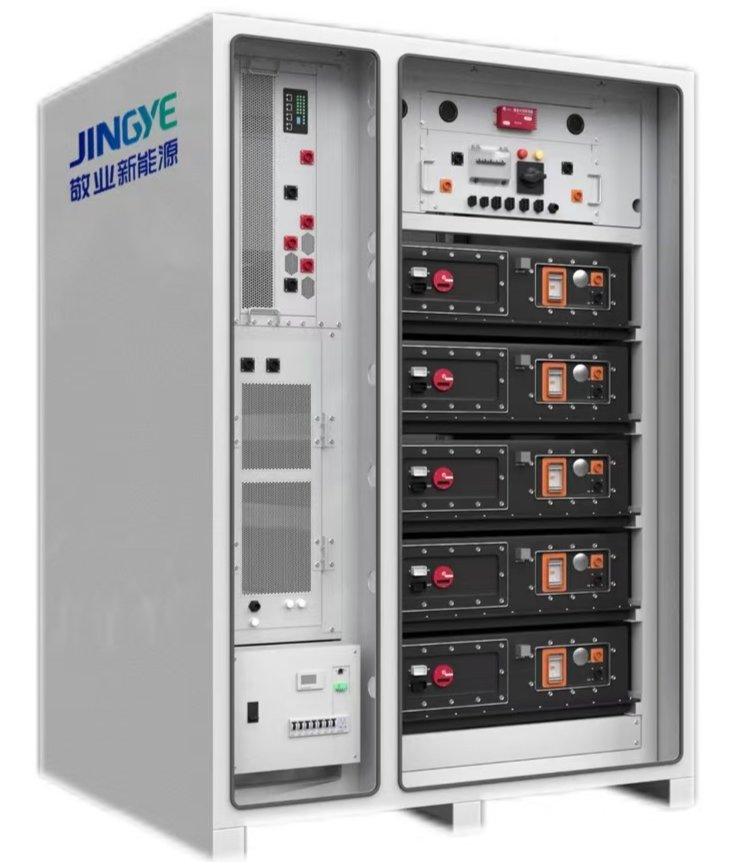

Energy Storage	Storage Capacity	LFP-261KWh
	Configuration	314Ah Lithium Iron Phosphate system
	Combination Form	5*1P52S
	Nominal Voltage	DC832V
	Cycle Times	>8000 times (90%DOD, 25℃)
Environment	Temp Range	Charge: 0~55℃ / Discharge: -20~55℃
	Humidity	0%RH~95%RH, non-condensing
	Altitude	≤4000m (derating above 3000m)
	Temp Difference	3℃ in PACK, 5℃ in cabinet
Lifetime	Full Lifecycle	10 years (3% annual decay)
Others	Communication	CAN / RS485 / Ethernet
	Protection	IP55, Salt fog protection
	Cooling/Fire	Liquid cooling / Aerosol protection

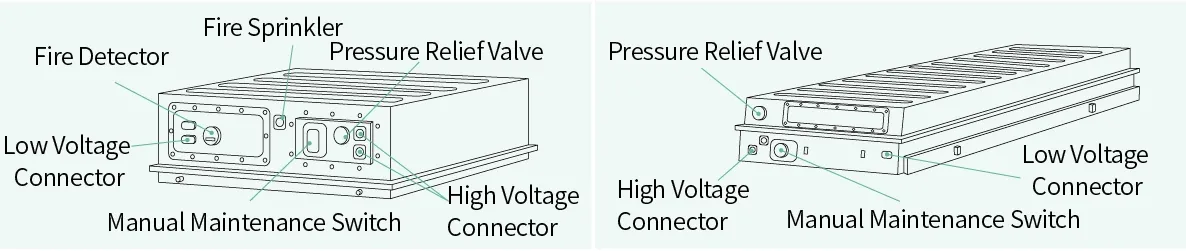

Technical Parameters (314Ah Module)
Combination Method	L173F314-1P52S
Rated Voltage	166.4V
Rated Energy	52.249kWh
Cooling Method	Liquid cooling
Discharge Rate	0.5P
Dimensions	1152.5 * 790 * 245mm

📦

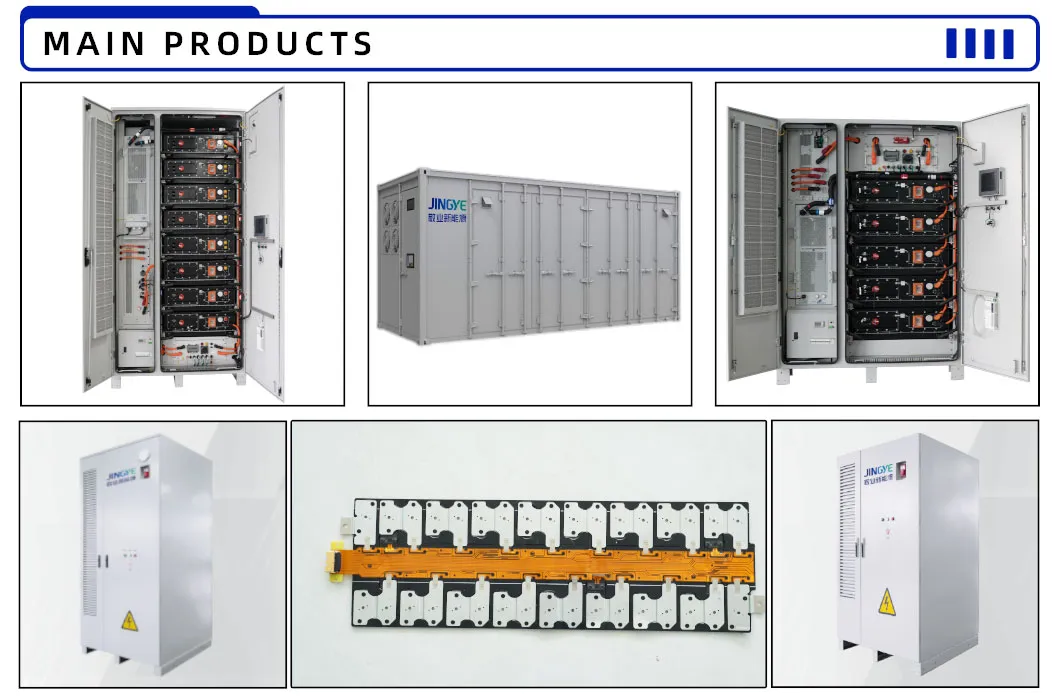

Main Products

🏢

Company Profile

🛠️

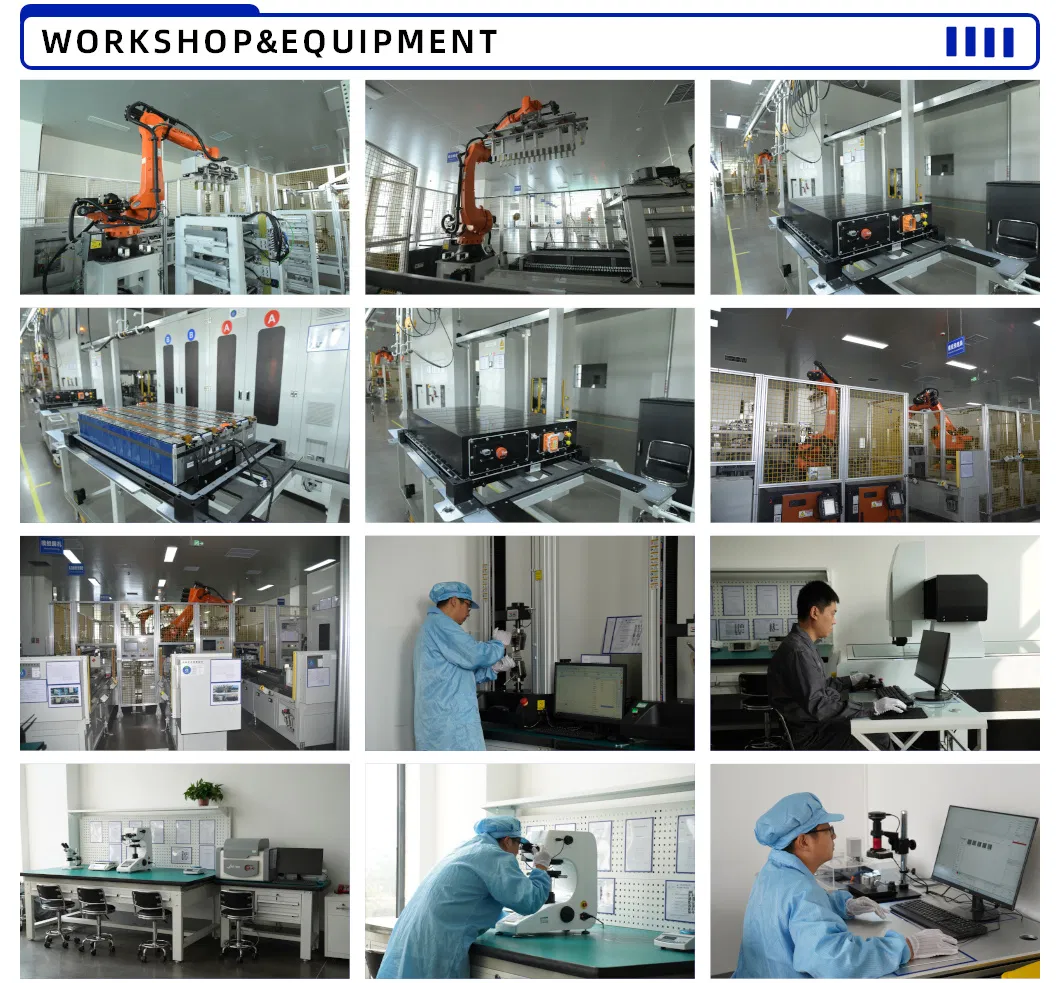

Workshop & Equipment

Equipped with the most advanced automated production lines, the annual capacity reaches 5 GWh for energy storage systems and 2.4 million units of CCS busbars. Our solutions serve smart grids, renewable energy storage (wind/solar), industrial applications, and green transportation globally.

📜

Certifications

🤝

Exhibition

❓

Frequently Asked Questions

What are your primary product offerings?

Our core products include 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and high-performance Battery Packs.

Do you support customized requirements?

Yes, we provide flexible customization services tailored to diverse technical processes and specific project scales.

How is production and delivery time managed?

With a fully automated production line and a proficient technical team, we guarantee stable output and strict adherence to delivery schedules.

Is your company a manufacturer or a trader?

We are a formal source factory with standardized production processes, allowing us to offer competitive factory-direct pricing and high-quality control.

How can I obtain a detailed quotation?

You can reach out to our support staff directly through the website's online portal for a prompt and detailed quote.

In which fields are your products applied?

Our products are widely utilized in smart grids, wind and solar power distribution, industrial/commercial energy storage, and green transportation sectors.
