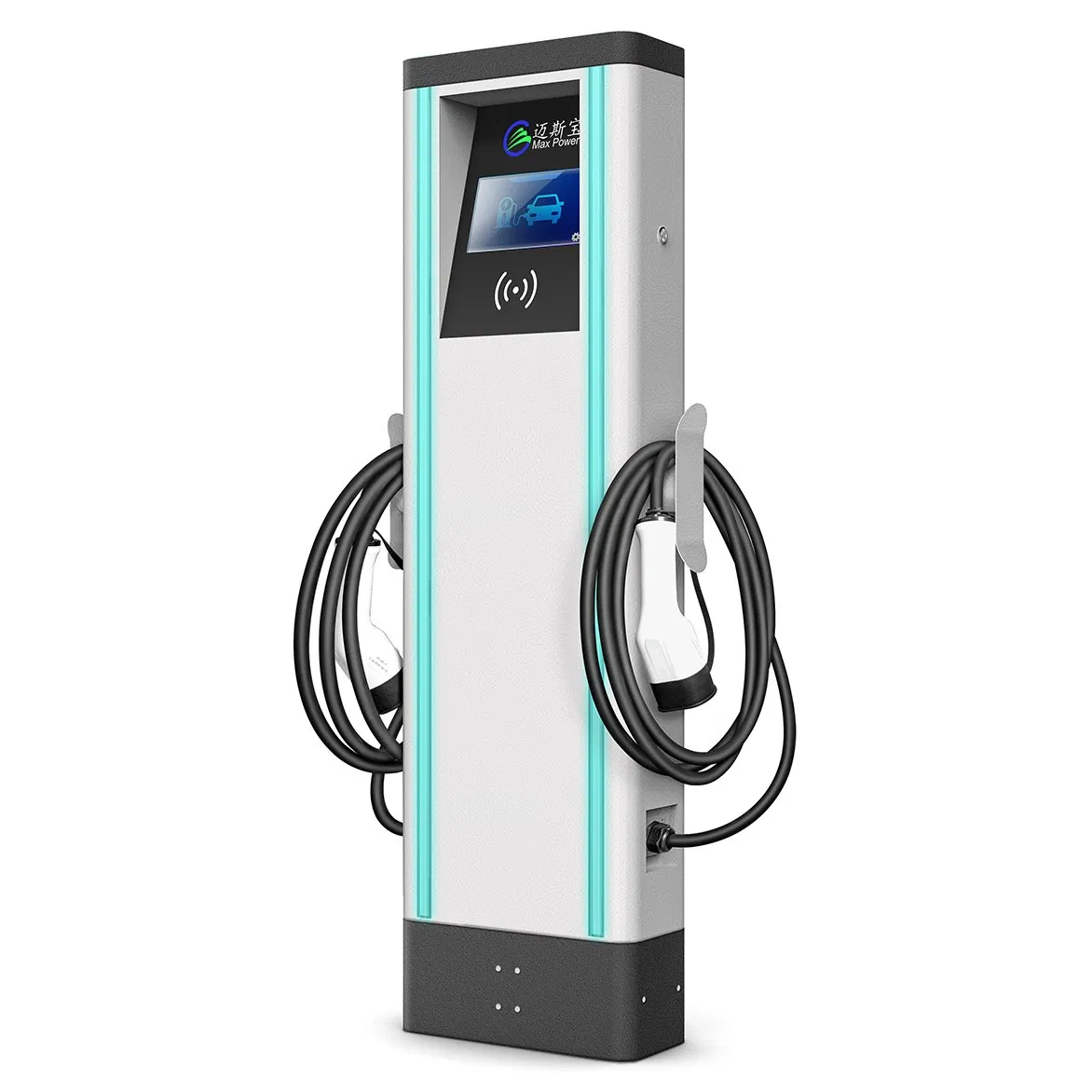

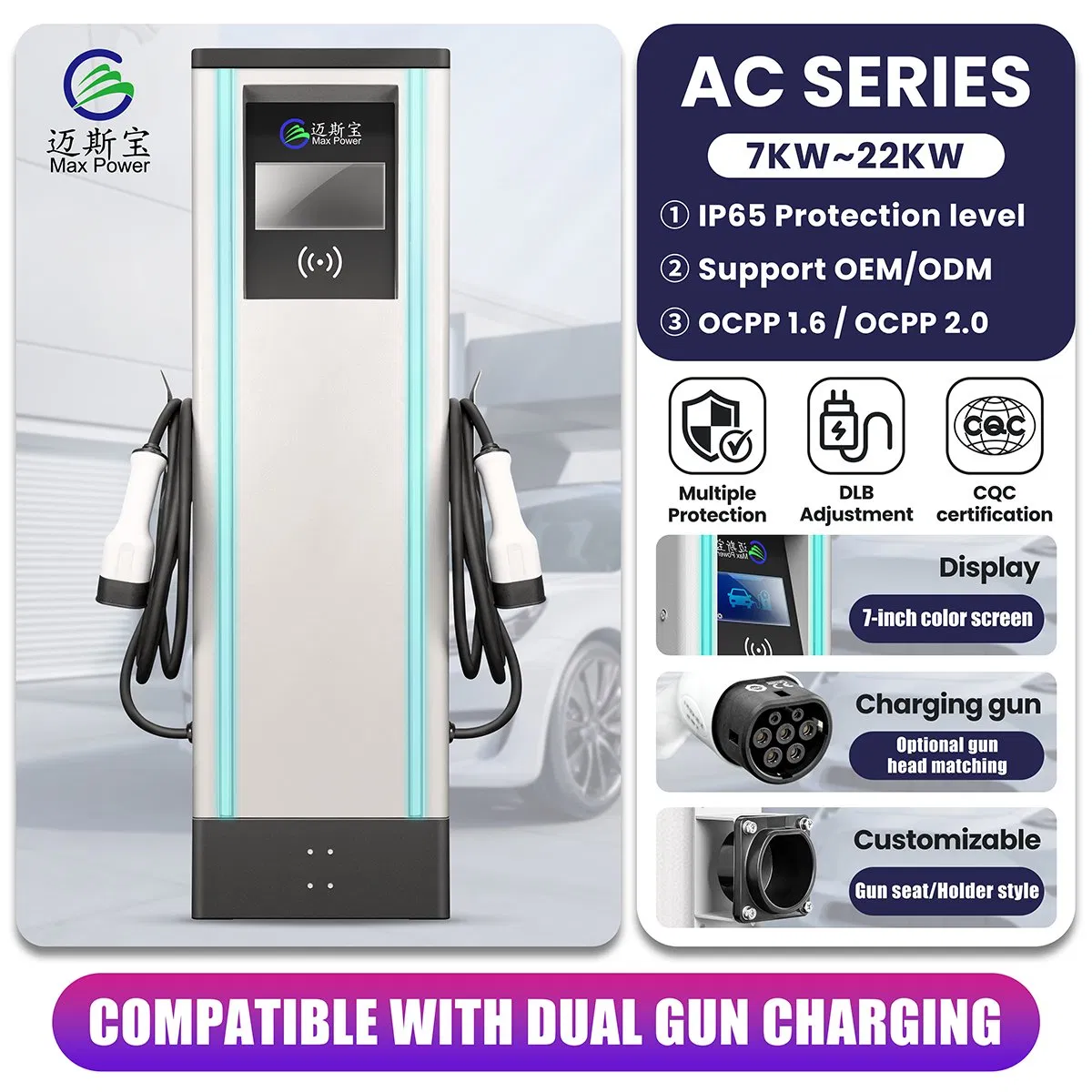

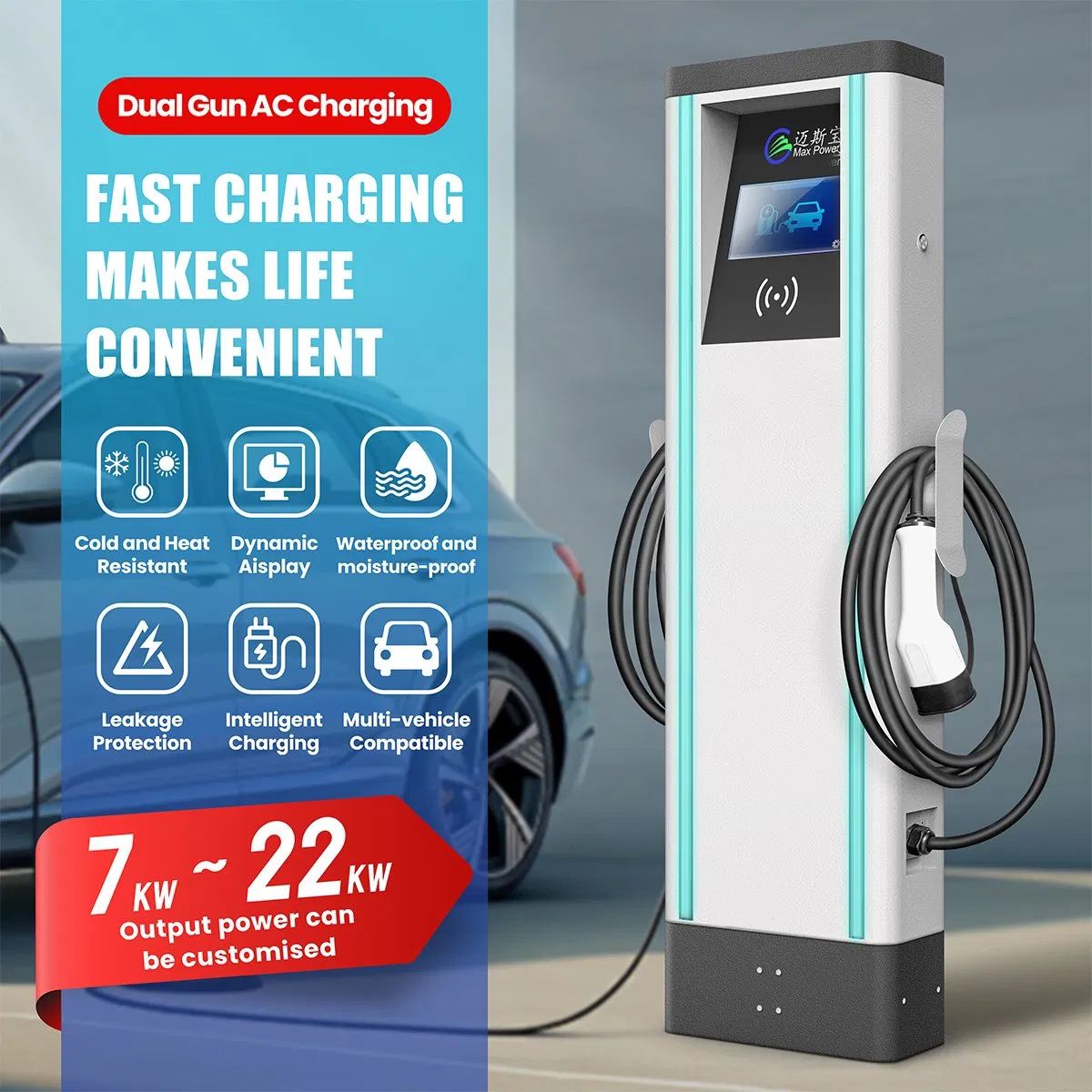

EV Charger Floor Mounted 22kw CCS2 AC Charging Stations with APP/RFID Card
EV Charger Floor Mounted 22kw CCS2 AC Charging Stations with APP/RFID Card
EV Charger Floor Mounted 22kw CCS2 AC Charging Stations with APP/RFID Card
EV Charger Floor Mounted 22kw CCS2 AC Charging Stations with APP/RFID Card
EV Charger Floor Mounted 22kw CCS2 AC Charging Stations with APP/RFID Card
1 / 5
EV Charger Floor Mounted 22kw CCS2 AC Charging Stations with APP/RFID Card
EV Charger Floor Mounted 22kw CCS2 AC Charging Stations with APP/RFID Card
EV Charger Floor Mounted 22kw CCS2 AC Charging Stations with APP/RFID Card
EV Charger Floor Mounted 22kw CCS2 AC Charging Stations with APP/RFID Card
EV Charger Floor Mounted 22kw CCS2 AC Charging Stations with APP/RFID Card

EV Charger Floor Mounted 22kw CCS2 AC Charging Stations with APP/RFID Card

Customization: Available
Connector Type: CCS2
Start Mode: APP Control, RFID Card
Send Inquiry

Product Description

Basic Product Information
Model NO.
ACP2232
Charging Interfaces
One Pile with One Charge
Location
Private, Public, Power Rescue
Installation
Wall Mounted
Charge Method
Normal Charge
Input Voltage
AC220V
Output Voltage
AC380V
IP Level
IP65
Grounding Detection
Pen Fault(UK Market)
Connectors
CCS2
Type
Slow EV Charging Station
Certification
CE
Warranty
12 Months
Specification
350*150*350mm
Product Description
Rich Configuration Support DLB (Dynamic Load Balancing), OCPP, pen fault, A+6, MlD meter. Free mix and match (power, charging standard, gun cable, gun mount).
Intelligent Control Support reservation charging, password charging, swipe card, offline billing, APP scanning code operation. Multiple languages can be freely switched.
Safety Protection IP65 protection level, -25ºC to 50ºC stable operation. Remote diagnosis, upgrade, and configuration via after-sales platform.
Technical Specifications
Model AC0732 AC1116 AC2232
Rated Power 7KW+7KW(14KW) 11KW+11KW(22KW) 22KW+22KW(44KW)
Output Voltage AC230V AC400V
Input Current 32A(64A) 16A(32A) 32A(64A)

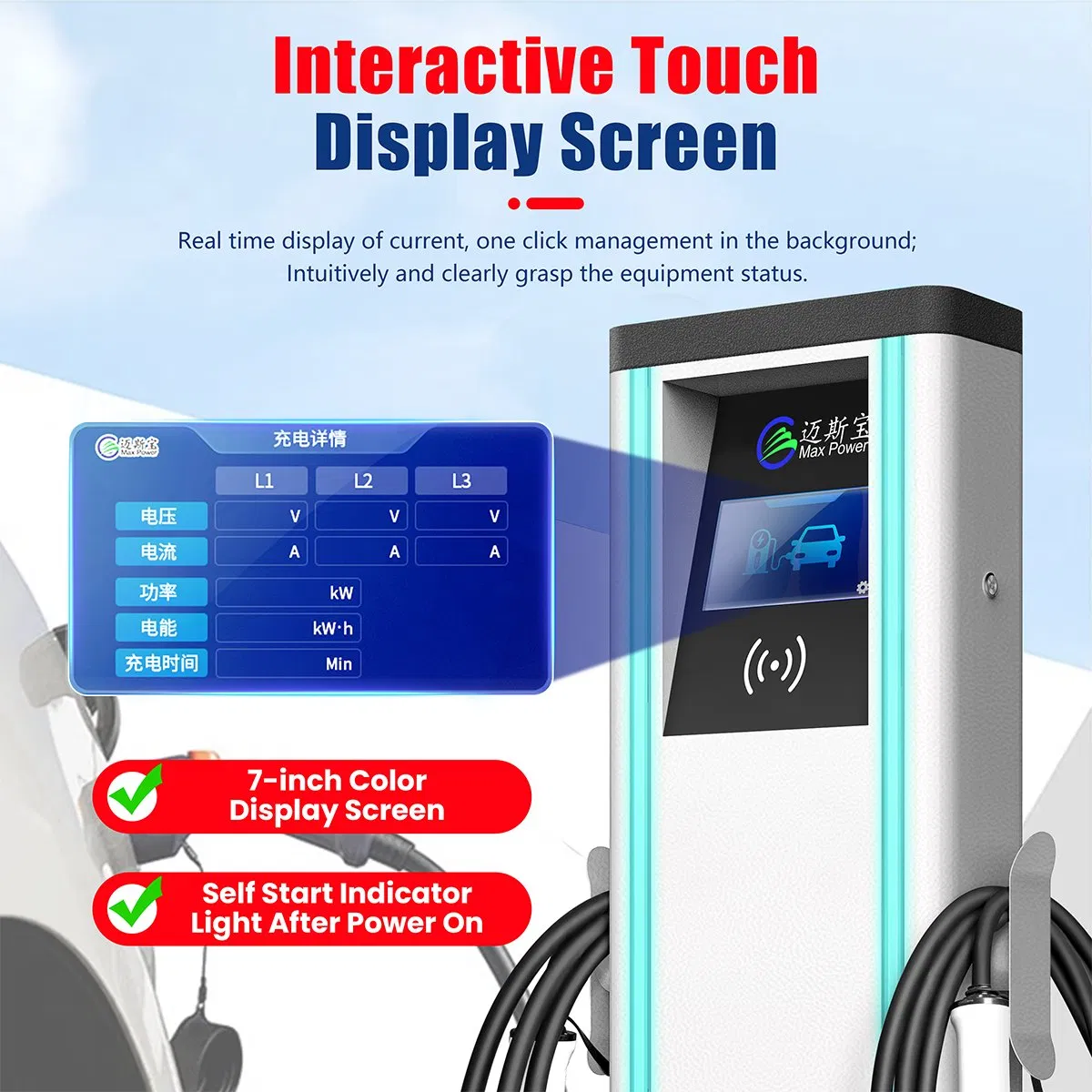

Operating Interface Pilot Lamp + 4.3-Inch Touchable Screen
IP Level IP65
Cable Length 5M
Network Connection OCPP 1.6 / WiFi / Bluetooth / 4G / LAN
Operating Temp. -25°C ~ +50°C
Product Gallery
EV Charger Station 1
EV Charger Station 2
EV Charger Station 3

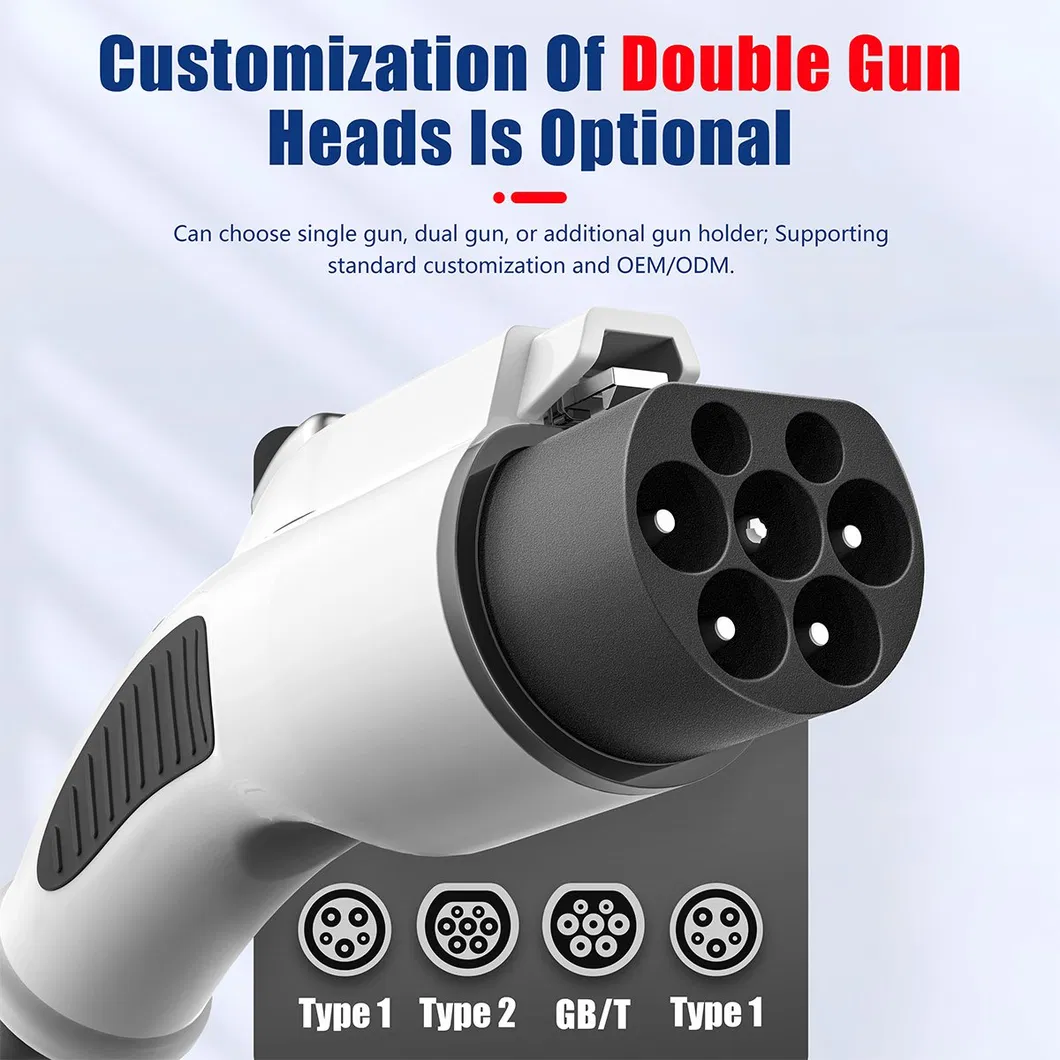

EV Charger Station 4

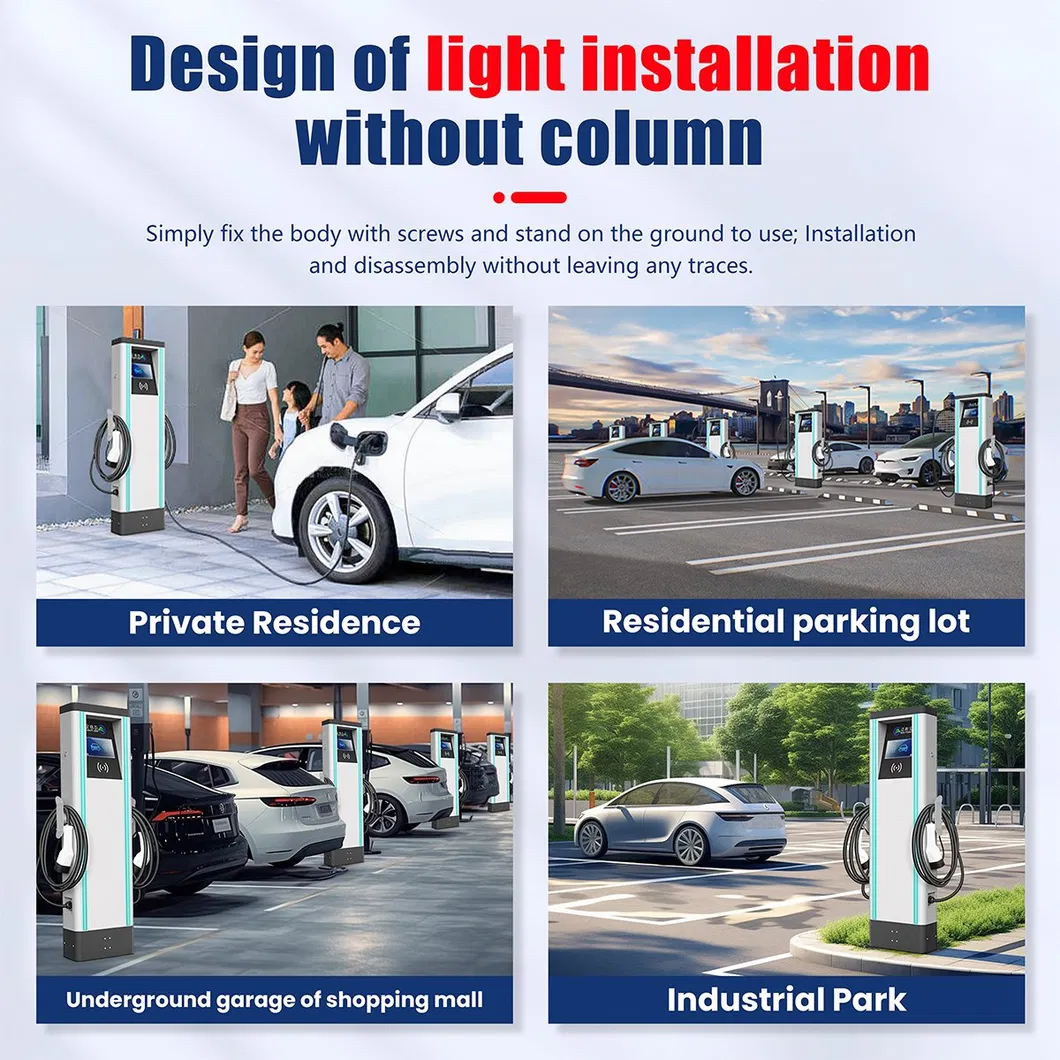

EV Charger Station 5
EV Charger Station 6

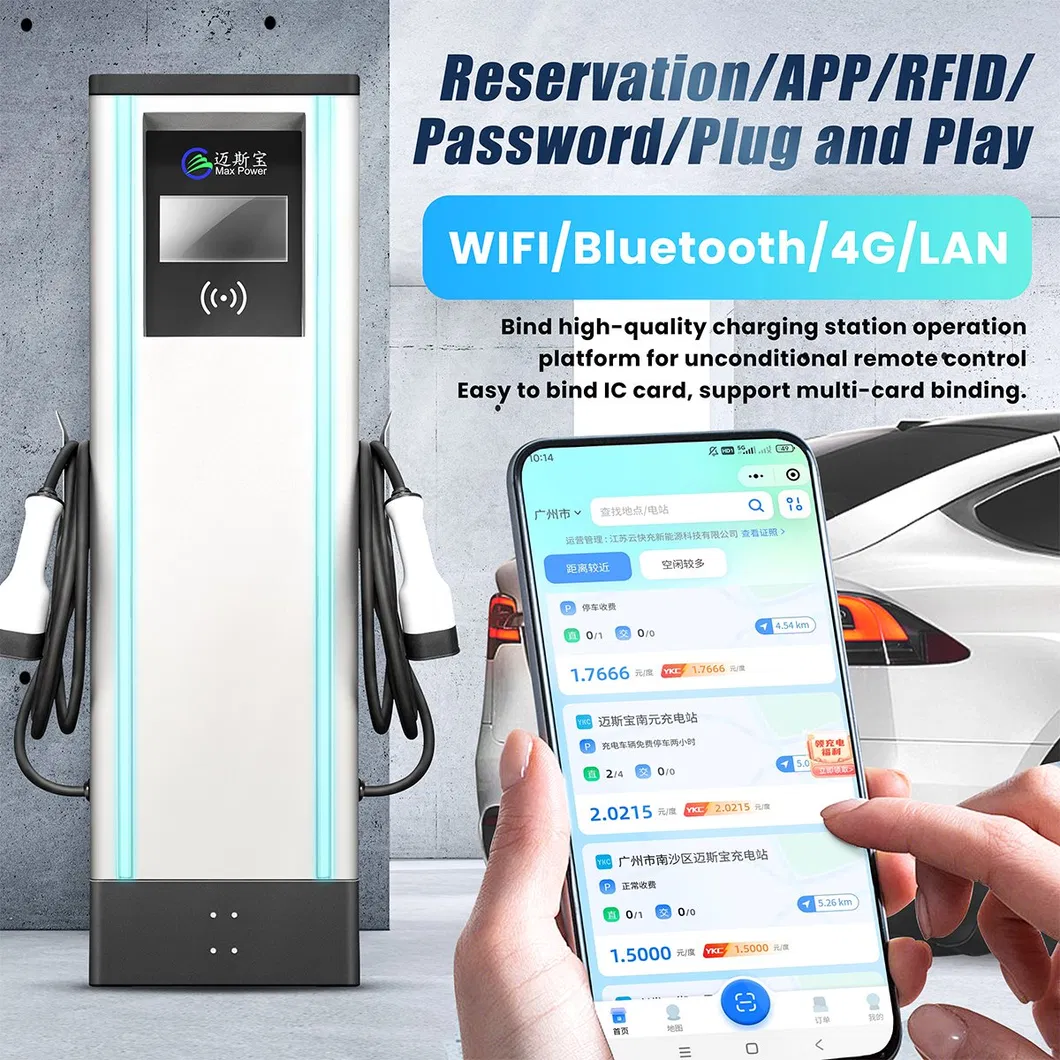

EV Charger Station 7
EV Charger Station 8
EV Charger Station 9
Frequently Asked Questions
What is the warranty period for the EV charging station?
The warranty period is 12 months. During this period, technical support is provided and new parts can be replaced for free (customers are responsible for delivery costs).
How long is the typical delivery time?
Generally, it takes 3 to 7 working days after receiving advance payment. The specific time depends on the items and the quantity of your order.
Do you test all products before delivery?
Yes, we conduct 100% testing on all goods before they are dispatched to ensure quality and safety.
What is the difference between a Movable Charger and a Wallbox Charger?
Beyond the appearance, the main difference is the protection level: wallbox chargers are typically IP54/IP65 (suitable for outdoors), while movable chargers may have lower ratings (IP43) not suitable for use in rain.
Can you produce chargers based on specific samples?
Yes, we can produce according to your samples or technical drawings. We have the capability to build custom molds and fixtures.
What are the terms of payment for orders?
Our standard terms are T/T 50% as a deposit and 50% before delivery. Photos of products and packages are provided before the final balance is paid.
