Copper tube condensers / Inner groove tube condensers / Vertical condensers

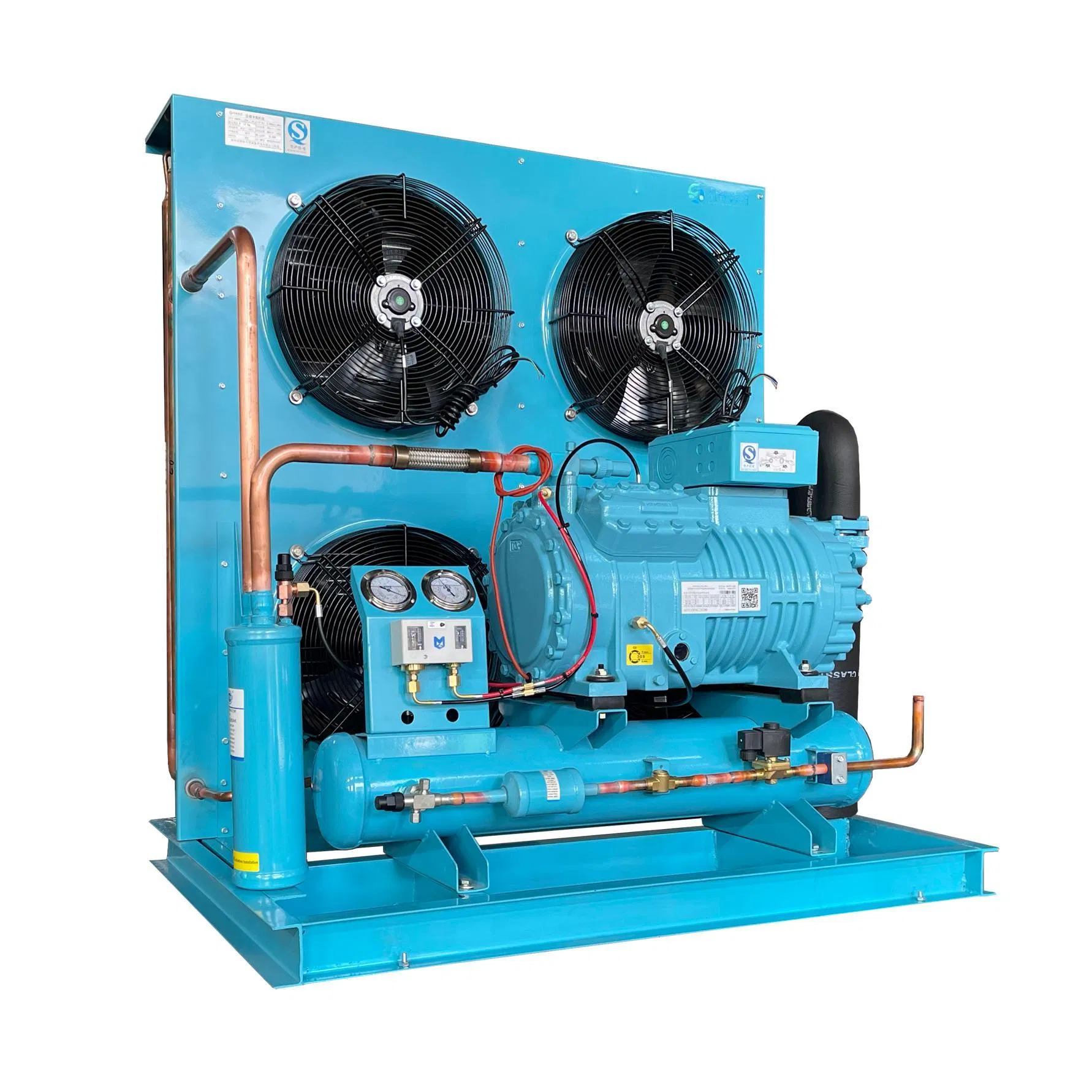

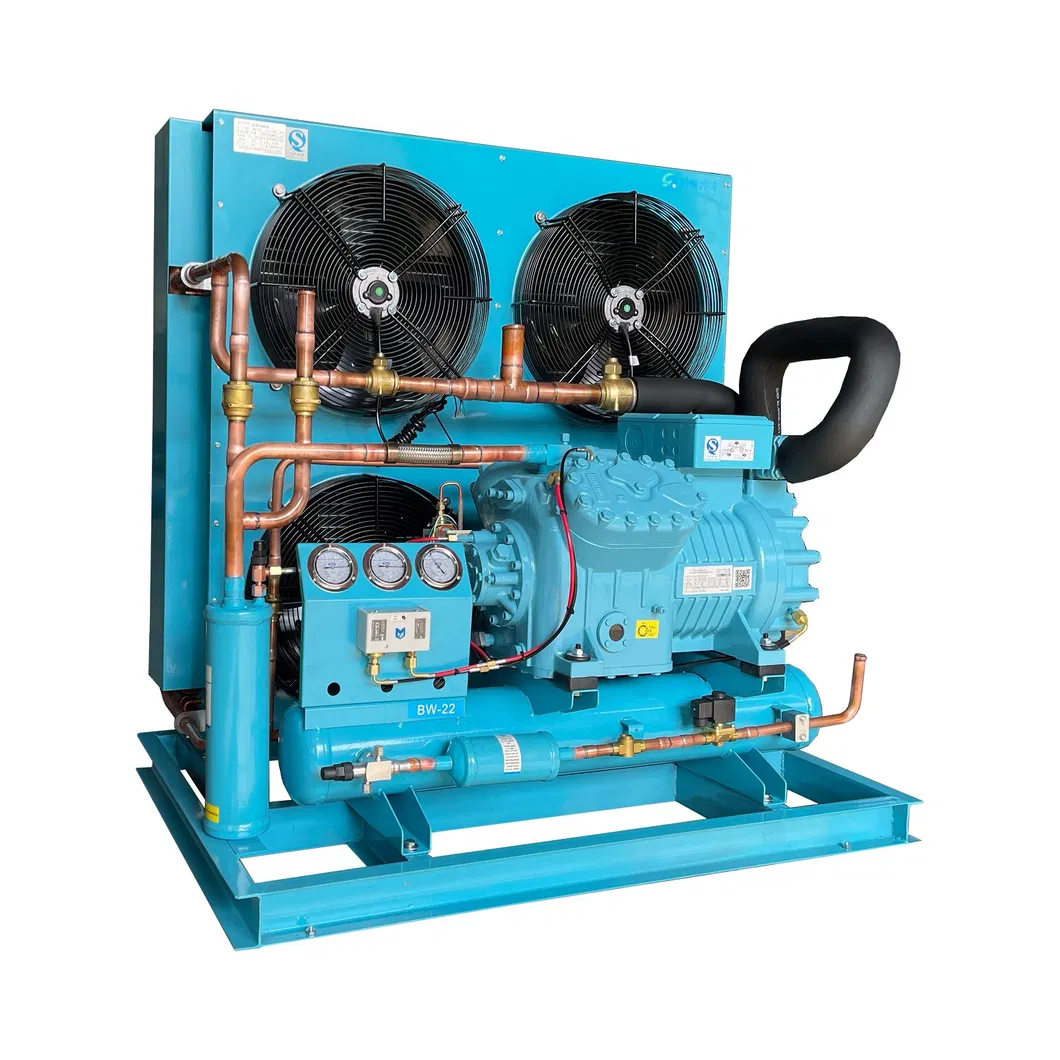

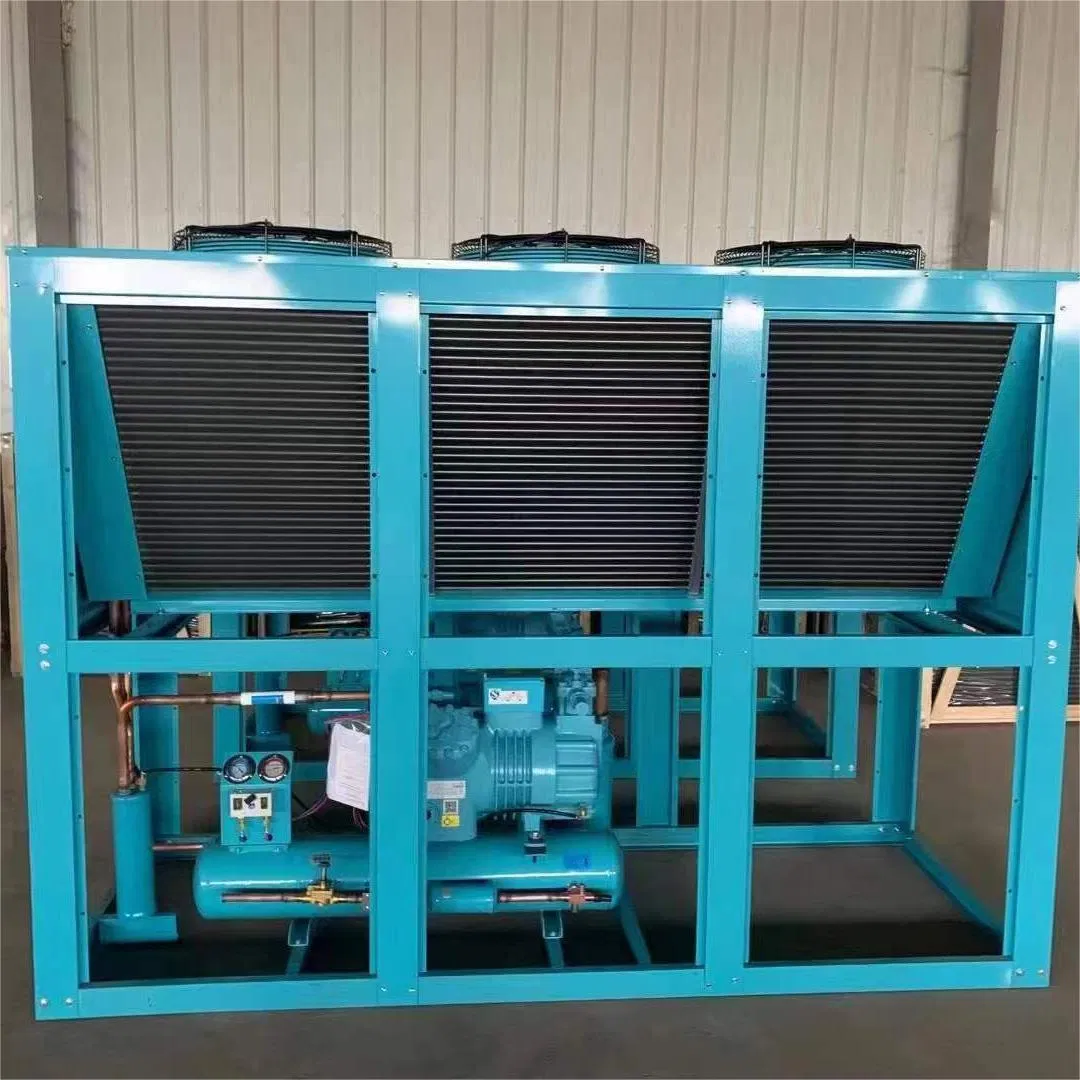

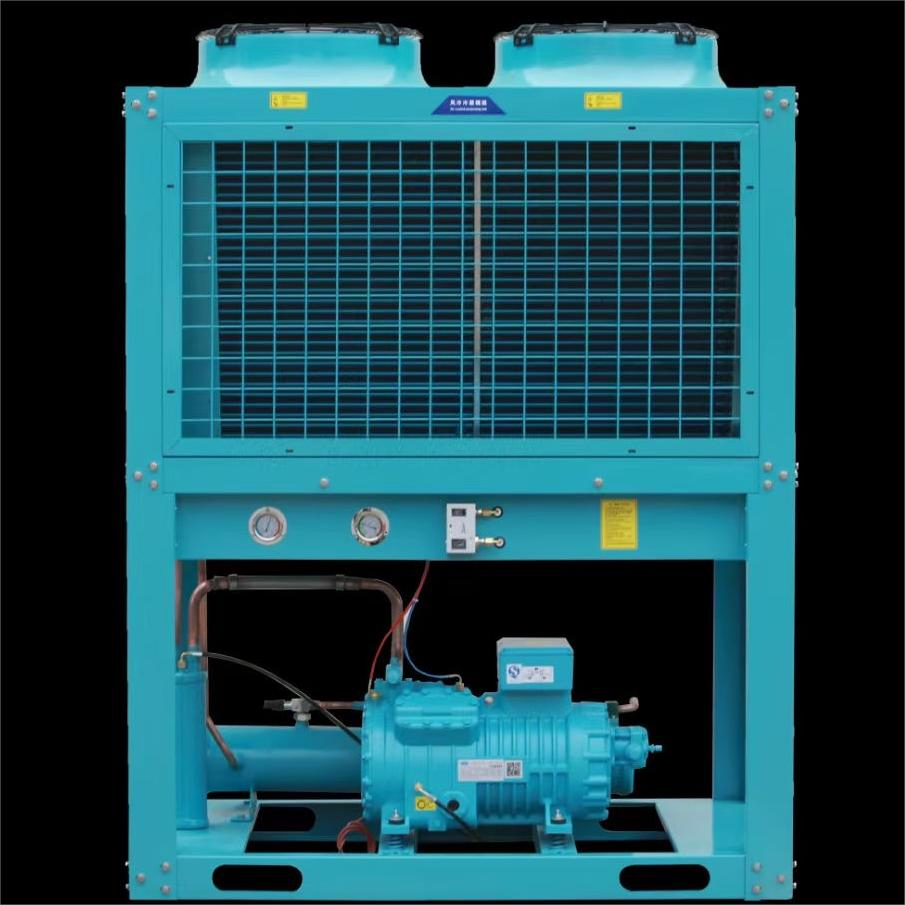

These integrated outdoor air-cooled units feature a compact structure and aesthetic appearance. They are compatible with popular brand compressors such as Copeland (ZB, ZSI, ZFI), Danfoss, and various Chinese scroll compressors. Based on air blow direction, they are classified into side and top blowing types, each available in A, B, and C models.
| Unit Mode | CDBL-2.2ZR | CDBL-3.2ZR | CDBL-5.2ZR | CDBL-6.2ZR | CDBL-10.2ZR | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Cooling Capacity (kW) | 3.28 | 4.17 | 6.52 | 8.21 | 11.76 | ||||||||||||
| Input Power (kW) | 2.22 | 2.79 | 4.32 | 5.19 | 7.32 | ||||||||||||
| Performance Coefficient (kW/kW) | 1.48 | 1.49 | 1.51 | 1.58 | 1.61 | ||||||||||||
| Displacement (m³/h) | 13.42 | 18.05 | 26.84 | 34.73 | 48.05 | ||||||||||||
| Product Weight (kg) | 114 | 140 | 153 | 230 | 268 |
| Unit Mode | CDBL-12.2ZR | CDBL-20.2ZR | CDBL-30.2ZR | CDBL-40.2ZR | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Cooling Capacity (kW) | 13.75 | 20.60 | 30.90 | 37.20 | ||||||||||
| Input Power (kW) | 8.56 | 13.87 | 20.80 | 25.10 | ||||||||||
| Displacement (m³/h) | 56.25 | 84.50 | 126.80 | 151.60 |
