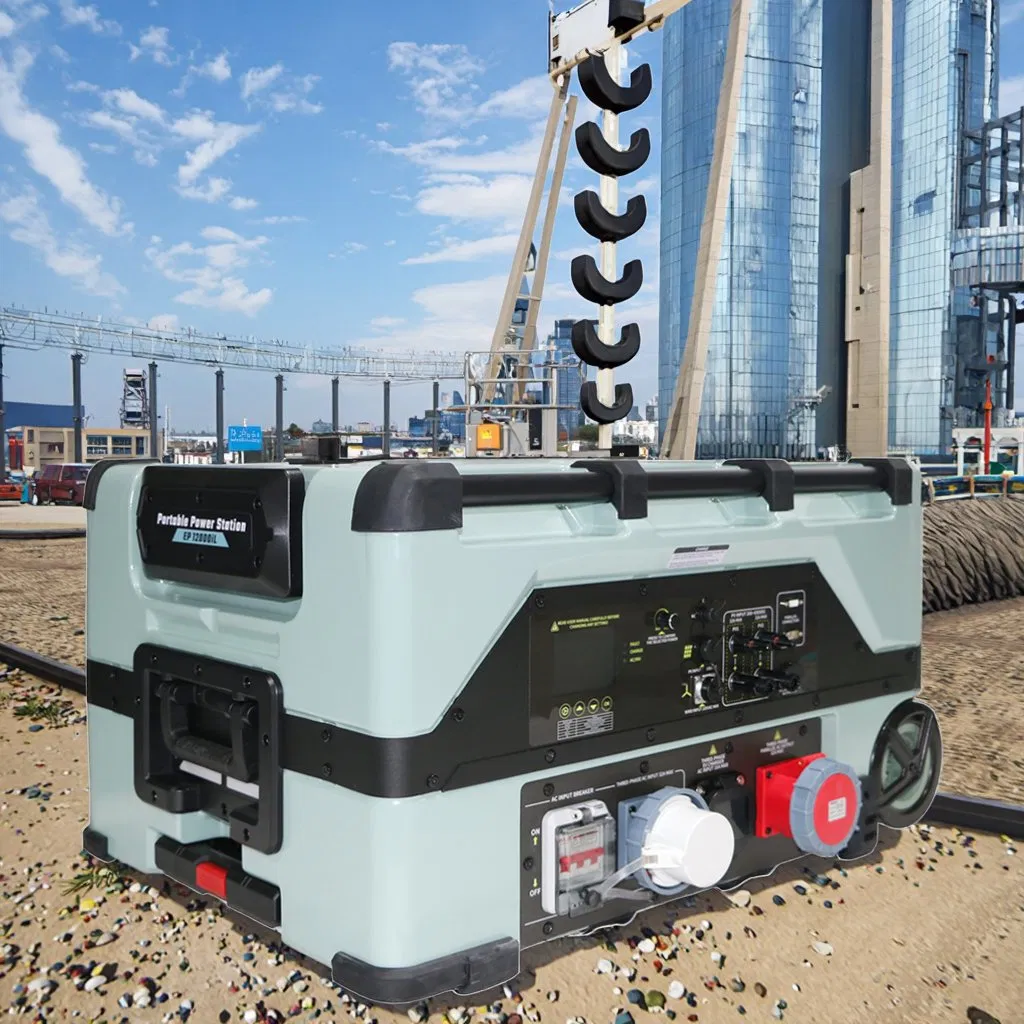

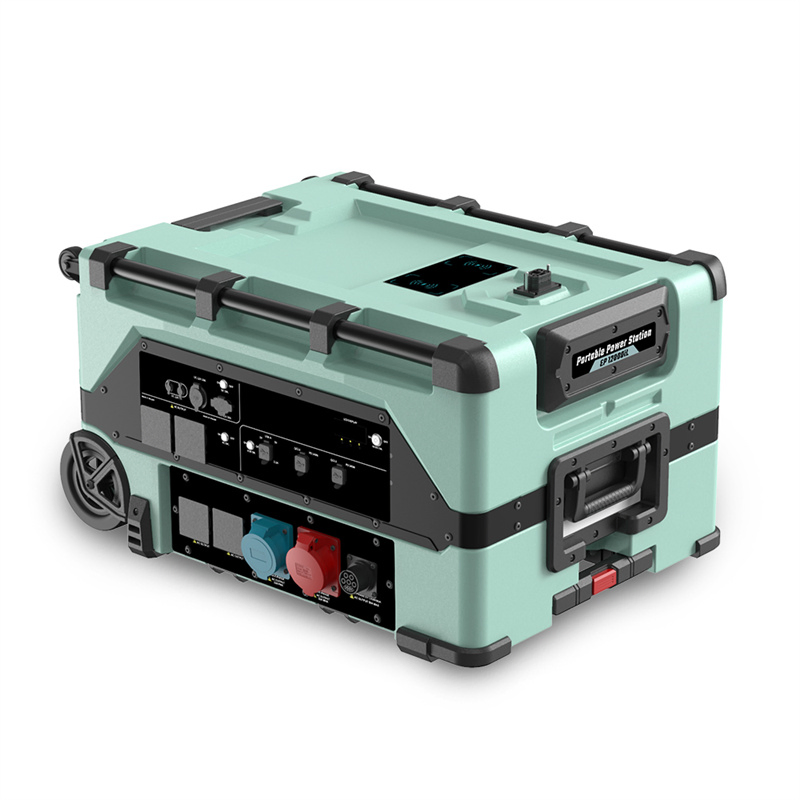

20kw off-Grid Solar Generator Home Energy Storage Solar System

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
EP12000iL
Cycle Life
3000
Nominal Capacity
7680Wh
Multiple Charging
AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion
Yes, Max 245kWh
Super Fast Charging
70mins Fully Charged
Certificates
CE RoHS IEC62619 Un38.8 MSDS
Inverter Type
Bi-Directional Inverter
Packaging & Delivery
Package Size
97.00cm * 75.00cm * 57.00cm
Package Gross Weight
220.000kg
🚀 Product Advantages

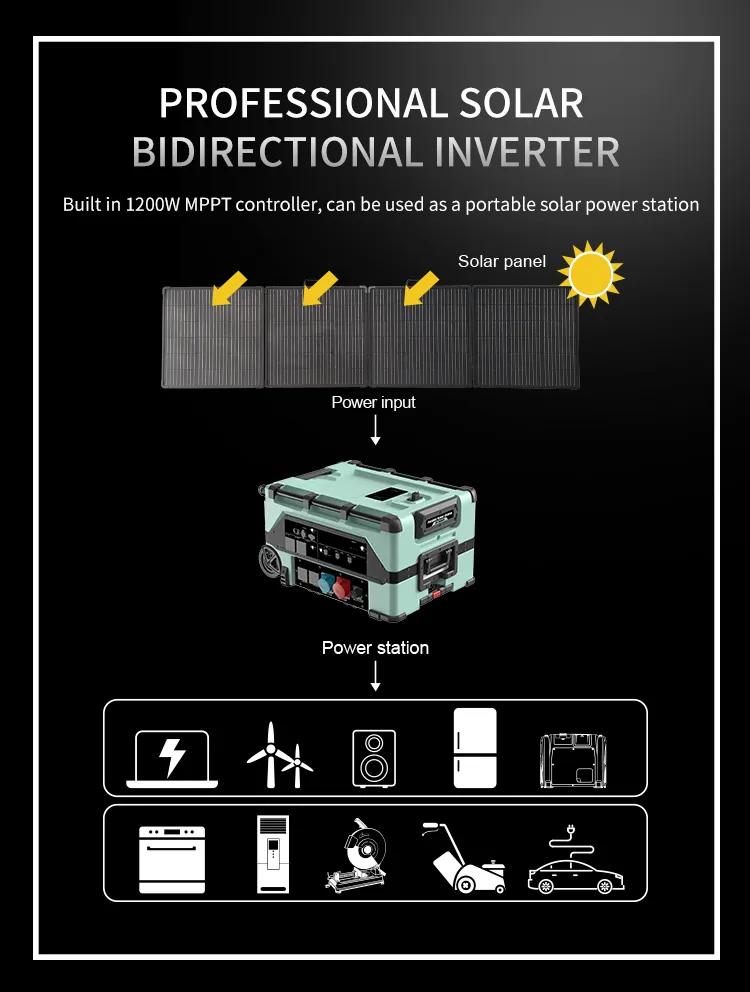

  • Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
  • Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

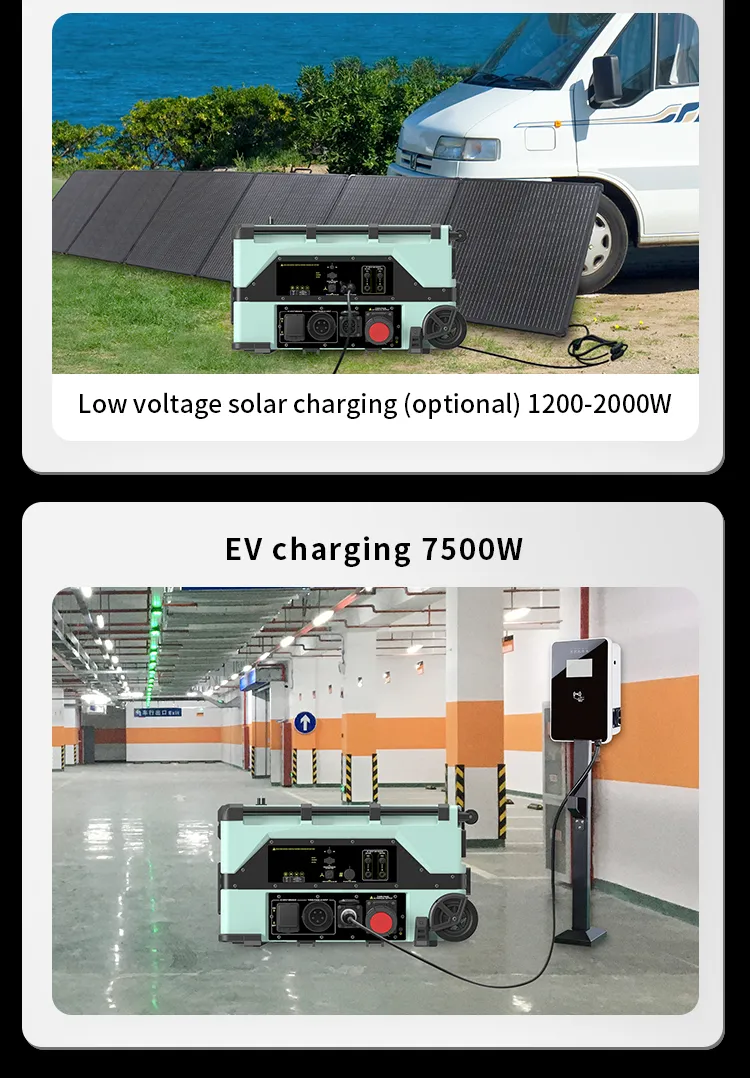

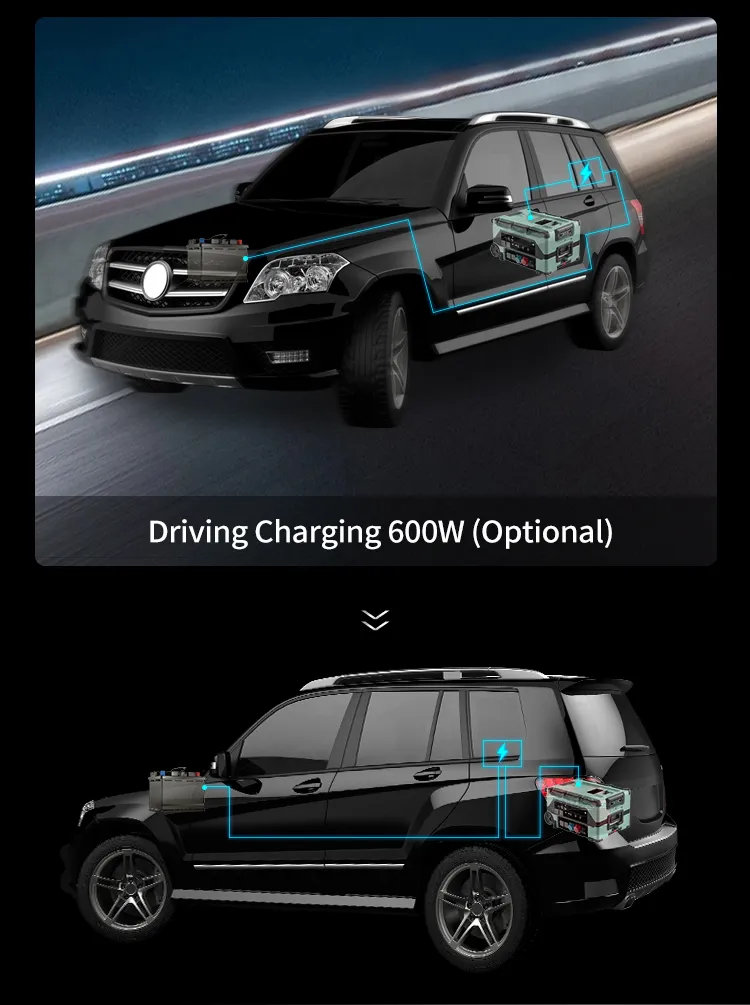

  • Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

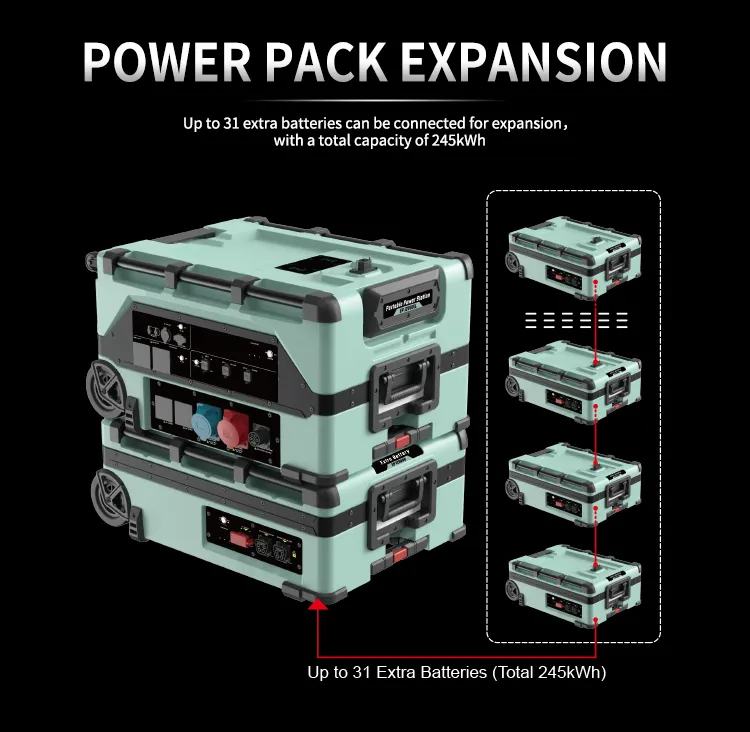

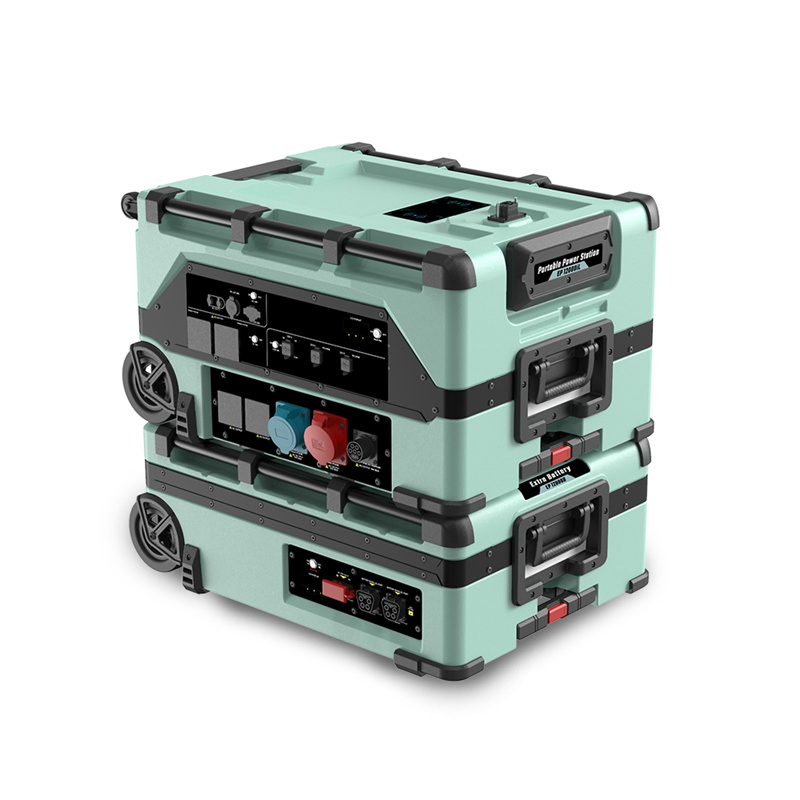

  • Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

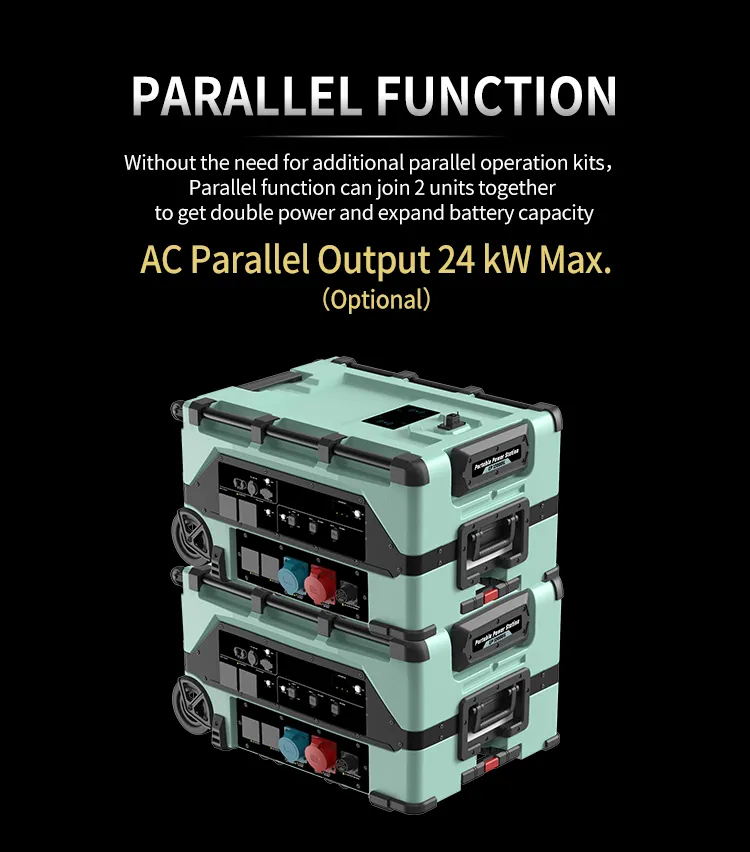

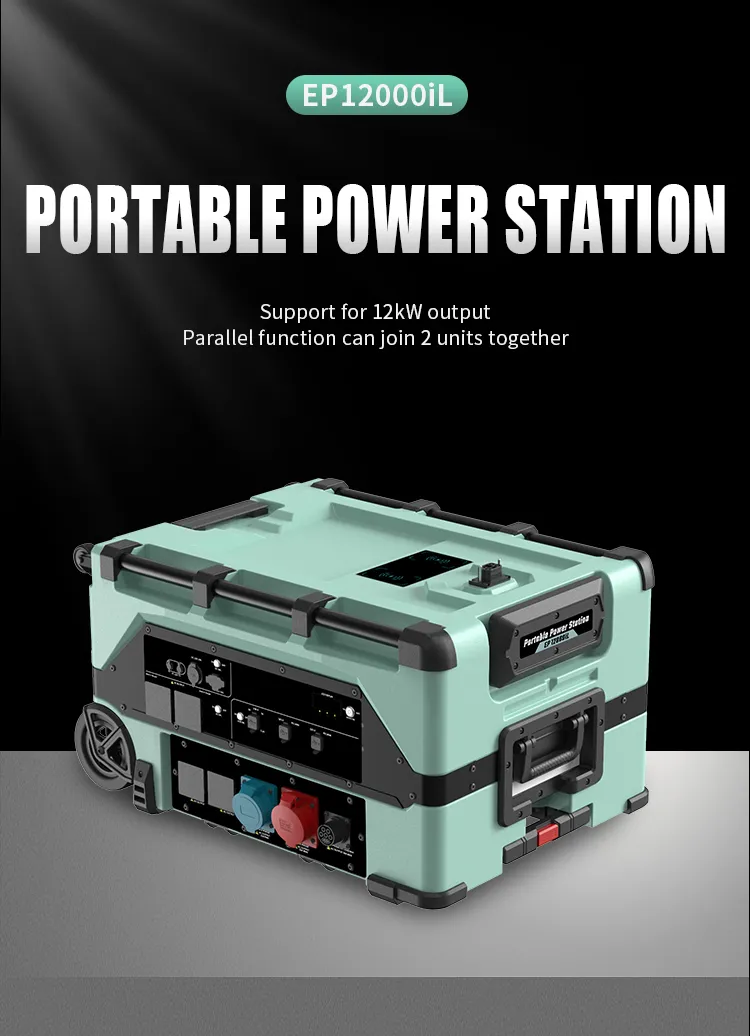

  • Stacked parallel patented technology, can join 2 units together to get a continuous output of 24kW by stacking.
  • Built-in the electric vehicle charger, can replace charging stations to charge cars up to 22kW.

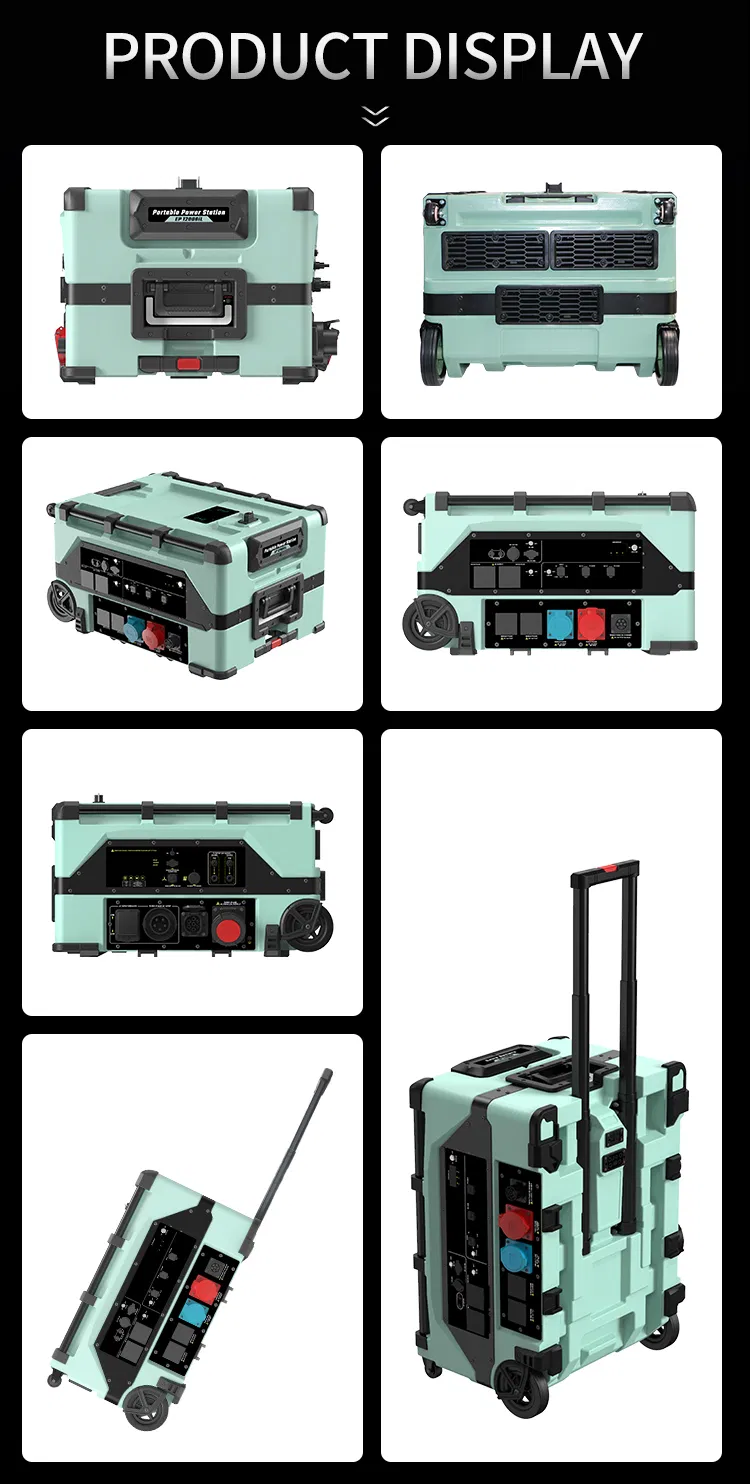

  • The four-wheel chassis and large-diameter wheel can be switched at any time, carrying without any burden.
  • Unit IP53 and Battery Pack IP66 protection grade.
  • Patented dual channel cooling system.
  • Integrated handles and anti-collision rubber pad in all directions.
  • V-0 level flame-retardant and fire-resistant casing.

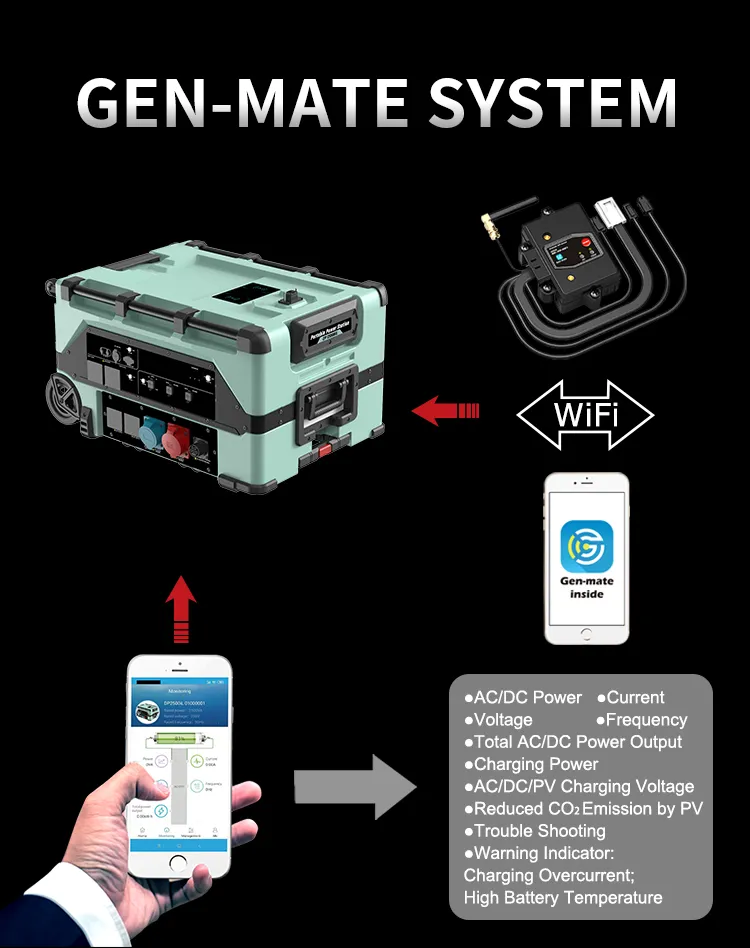

  • The intelligent control and monitor by smartphone APP.
  • Conformed to EU and US security certification.
  • Better quality with 5 years warranty.

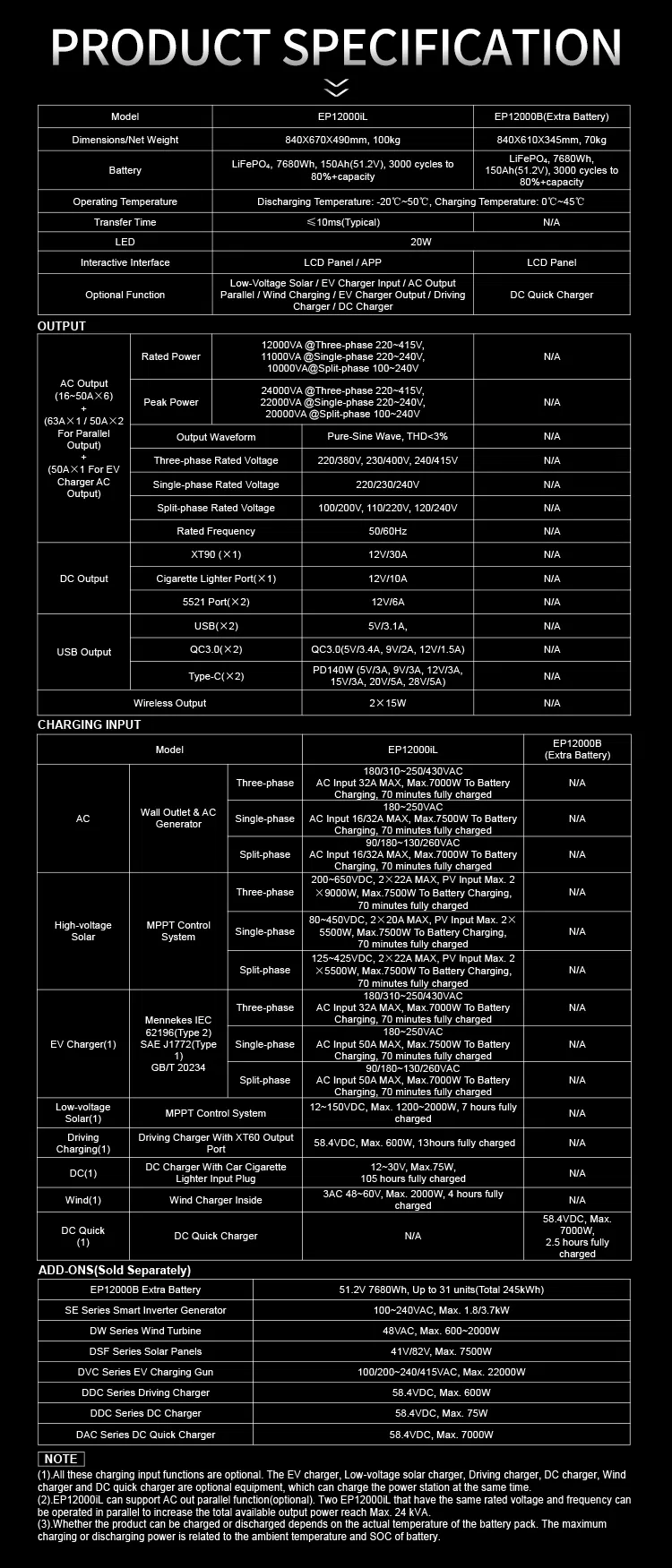

📊 Product Parameters
AC Output Data
Description Rated Power Peak Power Voltage Options
Three-phase 12000VA 24000VA 220~415V
Single-phase 11000VA 22000VA 220~240V
Split-phase 10000VA 20000VA 100~240V

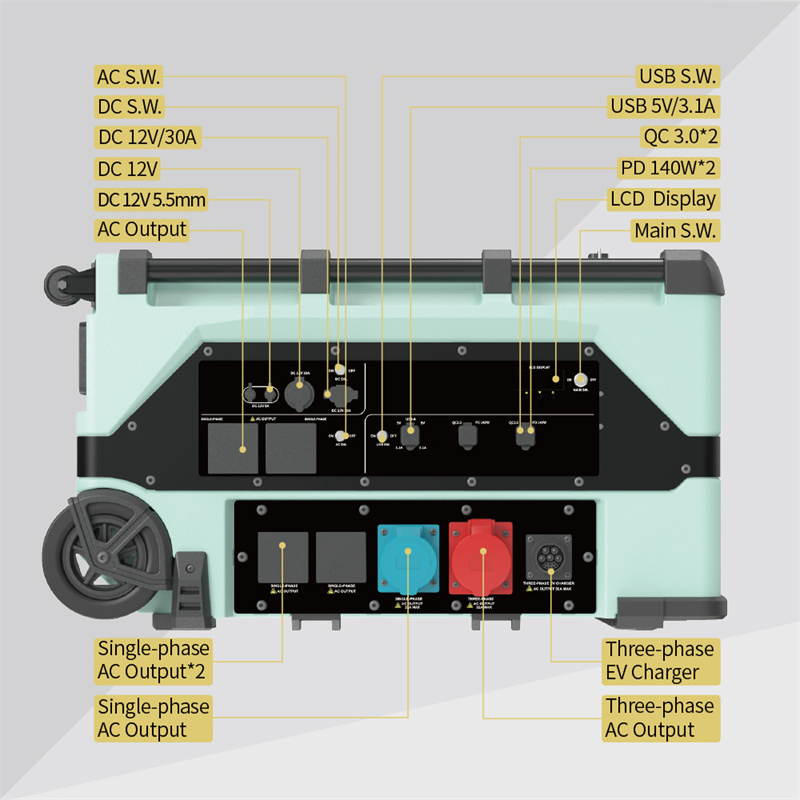

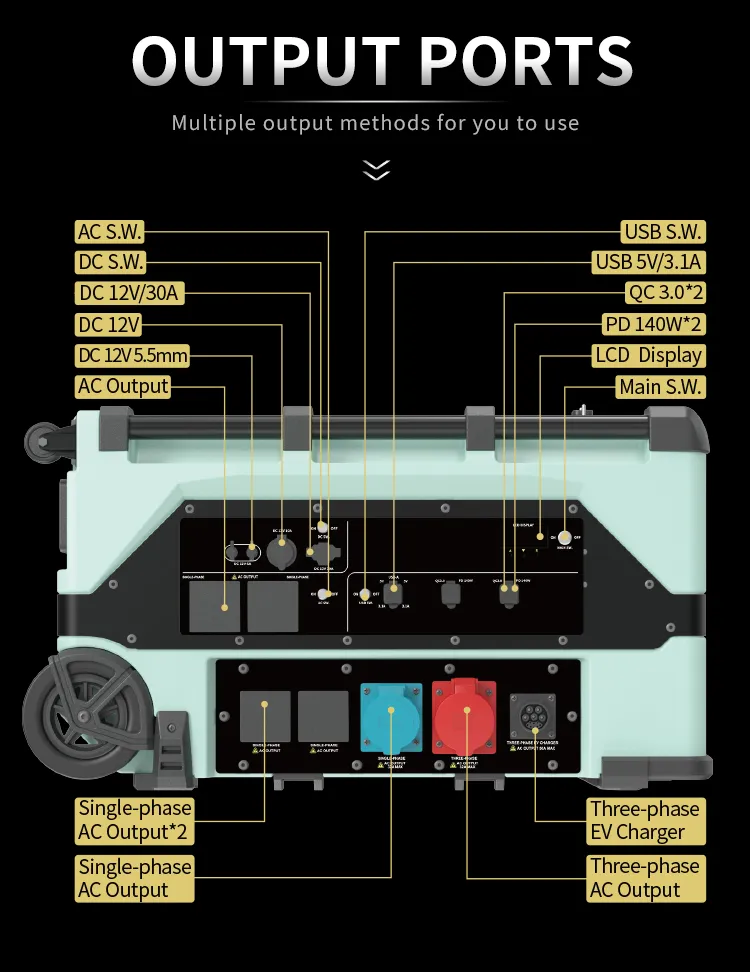

DC & USB Output
Type Port Details Output Specification
XT90 1 Port 12V / 30A
Type-C 2 Ports PD 140W (up to 28V/5A)
USB / QC3.0 4 Ports 5V/3.1A, QC3.0 up to 12V/1.5A
Wireless 2 Ports 15W x 2
📷 Detailed Photos
🏢 Company Overview

Founded in March 2015, the company is a high-tech enterprise integrated with research, manufacture, and sales. We provide products and services on inverter generators, Internet of things, power equipment, automation equipment, and electrical products.

We are devoted to research and development of intelligent electromechanical products, insisting on independent R&D. We possess more than 70 critical patents which enable us to maintain a leading position. Our products maintain a strong reputation in European and North American markets for superior quality and competitive value.

We are committed to bringing innovative products to the global market, winning trust and respect from customers through excellent service and high-performance power solutions.

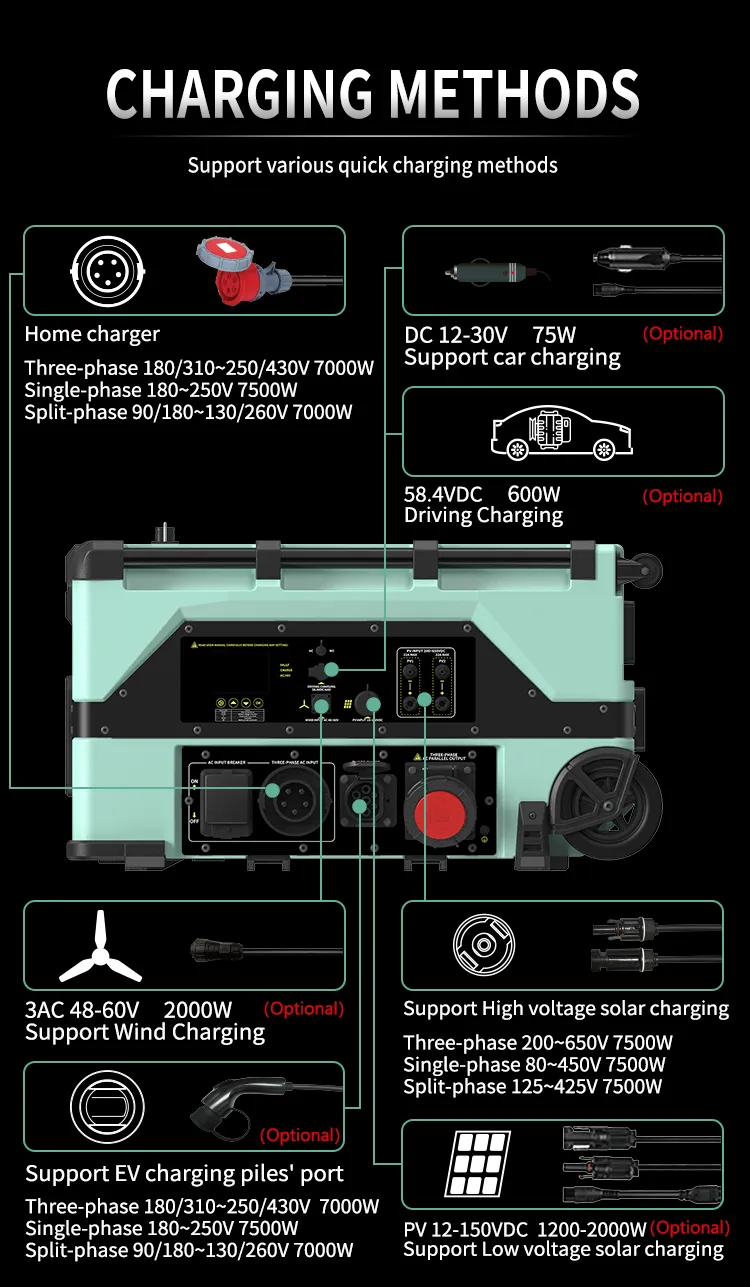

🔌 Charging Input Info
Method Input Range Max Power Charging Time

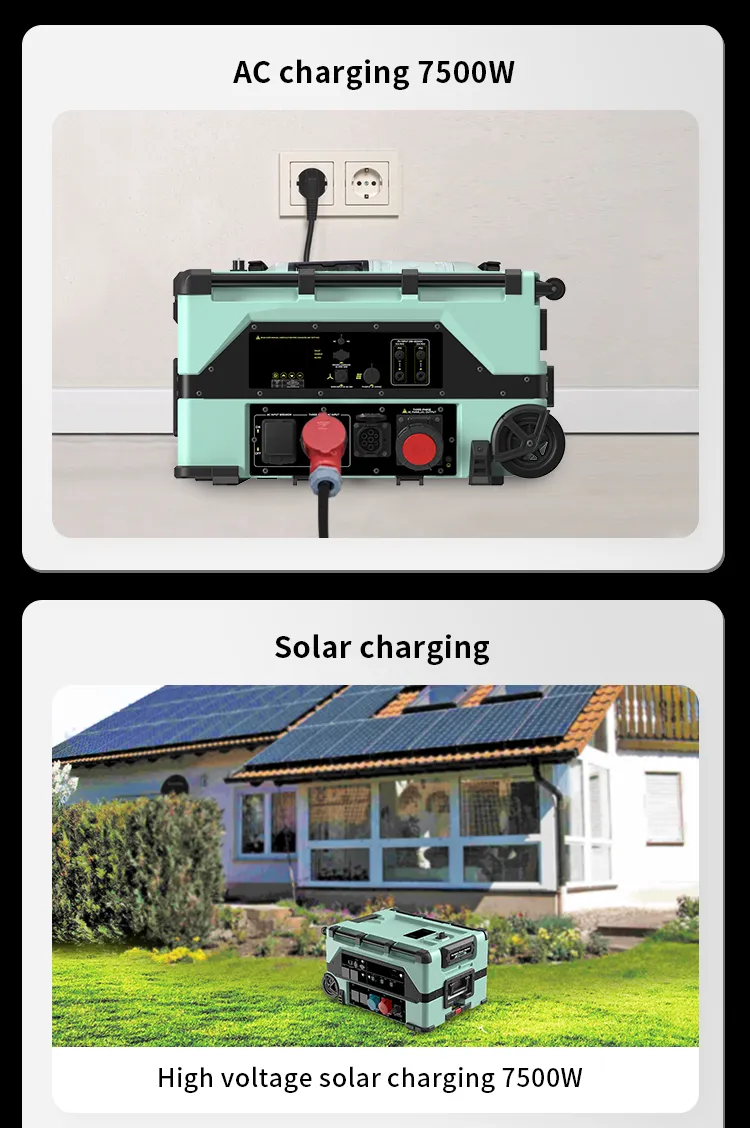

AC Wall / Generator 180~250VAC 7500W ~70 Mins
High-Voltage Solar 200~650VDC 2x9000W ~70 Mins
Low-Voltage Solar 12~150VDC 2000W ~7 Hours
Wind Turbine 3AC 48~60V 2000W ~4 Hours
Frequently Asked Questions
What is the maximum output capacity of the EP12000iL?
The unit supports a continuous rated power of 12000VA for three-phase systems and up to 11000VA for single-phase systems, with peak power reaching double these values.
How long does it take to fully charge the battery?
Using high-power AC or solar fast charging, the 7680Wh battery can be fully charged in approximately 70 minutes.
Can the battery capacity be expanded for larger energy needs?
Yes, the system is highly scalable. You can connect up to 31 extra battery packs, reaching a massive total capacity of 245kWh.
What types of charging methods are supported?
It supports a wide variety of inputs including AC wall outlets, solar panels (high and low voltage), EV chargers, wind turbines, car cigarette lighters, and driving chargers.
Is the unit portable enough for outdoor use?
Despite its high capacity, the system features a four-wheel chassis and large-diameter wheels with a drawbar, allowing for easy movement and transportation.
Can I monitor the system remotely?
Yes, the system includes an intelligent LCD panel and is fully compatible with a dedicated smartphone APP for real-time monitoring and control.
