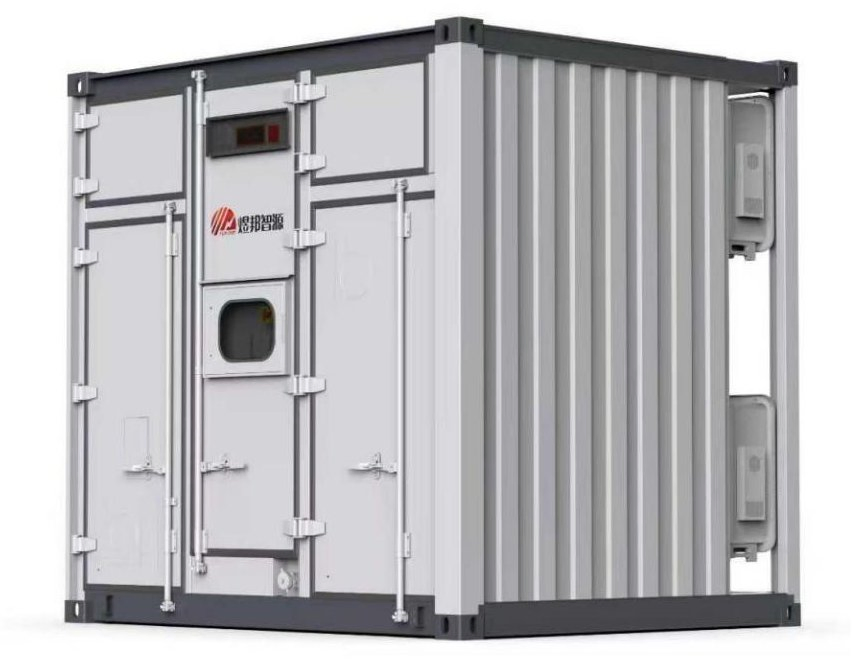

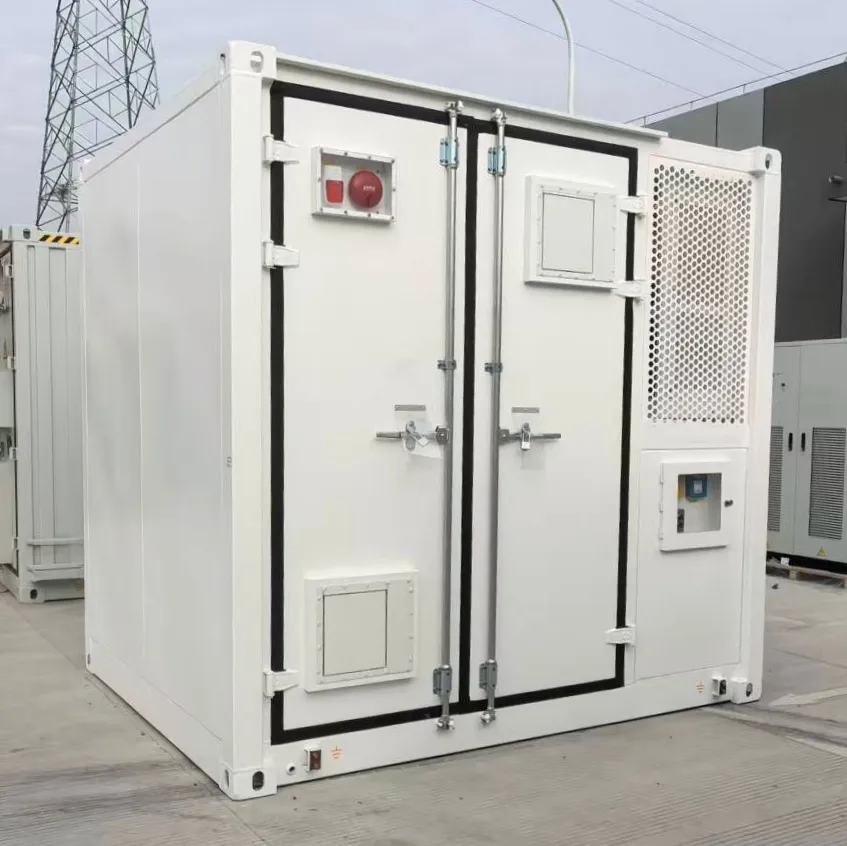

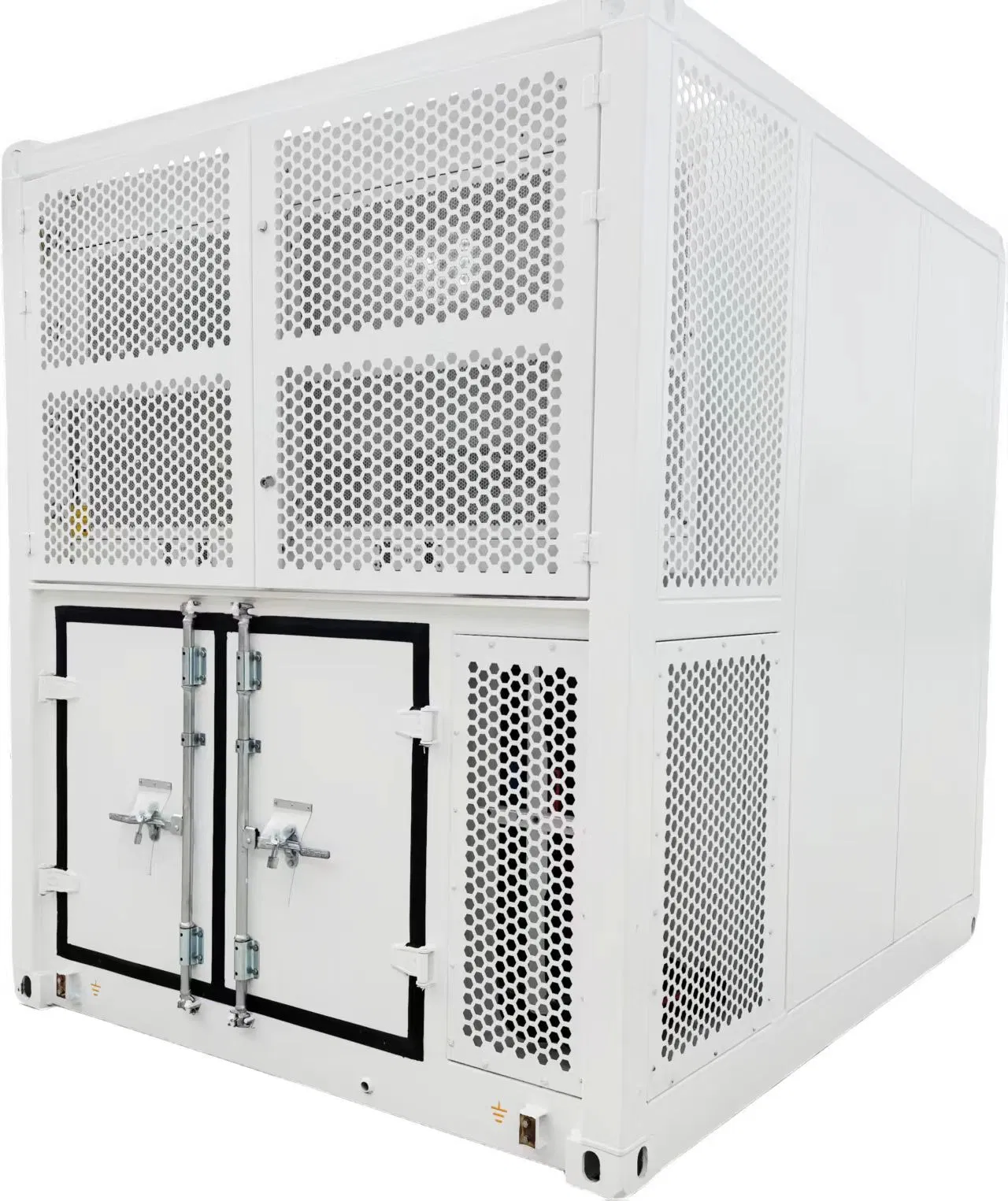

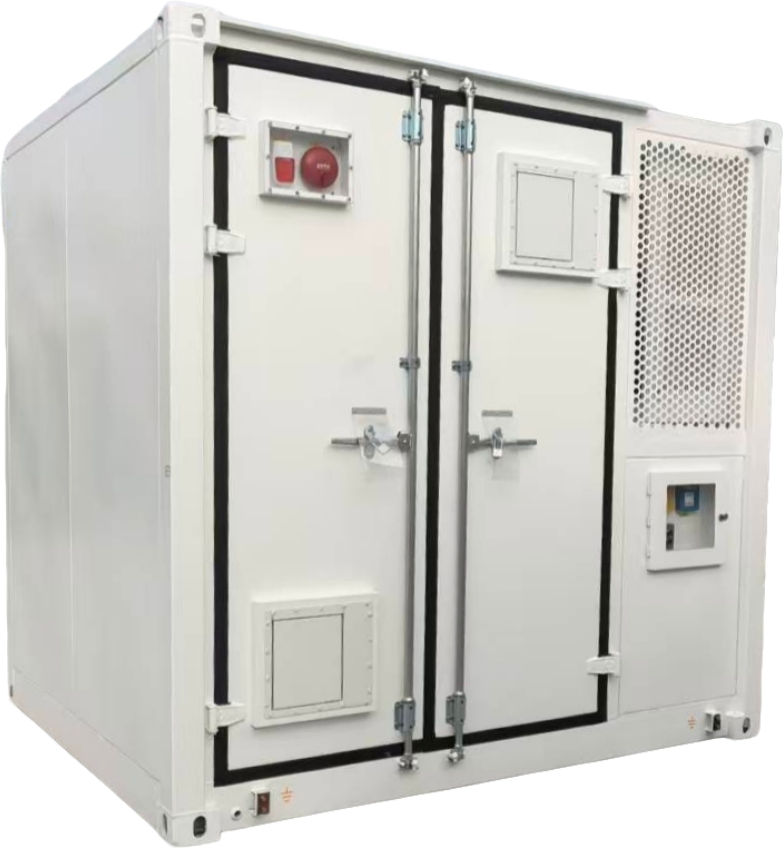

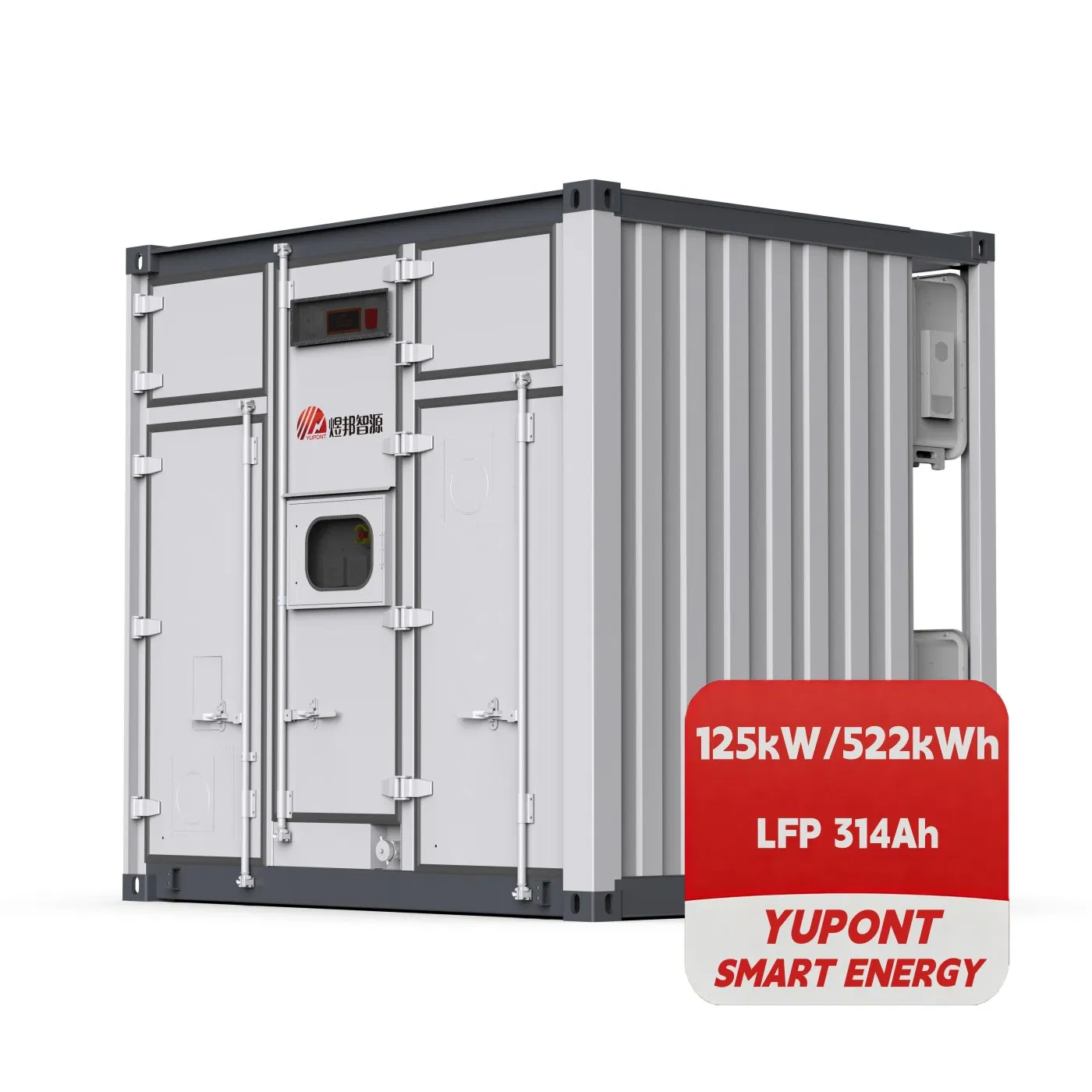

This series of products is a 10ft hybrid system, suitable for scenarios such as industrial and commercial photovoltaic storage, charging stations, agricultural micro-grids, and temporary power supply for construction sites.

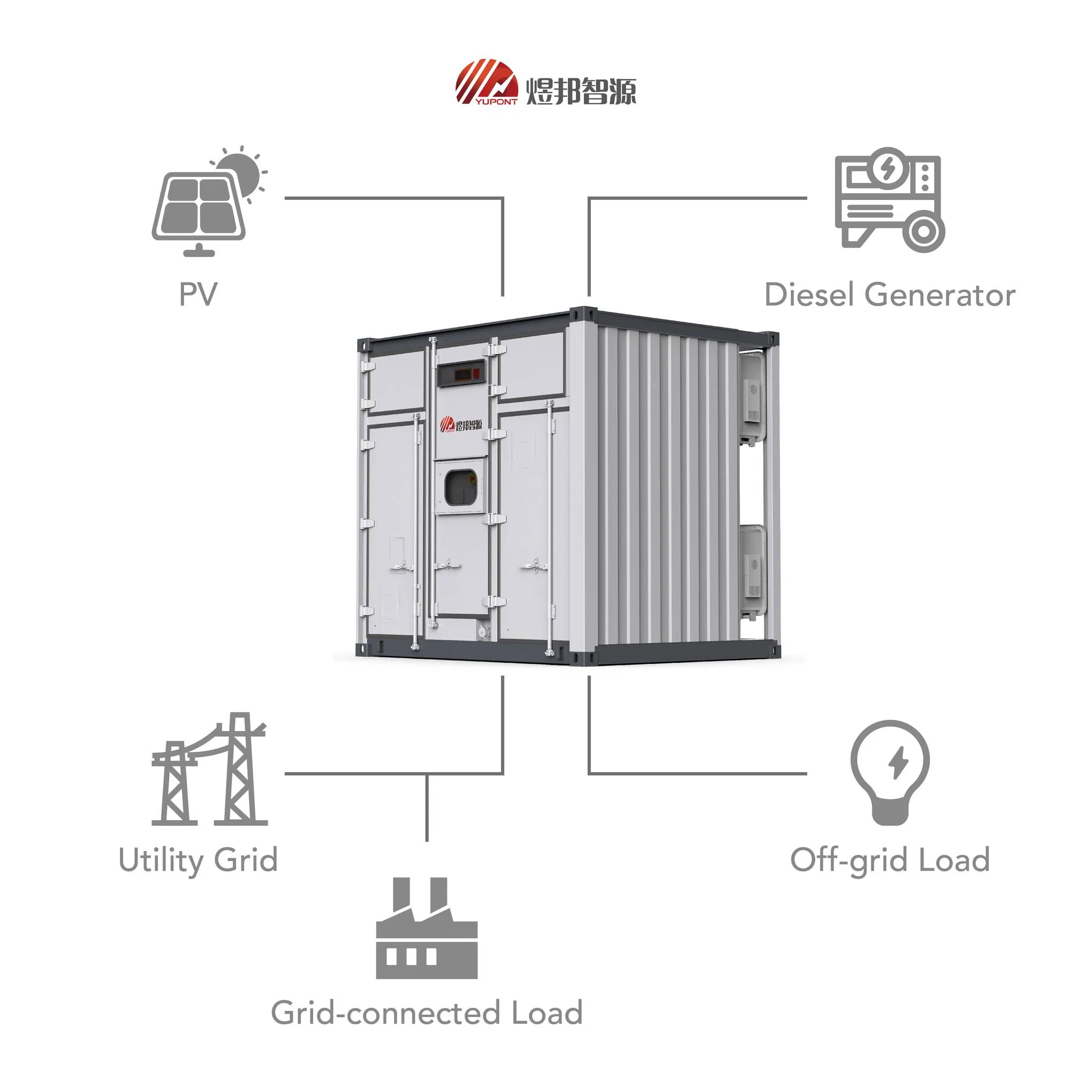

The system comprises energy storage batteries, BMS, EMS, thermal management, fire protection, power distribution, and hybrid inverters. The intelligent port supports grid power, diesel generators, and photovoltaic systems.
| Model | 250kW/522kWh | 375kW/783kWh | 500kW/1044kWh | 125kW/522kWh | 250kW/1044kWh |
|---|---|---|---|---|---|
| Operating Weight (kg) | 7,500 | 9,500 | 11,500 | 7,000 | 11,000 |
| Cell Type | LFP 314Ah | ||||
| Voltage Range | 728~923V | ||||
| Cooling Method | Liquid cooling (Battery) / Wind cooling (Inverter) | ||||
| Protection Grade | IP54/IP55 | ||||
| Max PV Input Power (kW) | 500 | 750 | 1000 | 250 | 500 |
| AC Output Rating (kW) | 250 | 375 | 500 | 125 | 250 |
| Fire Fighting | Smoke/Gas detection + ventilation + aerosol + water spray | ||||
0.5C System Topology

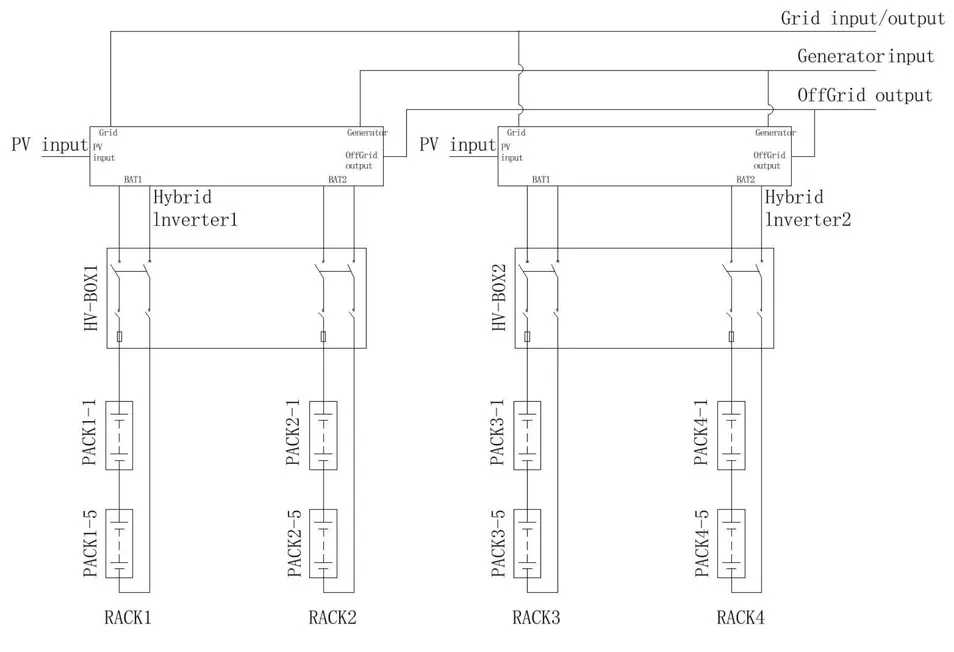

0.25C System Topology
Standard Warranty: 3 Years
Global Support: 24/7 technical assistance and spare parts supply.
