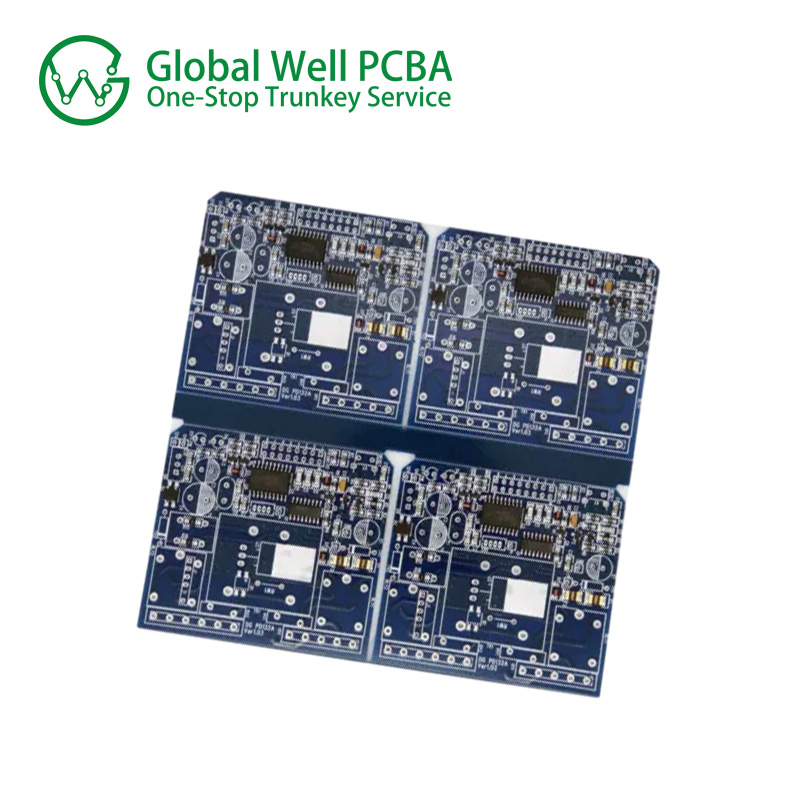

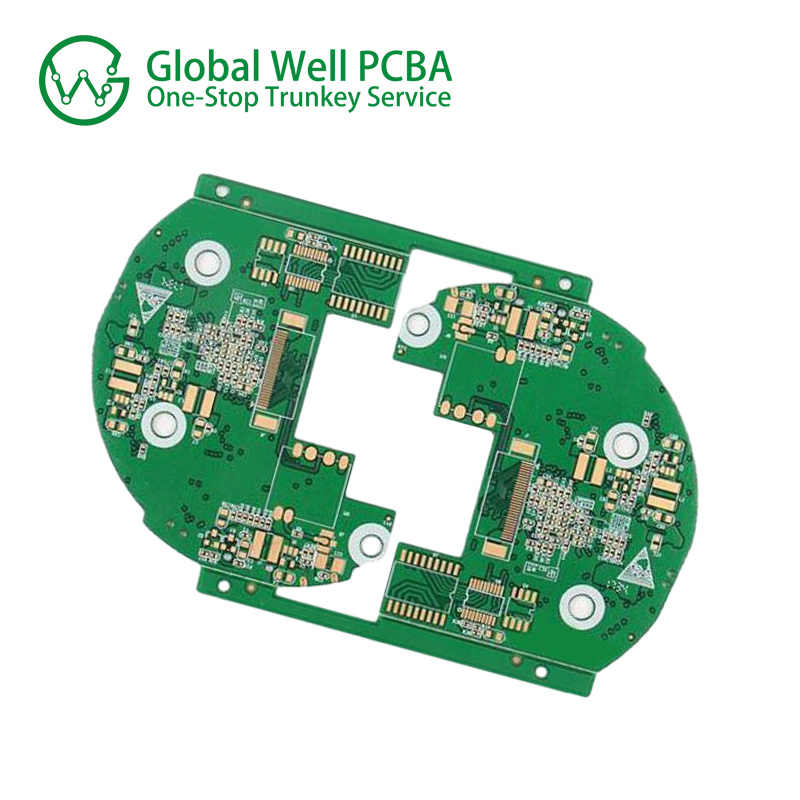

Smart Energy Management System for Advanced Storage Solutions

1 / 5

Smart Energy Management System for Advanced Storage Solutions

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

PCBA OEM

Layers

Single-Layer

Base Material

FR-4

Certification

RoHS

Customized

Condition

New

Product Name

PCBA / PCB Assembly

Type

OEM / ODM

Assembly Process

SMT / DIP / Mixed Technology

Surface Finish

HASL / Enig / OSP Immersion Silver

Solder Type

Lead-Free / RoHS Compliant

Testing Methods

AOI / ICT / X-ray / Functional Test

Production Capacity

50000

Our Services & Capabilities

Feature	Capability
Single and double sided SMT/PTH	Yes
Large parts on both sides, BGA on both sides	Yes
Min Chips size	01005
Min BGA pitch and ball counts	0.2mm pitch, >1000 count
Min Leaded parts pitch	0.2 mm
Max Parts size assembly	2.2 in. x 2.2 in. x 0.6 in.
Wave soldering	Yes
Max PCB size	14.5 in. x 19.5 in.
Min PCB Thickness	0.02
Inspection Methods	X-ray / Microscope / 100% AOI testing
Rework Station	BGA removal & replacement / SMT IR rework

Application Areas

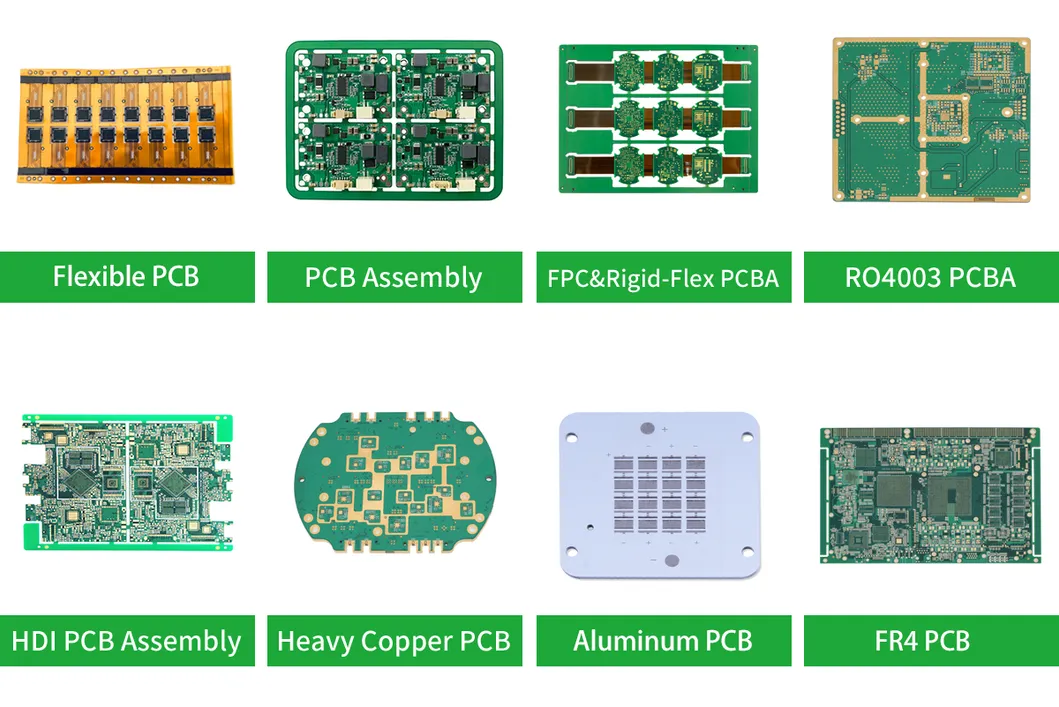

Main Products

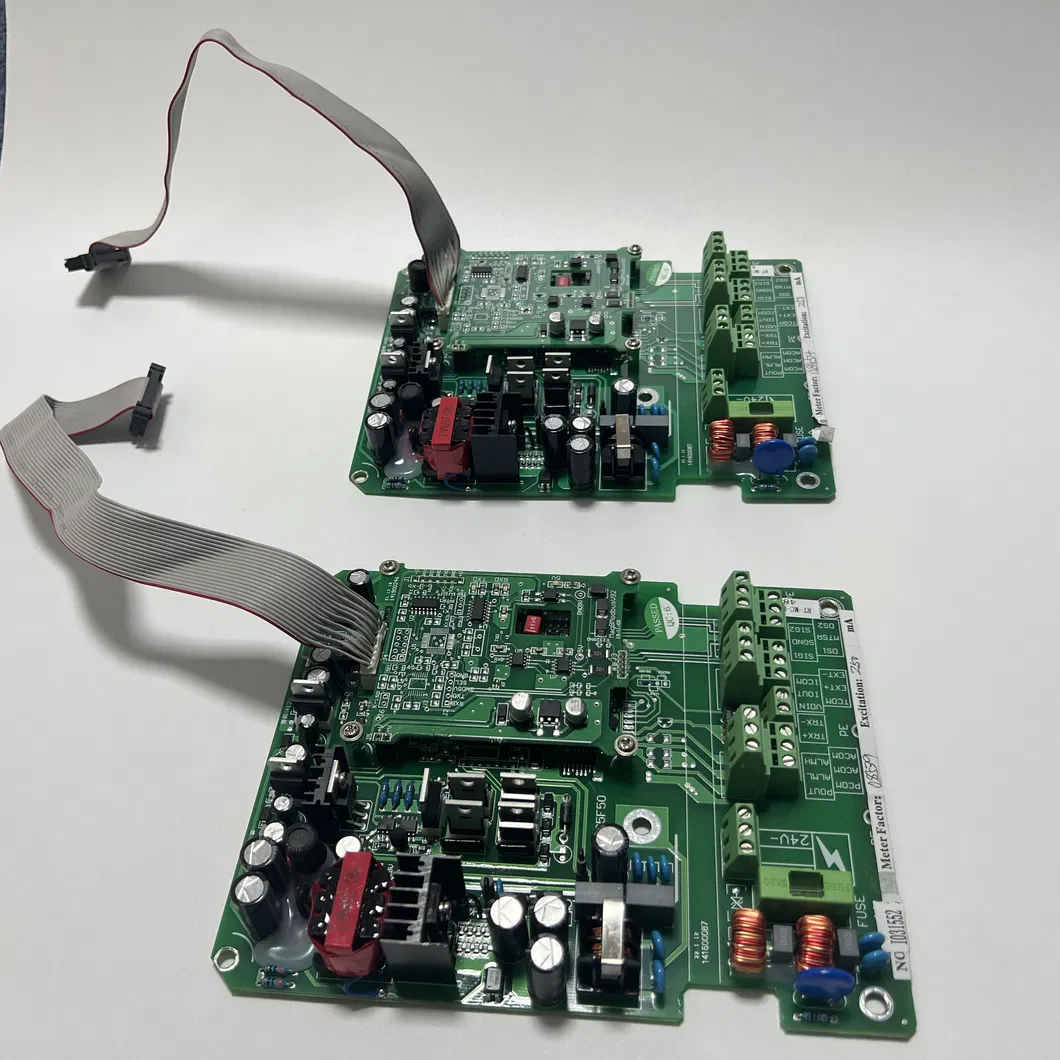

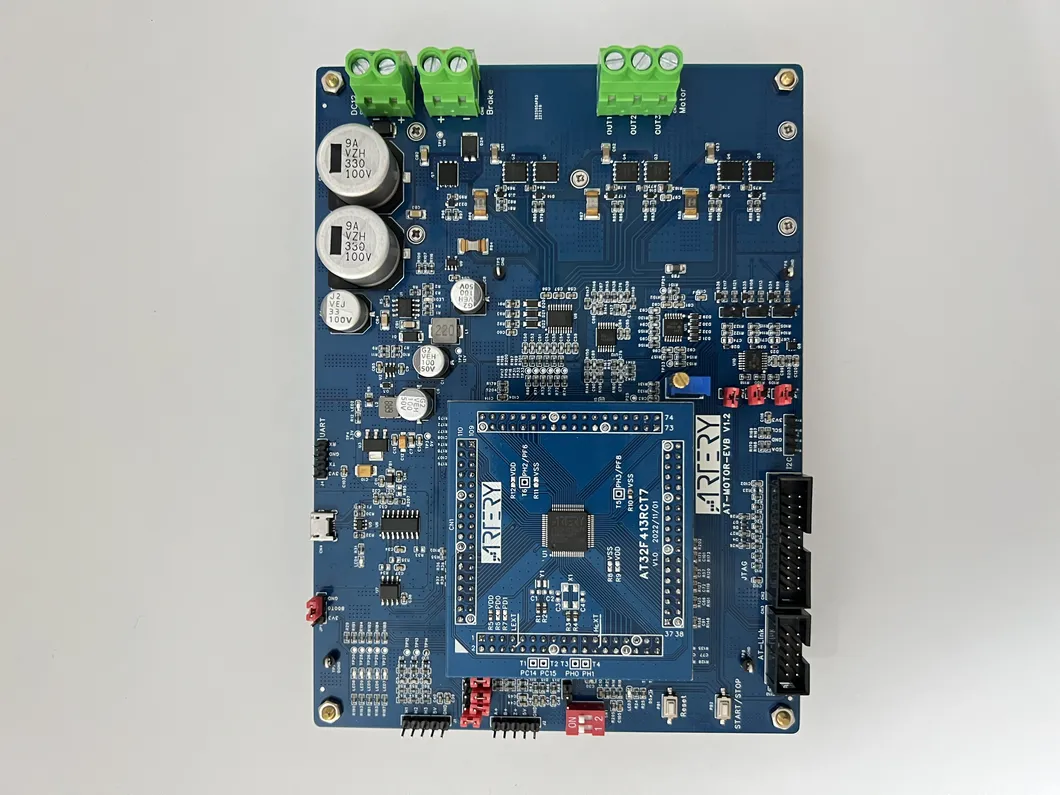

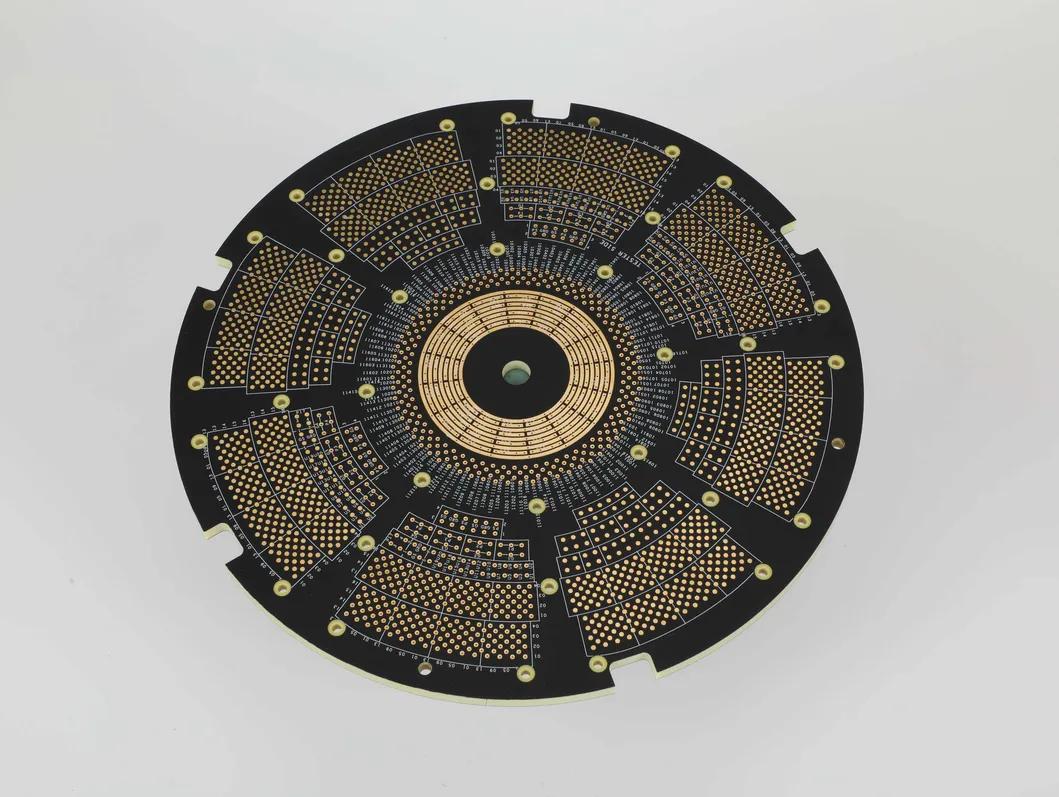

Sample Show

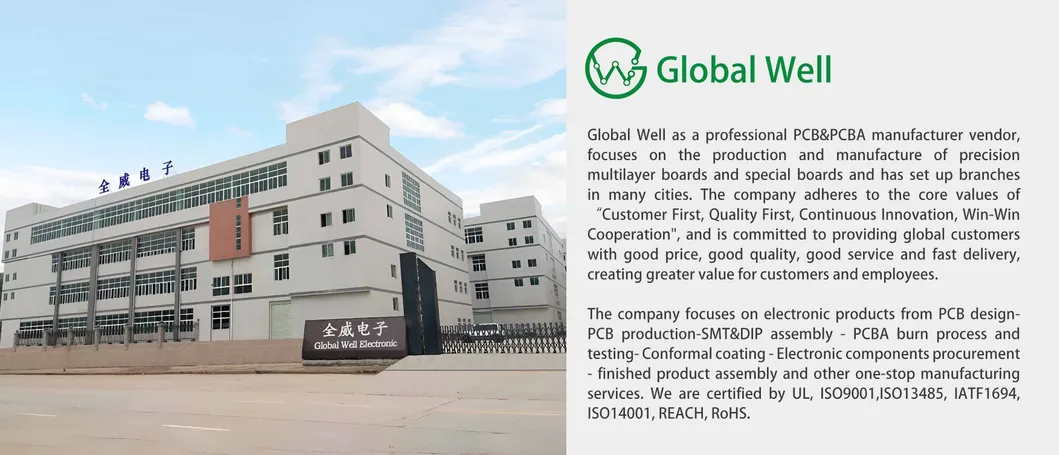

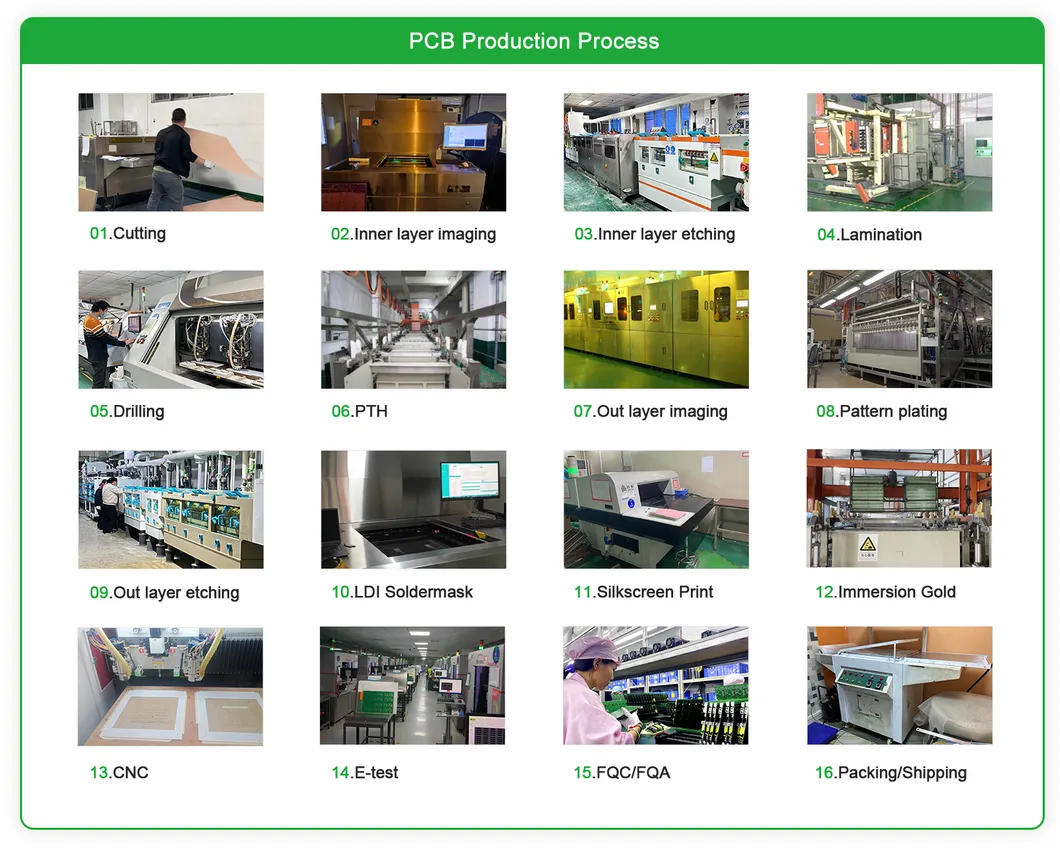

Factory & Quality Control

Packing & Transport

Our product is meticulously packaged to ensure robust protection from all angles. No matter how turbulent the journey, our packaging guarantees the product remains secure and undamaged.

Frequently Asked Questions

What information is required for a PCB/PCBA quotation?

For Bare PCB, provide Quantity, Gerber files, and specs (material, finish, thickness). For PCBA, also include a BOM list and pick-and-place files.

Are my design files and data safe?

Absolutely. We uphold the highest standards of intellectual property protection. All documents are kept strictly confidential and we can sign an NDA to guarantee data security.

What is your minimum order quantity (MOQ)?

We have no MOQ. Our flexible production system caters to both small prototypes and large-scale volume orders.

How is the shipping cost calculated?

Shipping costs are based on the destination, total weight, and packing dimensions. Please contact us for a detailed logistics quote.

What additional value-added services do you offer?

Beyond PCB assembly, we provide component sourcing, programming, functional testing, cable assembly, and full enclosure assembly services.

What testing methods do you use to ensure quality?

We utilize 100% AOI (Automated Optical Inspection), X-ray analysis for BGA components, ICT (In-Circuit Testing), and comprehensive functional testing.
