Next-Gen 24V 100ah Energy Storage System for Smart Management

Customization:	Available
Type:	LiFePO4
Connection Mode:	Parallel Connection

Send Inquiry

Product Description

📊

Basic Information

Model NO.

24v 100ah

Rechargeable

Chargeable

Discharge Rate

Size

Large

Accessories Type

Battery

Rated Capacity

100ah

Standard Voltage

25.6V

Usage

Energy Storage System

Electrolyte

Li-ion

Cycle Life

2500 times

Charge Voltage

28.8V

BMS

8s 100A Normal BMS

Case Material

Plastic Box

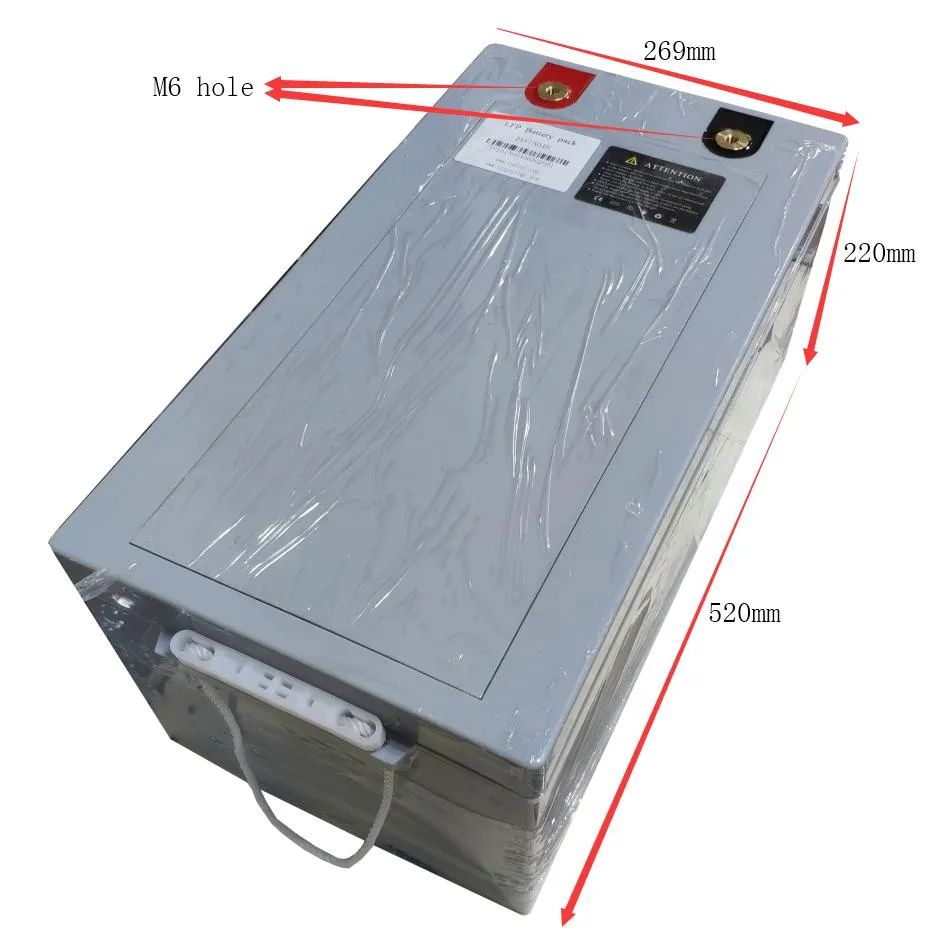

Dimension

L520*W269*H2220mm

Production Capacity

10000PCS/Months

⚙️

Product Parameters

Item	Specification	Remarks
Typical Capacity	100Ah	0.5C discharge
Minimum Capacity	99Ah	0.5C discharge
Nominal Voltage	25.6V	-
Discharging Voltage (Min)	20V	-
Charging Voltage (Max)	28.8±0.05V	-
Charging Current (Std)	20A	0.2C(0 ~ +45°C)
Discharging Current (Std)	20A	0.2C(-20 ~ +60°C)
Max Charging Current	100A	1.0C(0 ~ +45°C)
Max Continuous Discharging Current	100A	1.0C(5 ~ +45°C)
Internal Impedance	≤170mΩ	AC Impedance 1kHz
Weight	18kg	Approx

⚡

Performance & Reliability

Full Charge	The charger supplies 0.2C constant current until battery voltage reaches 28.8V, then constant voltage of 28.8V until current ≤ 0.01C.
Cycle Life	3000 cycles (charged at 0.2C-28.8V, discharged at 0.5C to 20.0V). Capacity retention ≥ 80%.
Capacity Retention	After 28 days storage at 20°C, discharge capacity retention rate ≥ 95%.

📷

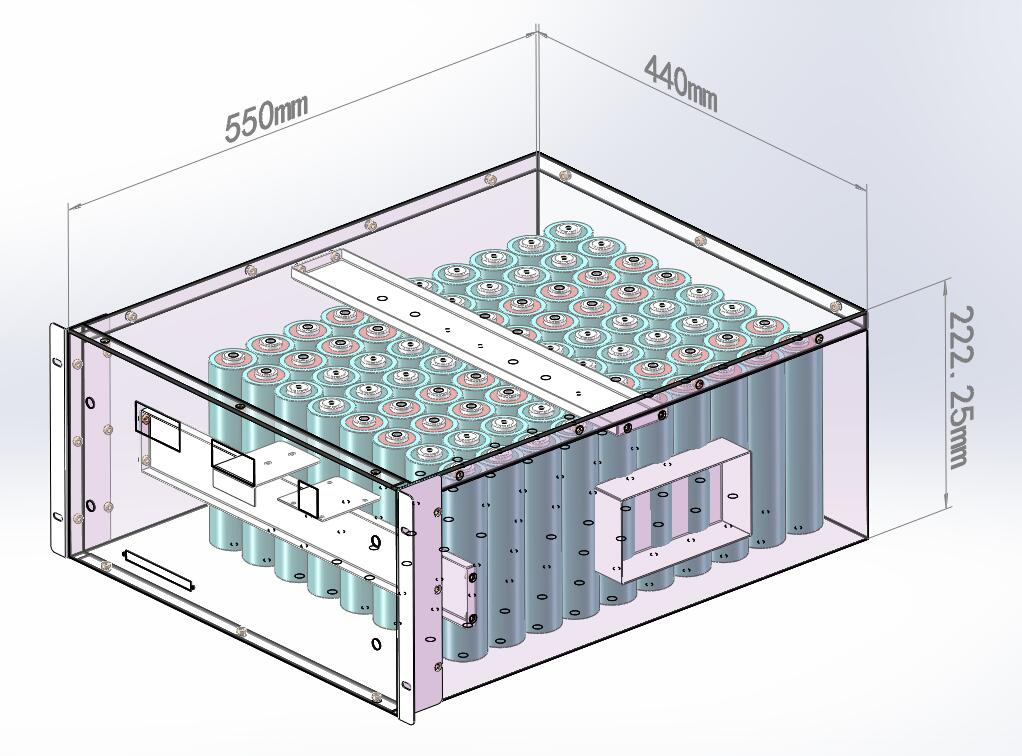

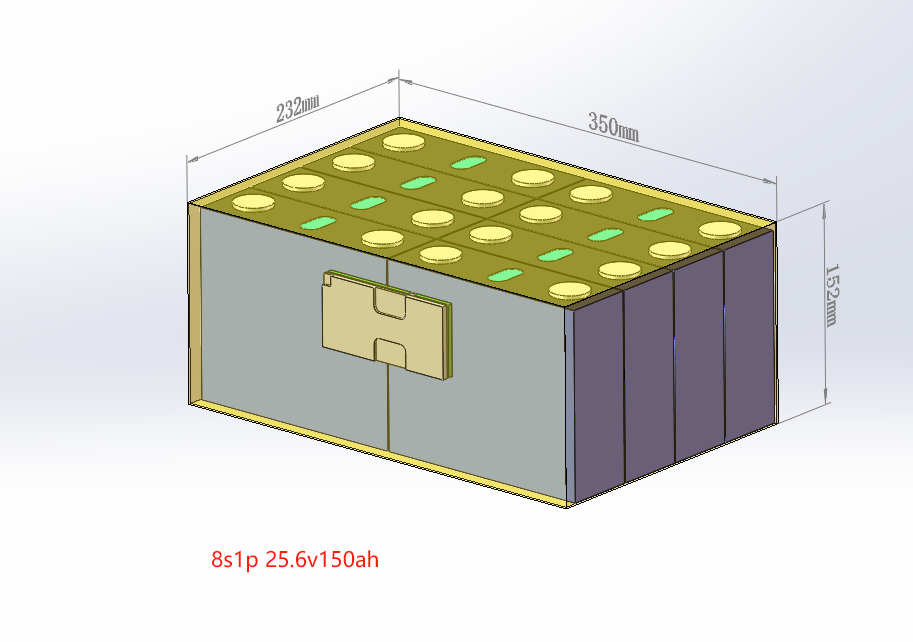

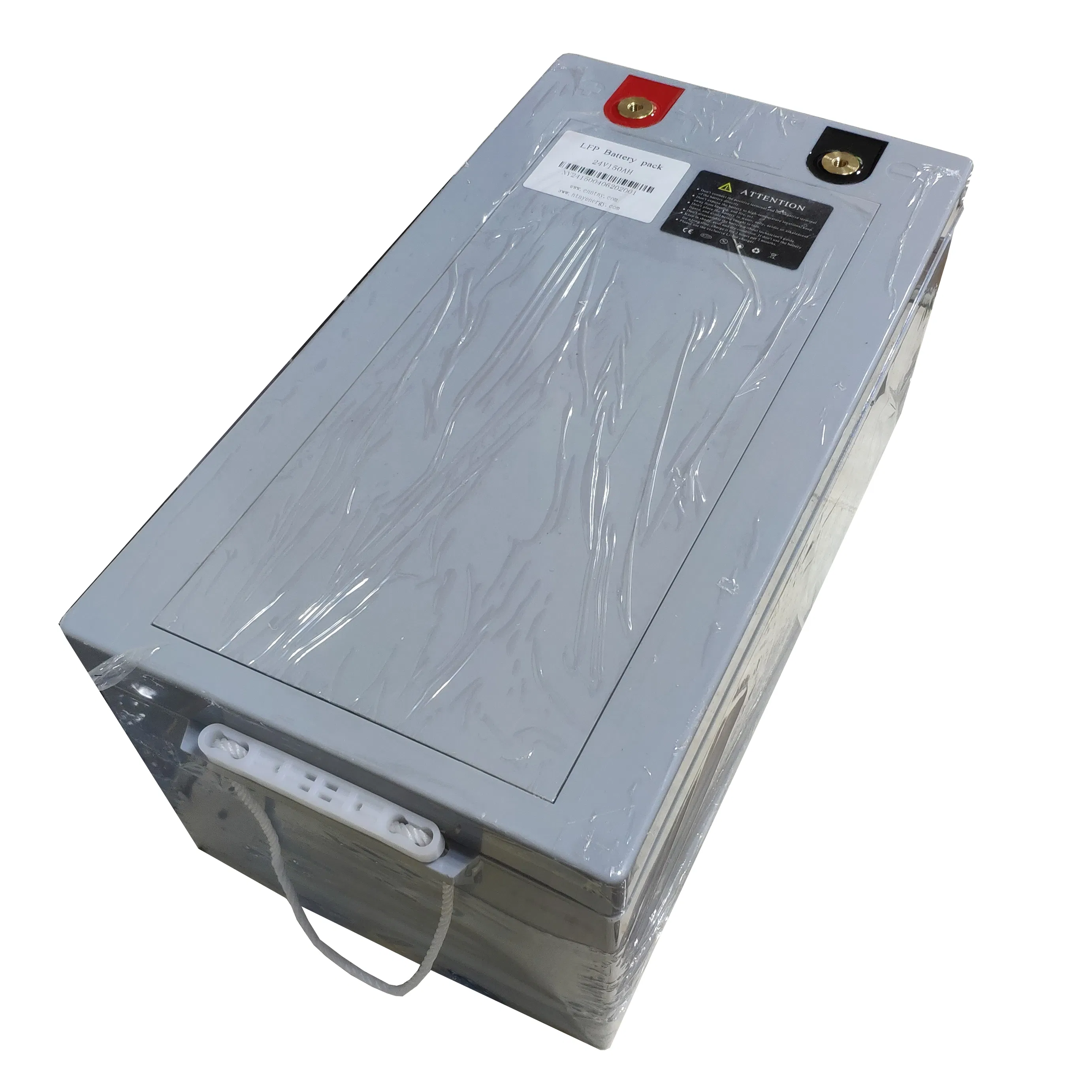

Detailed Photos

📝

Product Description & Features

✅

Quality Certifications & Feedback

🚚

Payment And Delivery

❓

Frequently Asked Questions

What is the nominal voltage and capacity of this battery?

The battery has a nominal voltage of 25.6V and a typical capacity of 100Ah, providing a total energy of approximately 2560Wh.

How many charging cycles can this battery handle?

It is designed for high durability, offering between 2500 to 3000 charge/discharge cycles. Even after 3000 cycles at 0.5C, it maintains approximately 80% of its original capacity.

What is the maximum continuous discharge current?

The battery supports a maximum continuous discharge current of 100A, with a peak discharge capability of up to 200A for 3 seconds.

Does the battery come with a Battery Management System (BMS)?

Yes, it includes a built-in 8S 100A BMS to protect the cells from overcharge, over-discharge, and short circuits, ensuring safe operation.

What are the recommended temperature ranges for operation?

Charging should occur between 0°C and +45°C, while discharging can be performed safely between -20°C and +60°C.

What is the weight and dimension of the unit?

The battery weighs approximately 18kg and its dimensions are L520*W269*H2220mm, housed in a durable plastic box.
