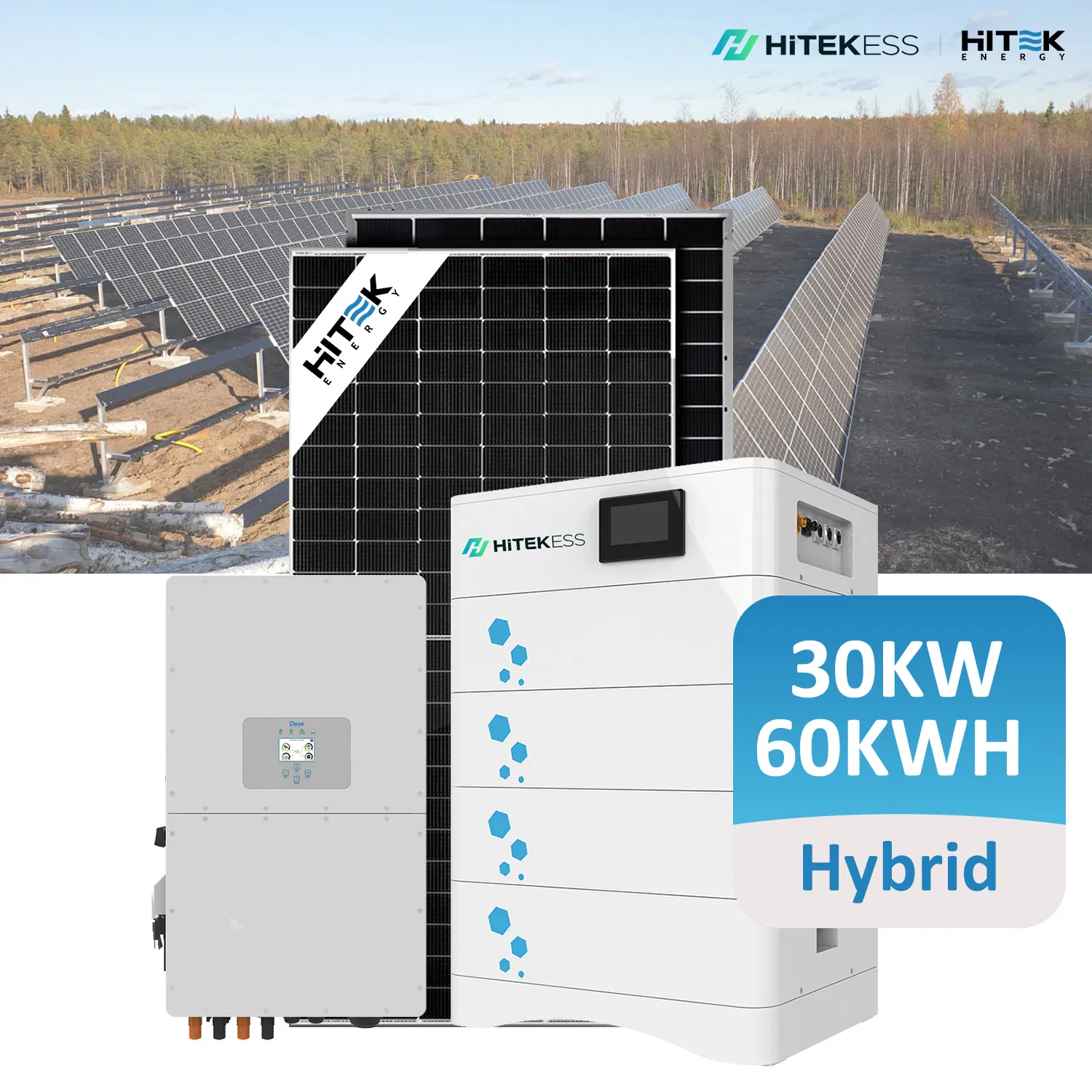

What is the Residential Energy Storage Solution?
Our residential solar energy storage solution includes a battery system, battery storage inverter, and PV components. These energy storage systems support your energy revolution, whether for an apartment, house, outdoor camp, or emergency situation. You will always find an ideal solution for your power needs.
🛡️ Warranty & Workflow

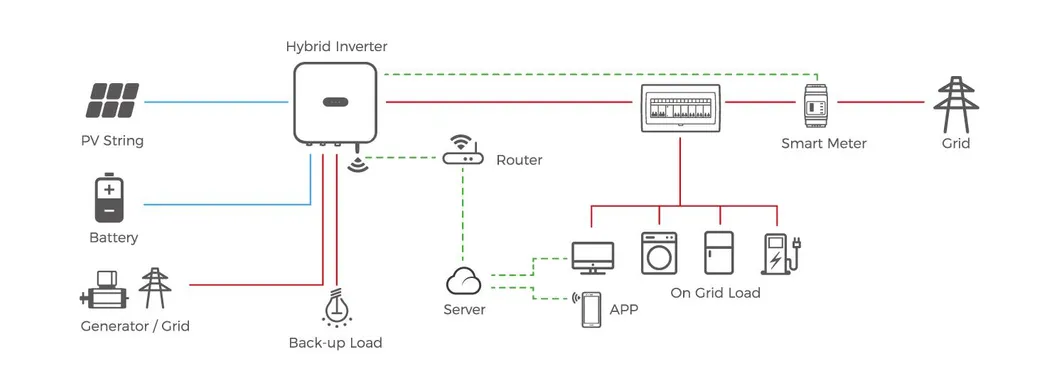

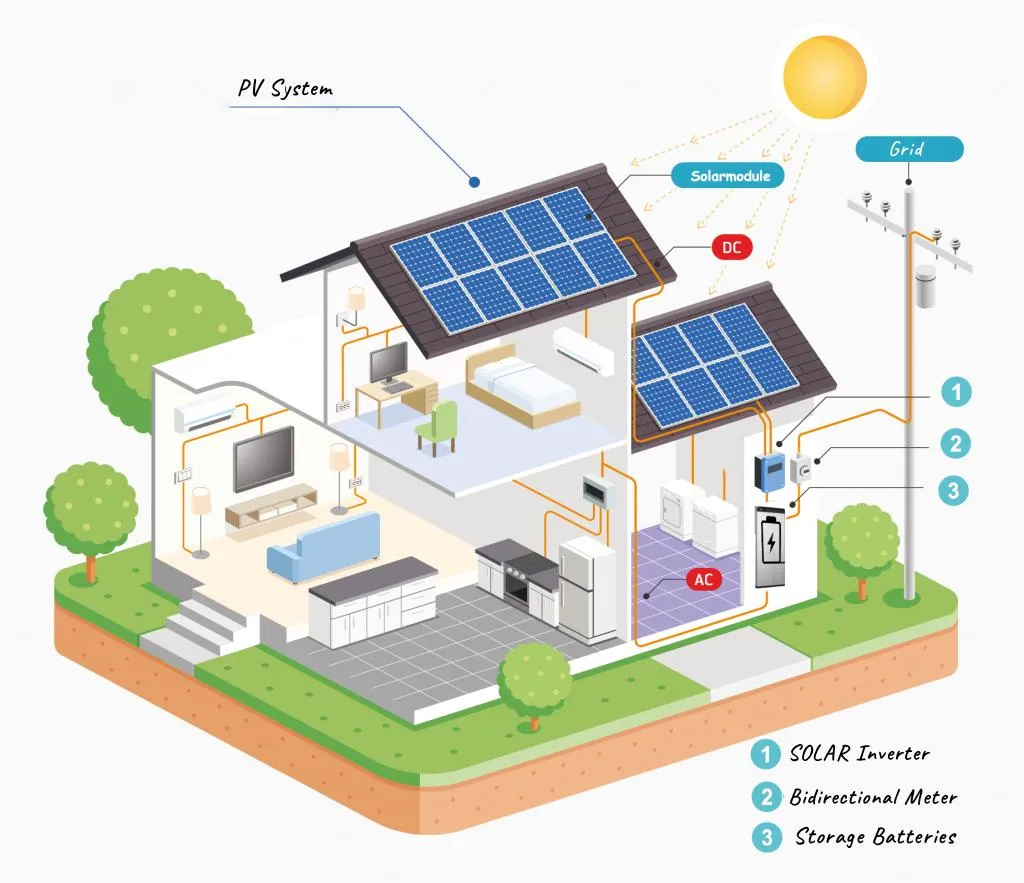

⚙️ How It Works
The Hybrid Solar Power System is a smart investment for your energy independence and the environment. We make solar simple and energy-smart.
| Model | HT10KW-HY | HT12KW-HY | HT15KW-HY |
|---|---|---|---|
| Mono Half Cell Solar Panel 560W | 18PCS | 24PCS | 27PCS |
| DC Isolation Switch | 3PCS | 3PCS | 4PCS |
| Hybrid Inverter | 10KVA 1PC | 12KVA 1PC | 15KVA 1PC |
| LiFePO4 Battery | 12.8KWH | 15.36KWH | 17.92KWH |

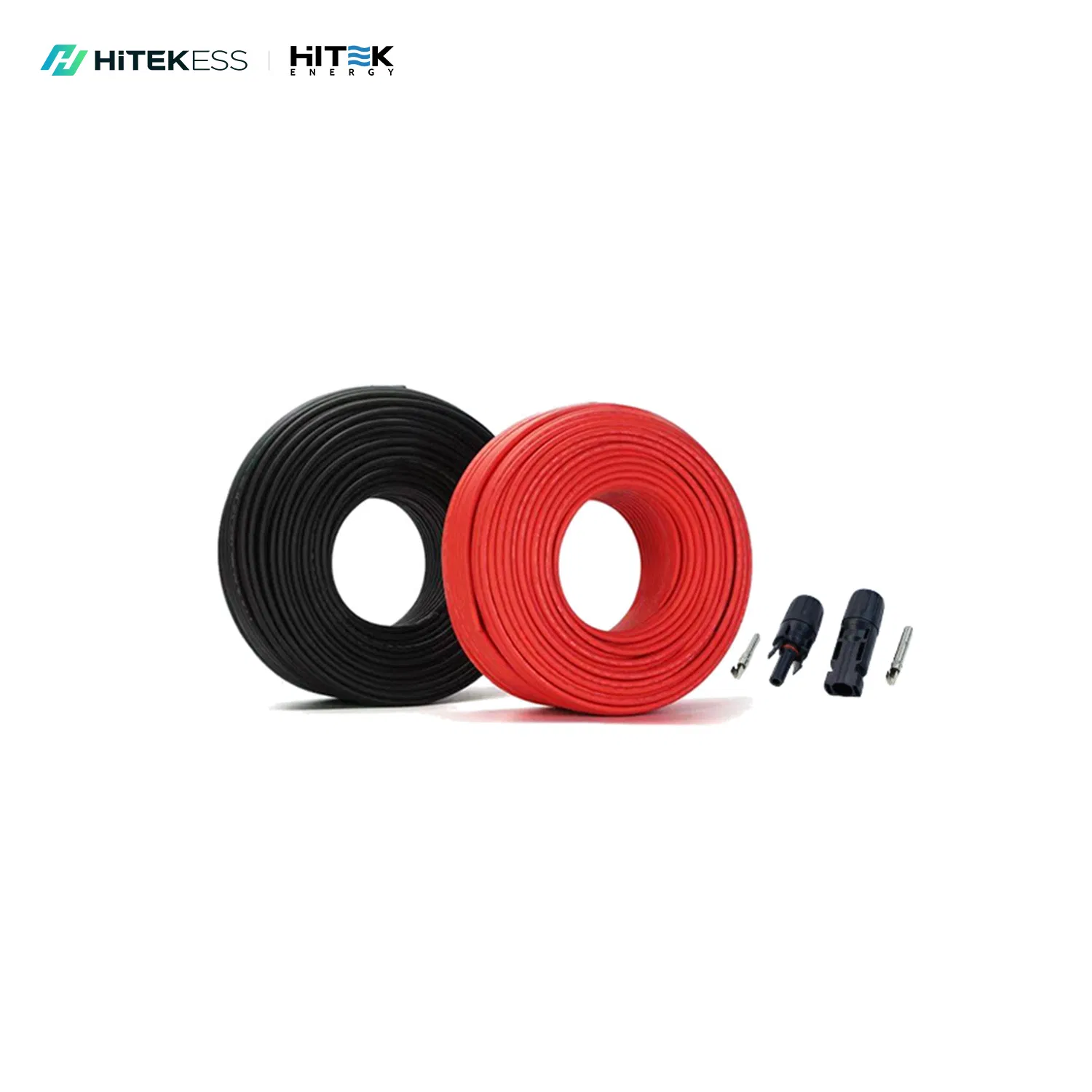

| DC Cable 1*4MM2 | 300 Meters | 400 Meters | 500 Meters |
| MC4 Connector | 9 Pairs | 12 Pairs | 15 Pairs |
| Model | HT20KW-HY | HT25KW-HY | HT30KW-HY |
|---|---|---|---|
| Mono Half Cell Solar Panel 560W | 34PCS | 45PCS | 51PCS |
| DC Isolation Switch | 6PCS | 8PCS | 9PCS |
| Hybrid Inverter | 20KVA 1PC | 25KVA 1PC | 30KVA 1PC |
| LiFePO4 Battery | 25.6KWH | 30.72KWH | 35.84KWH |
| DC Cable 1*4MM2 | 600 Meters | 700 Meters | 800 Meters |
| MC4 Connector | 16 Pairs | 18 Pairs | 21 Pairs |
Model: HT560M-72
Peak Power Watt: 560Wp
Voc: 49.84V | Isc: 14.14A
Vmp: 41.08V | Imp: 13.64A
Dimensions: 2279*1134*35mm

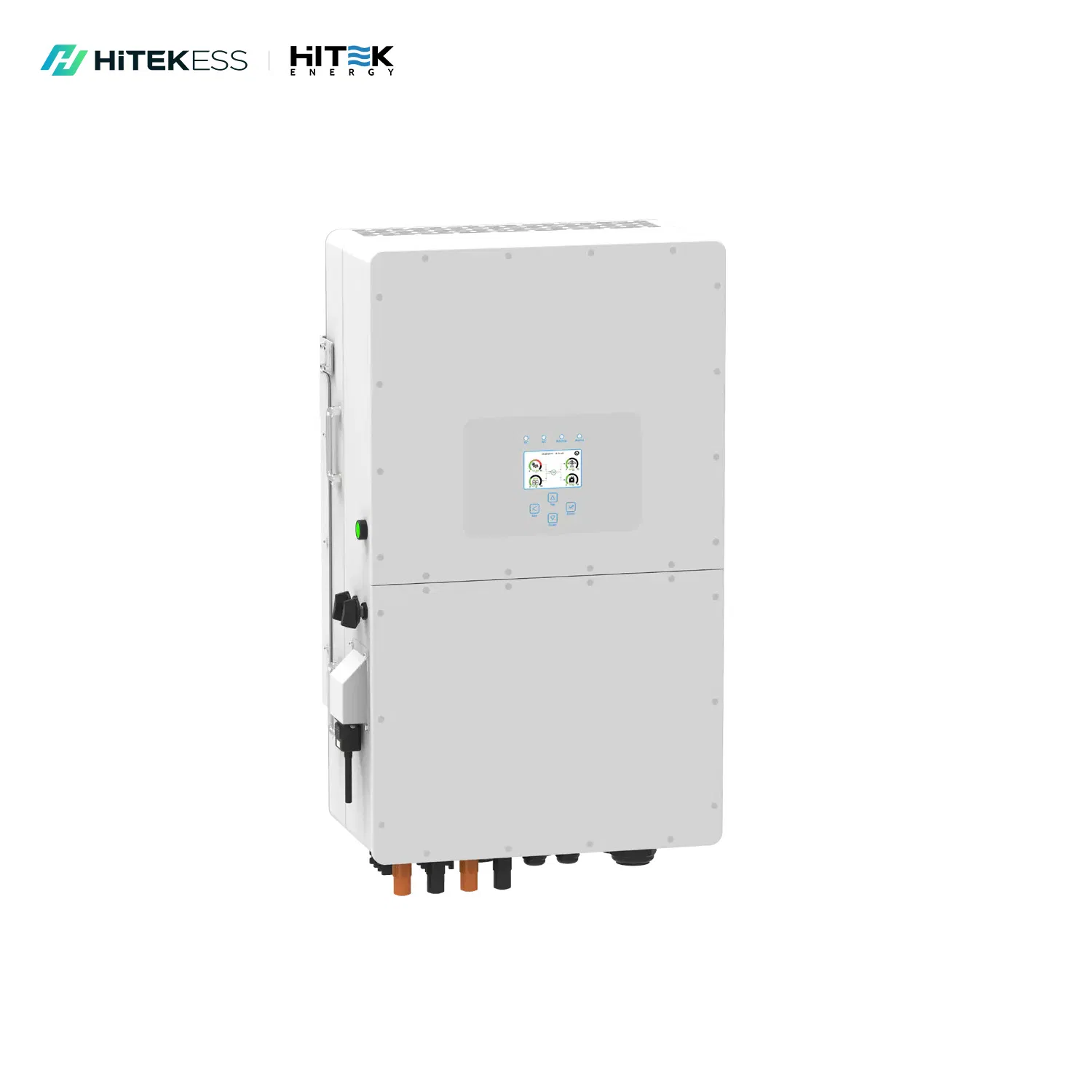

Increases energy independence for homeowners and commercial users. Features smart monitoring, remote firmware upgrades, and built-in anti-feed-in functions.
Supports one-click installation and registration. Safe operation with traceable logs and full lifecycle data storage to ensure reliability.

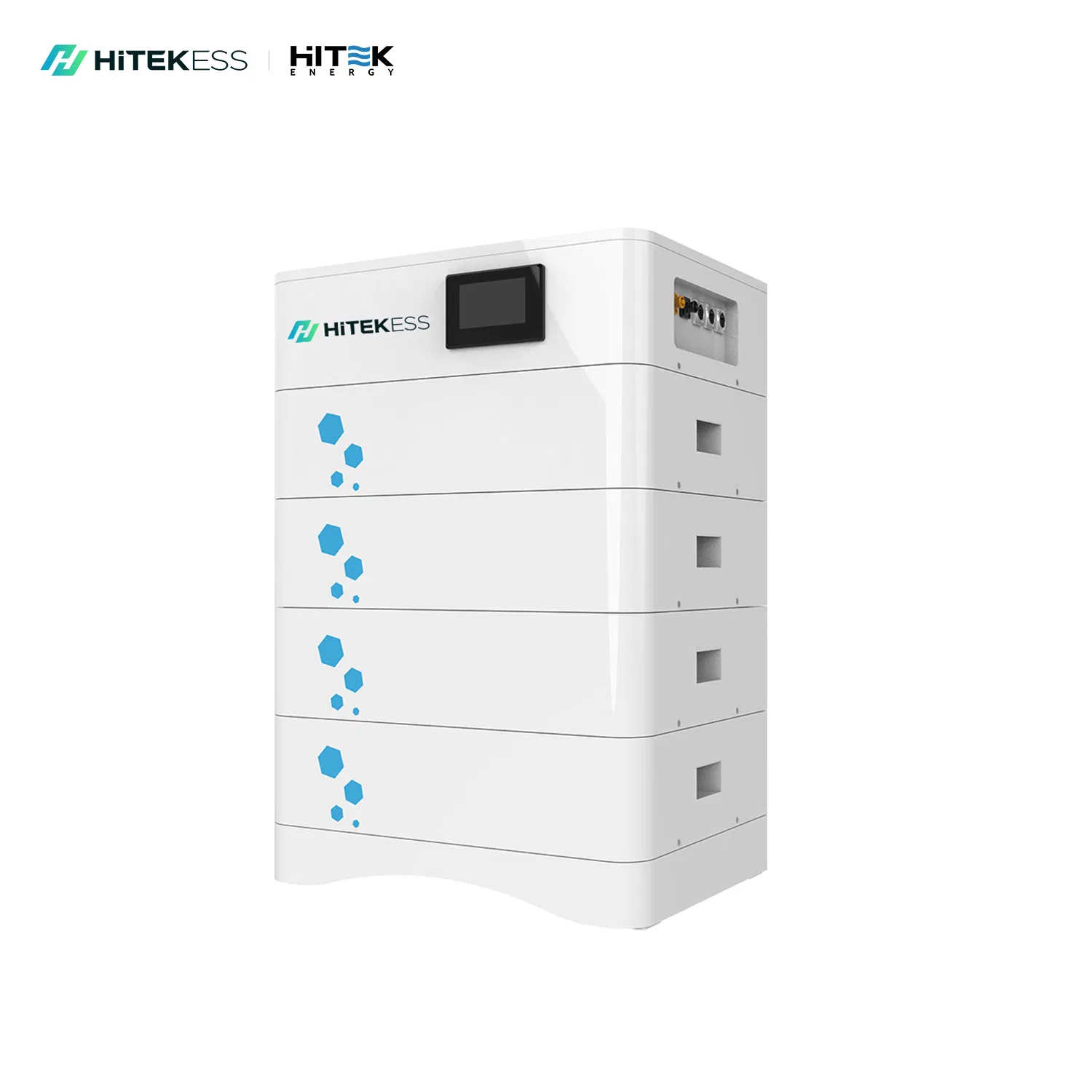

Stackable Lithium Battery with deep cycle long lifespan. More than 6000 times cycle life, up to 90% DOD, and wide ambient temperature suitability.
Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A

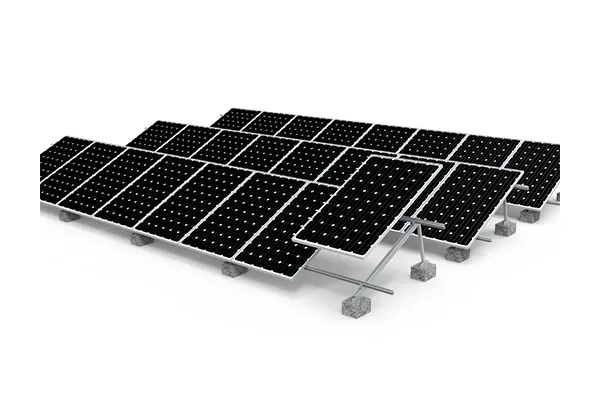

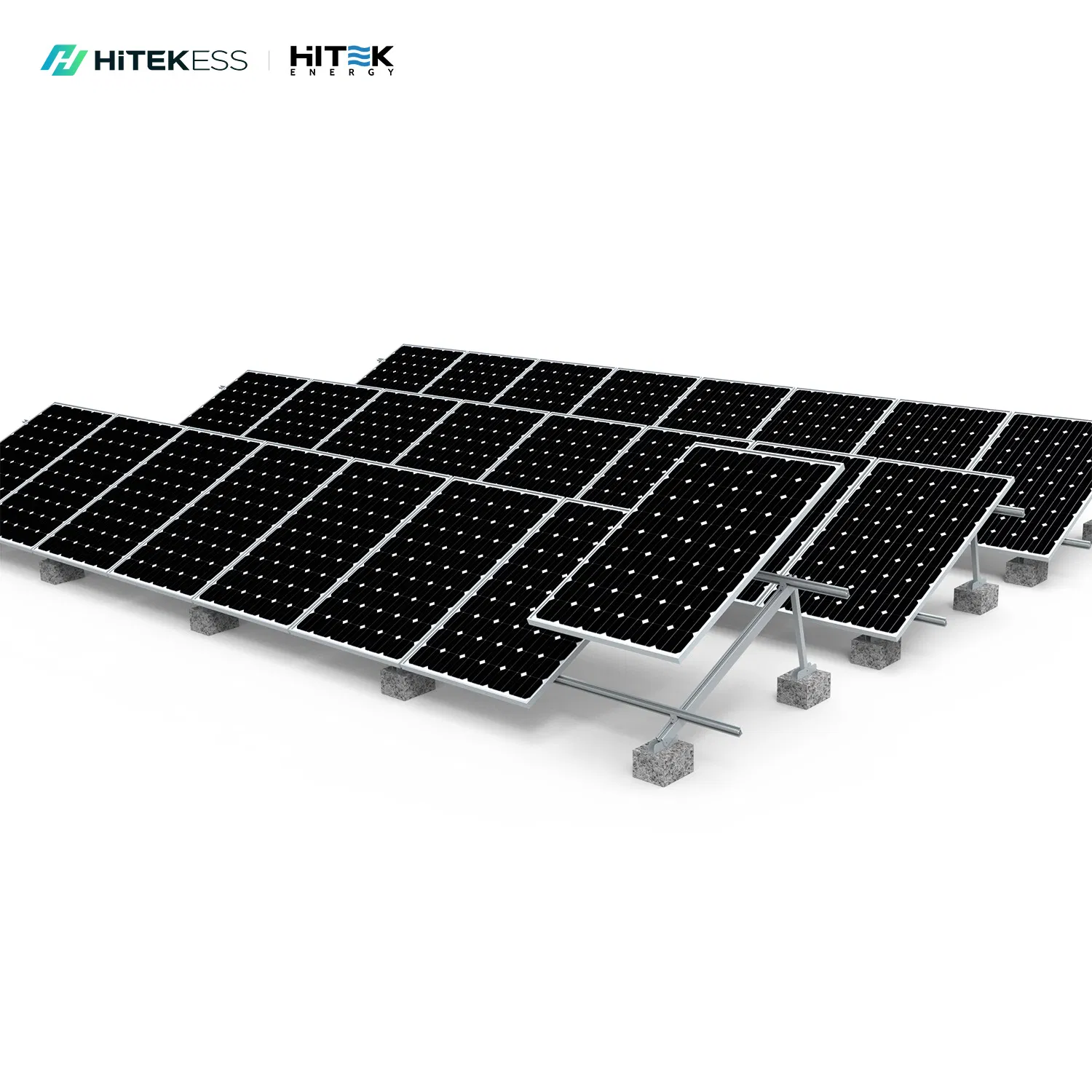

Aluminum AI6005 & SUS304 components. Includes rails, splice kits, mid/end clamps, and optional ground clips or hanger bolts for customized roof/ground mounting.
Founded in 2018, we are a superior photovoltaic manufacturer dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories. We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
Let's work together for a better, brighter and greener future.
