| Technical Parameter List | |
|---|---|

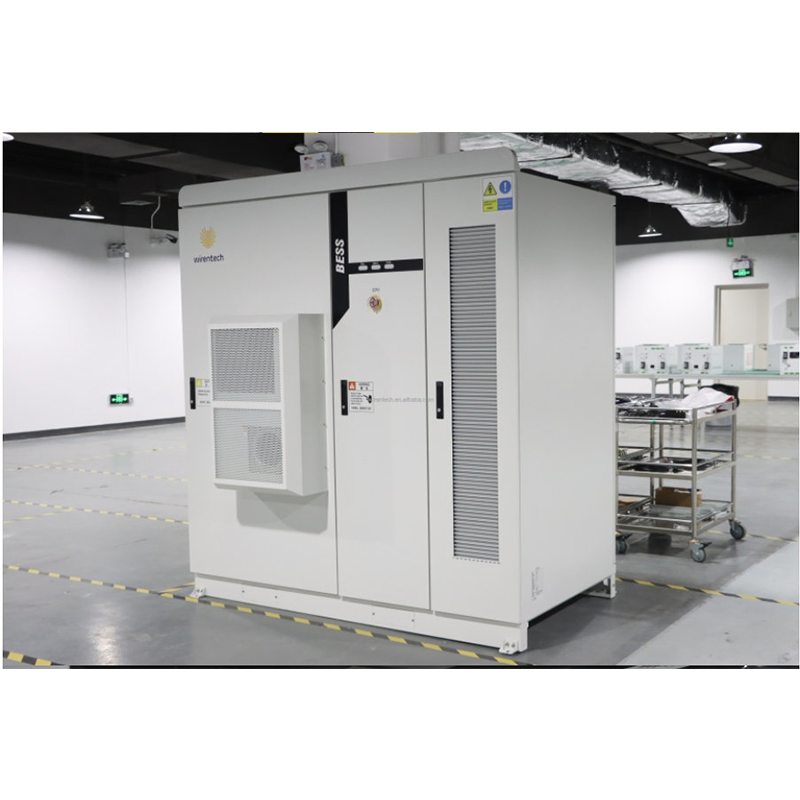

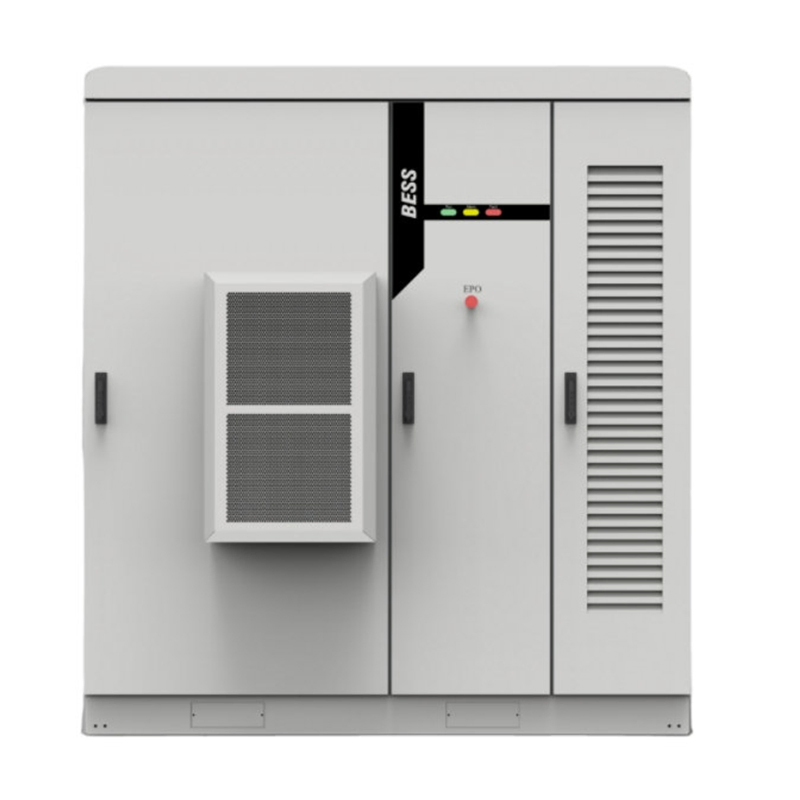

| Storage Tank System (100KW/215KWh) | |
| Energy Storage Capacity | 215KWh |
| System Voltage | 768V |
| Operating Voltage Range | DC672V ~ DC876V |
| Cycle Number | >6000 (100% DOD, 0.5C) |
| AC Grid Parameters | |
| Rated Power | 100KW |
| Rated Voltage | AC 380V (3W+PE) |
| Rated Frequency | 50Hz / 60Hz |
| Power Factor | 1 |
| Protection & Safety | |
| Safety Features | Input anti-reverse, Output overcurrent/overvoltage, Island prevention |

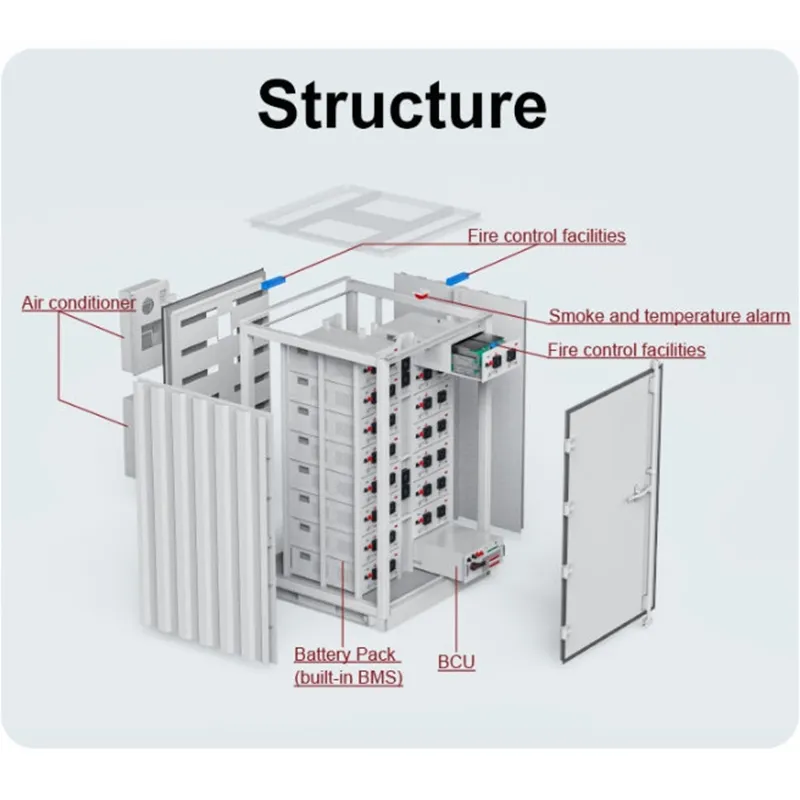

| Fire Fighting | Perfluorohexone fire extinguisher |

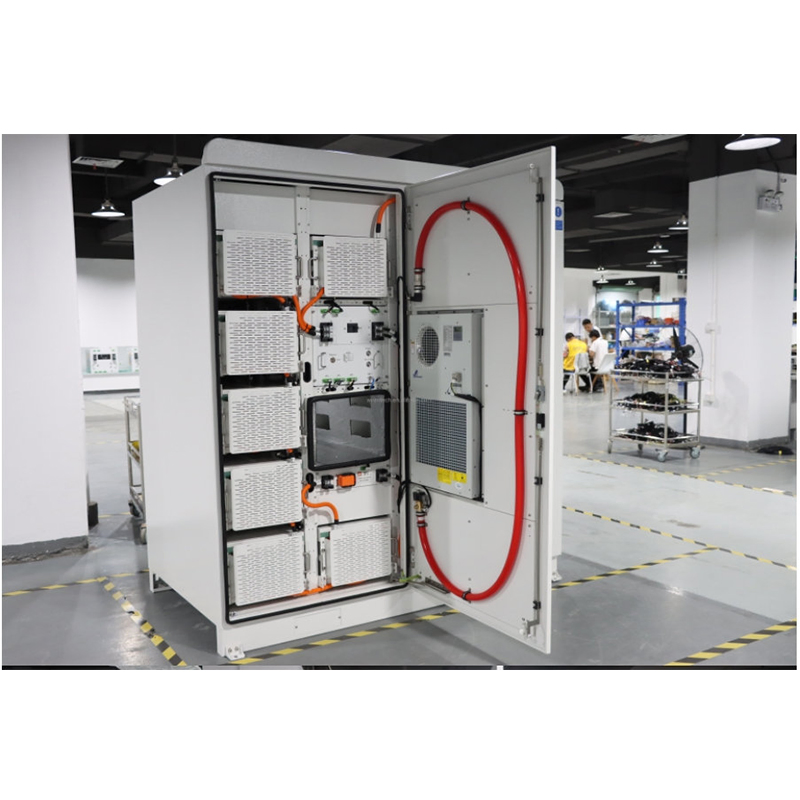

| Cooling Mode | Industrial Air Conditioner |
| Environment & Lifecycle | |
| Operating Temperature | -20ºC to 55ºC |
| Working Altitude | 2000m (up to 4000m derated) |
| Design Life | 10 years (based on 2 cycles/day) |
