High-Performance IP54 Commercial Energy Storage Solution for Grids

Customization:	Available
Energy Capacity:	314ah
Power Configuration:	100kW-250kW

Basic Specifications

Parameter	Value
Model NO.	WRES-CI-25-113
Cycle Life	≥8000 @25℃
Product Name	C&I Energy Storage
Total Energy (Kwh)	112.54
Usable Energy (Kwh)	105.79
Nominal Voltage (Vd.C)	358.4
Voltage Range (Vd.C)	313.6~403.3
Rated Capacity(Ah)	314
Single Module Specifications	153.6V/314ah
Max. Output Power to Grid (Kw)	55
Nominal Grid Voltage (V)	3L/N/PE; 220/380V; 230/400V; 240/415V
Certification	CE/Un38.3/MSDS
IP Rating	IP54
Altitude	≤2000 M

Product Description

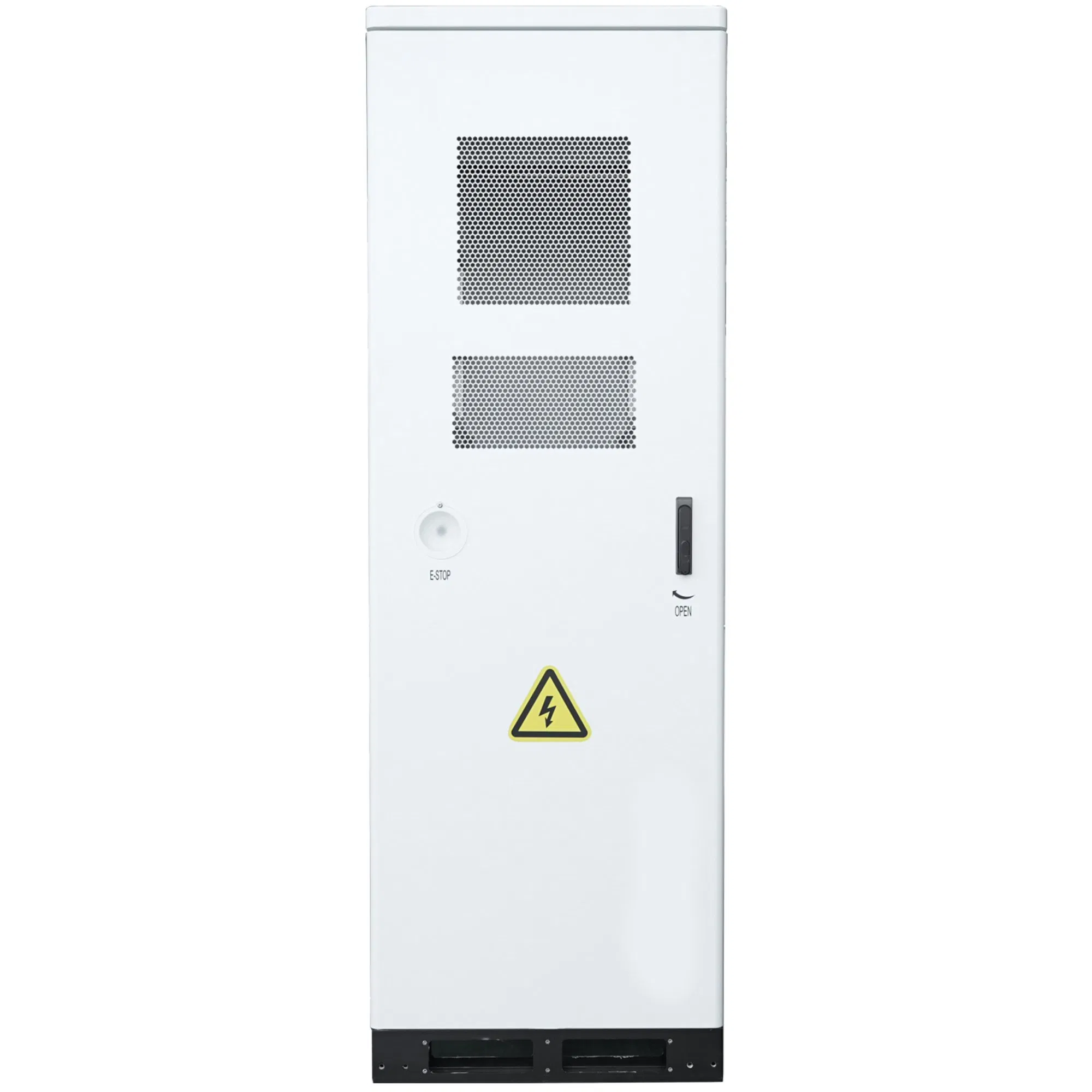

COMMERCIAL & INDUSTRIAL ENERGY STORAGE CABINET

These systems adopt LFP (Lithium Iron Phosphate) batteries, ensuring high safety and reliability for long-term industrial operations. The energy capacity ranges from 112.54 kWh to 241 kWh with high usable energy ratios.

The electrical parameters are optimized for industrial grids, featuring 100KW rated power and AC 400V rated voltage, compatible with standard industrial power systems. Designed as grid-tied systems with MPPT (Maximum Power Point Tracking) functionality (200~800V), they enable efficient integration with renewable energy sources like solar panels.

Functional Advantages

📈

Economic Value

Enable effective peak-valley tariff arbitrage—storing low-cost off-peak electricity and supplying it during high-tariff peak hours to cut energy expenses.

🛡️

High Reliability

Excellent thermal stability and long cycle life minimize risks. Stable AC400V output guarantees uninterrupted power for critical production lines.

♻️

Sustainability

Reduces reliance on fossil-fueled grid power and lowers carbon emissions by boosting self-consumption of clean energy.

Core Applications

Peak-Valley Arbitrage: Critical for energy-intensive sectors like manufacturing and retail.
Backup Power: Ensures supply to production lines, data servers, and refrigeration during outages.
Renewable Integration: Prevents energy waste from solar panels or wind turbines via grid-tied MPPT.
Grid Stability: Balances fluctuating electrical loads and reduces pressure on public grids.

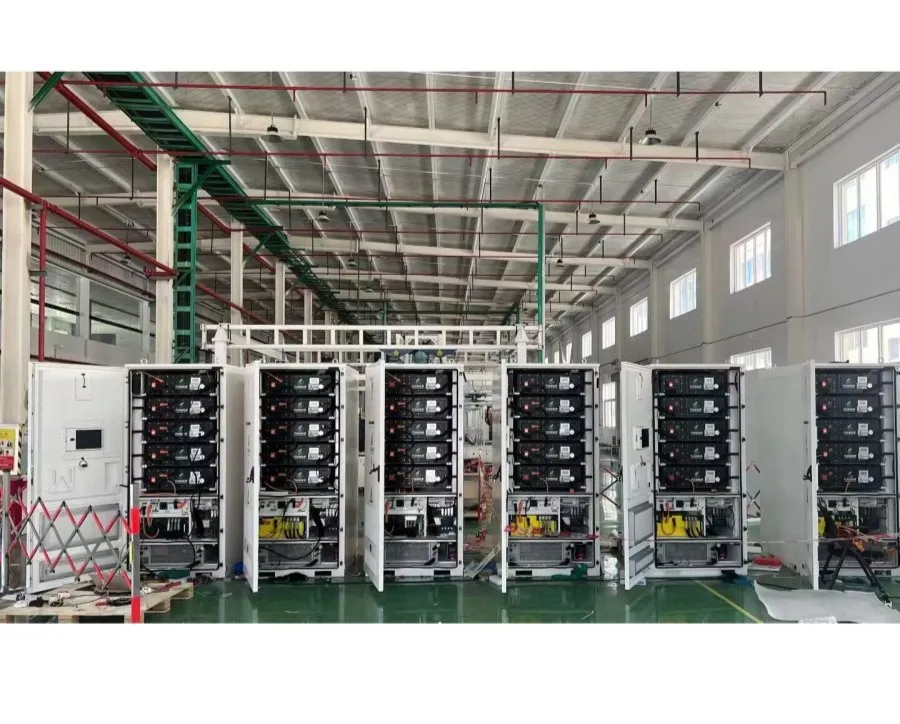

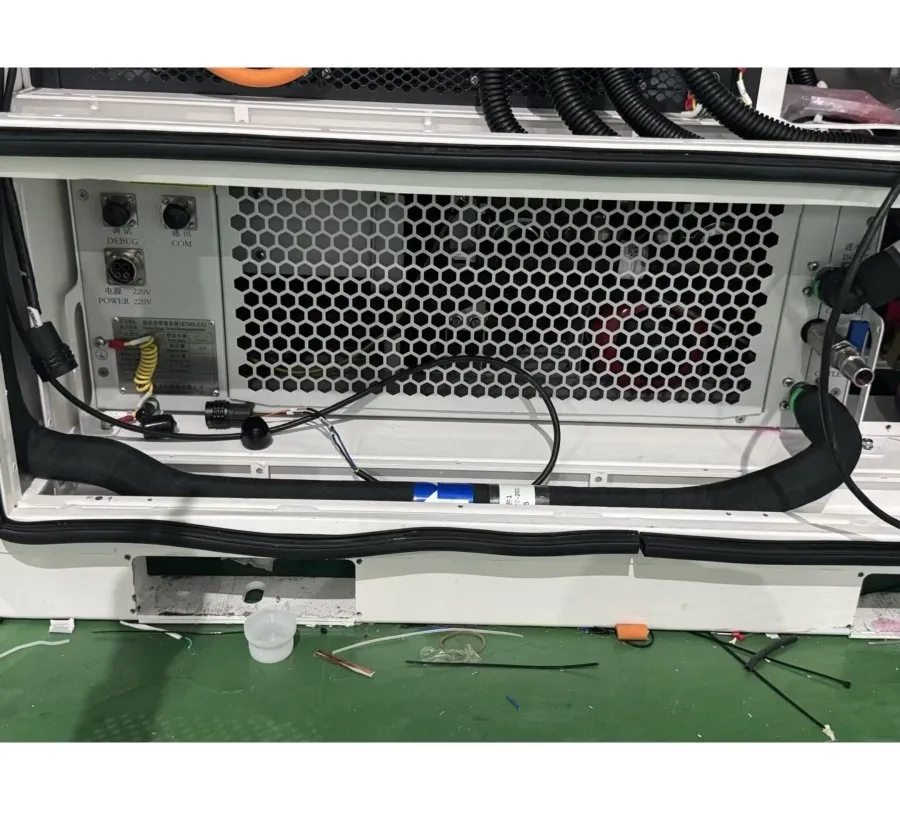

Product Display

Professional Transportation

We provide secure transportation for C&I energy storage systems. Large units are secured in sturdy wooden crates or steel frames for transit protection. Reinforced, shockproof, and moisture-resistant materials are used to ensure professional handling and safe, on-time arrival.

Frequently Asked Questions

Q1. What application scenarios do these products serve? A: Integrated solar-storage-charging systems; peak-valley electricity arbitrage; backup power supply; emergency support; and low-temperature environments.

Q2. How do I choose between grid-connected and off-grid systems? A: Urban areas with stable grids prioritize grid-connected storage. Remote areas without coverage require off-grid. For unstable grids with frequent outages, grid-tied storage with off-grid switching is best.

Q3. Are the batteries compatible with existing solar inverters? A: Yes, they offer high compatibility using RS485, CAN, or RS232 protocols, supported by most major inverter brands like SMA, Growatt, Solax, Victron, and Deye.

Q4. What is the typical lifespan of these batteries? A: Lithium iron phosphate (LFP) batteries typically offer 6,000-8,000 charge cycles, which is equivalent to 10-15 years of daily use depending on conditions.

Q5. Do the battery systems include protective features? A: Yes, they come equipped with a comprehensive Battery Management System (BMS) offering overcharge, over-discharge, short-circuit, temperature, and overcurrent protection.

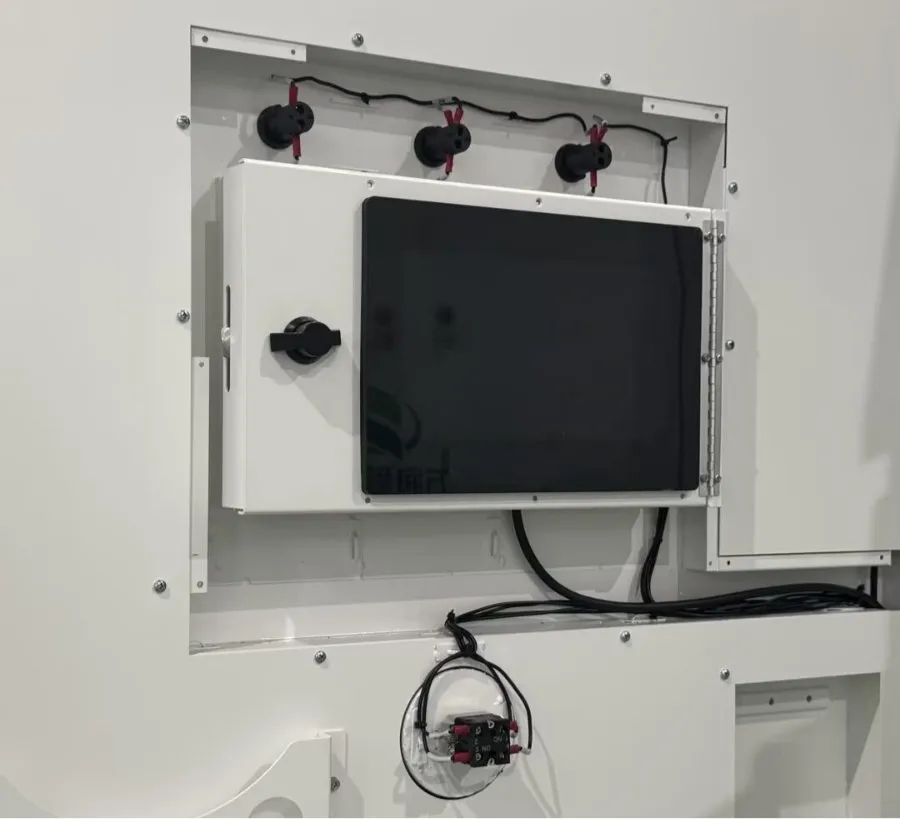

Q6. How is performance monitored? A: We provide a cloud-based monitoring platform via App and Web. You can track real-time performance, charging status, and health efficiency metrics.
