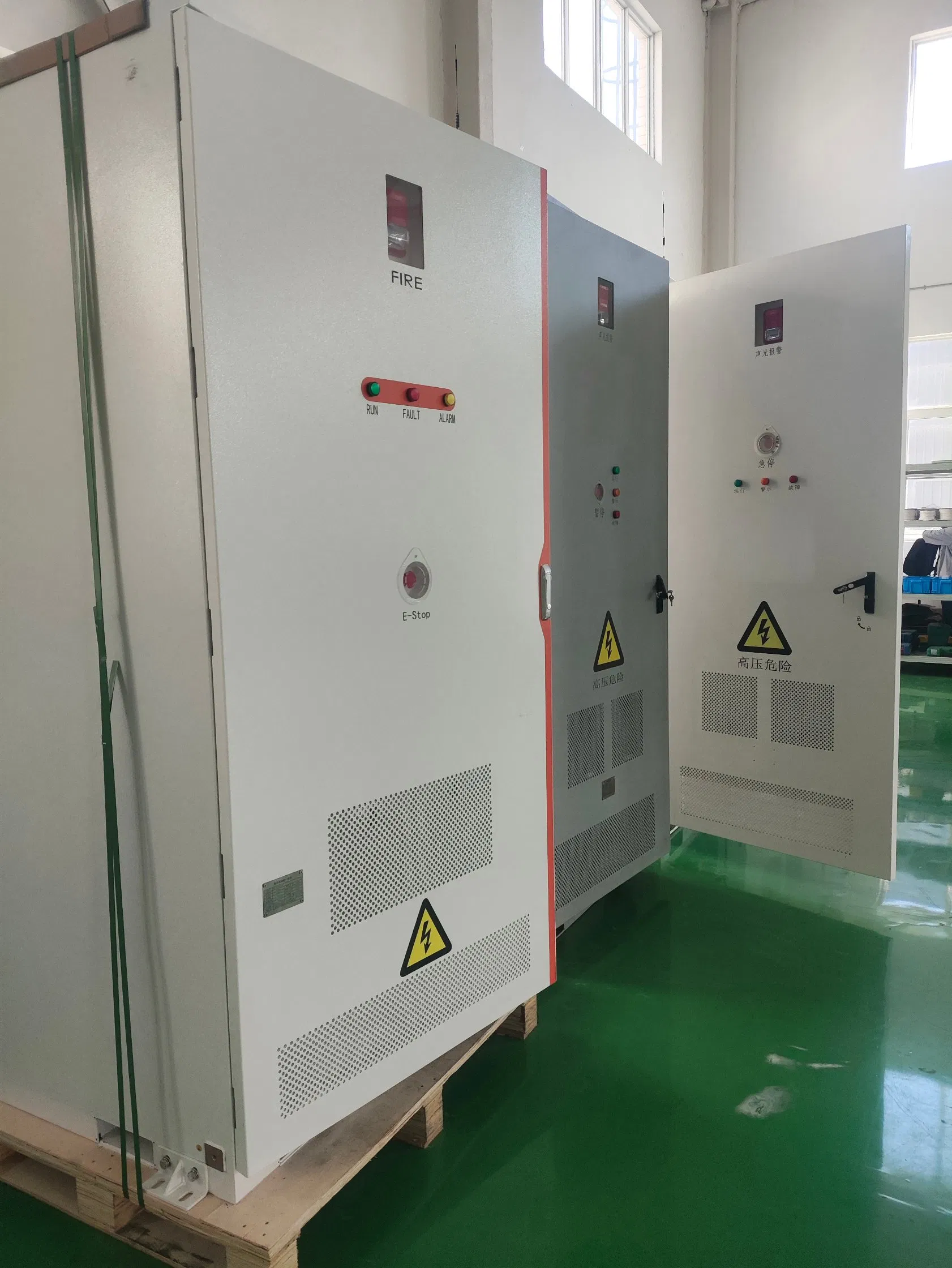

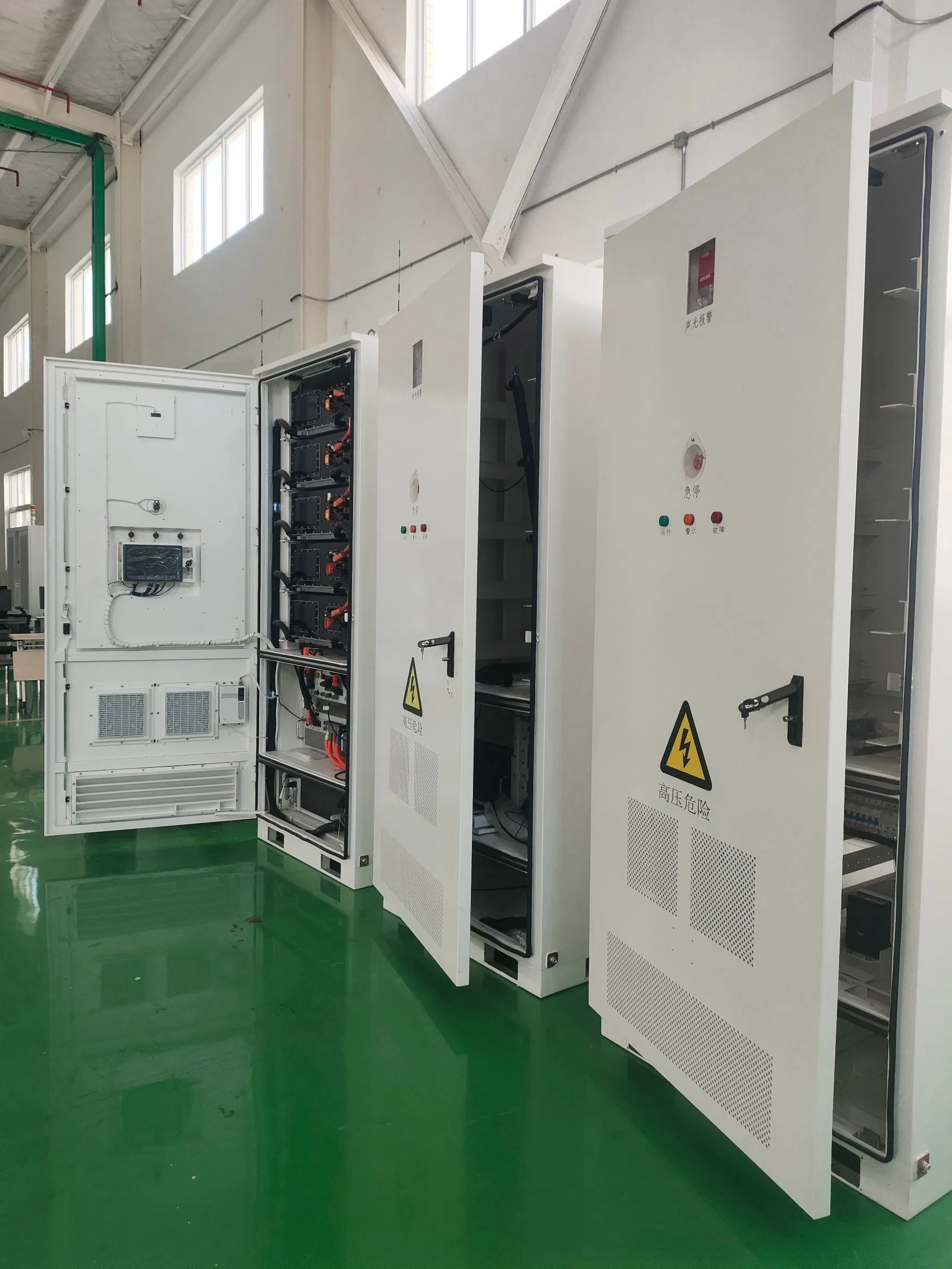

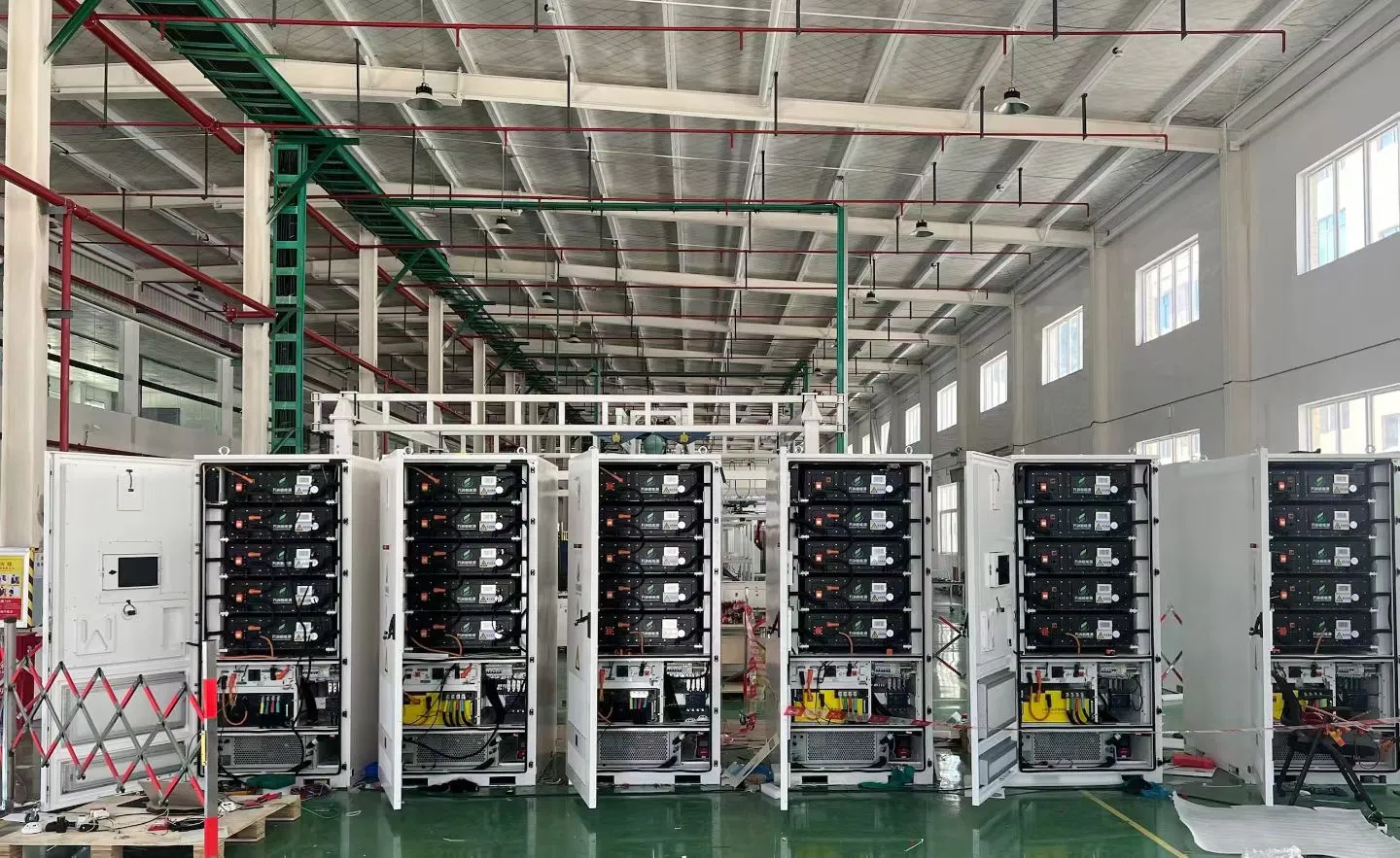

Our Commercial & Industrial (C&I) Energy Storage cabinets utilize high-safety LFP (Lithium Iron Phosphate) batteries, ensuring reliability for long-term operations. With capacities up to 241 kWh and high usable energy ratios, these systems are designed to meet heavy industrial power demands.
| Product Name | WRES-CI-25-241/125 |
| Total Energy (kWh) | 241 |
| Usable Energy (kWh) | 226.68 |
| Nominal Voltage (Vd.c) | 768 |
| Voltage Range (Vd.c) | 672~864 |
| Rated Capacity (Ah) | 314 |
| Max. PV input Power (kW) | 115 |
| Max. Output Current to Grid (A) | 167 |
| Nominal Grid Voltage (V) | 230/400V, 3L+N+PE |
| Rated Grid Frequency (Hz) | 50/60 |
| Maximum Efficiency | 99% |
| Dimension (W*H*D) (mm) | 1055*2300*1300 |
| Operating Temperature | -20°C to 55°C |
| Altitude | ≤2000m |
| IP Rating | IP54 |

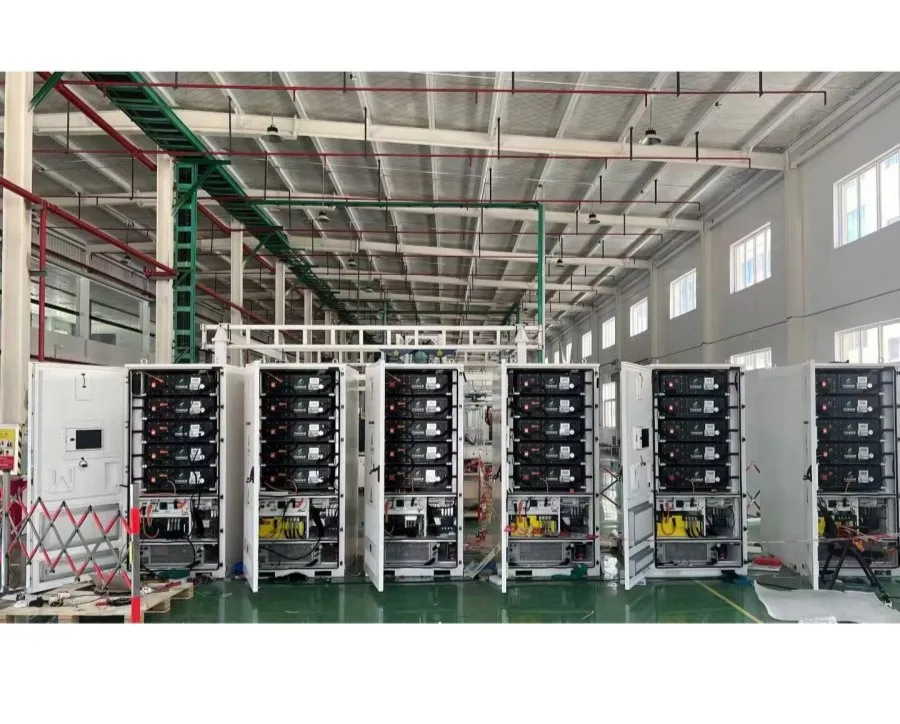

Economic Efficiency: Enables effective peak-valley tariff arbitrage by storing low-cost off-peak electricity and discharging during high-tariff periods, cutting long-term operational expenses.

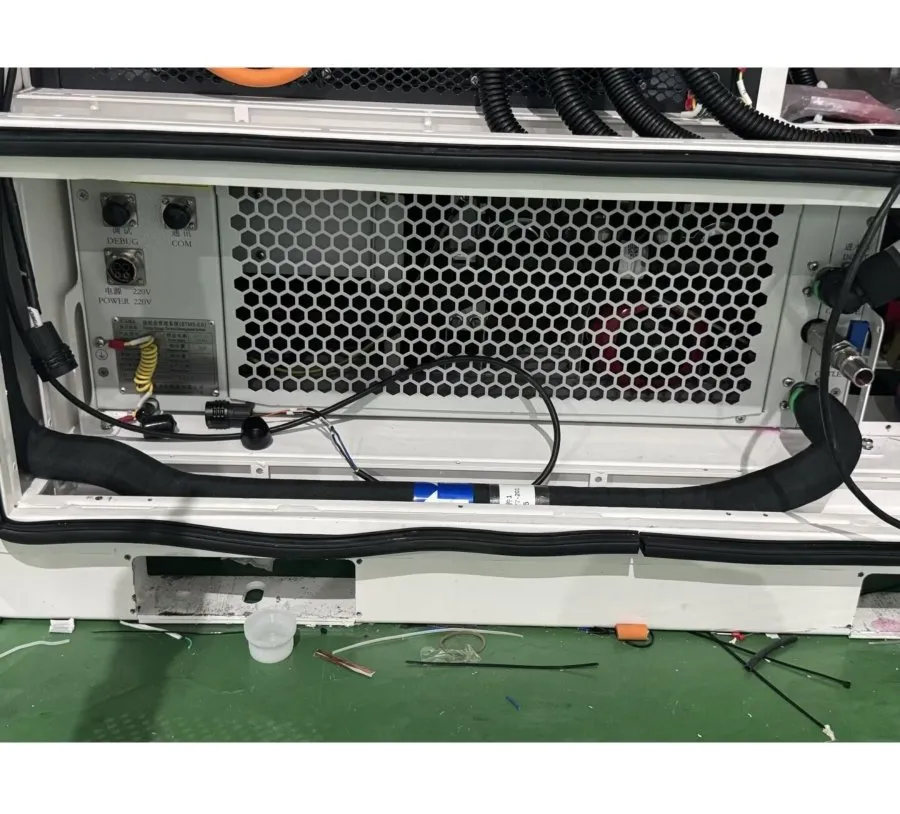

Safety First: Adopting LFP cells for excellent thermal stability and long cycle life, minimizing risks of downtime for critical production lines and data centers.

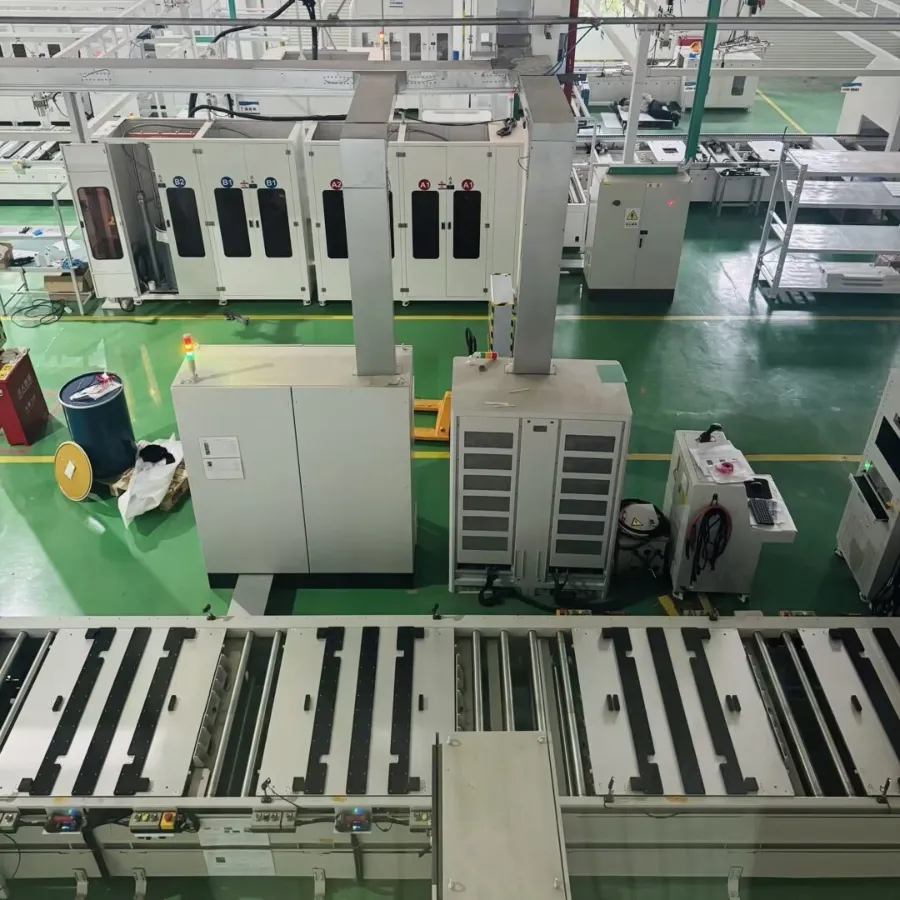

Unmatched Adaptability: Wide DC voltage ranges and MPPT compatibility allow the system to work with diverse grid conditions and renewable energy setups.

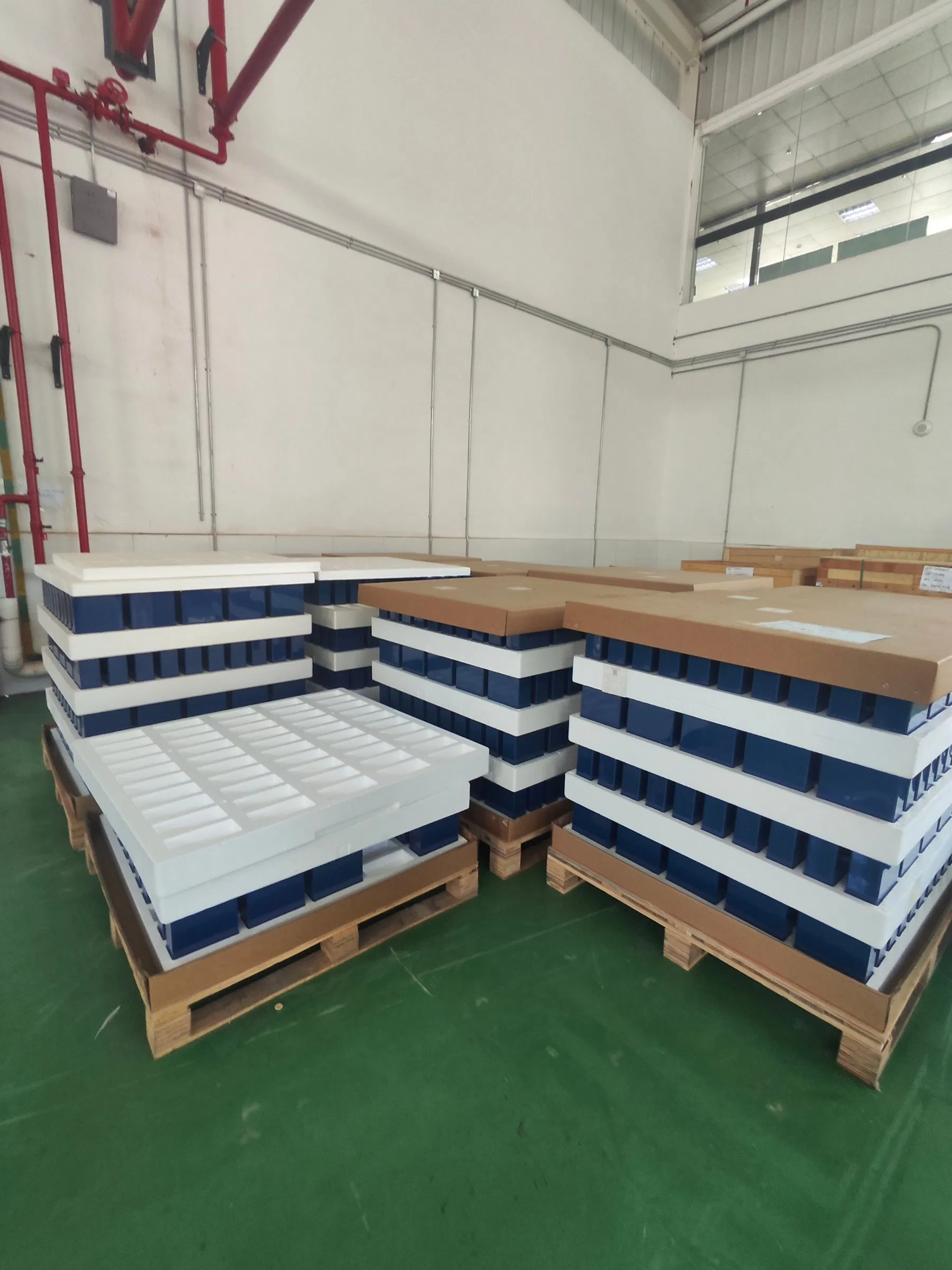

We provide professional handling and safe, on-time arrival for all energy storage systems. Our services include full-process tracking, custom protective packaging (reinforced, shockproof materials), and rapid issue resolution.
