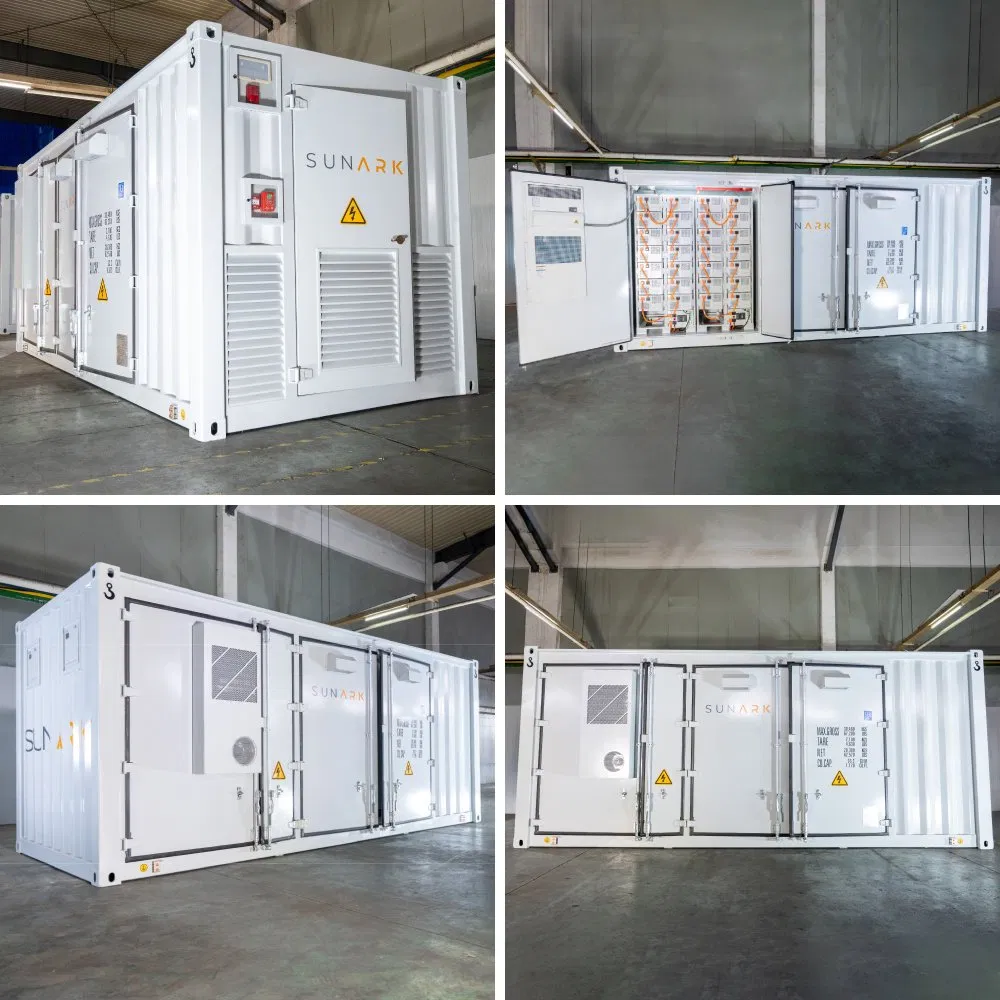

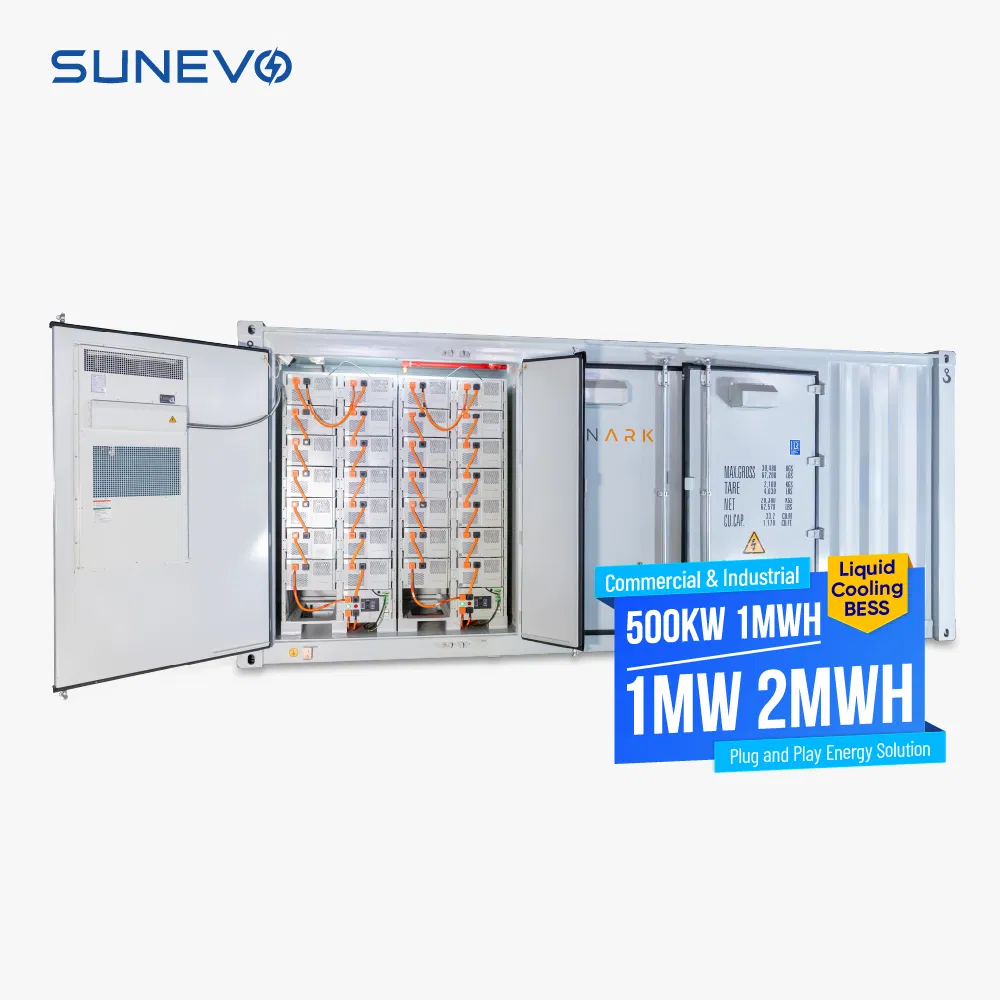

| System Specifications (CubeArk-1MW-2MWH) | |
|---|---|
| Cell type | Prismatic LFP |
| Cell brand | HiGEE/EVE/GOTION |
| Cell life cycle | >8,000 Cycles @25ºC |
| Cell spec | 3.2V 280Ah/314Ah |
| String configuration | 1P224S/1P240S |
| Number of strings | 10 |
| DC rated energy capacity | 2000kWh |
| Rated voltage | 716.8V/768V |

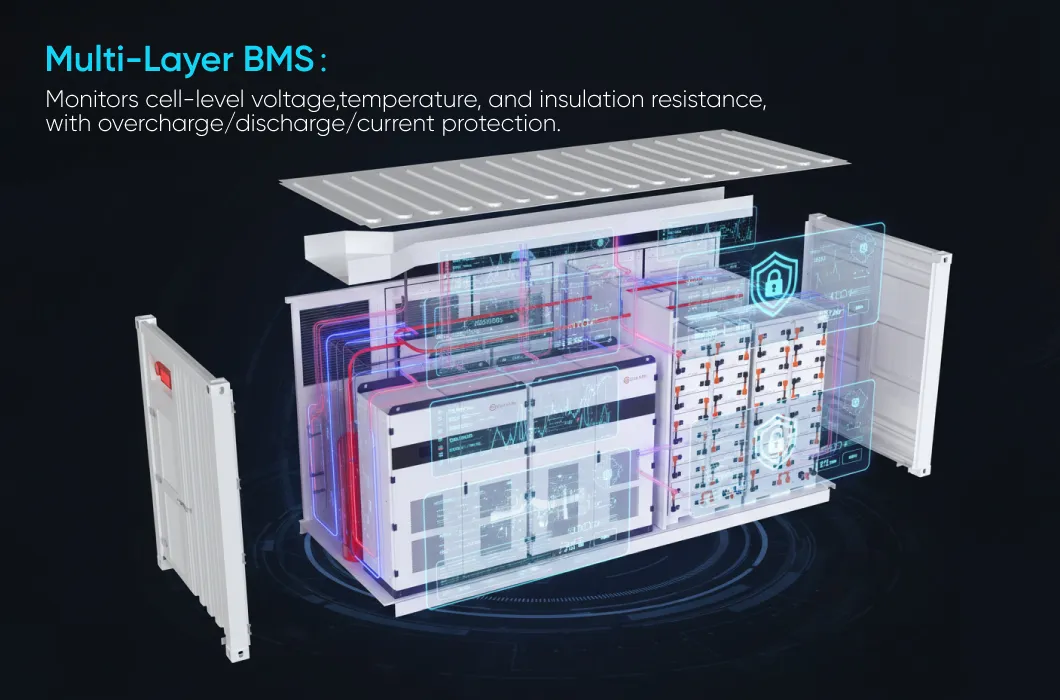

| BMS communication interface | Ethernet, CAN, RS485 |
| BMS communication protocol | Modbus RTU, Modbus TCP |
| Rated AC power | 2*500kW |
| Maximum AC power | 2*550kW |
| Rated AC voltage | 400V |
| Output THDi | ≤3% |
| Isolation method | 3 Phase 4 line Transformer |
Output Power: 30-500kW per PCS cabinet
Weight: 605-2665kg
Dimensions (W*D*H): 800*800*1900 / 1600*1050*2050 mm
Display: LCD touchscreen
Capacity(kWh): 16.0768 / 48.230 / 52.250
Nominal Voltage(Vdc): 51.2V / 153.6V / 166.4V
Nominal Capacity: 314Ah

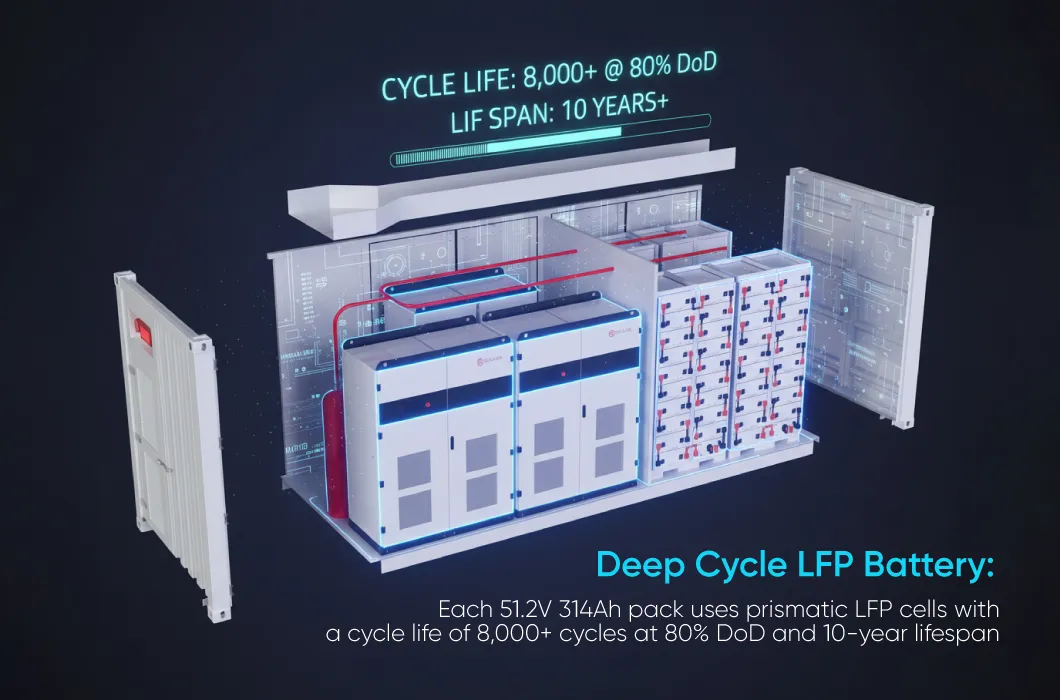

Cycle Life: >8,000 cycles @0.5C
Design Life: 20+ years (25°C)

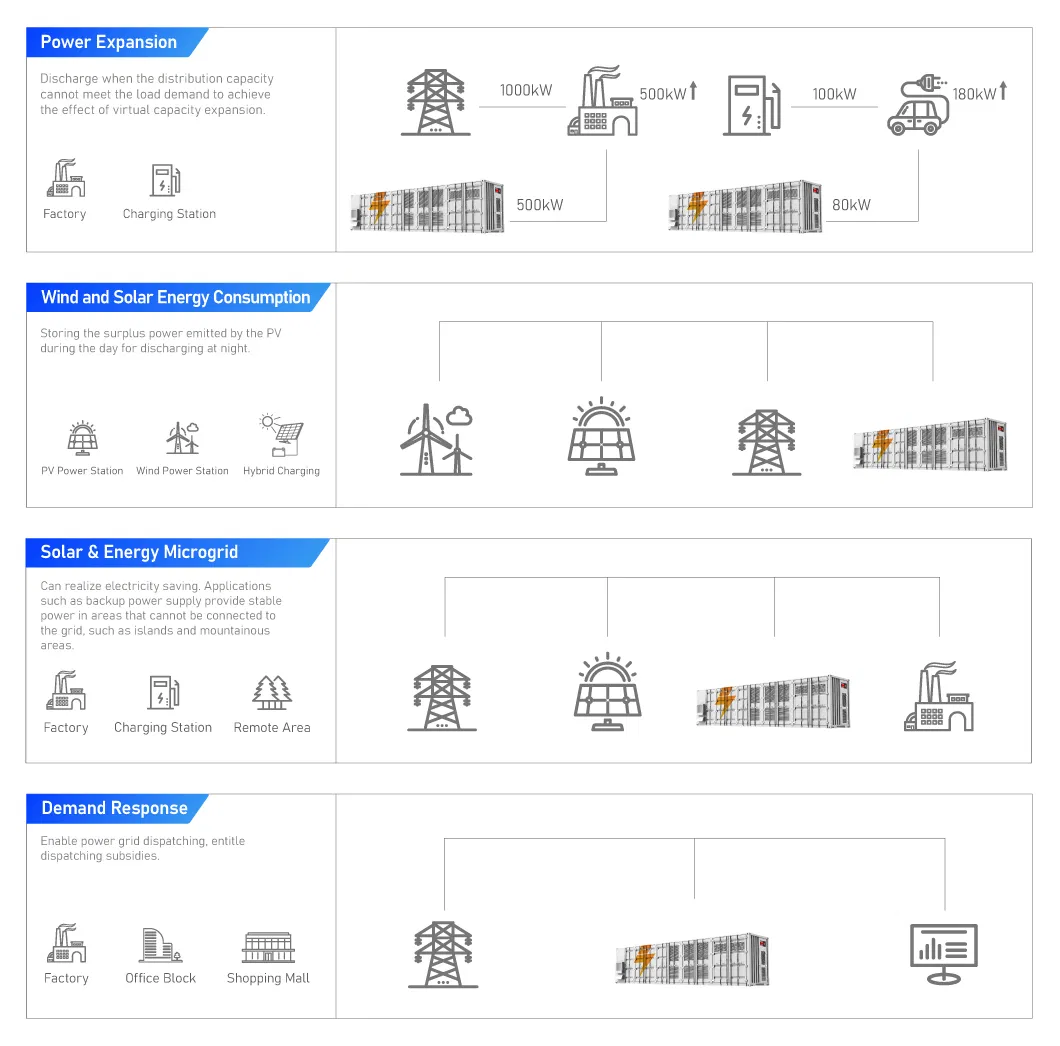

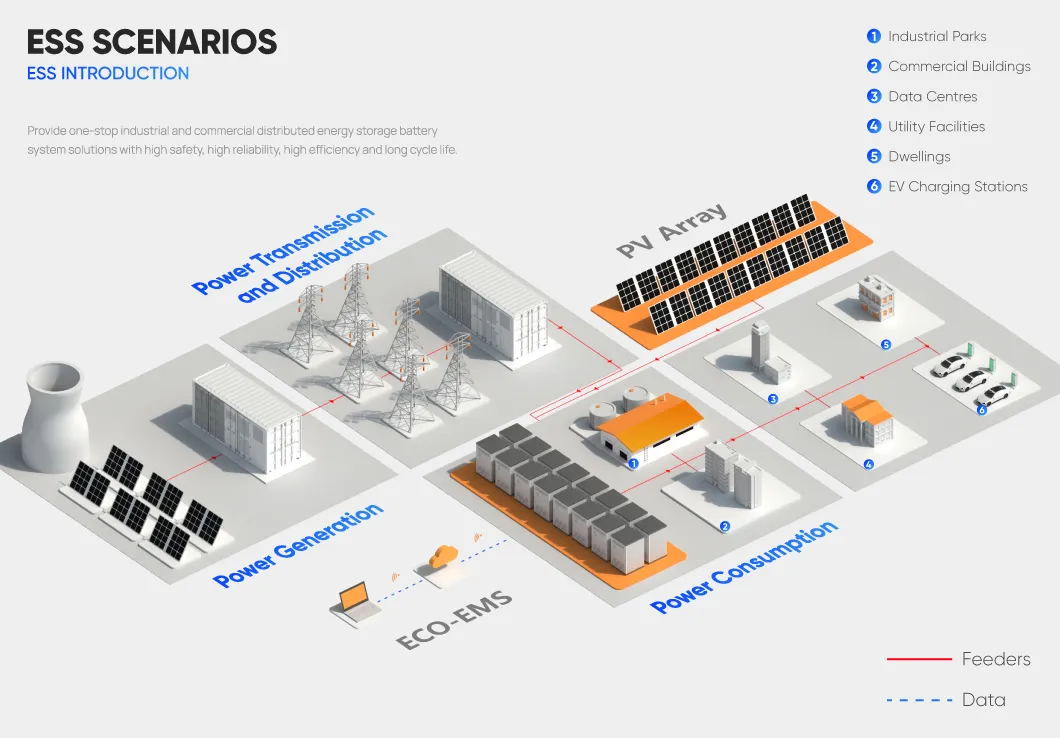

1. Support PV, BAT, DG and GRID access
2. Automatic switching between on/off-grid

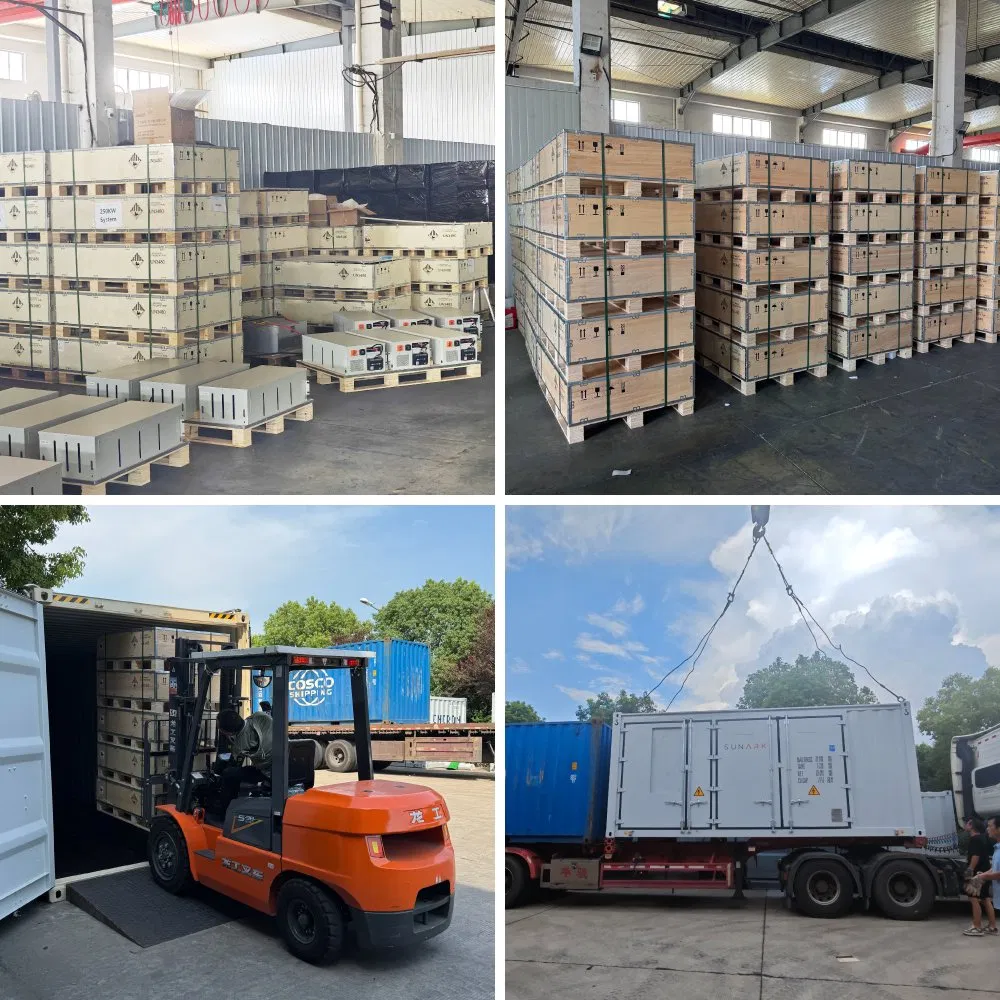

3. Support forklift and hoisting transportation
4. Event and Caution Alarm
5. Multiple Protections
6. Real time and History Data Accumulation
| Item Quantity | 1-10 PCS | 10-50 PCS | 50-100 PCS | 100+ PCS |
|---|---|---|---|---|
| Dangerous Goods Certificate Required | 30 Days | 30-45 Days | 45-60 Days | 60+ Days |
| No Certificate Required | 30 Days | 30-45 Days | 45-50 Days | 50+ Days |
