During periods of low grid electricity consumption or when renewable energy generation is in surplus, the Battery Management System (BMS) controls the battery pack to absorb electrical energy.
The direct current (DC) stored in the batteries is inverted into alternating current (AC) through the Power Conversion System (PCS) to match equipment or grid requirements.
During peak consumption or insufficient renewable generation, the BMS controls the battery pack to discharge AC power back to the grid or direct loads.
The Energy Management System (EMS) monitors status in real-time, collecting voltage, current, and temperature data to optimize charging strategies.

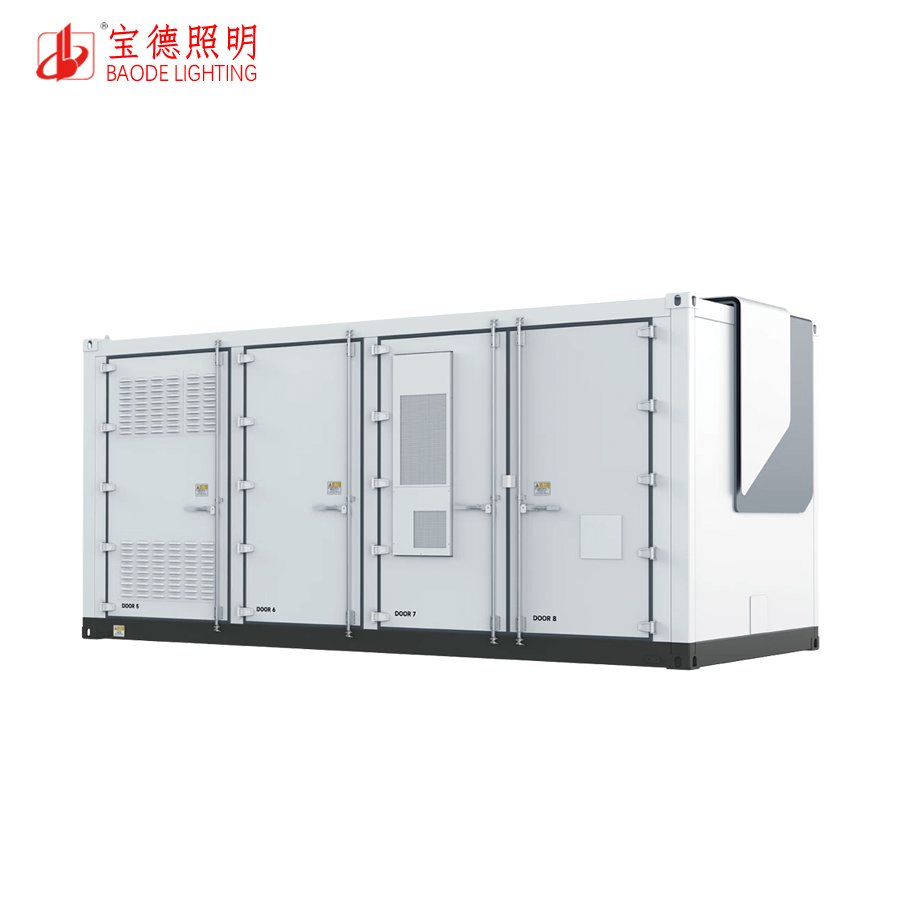

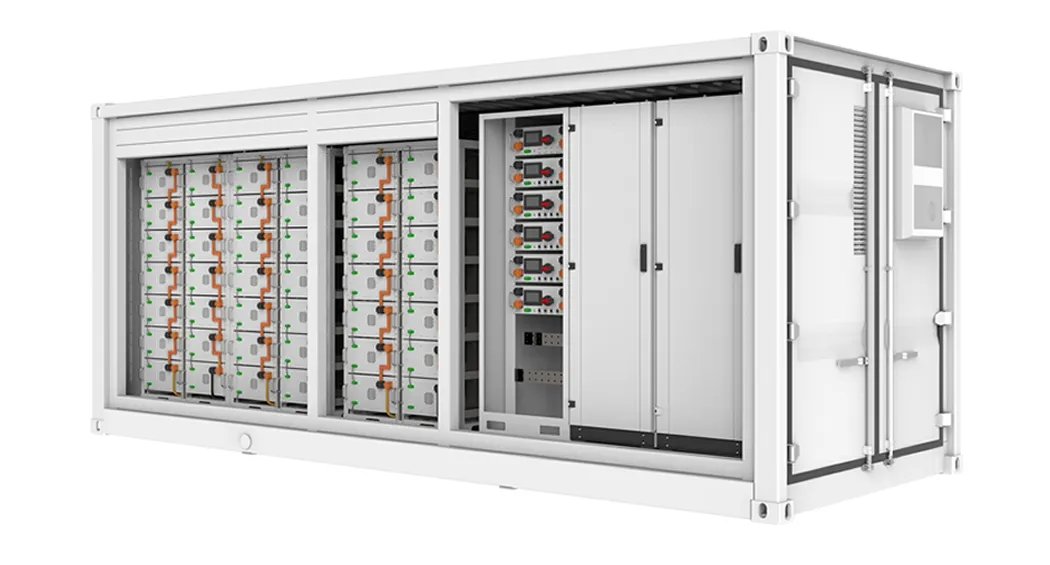

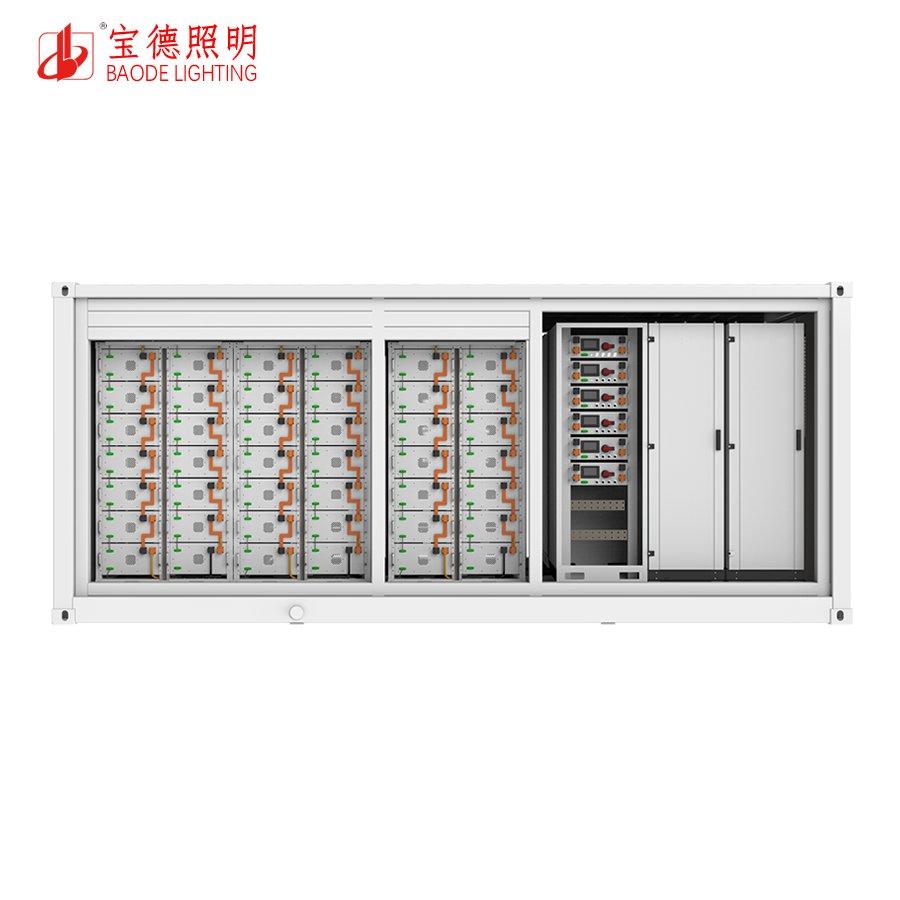

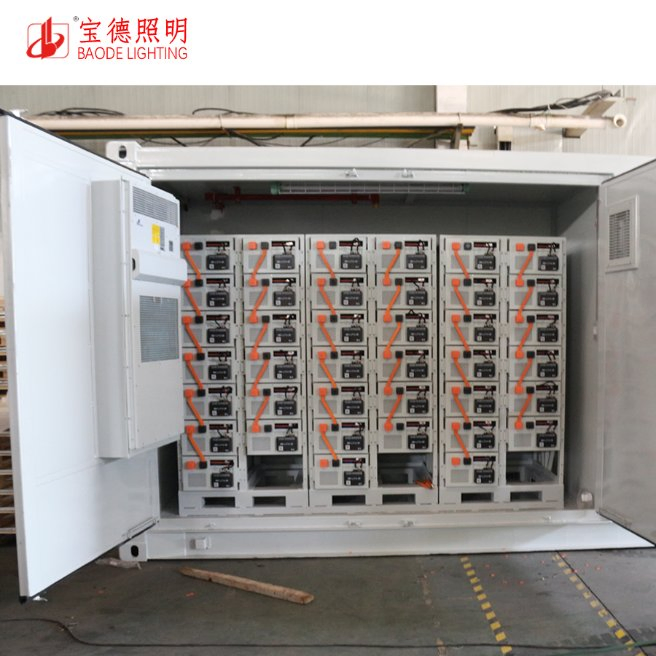

Fully integrated within the container; no complex on-site construction. Rapid delivery and immediate use for emergency or temporary needs.
Equipped with fire protection, temperature control, and real-time battery protection to mitigate risks like fire or leakage.

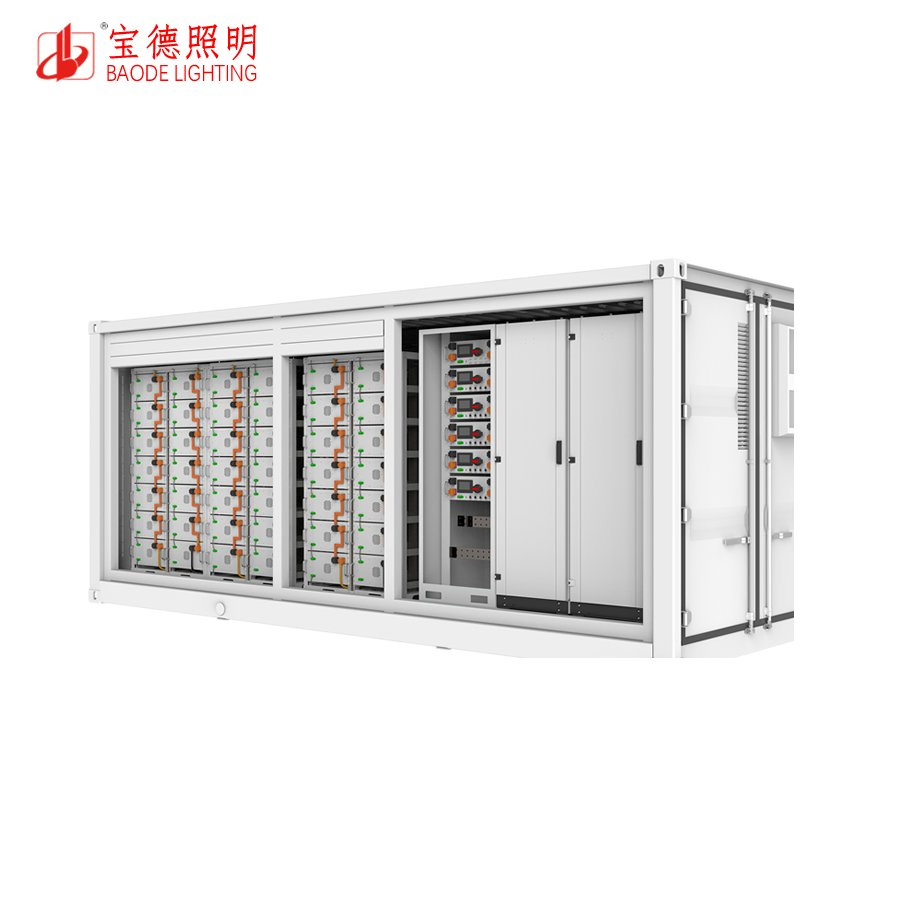

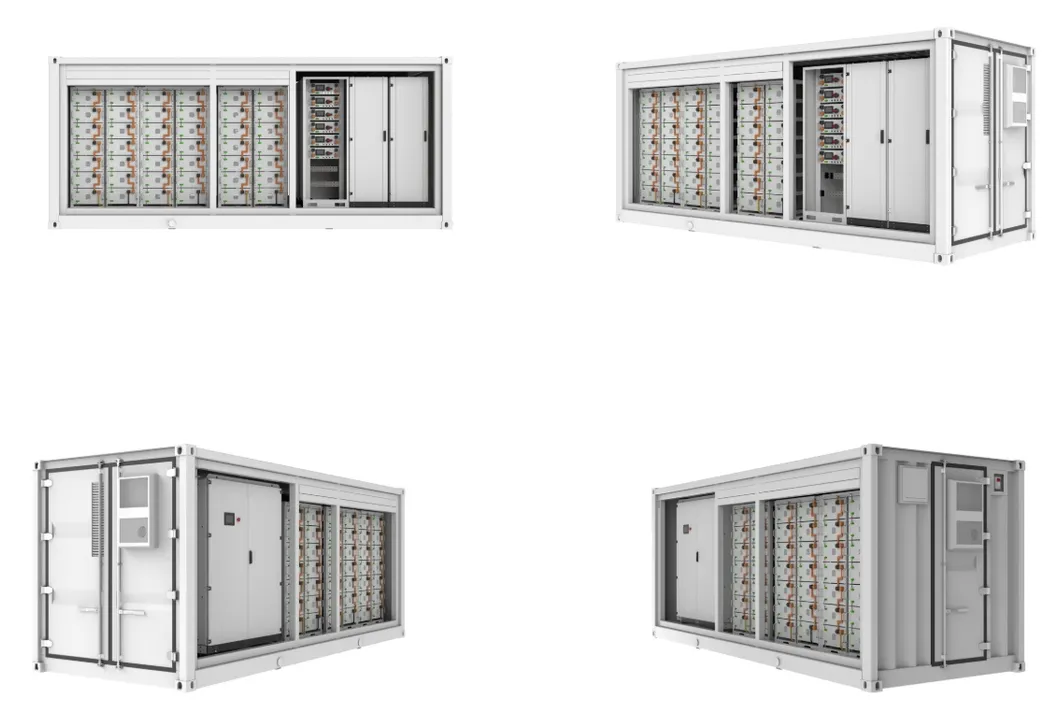

Modular design allows energy capacity to be flexibly adjusted by adding or removing container units.
Excellent sealing (IP54) protects against high/low temperatures, humidity, and dust in outdoor environments.
| Parameter | Specification Details |
|---|---|
| Rated Output Power | 2.5 MWH (0.5C) |
| Rated Voltage | 380V |
| Voltage Range | 380±15%V |
| Rated Frequency | 50HZ |
| THD (Current Distortion) | <5% |
| Output Power Factor | ≥0.99 |
| Protection Class | IP54 |
| Internal Communication | Ethernet |
| Container Configuration | Fire extinguisher / Lighting / Air or Water Cooling |
| Size | 20-foot high cube container |
| Weight | Approximately 30 tons |
A: This specific model offers a total rated capacity of 2.5MWh, designed for industrial and commercial scale energy storage.
A: The system is designed for high durability, providing approximately 6000 cycles for long-term reliable operation.
A: We offer both Air Cooling and Liquid Cooling options to suit different environmental conditions and performance requirements.
A: Yes, the system features an IP54 protection grade and includes integrated fire suppression and temperature control systems for outdoor safety.
A: Absolutely. The modular design allows for easy scalability by integrating additional container units into your power network.
A: The system complies with major international standards, including CE, MSDS, UN38.3, UL, IEC62619, and VDE4110.
