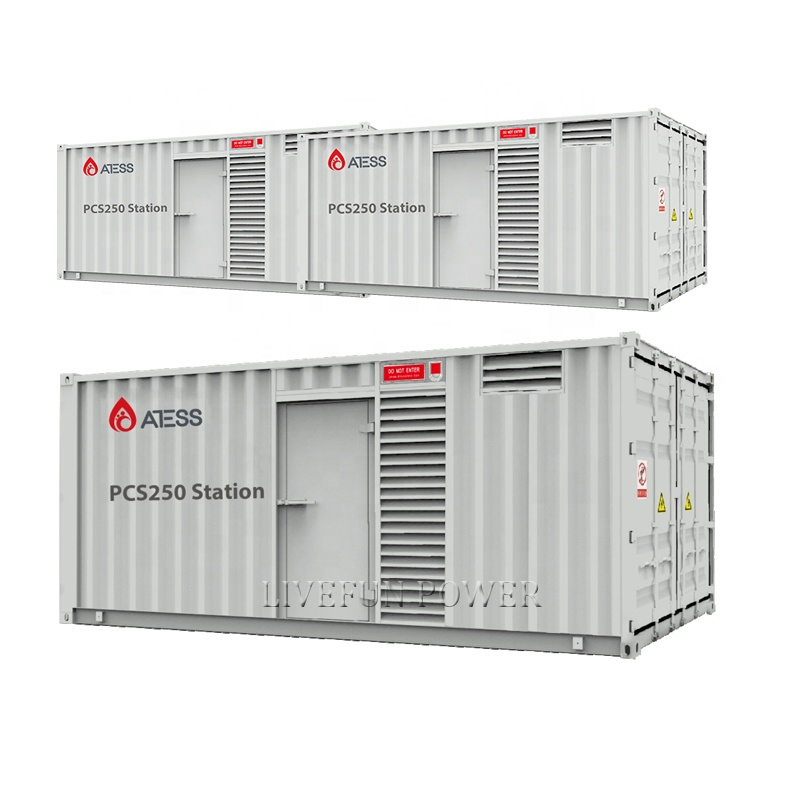

200kwh 300kwh 400kwh 20FT Containerized Energy Storage System 1mwh LiFePO4 Battery for Ess Container Application
200kwh 300kwh 400kwh 20FT Containerized Energy Storage System 1mwh LiFePO4 Battery for Ess Container Application
200kwh 300kwh 400kwh 20FT Containerized Energy Storage System 1mwh LiFePO4 Battery for Ess Container Application
200kwh 300kwh 400kwh 20FT Containerized Energy Storage System 1mwh LiFePO4 Battery for Ess Container Application
200kwh 300kwh 400kwh 20FT Containerized Energy Storage System 1mwh LiFePO4 Battery for Ess Container Application
1 / 5
200kwh 300kwh 400kwh 20FT Containerized Energy Storage System 1mwh LiFePO4 Battery for Ess Container Application
200kwh 300kwh 400kwh 20FT Containerized Energy Storage System 1mwh LiFePO4 Battery for Ess Container Application
200kwh 300kwh 400kwh 20FT Containerized Energy Storage System 1mwh LiFePO4 Battery for Ess Container Application
200kwh 300kwh 400kwh 20FT Containerized Energy Storage System 1mwh LiFePO4 Battery for Ess Container Application
200kwh 300kwh 400kwh 20FT Containerized Energy Storage System 1mwh LiFePO4 Battery for Ess Container Application

200kwh 300kwh 400kwh 20FT Containerized Energy Storage System 1mwh LiFePO4 Battery for Ess Container Application

Customization: Available
Container Size: 530*680*670mm
Weight: 120kg
Send Inquiry

Product Description

Basic Information
Model NO.
Ess Container
Nominal Voltage
96V-900V
Warranty
5 Years
Nominal Capacity
100ah-3000ah
Cycle Life
6000cycles @ 80%Dod
BMS
3 Level Control
Capacity
50kwh-5mwh
Application
Solar Energy Systems
Features
Rack or Container Load
Protection Level
IP21
BMS Port
CAN/RS485
Production Capacity
800MW/Year
Product Description

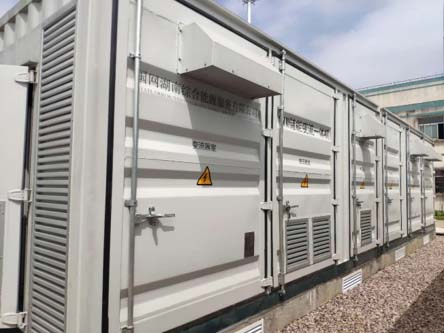

200kwh 300kwh 400kwh 20ft containerized energy storage system 1MWh LiFePO4 Battery

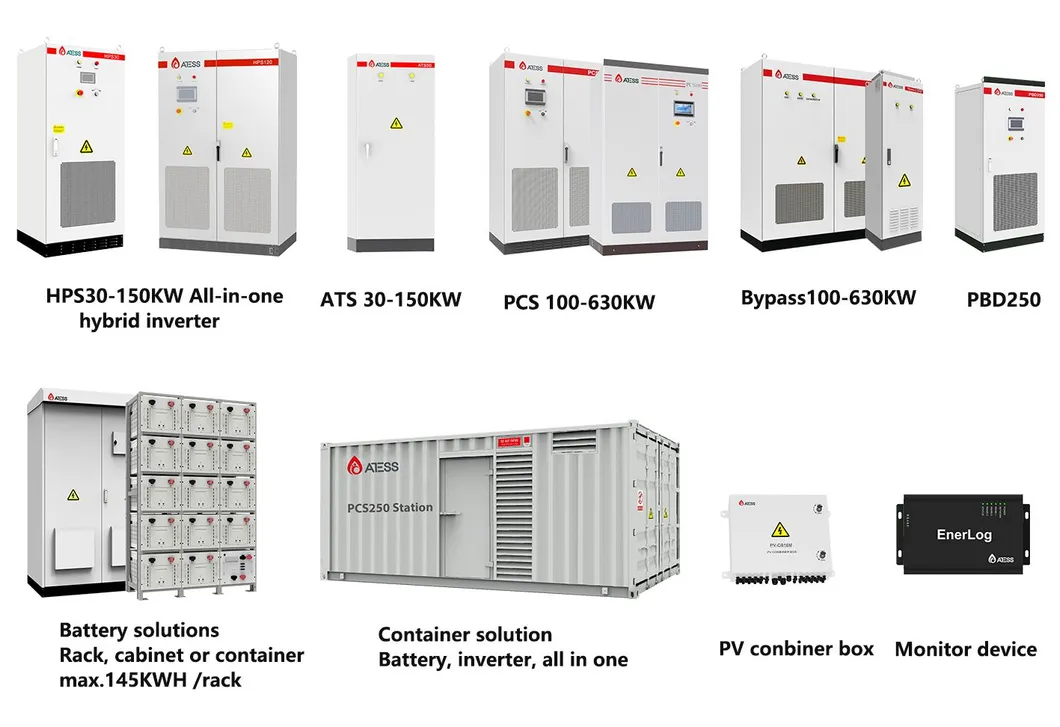

Containerized Energy Storage System

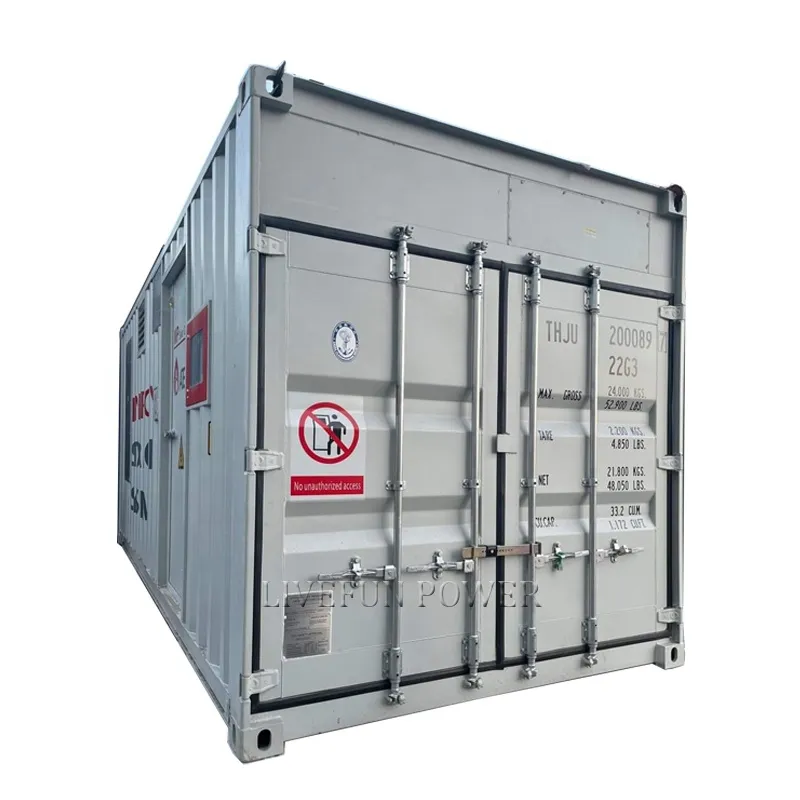

ESS Battery Rack

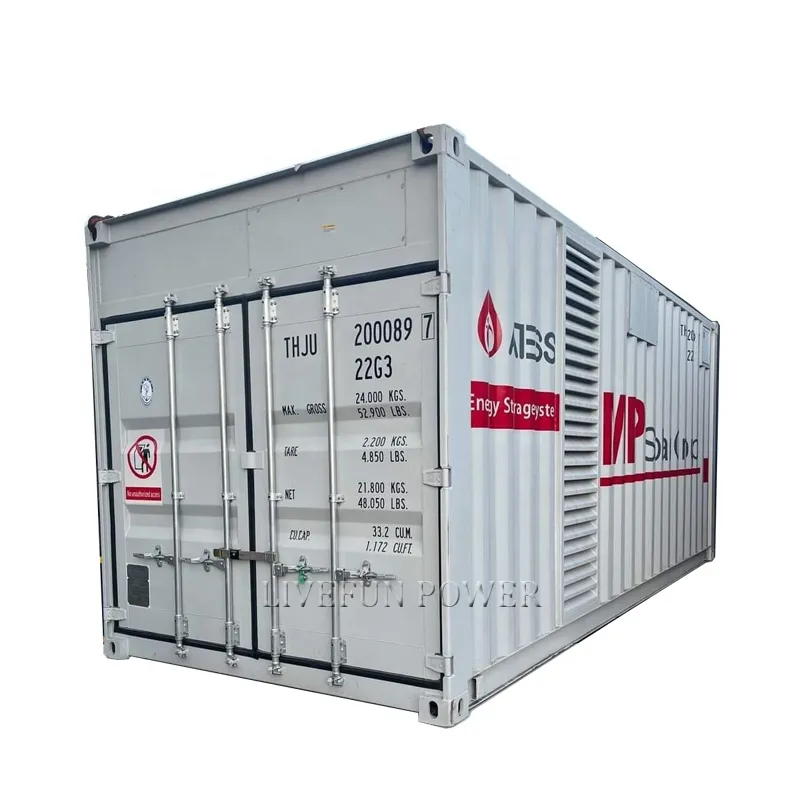

Energy Storage Module

High Voltage Lithium Battery Control Cabinet

  • 🛡️ 8-channel relay control and 3 channels CAN communication.
  • 📊 Real-time Data: Support battery status data management and real-time battery cluster information.
  • ⚡ Voltage Detection: Independent total voltage acquisition (Range 0~900 V).
  • 🧠 Estimation: High-precision SOC/SOH estimation.
  • ⚙️ Maintenance: Support Bootloader for online upgrades via CAN bus and advanced fault detection.

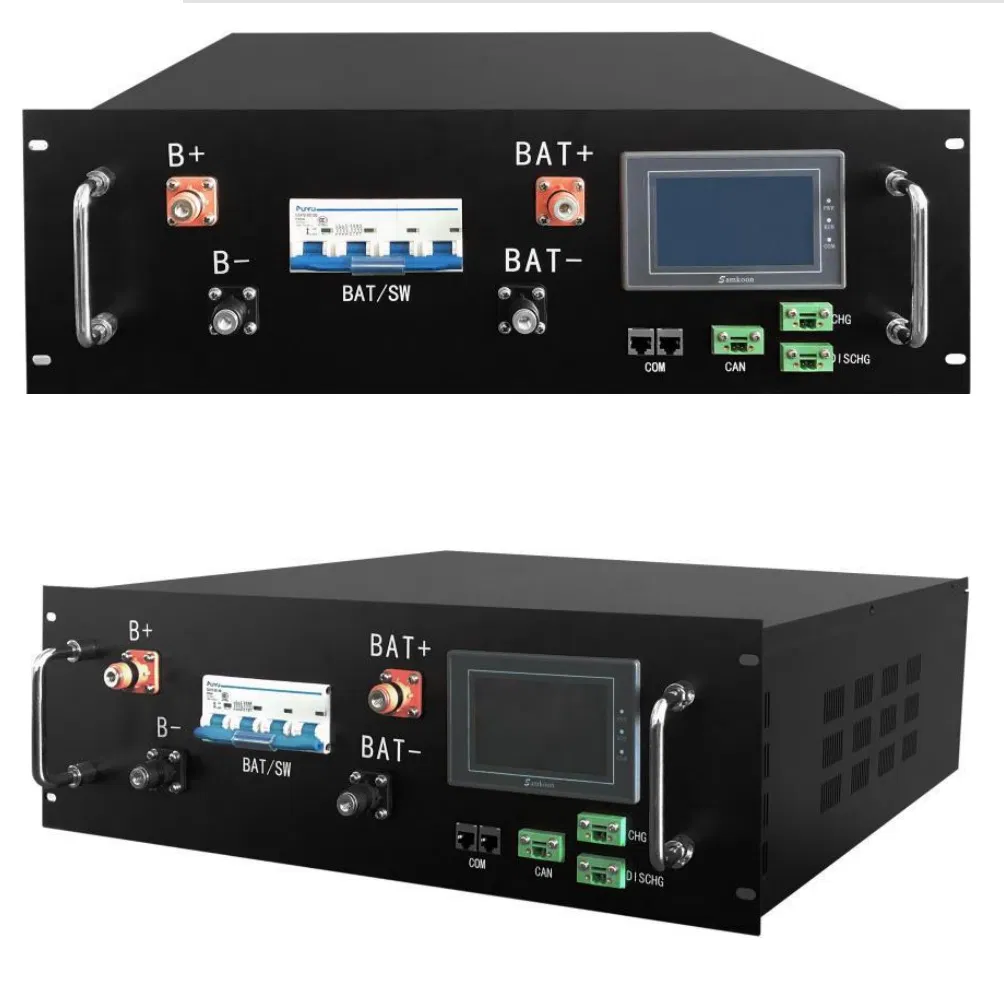

Control Cabinet
Technical Specifications
Model 480V 840AH 576V 525AH 480V 420AH 480V 315AH
Rated Storage Energy400kwh300kwh200kwh150kwh
Nominal Voltage480V576V480V480V
Nominal Capacity840AH525AH420AH315AH
Charge/Discharge Current160A100A80A60A
Max Current400A250A200A150A
Working Temp-25ºC~60ºC
CommunicationRS485 / CAN

Customization Available: We can customize Lifepo4 Batteries from 96V to 1000V high voltage models.

Scalable Power: Flexible parallel options to build 76.8KW / 150KWH / 500KWH / 1MWH / 2MWH systems compatible with major inverters.

Project Cases

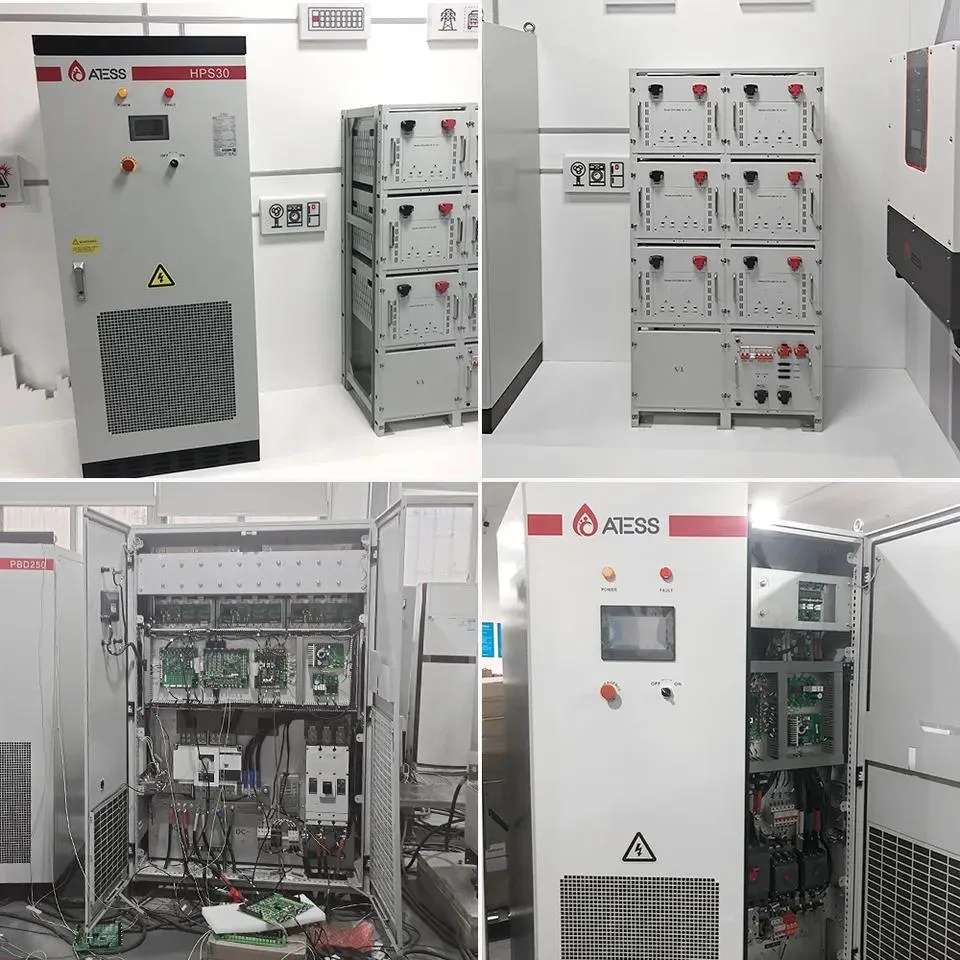

Project Case 1

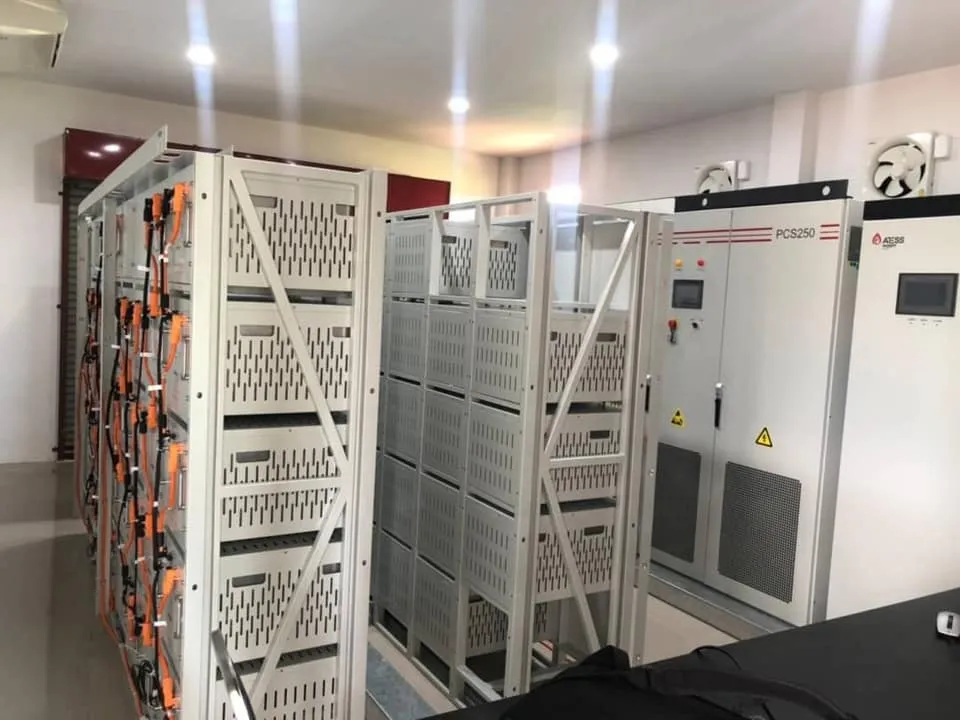

Project Case 2

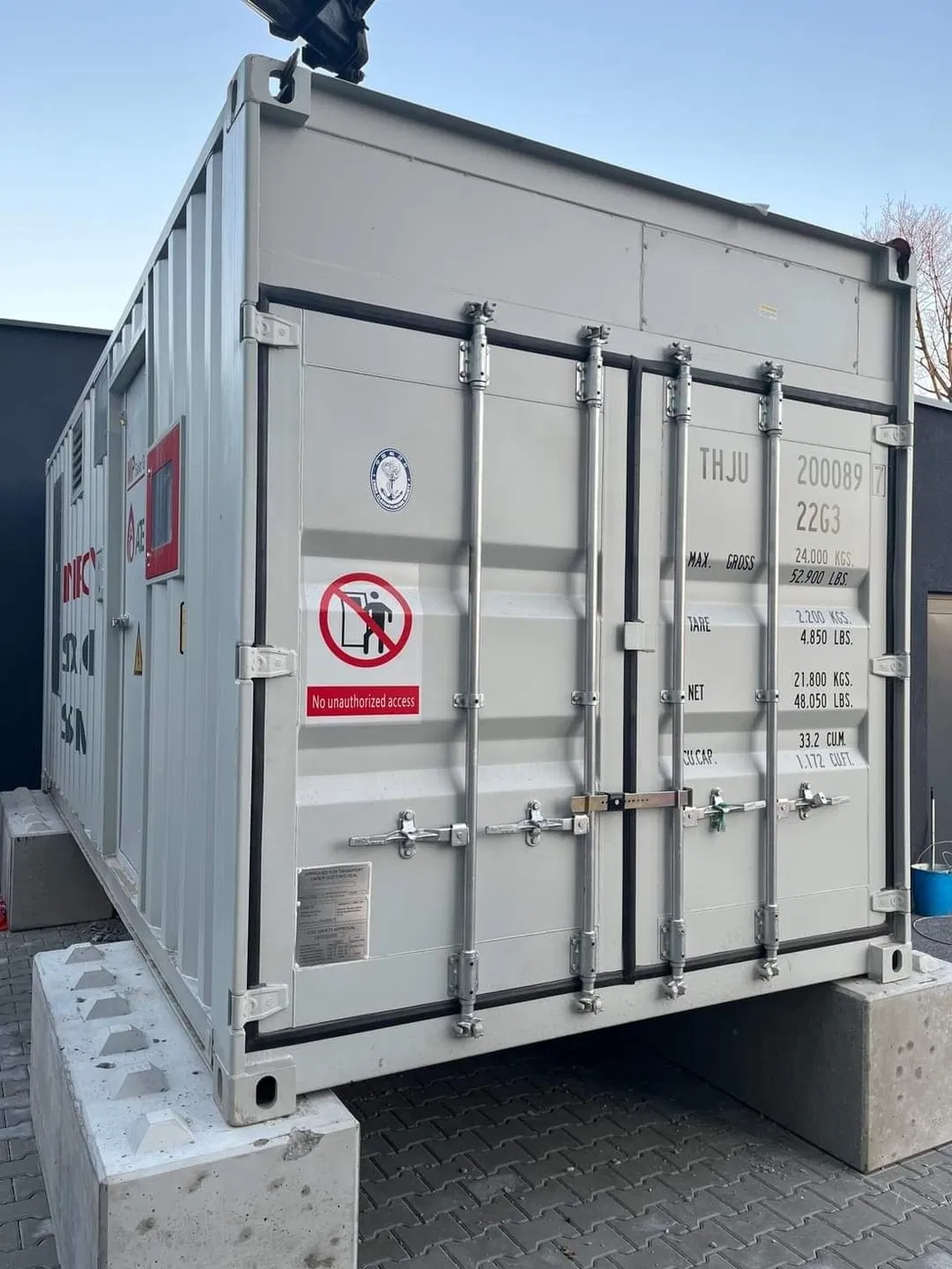

Installation 1

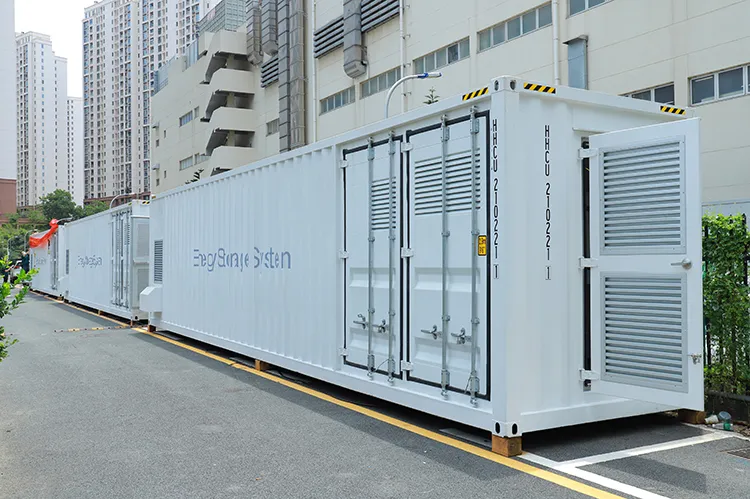

Installation 2

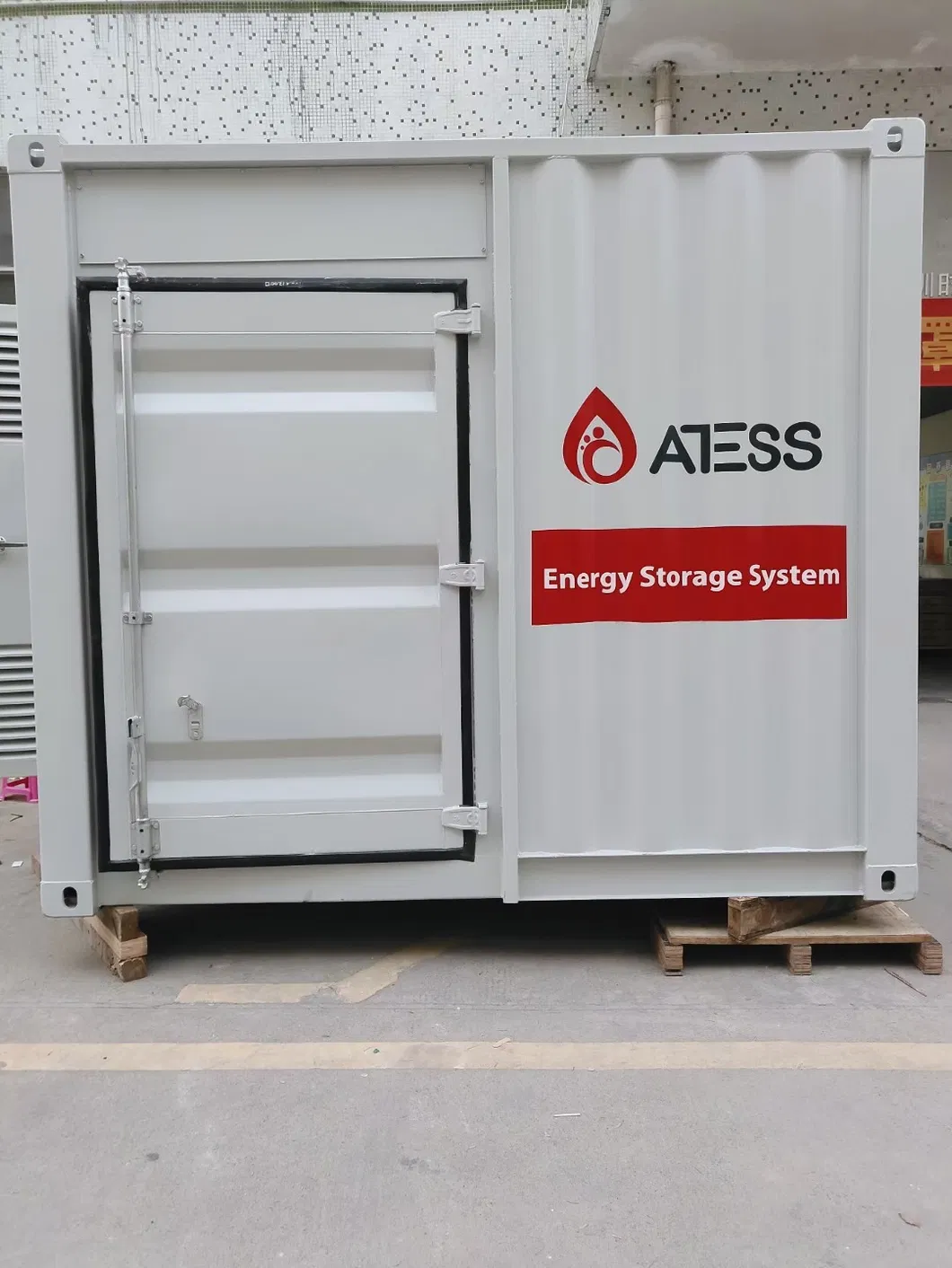

Installation 3
Production & Facilities

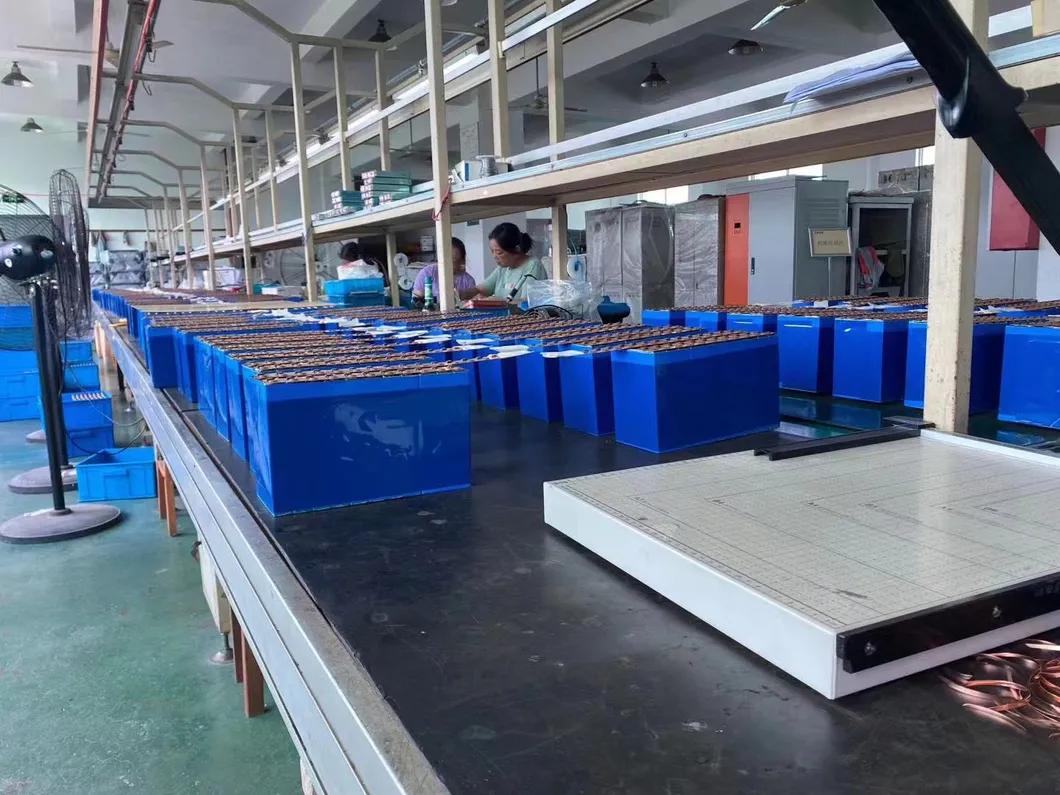

Factory View

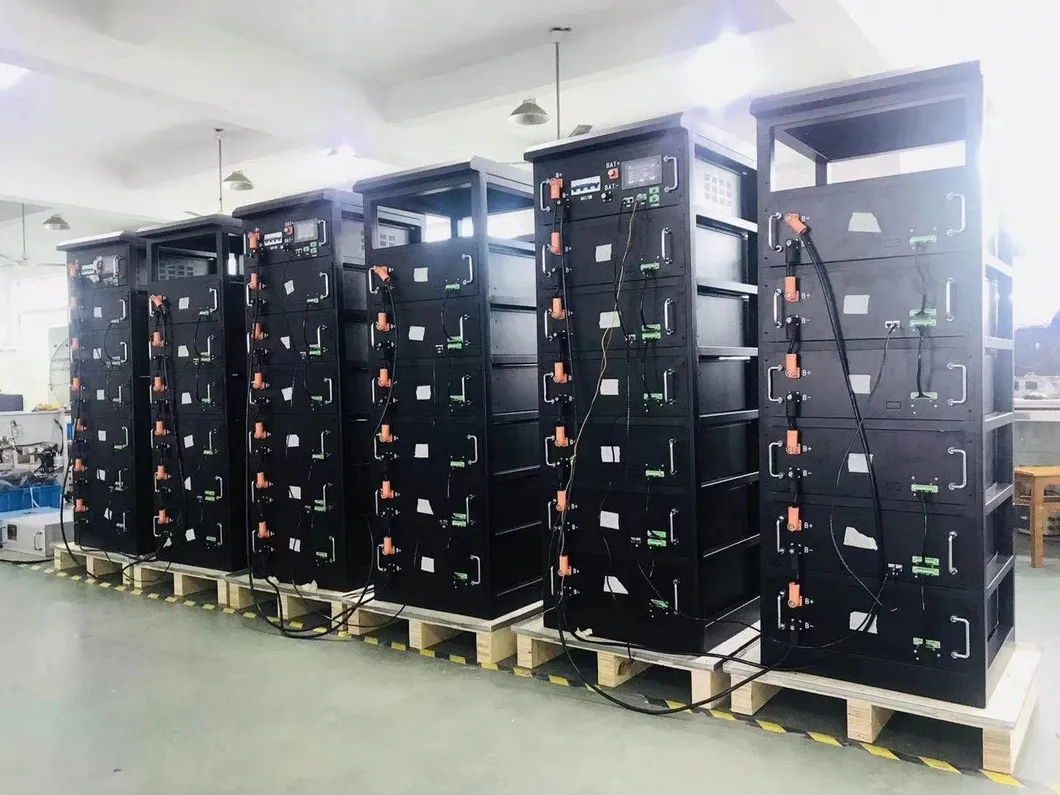

Production Line

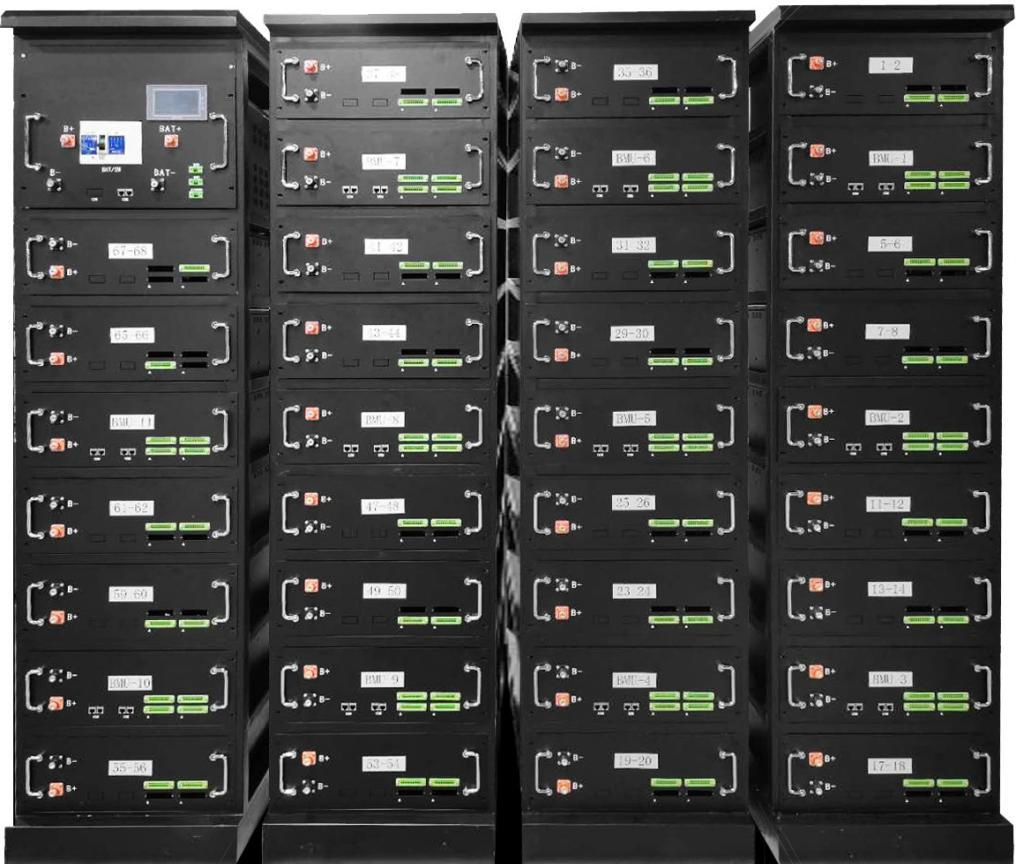

Testing Area

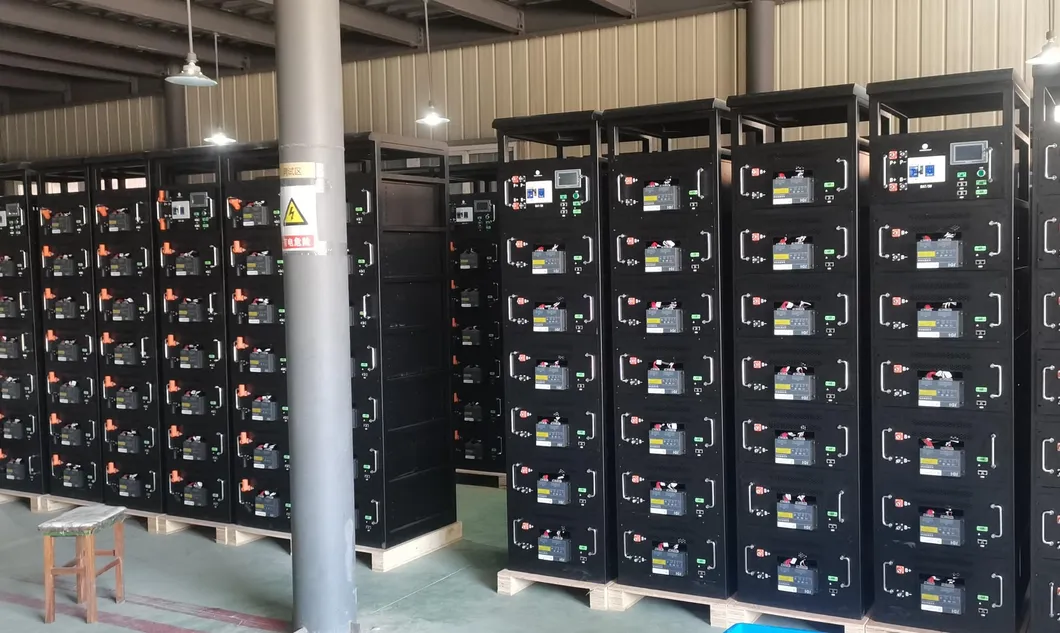

Warehouse

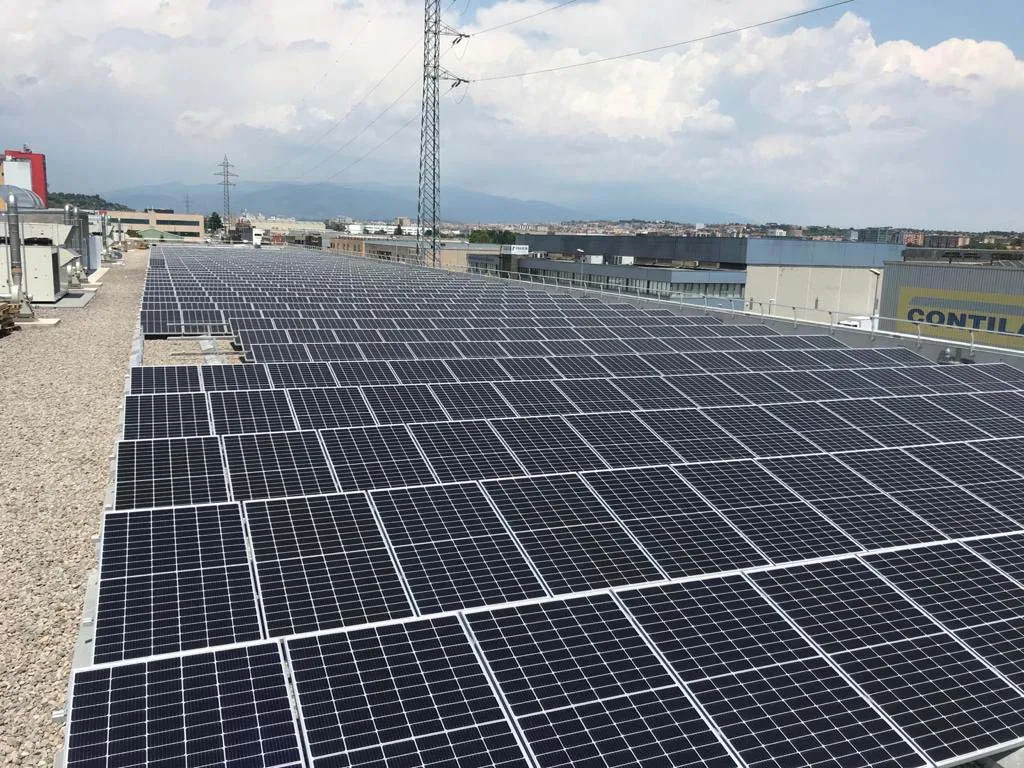

Quality Control
Frequently Asked Questions
What is the cycle life of this energy storage system?
The system utilizes LiFePO4 technology, offering over 6000 cycles at 80% Depth of Discharge (DoD), ensuring long-term reliability for over 10 years.
Can the voltage and capacity be customized?
Yes, we provide highly flexible customization. Voltages range from 96V to 1000V, and total energy capacity can be scaled from 50kWh up to 5MWh or more.
Is the BMS compatible with different inverters?
Absolutely. The 3-level control BMS can be customized to match your specific inverter protocol and is compatible with most industrial-grade inverters via CAN or RS485.
What are the safety and protection ratings?
The system features an IP21 protection level for standard installations and includes advanced fault detection for voltage, current, and temperature thresholds.
What kind of warranty is provided?
We provide a standard 5-year warranty on the battery system, backed by a production capacity of 800MW per year.
What applications is this ESS container suitable for?
It is ideal for large-scale solar energy systems, industrial peak-shaving, micro-grids, and backup power for commercial facilities.
